High-Performance Drone FPV Transmitter PCBA Solutions: Ushering in a New Era of Excellent Aerial Photography
Key Features of Our Drone FPV Transmitter PCBA Solutions

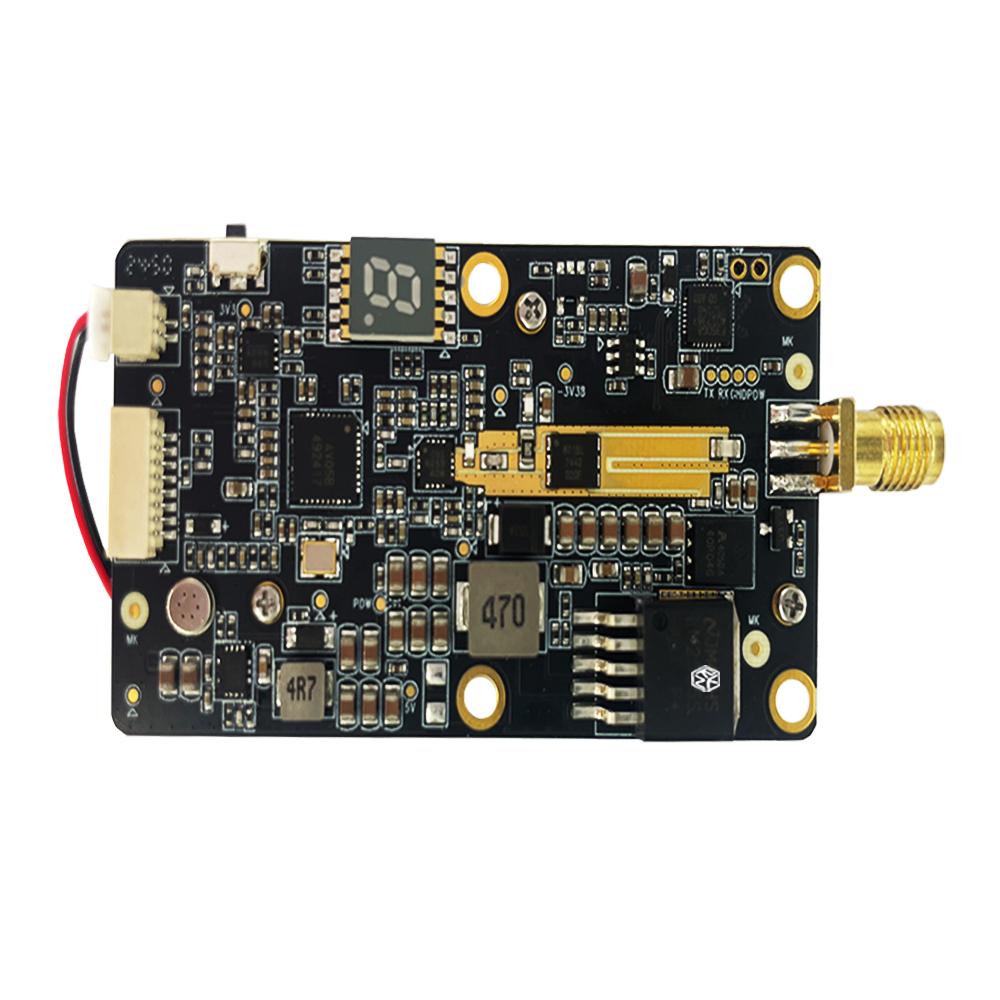

UAV FPV Launcher PCBA (Unmanned Aerial Vehicle First-Person View Transmitter PCB Assembly) is a critical component in the FPV (First-Person View) system of drones. It is responsible for processing and wirelessly transmitting video or image signals captured by the camera. The pilot can view the drone's perspective in real time through FPV goggles or a display screen. This component ensures video transmission quality and communication stability during flight, enhancing flight control accuracy and safety.
Technical Specifications
Operating Frequency: Common operating frequencies include 2.4GHz and 5.8GHz, each with distinct transmission characteristics and suitable applications in different flight conditions.
Output Power: Typically measured in milliwatts (mW) or decibel milliwatts (dBm). Higher output power increases transmission range but may also be subject to regulatory limits and cause interference with other devices.
Transmission Protocol: Supports various digital or analog transmission protocols, such as FatShark and ImmersionRC, with differences in image quality, latency, and compatibility.
Video Resolution: Can support video resolutions ranging from 720p to 4K, catering to different user preferences for video clarity.
Development and Innovation
We are committed to continuous research and development (R&D) to keep our drone FPV transmitter PCBA solutions at the forefront of the industry. Key areas of innovation include:
Signal Processing Optimization: Ongoing development to enhance the signal-to-noise ratio (SNR) for even clearer video feeds.
Advanced Power Management: Improved power efficiency techniques to extend battery life without compromising performance.
Enhanced Video Compression Algorithms: Development of advanced video compression methods to ensure smoother, higher-quality video feeds with less bandwidth consumption.
Quality Control and Testing
We maintain strict quality control throughout the production process to ensure each FPV transmitter PCBA meets the highest standards. Key quality assurance steps include:
Rigorous Component Testing: Every component used in the production of our transmitter PCBA is carefully tested to meet our durability and performance standards.

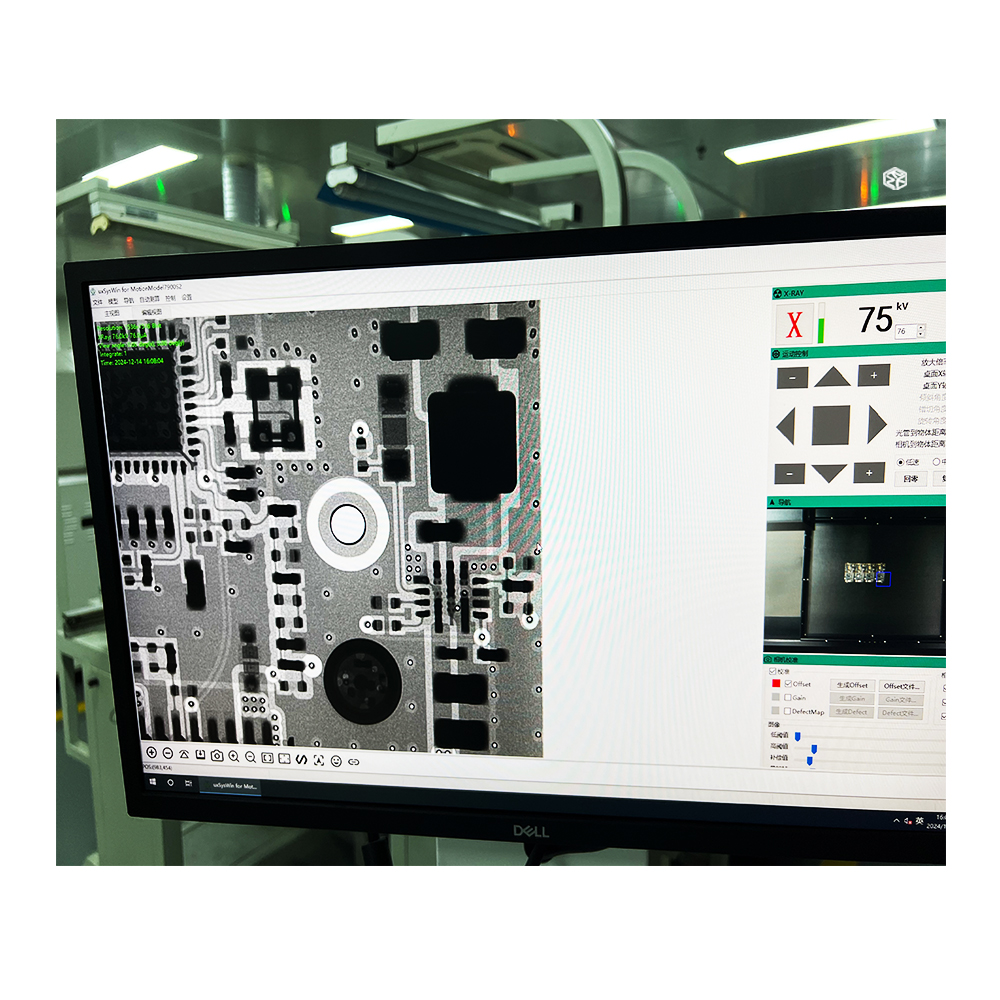

PCB Visual Inspection: Each board undergoes a thorough visual inspection to check for any defects, ensuring that all connections are soldered correctly and there are no short circuits or other issues.
Performance Testing: After assembly, each transmitter is subjected to real-world testing, including signal range and stability tests, to verify performance in a variety of flight conditions.
Compliance with Industry Standards: Our products comply with CE, FCC, and RoHS standards, ensuring safety and environmental responsibility.
Why Choose Our FPV Transmitter PCBA Solutions?
High-Power Transmission for Clear and Long-Distance Video Feeds

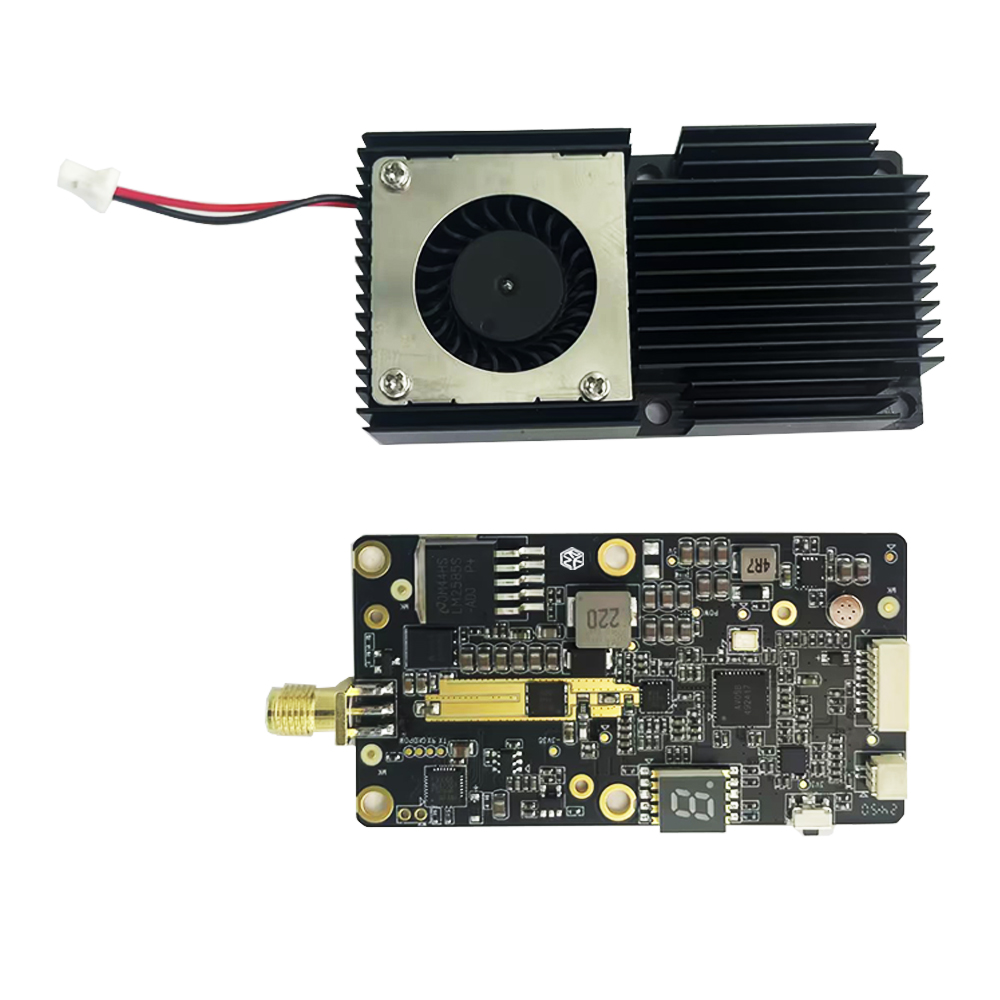

5W and 10W Transmission Power Options: Our 5W model is perfect for short-to-medium range operations, offering exceptional signal strength and video quality for recreational drones or smaller UAVs. For longer distances or more demanding industrial applications, the 10W model provides superior range and reliability, ensuring a robust video feed even at great distances.
Clear Video Transmission: The high power of our transmitters ensures a stable and clear video feed, even in environments with potential interference, such as urban areas with multiple radio signals. This makes our transmitters ideal for aerial photography, industrial inspections, and surveying.
Wide Frequency Range (1.2 GHz, 2.4 GHz, 5.8 GHz): We offer a wide range of frequency options, enabling our transmitters to work with most existing video receivers. The wide frequency range minimizes signal interference and ensures a stable connection for reliable video transmission.
Superior Signal Stability and Low-Latency Performance
Enhanced Signal Processing: Integrated advanced signal processing algorithms reduce noise and interference, ensuring that the video feed remains smooth and stable throughout the drone's flight. This makes the FPV video feed clearer, providing a superior flying experience for the operator.
Low-Latency Video: Our transmitters are designed to offer minimal latency, ensuring that the video feed is almost real-time. This is crucial for professional drone pilots and industrial applications that require precise control and immediate video feedback, such as search and rescue missions or live surveillance.
Interference Protection: We utilize advanced interference filtering technologies to ensure that your video feed remains clear, even when flying in areas with other electronic devices or competing radio signals. This makes our transmitters an excellent choice for long-range UAV missions.
Reliable, Durable Design for Harsh Conditions
Rugged, Durable PCB Construction: Our PCBA solutions are engineered with high-quality components and durable materials to withstand harsh conditions. Whether you're flying in extreme temperatures, high humidity, or windy environments, our transmitters are designed to perform under the most demanding circumstances.
Shock-Resistant and Vibration-Tolerant: Designed to endure the mechanical stresses associated with drone flights, our transmitters are built to resist damage caused by vibrations and impacts, making them ideal for industrial, professional, and recreational drone users.
Long-Term Durability: Each unit is tested for quality and longevity, ensuring that our FPV transmitters provide reliable video transmission for an extended period, minimizing the need for frequent maintenance or replacements.
Compact, Lightweight, and Easy to Integrate
Lightweight Design: We understand that weight is a crucial factor in drone performance. Our FPV transmitter PCBA solutions are lightweight and compact, meaning they won’t add excessive weight to your drone, ensuring the overall performance of the UAV isn’t compromised.
Space-Saving Integration: The small form factor of our transmitters allows for easy integration into a wide variety of drone platforms, without affecting the drone’s aerodynamics or payload capacity. This flexibility ensures compatibility with a wide range of drone designs.
Customizable Solutions for Specific Drone Needs
Custom PCB Designs: Our team offers customizable PCB solutions tailored to your drone’s specific power, size, and performance requirements. We provide flexible configurations to meet the needs of different UAV types, ensuring that our transmitters integrate seamlessly with your drone.
Scalable Options: Whether you're working with small drones or large industrial UAVs, our 5W and 10W transmitters can be tailored to meet your specific operational requirements. The scalability of our designs allows us to offer the right solution for both hobbyists and commercial users.
Global Certification for Safety and Compliance
CE, FCC, RoHS Compliance: Our FPV transmitter PCBA solutions are certified under CE, FCC, and RoHS standards, guaranteeing that our products comply with global safety regulations and environmental standards. This ensures that our transmitters are safe to use in various markets and comply with international quality norms.
Safety Features: Our transmitters come with built-in over-current and short-circuit protection, providing an extra layer of security during use, ensuring that your equipment and drone are protected during flight.
Frequently Asked Questions (FAQs)
What is the difference between the 5W and 10W models?
The 5W model is suitable for short to medium-range operations, while the 10W model offers enhanced range and stronger signal strength, making it ideal for long-distance video transmission and industrial applications.
Can I customize the PCB design for my drone system?
we offer custom PCB designs that can be tailored to your drone’s specific size, weight, and power requirements.
Do your FPV transmitters support HD video transmission?
Yes, our transmitters support HD video output, ensuring a high-definition, real-time video feed.
What kind of testing do you perform on your FPV transmitter PCBA?
We perform thorough visual inspections, signal range tests, and performance evaluations to ensure each unit meets our high standards before shipment.
Are your FPV transmitters compatible with all drones?
Our FPV transmitters are compatible with a wide variety of drones, from hobbyist models to industrial-grade UAVs. We also offer customization options for specific drone platforms.
Applications of Our FPV Transmitter PCBA for UAV Video Transmission
1. Aerial Photography and Videography
For aerial photography and videography, our FPV transmitters offer low-latency, high-resolution video transmission, ensuring smooth footage during flights. Perfect for commercial and professional use, providing clear and stable video feeds for real-time monitoring.
Ideal for real estate photography, event filming, media production, and other high-precision drone tasks.
Stable video transmission allows for capturing detailed images even at high altitudes or long distances.
2. Industrial Drone Inspections and Surveying
Our FPV transmitter PCBAs are commonly used in industrial inspections for oil and gas, construction, and telecommunications sectors. Real-time, long-range video feeds help operators perform inspections, monitor infrastructure, and collect data more efficiently.
Perfect for remote pipeline inspections, telecom tower monitoring, and environmental surveys.
Provides real-time video to help identify problems quickly and accurately, reducing downtime.
3. Search and Rescue Operations
In search and rescue missions, clear and uninterrupted video feeds are critical. Our FPV transmitters offer the high-quality transmission needed to provide real-time video feeds, helping teams make quicker, more informed decisions.
Used in challenging environments such as mountain rescues, coastal searches, or disaster response.
Ensures reliable video streaming for critical operations in areas difficult to access on foot.
4. Agricultural Drone Technology
For precision farming, our FPV transmitters provide the stable, high-resolution video needed for real-time monitoring of crops, livestock, and other agricultural assets. The low-latency video helps improve efficiency in farming operations.
Perfect for crop monitoring, pesticide spraying, and aerial surveying of large farms.
Ensures clear and detailed views of field conditions, allowing for better decision-making.
5. Drone Racing
In drone racing, low-latency and high-resolution video are essential for maintaining fast, accurate control of the drone. Our FPV transmitters are optimized for real-time, low-delay video transmission to enhance your racing experience.
Provides real-time video feeds to pilots, crucial for navigating fast-paced races.
Compatible with various racing drone configurations, supporting competitive leagues and amateur races.
Conclusion: Enhance Your UAV Video Transmission with Our FPV Transmitter PCBA Solutions
Our FPV Transmitter PCBA solutions are built to provide reliable, high-quality video transmission for various UAV applications. With options ranging from 5W to 15W, low-latency performance, and high-resolution video, our transmitters ensure that your drone’s video feed remains clear and stable, even in challenging environments.
Contact us today to learn how our FPV Transmitter PCBAs can enhance your UAV technology for industrial, recreational, and professional use.
