Fully Automated Wave Soldering Technology for PCB and PCBA Manufacturing
Fully Automated Wave Soldering Technology | Achieving High-Efficiency, High-Quality, and Eco-Friendly PCBA
Manufacturing
In the rapidly advancing field of electronics manufacturing, innovations in soldering technology have become the foundation for producing high-quality PCBA products. With increasing environmental regulations and demand for high-performance equipment, wave soldering has become a primary technique for various PCB and PCBA production needs. Our company is dedicated to delivering leading PCB and PCBA solutions with fully automated wave soldering systems and extensive industry expertise, providing unparalleled performance, efficiency, and environmental benefits to our clients.
Principles and Advantages of Wave Soldering
Wave soldering involves creating a “wave” of molten solder, through which the PCB and its through-hole components pass, forming solder joints. As part of our commitment to eco-friendly practices, we use lead-free “tin-silver-copper” alloys, reducing health risks and environmental impact while achieving high-quality soldering results.
- High-Efficiency Automated Production

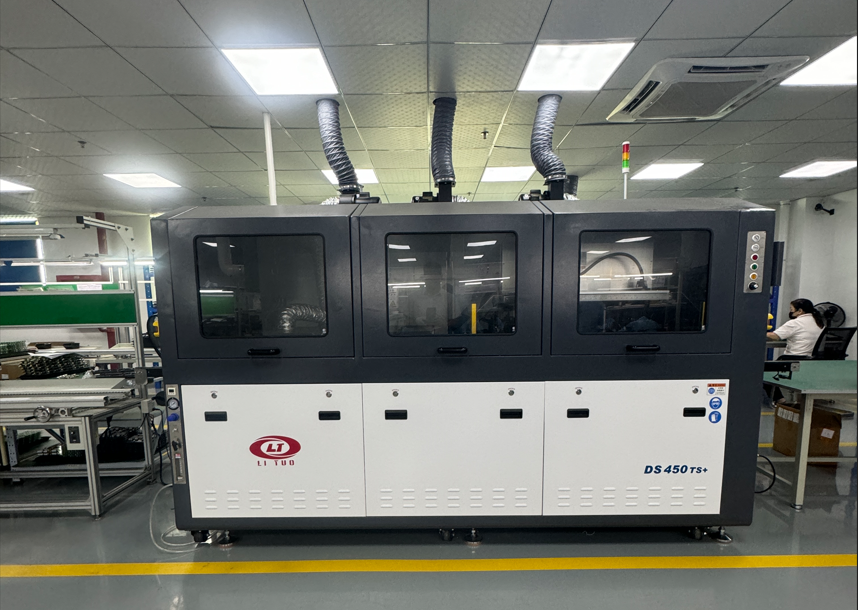

- Large-Scale Production Capability: Our fully automated wave soldering systems have an advanced level of automation, ideal for high-volume production demands. Automation reduces manual intervention, significantly increases production efficiency, and maintains consistent soldering quality.
- Large PCB Soldering Capacity: Our equipment supports a maximum PCB size of 550x650mm, enabling it to handle larger, more complex boards, making it suitable for applications in consumer electronics, telecommunications, medical devices, and automotive electronics.
- Precise Soldering Control: With automated soldering programs, our systems can precisely control soldering temperatures and speed, ensuring uniform quality across each PCB.
- Stable, High-Quality Solder Joints
- Excellent Thermal Conductivity: During wave soldering, the soldering surface of the PCB fully contacts the molten solder, providing outstanding thermal conductivity and ensuring uniformity and completeness of each solder joint.
- Reduced Soldering Defects: Through precise control and efficient temperature management, our equipment effectively minimizes common defects such as oxidation, cold soldering, and voids, enhancing the overall quality and ensuring reliable electrical connections and mechanical strength.
Eco-Friendly Lead-Free Soldering | Complying with International Standards
We use lead-free “tin-silver-copper” alloys for soldering, meeting environmental regulations like RoHS (Restriction of Hazardous Substances). Compared to traditional tin-lead solder, lead-free solder requires higher temperatures, which demands greater control and stability from the soldering equipment. Our automated wave soldering systems utilize specialized preheating technology to ensure high-quality lead-free soldering, allowing clients to meet environmental standards while maintaining high product reliability.
Applications Across Key Industries | Meeting Diverse Manufacturing Needs
Our fully automated wave soldering system is ideal for a wide range of applications, particularly in the following critical industries:
- Consumer Electronics: In products like household appliances and mobile phones, wave soldering is commonly used for through-hole and mixed technology assemblies. Our system ensures high-quality soldering with high-speed, batch production, meeting the performance demands of the consumer electronics sector.
- Automotive Electronics: Automotive electronics require exceptional durability and stability. Our precision wave soldering systems ensure soldering quality and robustness, meeting safety standards and reliability for applications like in-car entertainment, sensors, and control modules.
- Telecommunication Base Stations: Large, complex PCBs in base station equipment demand high strength and performance in soldering. Our equipment’s large-format capability and consistent quality make it ideal for the high demands of communication equipment PCB manufacturing.
- Medical Devices: Medical electronics require extreme reliability and stability. Our wave soldering process guarantees precise and durable soldering, suitable for various critical medical devices like heart monitors and glucose meters.
- Industrial Automation: In industrial control and automation equipment, PCBs need high interference resistance and long life. Our wave soldering technology ensures the solidity and reliability required for diverse industrial applications.
Technical Advantages and Client Benefits
- Reliability and Low Maintenance Costs: Our wave soldering equipment is engineered for durability, featuring a straightforward, stable transmission system that requires minimal maintenance, significantly reducing downtime and operational costs.
- Quality Control and Assurance: During wave soldering, our systems include intelligent monitoring features that continuously record and optimize parameters like temperature, speed, and soldering angles. This ensures each solder joint is uniform and robust, providing clients with exceptional soldering quality.
- Environmental and Safety Compliance: We strictly adhere to environmental regulations and ensure production meets lead-free process requirements, giving clients products with international competitiveness that satisfy global green manufacturing standards.
Our Commitment | Providing End-to-End PCBA Solutions

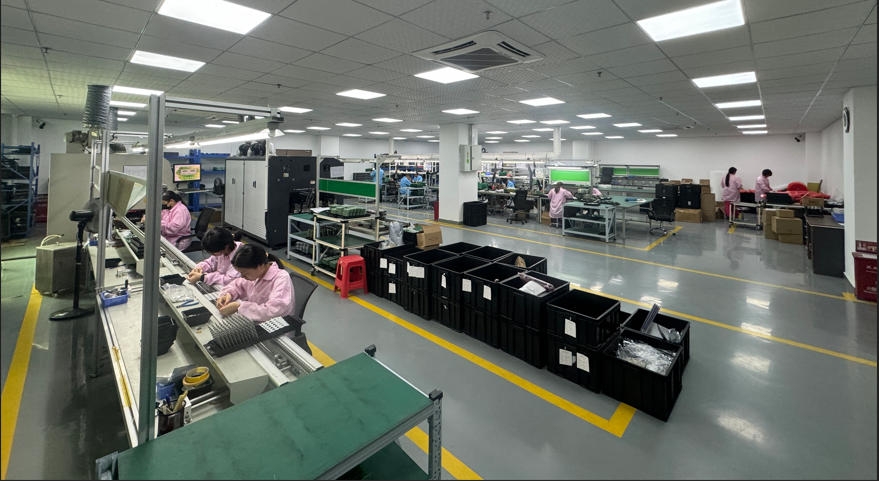

As a trusted supplier of high-quality PCB and PCBA products, we not only offer wave soldering technology but also a full suite of services from PCB design and component sourcing to complete soldering assembly. Our production facilities and expert team can tailor solutions to meet clients’ unique needs, supporting quality, cost efficiency, and delivery timelines.
Choose our fully automated wave soldering equipment and PCBA services to usher your manufacturing into an efficient, eco-friendly era. Through reliable soldering technology, we empower clients to stand out in the marketplace and meet the evolving standards of modern electronics manufacturing.
