ADAS Millimeter-Wave PCB: Core Design Challenges in 77GHz Automotive Radar Systems

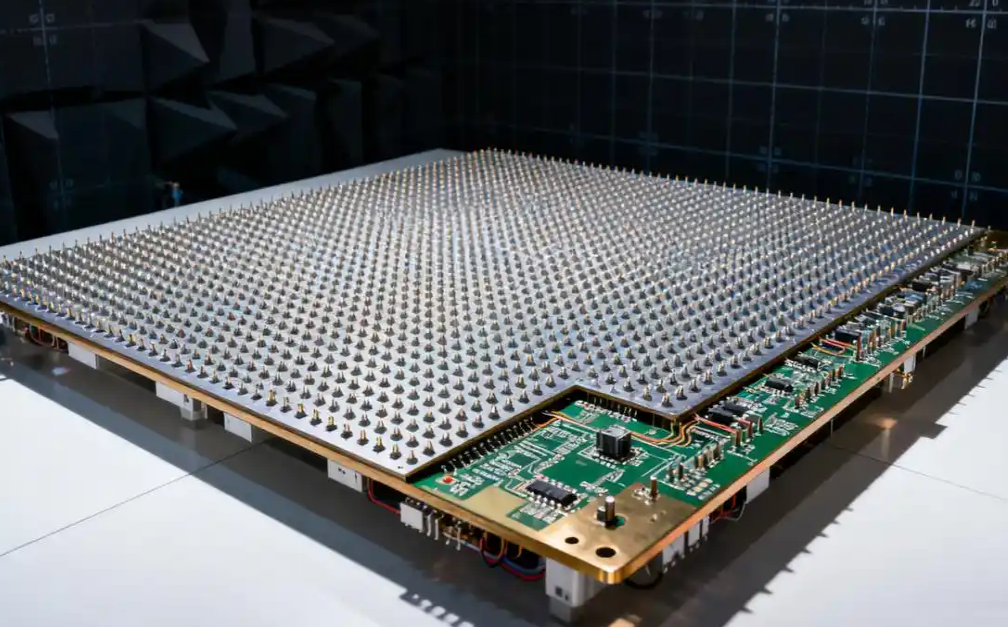

Why Is ADAS Driving Rapid Evolution in Millimeter-Wave PCB Technology?

As Advanced Driver Assistance Systems (ADAS) continue evolving toward autonomous driving, 77GHz and 79GHz millimeter-wave radar systems have become critical sensing technologies in modern vehicles.
Compared with conventional automotive electronics, ADAS millimeter-wave PCBs face far more demanding engineering requirements:
• Higher operating frequencies
• Lower insertion loss targets
• Complex RF and high-speed hybrid architectures
• Extreme automotive reliability standards
• Higher interconnect density in compact modules
Millimeter-wave radar directly impacts:
• Target detection range
• Angular resolution
• Beamforming accuracy
• Performance under rain and fog conditions
• High-speed driving safety
This means the PCB is no longer just an electrical carrier — it becomes a critical part of the RF system itself.

Why Is Insertion Loss So Difficult to Control in 77GHz Radar PCBs?

At 77GHz frequencies, even microscopic discontinuities inside the PCB structure become amplified.
Major insertion loss contributors include:
• Dielectric dissipation loss
• Copper surface roughness
• Via stub resonance
• Impedance discontinuity
• Lamination-induced Dk variation
At millimeter-wave frequencies:
• Skin effect becomes much stronger
• Electromagnetic fields become more concentrated
• RF energy leakage becomes easier
Even a few millimeters of routing inconsistency may cause:
• Return loss degradation
• Beam steering instability
• Phase mismatch
• Reduced radar detection distance
As a result, millimeter-wave PCB engineering is fundamentally about RF energy control rather than simple signal routing.

Why Does Material Selection Define the Performance Limit of Automotive Radar PCBs?

ADAS radar systems typically require low-loss RF laminates instead of standard FR-4 materials.
Key material requirements include:
• Low dielectric loss (Df)
• Stable dielectric constant (Dk)
• Low moisture absorption
• Excellent thermal stability
• Consistent RF performance across frequency bands
Engineering challenges include:
• Narrower manufacturing process windows
• Difficult hybrid lamination control
• Mechanical stress mismatch in mixed-material stackups
• Tradeoffs between copper adhesion and low RF loss
Automotive environments further complicate reliability due to:
• Thermal cycling
• Continuous vibration
• Humidity exposure
• Long-term operational aging
Maintaining RF consistency under these conditions is one of the biggest challenges in automotive radar PCB manufacturing.

Why Do Via Structures Severely Impact Millimeter-Wave Radar Performance?

In millimeter-wave PCBs, plated through holes (PTHs) and microvias become critical RF discontinuity points.
Major via-related issues include:
• Via stub resonance
• Return path interruption
• Signal reflection
• Phase instability
• Increased EMI radiation
At 77GHz frequencies, even the parasitic effect of a single via may alter the entire RF channel behavior.
This is why modern ADAS radar PCBs commonly use:
• Back-drilling
• HDI microvia structures
• Via fencing
• VIPPO technology
• Stacked microvias
These techniques are all designed to reduce RF energy loss during layer transitions.

Why Is the Antenna Area the Most Difficult Region in Radar PCB Design?

The antenna section is the most sensitive region of any ADAS millimeter-wave PCB.
This area functions not only as a signal routing structure, but also as:
• An RF radiation zone
• A phased-array control area
• A beamforming region
Critical engineering challenges include:
• Feedline length matching
• Phase consistency control
• Ground reference continuity
• Crosstalk suppression
• Material uniformity stability
At millimeter-wave frequencies, even micron-level dimensional deviations may influence:
• Beam direction
• Antenna gain
• Angular resolution
Therefore, manufacturing consistency becomes one of the most important requirements for automotive radar PCBs.

Why Are HDI and Microvia Technologies Essential for ADAS Radar PCBs?

As automotive radar modules become smaller and more integrated, traditional through-hole structures can no longer support the required routing density.
HDI technology provides:
• Shorter signal transition paths
• Lower parasitic inductance
• Higher routing density
• Reduced layer transition loss
• Improved high-frequency signal integrity
Modern automotive radar PCBs commonly adopt:
• Any-layer HDI
• Laser microvias
• Sequential lamination
• Stacked via structures
Learn more about advanced HDI manufacturing capability here:
Rich Full Joy HDI PCB Solutions

Real Engineering Case: 77GHz Automotive Radar PCB Optimization

A customer developing a 77GHz forward radar module experienced several RF performance issues during validation:
• Reduced detection distance
• Beamforming instability
• Excessive insertion loss
• Poor production consistency between batches
Engineering analysis identified multiple root causes:
• Excessive via stub length
• High copper surface roughness
• RF-to-digital layer coupling
• Unstable return current paths
Optimization measures included:
• Precision back-drilling
• Low-profile copper implementation
• RF stackup redesign
• Ground via fencing enhancement
• Differential phase matching optimization
Results after optimization:
• Approximately 21% insertion loss reduction
• Improved beam stability
• Increased radar sensing range
• Better RF consistency across production panels
• Successful thermal cycling reliability validation
This case demonstrates that millimeter-wave PCB challenges are rarely caused by a single factor — they are typically the result of coupled material, structural, process, and RF engineering interactions.

Why Does Thermal Management Directly Affect Radar PCB Reliability?

ADAS radar modules continuously operate under:
• High engine-compartment temperatures
• Summer sunlight exposure
• Thermal cycling environments
• Continuous vibration stress
Major thermal-related RF issues include:
• Dk drift under temperature
• Copper expansion mismatch
• Microvia fatigue cracking
• Solder joint reliability degradation
• Phase stability variation
In millimeter-wave systems, thermal drift affects not only reliability but also RF accuracy and beamforming consistency.
Therefore, automotive radar PCBs must simultaneously achieve:
• RF stability
• Thermal reliability
• Mechanical robustness

Why Is Manufacturing Millimeter-Wave PCBs More Difficult Than Standard PCBs?

The primary challenge in millimeter-wave PCB manufacturing is not only design complexity — it is production consistency.
Critical process controls include:
• High-frequency lamination stability
• Laser drilling precision
• Copper thickness uniformity
• Controlled impedance fabrication
• AOI and X-ray inspection
• RF electrical validation
At 77GHz frequencies, even tiny manufacturing deviations may cause:
• S-parameter degradation
• Impedance drift
• Phase mismatch
• Increased insertion loss
Millimeter-wave PCB manufacturing is therefore fundamentally a form of RF precision engineering.

Applications of ADAS Millimeter-Wave PCBs

Forward Collision Radar
Used for long-range object detection during high-speed driving.

Blind Spot Detection (BSD)
Enables side and rear object monitoring using radar sensing.

Automatic Emergency Braking (AEB)
Relies on stable radar performance for rapid obstacle detection.

Adaptive Cruise Control (ACC)
Continuously tracks vehicle distance and speed.

Automated Parking Systems
Uses short-range radar sensing for obstacle and spatial recognition.

L3/L4 Autonomous Driving Platforms
Require complex radar arrays with highly integrated RF PCB architectures.

Frequently Asked Questions (FAQ)

1. What is a millimeter-wave PCB?
A millimeter-wave PCB is a high-frequency PCB operating above approximately 30GHz for radar, satellite, and RF communication systems.

2. Why do automotive radar systems commonly use 77GHz?
77GHz provides higher resolution, smaller antenna size, and improved target detection capability.

3. Why is FR-4 unsuitable for millimeter-wave radar?
FR-4 has relatively high dielectric loss and unstable RF performance at millimeter-wave frequencies.

4. What is a via stub?
A via stub is the unused section of a via barrel that can create RF resonance and signal reflection.

5. Why is back-drilling important in radar PCBs?
Back-drilling removes via stubs and significantly improves insertion loss and return loss performance.

6. What is phase matching in RF PCB design?
Phase matching ensures equal electrical length between RF channels for stable beamforming performance.

7. Why is copper roughness critical at 77GHz?
High-frequency current flows primarily on the copper surface, making rough copper increase conductor loss.

8. Why is HDI technology important for ADAS radar systems?
HDI reduces transition distance, improves routing density, and enhances RF signal integrity.

9. Why is manufacturing consistency difficult in millimeter-wave PCBs?
Because GHz/mmWave frequencies are extremely sensitive to dimensional, material, and process variation.

10. How is RF performance validated in radar PCBs?
Through VNA testing, TDR analysis, S-parameter evaluation, and full-wave electromagnetic simulation.

Conclusion: ADAS Millimeter-Wave PCB Has Entered the Era of RF Precision Engineering

As autonomous driving and advanced ADAS systems continue evolving, millimeter-wave PCBs are transforming from conventional electronic carriers into critical RF performance platforms.
The primary challenges are no longer simple routing tasks, but:
• Insertion loss control
• Phase stability
• RF consistency
• Thermal reliability
• Manufacturing scalability
Future automotive radar PCBs will increasingly depend on:
• HDI microvia technology
• Low-loss RF materials
• RF co-simulation engineering
• Precision manufacturing control
• High-frequency reliability validation
Only PCB manufacturers with deep RF engineering expertise and advanced high-frequency manufacturing capability can meet the demands of next-generation ADAS and autonomous driving systems.
