Aerospace RF PCB Reliability Design Under Vibration and Temperature Cycling Conditions
Why Reliability Is the Core Challenge in Aerospace RF PCB Systems
Modern aerospace RF PCB and PCBA systems operate in some of the harshest environments in the electronics industry.
Unlike commercial communication products, aerospace electronic systems must maintain stable RF performance under:
• Continuous vibration
• Rapid thermal cycling
• High-altitude pressure variation
• Mechanical shock
• Long-duration operational stress
• Extreme environmental exposure
These conditions directly affect:
• Signal integrity
• RF phase stability
• Solder joint reliability
• Interconnect durability
• Antenna consistency
• Long-term PCB structural stability
For aerospace systems such as:
• Satellite communication modules
• Airborne radar systems
• Electronic warfare equipment
• Flight control RF systems
• Phased-array antenna platforms
• Spaceborne communication hardware
PCB reliability is not simply a manufacturing target — it becomes a mission-critical engineering requirement.
As RF frequencies continue moving toward microwave and millimeter-wave bands, aerospace PCB reliability design has become increasingly dependent on the integration of:
• Material science
• Mechanical engineering
• Thermal engineering
• RF simulation
• Precision PCB fabrication
• Aerospace-grade PCBA assembly control

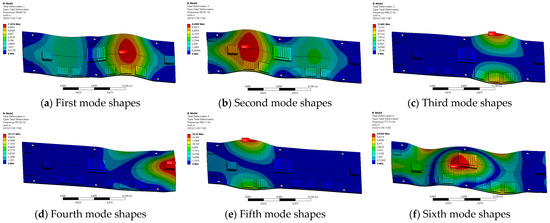

Why Vibration Is So Dangerous for Aerospace RF PCB Assemblies
Vibration is one of the most destructive stress factors in aerospace electronics.
Aircraft engines, rocket launch systems, airborne radar platforms, and satellite deployment environments continuously generate:
• High-frequency mechanical vibration
• Dynamic acceleration stress
• Structural resonance
• Cyclic mechanical fatigue
These forces may cause:
• Micro-cracks inside vias
• Solder joint fatigue
• Connector instability
• Delamination between PCB layers
• RF grounding discontinuity
• Phase instability in RF channels
In high-frequency aerospace RF PCB systems, even microscopic structural changes may significantly alter:
• Controlled impedance
• Insertion loss
• RF phase matching
• Electromagnetic field distribution
This is especially critical in phased-array radar systems where multiple RF channels must remain highly synchronized.
Why Thermal Cycling Severely Impacts RF PCB Reliability
Aerospace RF PCB systems often experience rapid temperature transitions during operation.
Typical conditions include:
• Ground-to-altitude thermal transitions
• Solar radiation heating in space
• High-power RF thermal loading
• Cryogenic environmental exposure
• Continuous day/night thermal cycling
These temperature variations create mechanical stress due to:
• Copper expansion mismatch
• Resin shrinkage
• Laminate CTE variation
• Solder joint fatigue accumulation
Common thermal cycling failure modes include:
• Via barrel cracking
• Layer separation
• RF grounding instability
• Solder fatigue failure
• Material warpage
• Phase drift in RF circuits
At microwave and millimeter-wave frequencies, thermal instability may directly degrade:
• Beamforming accuracy
• Antenna efficiency
• Radar sensitivity
• Communication reliability
This is why thermal reliability engineering is fundamental in aerospace RF PCB design.
Why Material Selection Determines Aerospace RF PCB Reliability
Material selection is one of the most critical decisions in aerospace RF PCB engineering.
Aerospace RF laminates must simultaneously provide:
• Low insertion loss
• Stable dielectric constant (Dk)
• Low thermal expansion
• Excellent mechanical stability
• Long-term environmental durability
Common aerospace RF PCB materials include:
• Low-loss hydrocarbon ceramic laminates
• PTFE-based microwave materials
• High-reliability hybrid stackups
• High-Tg aerospace laminates
Critical material considerations include:
• Coefficient of thermal expansion (CTE)
• Moisture absorption
• Thermal conductivity
• RF dielectric stability
• Mechanical fatigue resistance
Improper material selection may accelerate:
• Delamination
• RF performance drift
• Via fatigue failure
• Long-term reliability degradation
Therefore, aerospace RF PCB manufacturing requires close integration between RF engineering and reliability engineering.

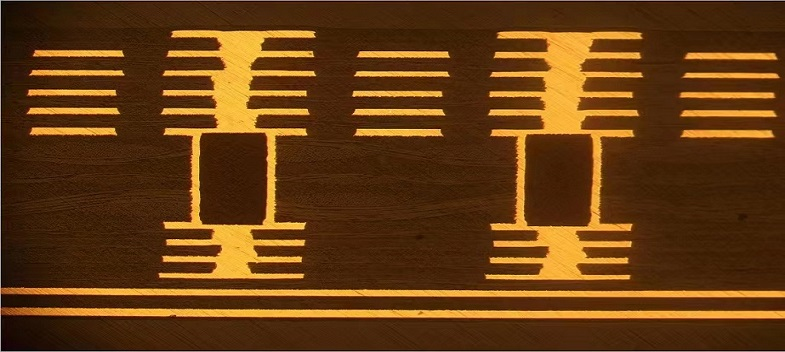

Why HDI and Microvia Structures Require Special Reliability Control
Modern aerospace RF PCB systems increasingly use HDI technology to support:
• Dense RF routing
• Compact communication modules
• Lightweight electronic systems
• High-speed signal integration
However, HDI structures introduce additional reliability risks under vibration and thermal cycling conditions.
Potential failure mechanisms include:
• Microvia cracking
• Copper fatigue
• Resin separation
• Sequential lamination stress concentration
• Via interface delamination
To improve reliability, aerospace PCB manufacturers commonly implement:
• Staggered microvia structures
• Optimized copper filling processes
• Controlled lamination cycles
• Back-drilling optimization
• Reinforced grounding structures
Advanced HDI process control is essential for maintaining both:
• Mechanical durability
• RF electrical consistency
Learn more about advanced HDI PCB capability here:
Rich Full Joy HDI PCB Solutions
Why Controlled Impedance Stability Is Difficult under Mechanical Stress
Controlled impedance is highly sensitive to physical geometry variation.
Under vibration and thermal cycling conditions, small structural deformation may alter:
• Trace width
• Dielectric spacing
• Via geometry
• Ground reference continuity
This may result in:
• Impedance drift
• Signal reflection
• Increased insertion loss
• RF phase instability
• Differential skew
In aerospace RF PCBAs operating above GHz frequencies, these changes may significantly affect:
• Radar signal processing
• Communication link stability
• Antenna synchronization
• Navigation system accuracy
Therefore, aerospace PCB design must consider both:
• Static RF performance
• Dynamic environmental stress behavior
Why Thermal Management Is Critical in Aerospace RF Systems
High-power aerospace RF systems generate substantial heat during operation.
Major heat sources include:
• RF power amplifiers
• Beamforming ICs
• Radar processing units
• High-speed communication processors
Poor thermal management may cause:
• Localized overheating
• Material degradation
• Dk instability
• RF signal drift
• Accelerated solder fatigue
Modern aerospace PCB and PCBA systems therefore use:
• Heavy copper thermal planes
• Thermal vias
• Heat spreaders
• RF shielding structures
• Low-CTE thermal interface materials
Proper thermal design helps maintain:
• Long-term RF consistency
• Mechanical stability
• Mission reliability
Real Engineering Case: Aerospace Radar RF PCB Reliability Optimization
A customer developing an airborne X-band radar PCBA experienced repeated RF instability after environmental qualification testing.
Observed problems included:
• RF phase drift during vibration testing
• Increased insertion loss after thermal cycling
• Microvia cracking near BGA regions
• Antenna channel inconsistency
Engineering investigation identified several root causes:
• Excessive CTE mismatch in hybrid stackup
• Weak grounding continuity around RF transitions
• Stress concentration in stacked microvias
• Uneven thermal distribution beneath RF power modules
Optimization measures included:
• Redesigning the RF multilayer stackup
• Replacing stacked vias with staggered microvias
• Enhancing ground via density
• Optimizing thermal copper balancing
• Improving controlled impedance compensation
Results after optimization:
• RF phase stability improved significantly
• Thermal cycling reliability passed extended qualification testing
• Vibration resistance improved
• Insertion loss consistency stabilized
• Production yield and PCBA reliability increased substantially
This case demonstrates that aerospace RF PCB reliability depends on the interaction between:
• RF design
• Mechanical engineering
• Thermal control
• Material selection
• PCB fabrication precision
• PCBA assembly quality
Why Aerospace PCB Manufacturing Requires Extreme Process Control
Aerospace RF PCB manufacturing requires much tighter process control than standard commercial PCB production.
Critical aerospace manufacturing controls include:
• Precise lamination pressure management
• Controlled impedance verification
• X-ray inspection of microvias
• AOI trace geometry validation
• Thermal stress testing
• Vibration reliability simulation
• RF electrical validation using VNA systems
Even small fabrication deviations may affect:
• RF consistency
• Structural reliability
• Thermal fatigue resistance
• Long-term mission stability
This is why aerospace PCB manufacturing is fundamentally a precision reliability engineering discipline.
Applications of Aerospace RF PCB and PCBA Systems
Airborne Radar Systems
Require highly stable RF performance under continuous vibration and thermal stress.
Satellite Communication Modules
Depend on low-loss microwave PCB structures with long-term environmental durability.
Electronic Warfare Systems
Require stable signal integrity across complex RF multilayer PCB architectures.
Aerospace Navigation Systems
Need reliable RF synchronization and controlled impedance stability.
Spaceborne Communication Platforms
Operate under extreme thermal cycling and radiation exposure conditions.
Phased-Array Antenna Systems
Require highly consistent RF channels for beamforming accuracy.
Frequently Asked Questions (FAQ)
1. What makes aerospace RF PCB design different from standard PCB design?
Aerospace RF PCBs must maintain stable performance under extreme vibration, temperature cycling, and environmental stress.
2. Why is vibration dangerous for RF PCB assemblies?
Vibration may cause via cracking, solder fatigue, grounding instability, and RF phase inconsistency.
3. How does thermal cycling affect RF PCB reliability?
Repeated expansion and contraction may create mechanical fatigue and RF performance drift.
4. Why are low-CTE materials important in aerospace PCBs?
They reduce mechanical stress caused by thermal expansion mismatch.
5. What role do microvias play in aerospace RF PCB reliability?
Improper microvia design may lead to fatigue cracking under cyclic stress.
6. Why is controlled impedance stability critical in aerospace systems?
Impedance drift may degrade radar accuracy and communication reliability.
7. How does thermal management improve aerospace RF PCB reliability?
It reduces overheating, material degradation, and RF signal instability.
8. Why is HDI technology widely used in aerospace RF systems?
HDI enables compact, lightweight, high-density RF routing structures.
9. How is aerospace RF PCB reliability validated?
Through vibration testing, thermal cycling, X-ray inspection, RF testing, and environmental qualification.
10. Which aerospace applications require high-reliability RF PCBAs?
Radar systems, satellite communication hardware, navigation systems, and electronic warfare platforms.
Conclusion: Aerospace RF PCB Reliability Requires Multi-Disciplinary Engineering
As aerospace communication and radar systems continue evolving toward:
• Higher frequencies
• Greater integration density
• More compact electronic architectures
• Longer mission lifecycles
RF PCB reliability has become one of the most critical engineering challenges in aerospace electronics.
Reliable aerospace RF PCB and PCBA systems require coordinated optimization across:
• RF engineering
• Mechanical reliability
• Thermal management
• Material science
• HDI fabrication
• Precision PCB manufacturing
• Aerospace-grade PCBA assembly
Future aerospace RF systems will increasingly depend on:
• Advanced simulation-driven design
• High-reliability HDI structures
• Low-loss RF materials
• Precision manufacturing automation
• Environmental stress validation
Only manufacturers with deep RF expertise and aerospace-grade reliability engineering capability can consistently deliver stable, mission-critical RF PCB solutions.
Why Choose Rich Full Joy for Aerospace RF PCB and PCBA Manufacturing?
Rich Full Joy specializes in:
• Aerospace RF PCB manufacturing
• High-frequency microwave PCB fabrication
• RF PCB assembly (PCBA) solutions
• Controlled impedance engineering
• HDI and microvia technology
• Thermal and vibration reliability optimization
• High-reliability aerospace electronics production
We help customers transform complex aerospace RF designs into:
• Scalable
• High-consistency
• High-reliability
• Mission-ready
next-generation aerospace PCB and PCBA solutions for radar, satellite communication, and advanced RF systems.
