Automotive Radar (77 GHz) High-Frequency PCB Factory for ADAS

2026-04-10

Why 77 GHz High-Frequency PCBs Are Critical for Automotive ADAS

Automotive radar operating at 77 GHz is the backbone of ADAS (Advanced Driver Assistance Systems). Accurate object detection, adaptive cruise control, and collision avoidance require high-frequency PCBs with low loss, precise impedance, and exceptional reliability.
A high-frequency PCB manufacturer delivering 77 GHz automotive radar boards ensures:
• Minimal insertion loss for millimeter-wave signals
• Stable dielectric constant across temperature and frequency
• Low phase variation for beamforming arrays
• Robust thermal and mechanical performance
Proper engineering enables ADAS modules to function reliably in diverse environmental conditions.

High-Frequency Materials for Automotive Radar PCBs

77 GHz automotive radar PCBs rely on low-loss, high-frequency laminates:
Rogers 5880 PCB or PTFE-based materials for ultra-low Df
• Controlled Dk for minimal signal distortion
• Stable TCDk for temperature-insensitive phase shift
Engineering considerations include:
• High-precision copper roughness control
• Laminates compatible with HDI and microvia structures
• Low moisture absorption for automotive environmental resilience
A professional RF PCB manufacturer ensures consistent material quality to maintain mmWave performance across production lots.

Controlled Impedance and Signal Integrity in 77 GHz Automotive Radar

At 77 GHz, even minor deviations in trace geometry or dielectric thickness affect signal integrity. A qualified high-frequency PCB manufacturer ensures:
• Impedance tolerance within ±5%
• Differential pair length matching
• TDR and VNA-based verification
Precise stackup planning and microvia design are crucial for minimizing reflection, insertion loss, and beamforming errors in ADAS radar systems.

Microvia Structures and HDI Techniques for Millimeter-Wave Radar

High-density routing for 77 GHz radar modules requires HDI techniques:
• Laser-drilled microvias for high pin-count ICs

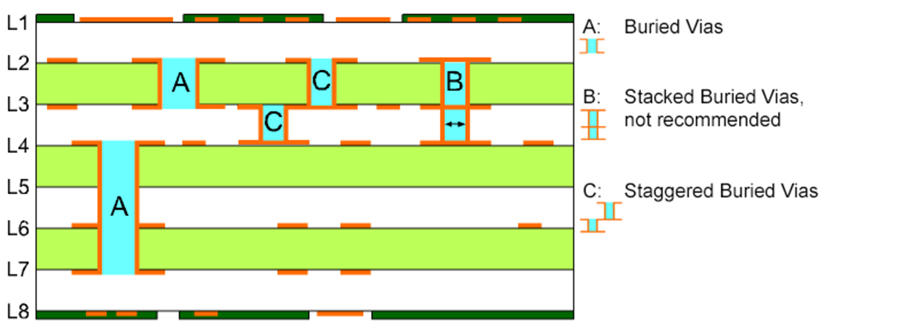

• Blind/buried vias to optimize layer transitions
• VIPPO (via-in-pad plated over) for pad connectivity
Engineering benefits:
• Reduced parasitic inductance and capacitance
• Preserved signal integrity at mmWave frequencies
• Compact layout for radar arrays and sensor modules
These technologies are essential for accurate detection and high reliability in automotive environments.

Thermal Management and Reliability in Automotive Radar PCBs

Automotive radar modules operate in extreme conditions:
• Temperature ranges: −40°C to +125°C
• Vibration and shock from driving environments
• Continuous high-speed signal operation
A professional high-frequency PCB manufacturer implements:
• Thermal vias and copper plane optimization
• Low CTE laminates to reduce warpage
• Rigorous thermal cycling and mechanical stress testing
This ensures long-term ADAS reliability in demanding automotive environments.

Manufacturing Process Control: 77 GHz Radar PCB Production

Producing 77 GHz automotive radar PCBs requires precision at every stage:
• Layer alignment and lamination with micron-level accuracy
• Controlled microvia drilling and plating
• AOI and X-ray inspection for embedded components
• Electrical testing of impedance, insertion loss, and phase
A true high-frequency PCB factory ensures repeatable mmWave performance from prototype to volume production.

Applications: 77 GHz Automotive Radar PCBs for ADAS

Applications include:
• Adaptive cruise control modules
• Collision avoidance and lane detection sensors
• Blind-spot monitoring and object recognition
• Autonomous vehicle sensor arrays
Each application requires ultra-low-loss traces, controlled impedance, microvia reliability, and thermal robustness. A skilled high-frequency PCB manufacturer ensures consistent ADAS performance.

What Defines a 77 GHz Automotive Radar PCB Factory

A leading 77 GHz automotive radar PCB manufacturer combines:
• Deep expertise in mmWave signal physics
• Advanced HDI, microvia, and VIPPO fabrication
• Full QA and electrical validation systems
• Engineering support for prototyping and design verification
This ensures ADAS radar PCBs meet automotive safety and performance standards consistently.

FAQ: Automotive Radar 77 GHz PCB Manufacturing for ADAS

1. Why use 77 GHz PCBs for ADAS?
77 GHz enables high-resolution radar sensing for accurate object detection in autonomous driving.

2. What materials are best for mmWave automotive PCBs?
Low-loss laminates like Rogers 5880 or PTFE-based materials provide minimal insertion loss and stable Dk.

3. How is impedance controlled at 77 GHz?
Through precise stackup design, trace width optimization, and TDR/VNA validation.

4. Why are microvias critical?
They reduce parasitic inductance and maintain signal integrity in high-density radar modules.

5. What thermal management is used?
Thermal vias, optimized copper planes, and low-CTE materials ensure stability in automotive environments.

6. How is reliability tested?
Thermal cycling, mechanical vibration, moisture, and CAF testing validate long-term performance.

7. What is VIPPO in radar PCBs?
Via-in-pad plated over for high-density connectivity and low signal reflection.

8. How many layers do typical radar PCBs have?
High-frequency radar boards often have 8–16 layers, including embedded power and signal planes.

9. Can embedded passives be integrated?
Yes, resistors and capacitors can be embedded to improve signal integrity and reduce footprint.

10. How is EMI minimized?
Careful layer sequencing, shielding, and controlled impedance design reduce electromagnetic interference.

11. Are 77 GHz PCBs compatible with automotive standards?
Yes, when manufactured with ISO/TS compliance, thermal stress testing, and vibration certification.

12. How is signal integrity verified?
Using TDR, VNA measurements, and high-frequency simulations for phase and amplitude accuracy.

13. What industries use 77 GHz automotive PCBs?
ADAS, autonomous vehicles, robotics, and automotive radar systems.

14. Why choose a specialized 77 GHz PCB factory?
Expertise ensures mmWave signal integrity, thermal reliability, and compliance with automotive requirements.

15. How is insertion loss minimized?
Through low-loss laminate selection, precise trace design, and controlled fabrication processes.

Partner with a 77 GHz Automotive Radar High-Frequency PCB Factory

77 GHz radar PCBs are critical for ADAS reliability, signal fidelity, and autonomous driving safety. From material selection to HDI microvia fabrication and process validation, an engineering-focused high-frequency PCB manufacturer ensures optimal performance in automotive environments.
