How to Minimize Crosstalk in Multilayer RF Boards
Why Crosstalk Is Becoming a Critical Problem in Modern RF PCB and PCBA Systems
As modern communication systems continue evolving toward higher frequencies and denser integration, crosstalk has become one of the biggest signal integrity challenges in multilayer RF PCB and PCBA design.
In traditional low-speed electronic products, small electromagnetic interference between traces may not significantly affect system functionality. However, in high-frequency RF PCB systems operating at GHz and millimeter-wave frequencies, electromagnetic coupling directly impacts:
• Signal integrity
• Antenna performance
• Beamforming stability
• Differential pair accuracy
• EMI performance
• Overall RF system reliability
This problem becomes even more severe in compact PCBA assemblies where:
• RF modules
• High-speed digital circuits
• Power management circuits
• Antenna feed networks
must coexist inside increasingly smaller layouts.
Applications highly sensitive to RF crosstalk include:
• 5G base station PCBAs
• Automotive radar modules
• Aerospace RF electronics
• Satellite communication systems
• AI server high-speed backplanes
• Microwave antenna arrays
In these systems, crosstalk is no longer just a PCB layout issue — it becomes a complete RF engineering and manufacturing challenge.
What Causes Crosstalk in Multilayer RF PCB Designs?
Crosstalk occurs when electromagnetic energy unintentionally couples from one signal path into another nearby conductor.
In multilayer RF PCB structures, the main causes include:
• Parallel RF trace routing
• Poor stackup planning
• Incomplete ground reference planes
• Dense via transitions
• Differential pair imbalance
• Inadequate shielding between RF and digital domains
At high frequencies, traces behave like electromagnetic transmission structures rather than simple copper conductors.
This means even traces separated by several millimeters may still interact electromagnetically.
In complex RF PCB assembly environments, additional coupling may also occur through:
• Connector transitions
• BGA escape routing
• High-speed mezzanine interfaces
• Antenna feed structures
• Shielding can discontinuities
As frequencies increase beyond 24GHz and 77GHz radar bands, controlling electromagnetic field behavior becomes essential.

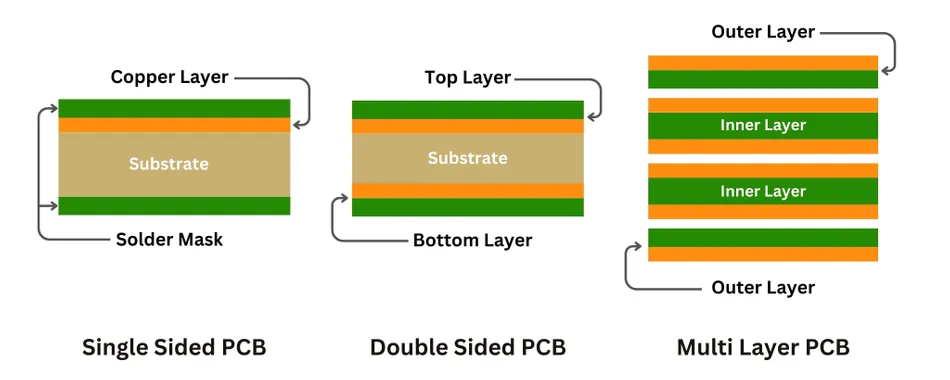

Why PCB Stackup Design Directly Determines Crosstalk Performance
PCB stackup engineering is one of the most important methods for reducing RF crosstalk.
A properly designed RF multilayer PCB stackup helps:
• Stabilize return current paths
• Reduce electromagnetic field leakage
• Improve RF isolation
• Suppress EMI radiation
• Maintain controlled impedance
Effective RF stackup strategies include:
• Dedicated RF ground layers
• Separation between RF and digital layers
• Symmetrical multilayer structures
• Controlled dielectric thickness
• Hybrid RF material stackups
For example, many high-frequency PCB manufacturers combine:
• Low-loss RF laminates for RF layers
• FR-4 materials for digital/control layers
to balance:
• Signal integrity
• Manufacturing cost
• Thermal reliability
• Large-scale PCB production capability
Proper stackup optimization is especially important in RF PCBA systems where antenna modules and high-speed processors coexist on the same assembly.
Why Grounding and Shielding Are Essential in RF PCBA Design
In high-frequency PCB and PCBA systems, grounding is not simply an electrical reference — it is an electromagnetic field control mechanism.
Poor grounding may lead to:
• Return path discontinuity
• Strong electromagnetic radiation
• Common-mode noise
• Increased RF coupling
• Severe EMI problems
Modern RF PCBAs commonly use:

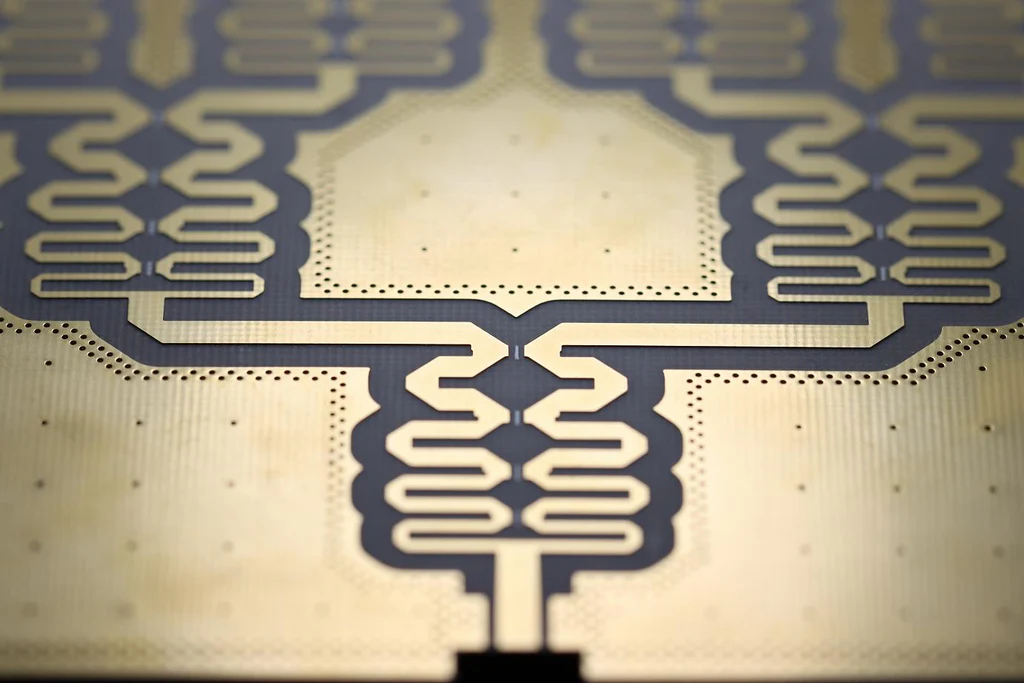

• Ground via stitching
• Via fence shielding
• RF cavity isolation
• Metal shielding cans
• Coplanar waveguide structures
These techniques help contain electromagnetic fields within controlled regions.
In automotive radar PCB assembly, shielding design is particularly important because:
• RF transmit power is high
• Antenna density is large
• Space constraints are extreme
Without proper RF shielding, crosstalk may directly affect radar detection accuracy and beamforming stability.
How Trace Routing and Spacing Influence RF Crosstalk
Trace spacing remains one of the most fundamental factors affecting crosstalk.
When RF traces are routed too closely:
• Electric field coupling increases
• Magnetic field interaction strengthens
• Signal leakage becomes more severe
Critical routing considerations include:
• RF trace spacing
• Parallel routing distance
• Differential pair isolation
• Layer transition positioning
• RF-to-digital separation
High-frequency PCB design often follows:
• 3W spacing rules
• 5W spacing recommendations
• RF isolation clearance standards
However, millimeter-wave PCB systems often require much stricter spacing control.
For example:
In 77GHz automotive radar PCB design, even small routing asymmetry may affect:
• Phase matching
• Antenna gain
• Signal-to-noise ratio
• Radar sensing accuracy
This is why RF PCB layout engineering requires both electrical and electromagnetic analysis.
Why HDI and Microvia Technology Help Reduce Crosstalk
Modern RF PCB and PCBA systems increasingly rely on HDI (High-Density Interconnect) technology to improve routing density while reducing signal interference.
HDI advantages include:
• Shorter RF signal paths
• Reduced via stub effects
• Better grounding density
• Improved impedance continuity
• More flexible multilayer routing
Common HDI technologies in RF PCB manufacturing include:
• Laser microvias
• Stacked microvias
• Sequential lamination
• Via-in-pad plated over (VIPPO)
• Back-drilling technology
These processes significantly reduce:
• Electromagnetic leakage
• Reflection loss
• Crosstalk coupling
• RF channel instability
Real Engineering Case: Crosstalk Optimization in 28GHz RF Antenna PCBA
A customer developing a 28GHz phased-array RF antenna PCBA for 5G communication experienced severe signal integrity issues during prototype testing.
Problems observed included:
• Beamforming instability
• RF channel interference
• Inconsistent insertion loss
• Reduced antenna efficiency
• EMI failures during validation
Engineering analysis identified several root causes:
• Excessive parallel RF routing
• Poor RF-to-digital isolation
• Dense via clustering beneath BGA components
• Weak return current continuity
Optimization actions included:
• RF stackup redesign
• Ground via fence implementation
• Increased RF trace spacing
• Back-drill optimization for high-speed vias
• Shielding structure improvement
• Controlled impedance tuning
Results after optimization:
• Crosstalk reduced significantly
• Antenna gain stability improved
• RF insertion loss decreased
• EMC performance passed validation
• Production consistency improved across PCB assembly batches
This case demonstrates that minimizing crosstalk requires coordinated optimization across:
• PCB design
• RF engineering
• HDI fabrication
• PCBA assembly structure
• Manufacturing process control
Why Manufacturing Precision Affects RF Crosstalk Performance
Even the best RF PCB design can fail if manufacturing precision is inconsistent.
Critical RF PCB manufacturing factors include:
• Etching compensation accuracy
• Layer alignment precision
• Copper thickness uniformity
• Controlled impedance verification
• Via registration stability
• Lamination consistency
Meanwhile, RF PCBA assembly quality also affects performance through:
• Component placement accuracy
• Solder joint consistency
• Connector alignment
• Shielding installation precision
At GHz and mmWave frequencies, tiny mechanical deviations can significantly affect electromagnetic behavior.
This is why advanced RF PCB and PCBA manufacturing require:
• AOI inspection
• X-ray verification
• TDR impedance testing
• VNA RF validation
• Automated process control systems
Applications Where RF Crosstalk Control Is Mission-Critical
5G Base Station PCBAs
Require stable RF isolation across multiple antenna channels and high-speed digital interfaces.
Automotive Radar PCB Assemblies
Need highly stable phase matching and low electromagnetic interference.
Satellite Communication Systems
Require low-noise RF transmission across multilayer microwave PCB structures.
Aerospace RF Electronics
Operate under extreme vibration and thermal environments where signal integrity stability is critical.
AI Server and High-Speed Networking PCBAs
Depend on low-crosstalk differential channels for ultra-high-speed data transfer.
Phased-Array Antenna Modules
Require precise RF isolation to maintain beamforming accuracy.
Frequently Asked Questions (FAQ)
1. What is crosstalk in RF PCB design?
Crosstalk is unwanted electromagnetic coupling between adjacent signal traces or RF structures.
2. Why is crosstalk worse in high-frequency PCB systems?
Because electromagnetic fields become stronger and more concentrated at GHz and mmWave frequencies.
3. How does PCB stackup reduce crosstalk?
A proper stackup stabilizes return paths and reduces field leakage between layers.
4. Why are ground vias important in RF PCBAs?
Ground vias help contain RF fields and improve electromagnetic isolation.
5. Can HDI technology improve RF signal isolation?
Yes. HDI reduces signal path length and improves grounding density.
6. Why does differential pair routing matter?
Improper differential routing may create phase imbalance and increase EMI radiation.
7. How does shielding reduce RF interference?
Shielding structures prevent electromagnetic fields from coupling into nearby circuits.
8. Why is manufacturing precision critical in RF PCB production?
Small dimensional variation may significantly alter RF field behavior and impedance.
9. Which applications are most sensitive to RF crosstalk?
5G systems, automotive radar, aerospace RF hardware, and phased-array antennas.
10. How is RF crosstalk validated?
Through electromagnetic simulation, TDR analysis, S-parameter testing, and VNA measurement.
Conclusion: Crosstalk Control Has Become a Core RF PCB and PCBA Engineering Challenge
As modern RF systems continue moving toward:
• Higher frequencies
• Smaller PCB form factors
• Denser multilayer architectures
• Faster data rates
crosstalk control has become one of the most important challenges in RF PCB and PCBA engineering.
Effective crosstalk reduction requires coordinated optimization across:
• RF stackup engineering
• Grounding architecture
• Trace routing strategy
• HDI microvia technology
• Shielding structures
• PCB manufacturing precision
• PCBA assembly quality
Future high-frequency PCB and PCBA systems will increasingly depend on:
• RF-aware co-design
• Electromagnetic simulation
• Precision fabrication control
• Advanced HDI manufacturing
• Automated RF validation systems
Only manufacturers with deep RF engineering expertise and advanced PCB/PCBA production capability can consistently deliver stable, low-crosstalk RF systems for next-generation communication applications.
