Microvia Reliability Issues in RF HDI PCB Structures

Why Microvia Reliability Has Become a Critical Challenge in RF HDI PCB Systems

As RF PCB and PCBA systems continue evolving toward higher frequencies, denser multilayer architectures, and smaller package dimensions, HDI (High-Density Interconnect) technology has become essential for modern communication and radar electronics. In high-frequency PCB systems, microvias are no longer simple electrical connections between layers. They are now critical electromagnetic and structural elements that directly influence signal integrity, thermal stability, and long-term reliability.

Modern RF systems such as 5G base stations, automotive radar modules, aerospace communication hardware, phased-array antennas, and AI high-speed computing platforms increasingly depend on stacked and staggered microvia structures to achieve compact routing density and ultra-short signal paths. However, as operating frequencies move into microwave and millimeter-wave ranges, microvia reliability problems have become one of the most serious failure risks in RF HDI PCB manufacturing.

Unlike traditional through-hole structures, microvias operate under extremely concentrated thermal and mechanical stress conditions. In RF multilayer PCB architectures, the copper thickness, dielectric expansion behavior, resin flow characteristics, and sequential lamination process all interact inside a very small structure. Even microscopic defects inside a microvia may eventually develop into severe electrical instability or catastrophic structural failure after thermal cycling or vibration exposure.

This is why microvia reliability is no longer only a PCB manufacturing issue. It has become a multidisciplinary engineering challenge involving RF simulation, material science, thermal management, mechanical reliability, HDI process control, and PCBA assembly optimization.

Why RF HDI PCB Structures Place Extreme Stress on Microvias

In conventional low-speed electronics, minor microvia defects may remain electrically invisible for long periods. However, in RF PCB systems operating at GHz frequencies, signal transmission becomes highly sensitive to geometric discontinuities and conductor integrity.

Microvias inside RF HDI PCB structures must simultaneously handle:
• High-frequency signal transmission
• Thermal expansion stress
• Mechanical vibration loading
• Repeated power cycling
• Electromagnetic field concentration
• Dense multilayer routing pressure

This combination creates highly localized stress accumulation around the microvia barrel and interface regions.

At high frequencies, RF current primarily flows along conductor surfaces due to skin effect. This means that even very small cracks, voids, or copper fatigue defects inside the microvia structure may significantly affect:
• Controlled impedance stability
• RF insertion loss
• Signal reflection behavior
• Phase consistency
• Differential pair matching
• Antenna synchronization

In phased-array RF systems, slight microvia inconsistency between channels may already introduce beamforming instability or antenna phase deviation.

As PCB stackups become thinner and routing density increases, the reliability margin of microvia structures continues shrinking.

How Thermal Cycling Causes Microvia Fatigue Failure

Thermal cycling is one of the most common causes of RF HDI PCB microvia failure.

During operation, RF PCBAs continuously experience heating and cooling cycles generated by:
• RF power amplifiers
• High-speed processors
• Environmental temperature variation
• Aerospace altitude transitions
• Automotive under-hood conditions
• Continuous communication system loading

Each thermal cycle causes expansion and contraction between:
• Copper plating
• Resin systems
• Dielectric layers
• Lamination interfaces

Because different materials have different coefficients of thermal expansion (CTE), repeated thermal stress gradually accumulates inside the microvia structure.

Over time, this may lead to:
• Barrel cracking
• Corner cracking
• Interface separation
• Copper fatigue
• Resin delamination
• Interconnect intermittency

In RF PCB systems, these failures may first appear as unstable signal integrity problems before complete electrical failure occurs.

For example, engineers may initially observe:
• Unexpected insertion loss increase
• RF phase instability
• Intermittent impedance drift
• Reduced antenna efficiency

before physical microvia cracking becomes visible under cross-section analysis.

This makes early reliability prediction extremely difficult in high-frequency PCB systems.

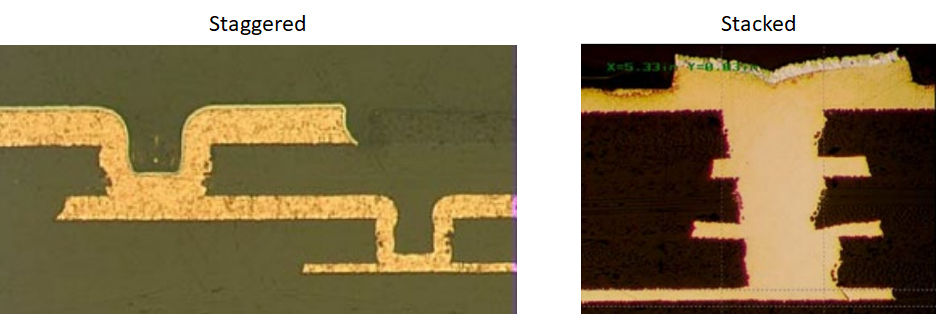

Why Stacked Microvias Are More Vulnerable Than Staggered Structures

Stacked microvia structures are commonly used in ultra-dense RF HDI PCB layouts because they allow extremely compact interlayer routing. However, stacked microvias also create concentrated stress paths during thermal cycling.

When multiple stacked vias align vertically, thermal expansion force accumulates directly through the copper column structure. This may significantly increase:
• Mechanical fatigue
• Copper stress concentration
• Resin interface separation risk
• Lamination instability

In contrast, staggered microvias distribute stress more evenly across different layers, reducing concentrated mechanical loading.

For aerospace RF PCB and automotive radar PCBA applications, many engineers now prefer staggered structures whenever layout density permits.

However, the tradeoff is increased routing complexity and potentially larger PCB area.

Therefore, RF HDI PCB design often becomes a balancing process between:
• Routing density
• Electrical performance
• Mechanical reliability
• Manufacturing yield
• Long-term durability

Why Copper Filling Quality Determines RF HDI PCB Reliability

Copper filling quality inside microvias is one of the most important process variables affecting reliability.

Poor copper filling may create:
• Internal voids
• Uneven plating thickness
• Weak interface bonding
• Localized thermal hotspots
• Current crowding regions

At GHz frequencies, these imperfections may generate localized impedance discontinuities and unstable RF transmission behavior.

In RF PCB manufacturing, advanced copper filling processes are used to improve:
• Structural stability
• Thermal conductivity
• Current distribution uniformity
• Long-term fatigue resistance

Modern RF HDI PCB fabrication therefore requires highly controlled:
• Pulse plating processes
• Copper chemistry management
• Via aspect ratio optimization
• Lamination pressure control
• Surface preparation precision

Without stable copper filling quality, even well-designed RF layouts may eventually fail during field operation.

Why Vibration Is Especially Dangerous for Aerospace and Automotive RF PCBAs

Mechanical vibration adds another major reliability challenge for RF HDI PCB systems.

Applications such as:
• Aerospace radar PCBAs
• Satellite communication modules
• Automotive radar systems
• Military RF electronics

operate under continuous dynamic mechanical stress.

Vibration may accelerate:
• Microvia copper fatigue
• Resin cracking
• Solder joint degradation
• Grounding discontinuity
• Delamination propagation

In automotive radar PCBAs operating at 77GHz, vibration-induced microvia instability may directly affect:
• Radar sensing accuracy
• Beamforming stability
• Target detection consistency

Similarly, in aerospace microwave PCB systems, vibration may cause subtle RF phase shifts long before complete interconnect failure occurs.

This is why high-reliability RF PCB manufacturers perform:
• Thermal shock testing
• Vibration simulation
• Cross-section reliability inspection
• RF electrical validation
• Environmental stress qualification

during aerospace and automotive PCB development.

Real Engineering Case: Microvia Failure in a 77GHz Automotive Radar PCB

A customer developing a 77GHz automotive radar PCBA experienced intermittent RF instability after environmental reliability testing.

The system initially passed standard electrical verification. However, after extended thermal cycling and vibration exposure, engineers observed:
• Increased insertion loss
• Antenna phase inconsistency
• Reduced radar sensitivity
• Intermittent RF signal degradation

Cross-sectional failure analysis revealed:
• Micro-cracks inside stacked microvias
• Copper fatigue near via interfaces
• Resin separation around sequential lamination regions

The original design used aggressive stacked microvia structures to minimize PCB size.

Engineering optimization included:
• Replacing stacked vias with staggered microvias
• Increasing copper filling uniformity
• Improving lamination pressure control
• Optimizing thermal balancing inside the stackup
• Enhancing RF grounding continuity

After optimization:
• RF channel consistency improved significantly
• Thermal cycling reliability passed qualification testing
• Radar beam stability increased
• Production yield improved across PCB and PCBA manufacturing batches

This case demonstrates that RF HDI PCB reliability depends not only on electrical design, but also on structural and process stability.

Why HDI Process Control Is Essential for Long-Term Reliability

Modern RF HDI PCB manufacturing requires extremely precise process control because small fabrication variation may dramatically affect microvia reliability.

Critical HDI process variables include:
• Laser drilling accuracy
• Copper plating consistency
• Lamination cycle stability
• Resin flow uniformity
• Layer alignment precision
• Etching compensation control

Meanwhile, RF PCB assembly (PCBA) processes may further influence microvia reliability through:
• Reflow thermal stress
• BGA assembly warpage
• Shielding structure pressure
• Connector mechanical loading

Advanced RF PCB manufacturers therefore combine:
• AOI inspection
• X-ray analysis
• Microsection verification
• TDR impedance testing
• VNA RF validation
• Accelerated reliability testing

to ensure long-term structural and electrical stability.

Learn more about advanced HDI PCB capability here:
Rich Full Joy HDI PCB Solutions

Applications Most Sensitive to RF HDI Microvia Reliability

5G RF PCB and PCBA Systems
Require highly stable microvia structures for dense antenna routing and multi-GHz communication performance.

Automotive Radar PCB Assemblies
Need long-term vibration and thermal cycling reliability at millimeter-wave frequencies.

Aerospace Microwave Electronics
Require stable RF performance under extreme environmental stress conditions.

Satellite Communication Hardware
Depend on low-loss RF transmission with long-term structural durability.

AI High-Speed Computing PCBAs
Need reliable HDI interconnects for ultra-high-speed differential signaling.

Military RF Systems
Require mission-critical reliability under vibration, thermal shock, and harsh operational environments.

Frequently Asked Questions (FAQ)

1. What is a microvia in HDI PCB design?
A microvia is a small laser-drilled interconnection used in HDI multilayer PCB structures.

2. Why are microvias important in RF PCB systems?
They enable compact routing, shorter signal paths, and high-density interconnection for RF applications.

3. What causes microvia failure in RF HDI PCBs?
Thermal cycling, copper fatigue, poor plating quality, vibration, and lamination stress are major causes.

4. Why are stacked microvias less reliable?
They concentrate thermal and mechanical stress vertically through the structure.

5. How does thermal cycling affect microvia reliability?
Repeated expansion mismatch between copper and resin gradually creates fatigue cracking.

6. Why is copper filling quality critical?
Voids or uneven plating may create weak mechanical regions and RF instability.

7. How does vibration impact RF PCB microvias?
Vibration accelerates fatigue cracking and structural degradation.

8. Why are RF systems more sensitive to microvia defects?
Small discontinuities may significantly affect impedance and signal integrity at GHz frequencies.

9. How is microvia reliability validated?
Through thermal cycling tests, vibration testing, X-ray analysis, microsection inspection, and RF electrical testing.

10. Which applications require ultra-reliable RF HDI PCB structures?
5G systems, automotive radar, aerospace electronics, satellite communication, and military RF hardware.

Conclusion: Microvia Reliability Is Now a Core RF HDI PCB Engineering Challenge

As RF PCB and PCBA systems continue advancing toward:
• Higher frequencies
• Smaller form factors
• Denser HDI architectures
• Greater thermal loading
• More demanding reliability standards

microvia reliability has become one of the most critical challenges in high-frequency PCB engineering.

Future RF HDI PCB systems will increasingly depend on:
• Advanced material systems
• Optimized microvia structures
• Precision copper filling technology
• RF-aware stackup engineering
• Thermal-mechanical co-design
• High-reliability PCB and PCBA manufacturing processes

Only manufacturers with deep expertise in RF engineering, HDI fabrication, and reliability process control can consistently deliver stable, production-ready RF PCB solutions for next-generation communication and radar systems.
