Why Backdrilling Matters in RF Routing

Why RF Routing Becomes Increasingly Difficult at High Frequencies

As modern RF PCB and PCBA systems continue evolving toward higher frequencies, faster data rates, and denser multilayer architectures, routing stability has become one of the most critical challenges in high-frequency PCB engineering. In traditional low-speed PCB systems, vias were often treated simply as vertical electrical connections between layers. However, in modern RF and microwave PCB structures operating at GHz and millimeter-wave frequencies, vias become complex electromagnetic discontinuities that directly affect signal integrity.

Applications such as:
• 5G base station RF modules
• Automotive radar PCBAs
• Aerospace microwave electronics
• Satellite communication hardware
• AI high-speed server backplanes
• Phased-array antenna systems

all require extremely clean RF transmission paths with minimal reflection and insertion loss.

At these frequencies, even small unused via sections may behave like resonant structures that introduce:
• Signal reflection
• Impedance discontinuity
• Insertion loss increase
• RF phase instability
• Differential skew
• Electromagnetic interference (EMI)

This is why backdrilling has become one of the most important routing optimization technologies in modern RF PCB manufacturing.

What Is Backdrilling in RF PCB Manufacturing?

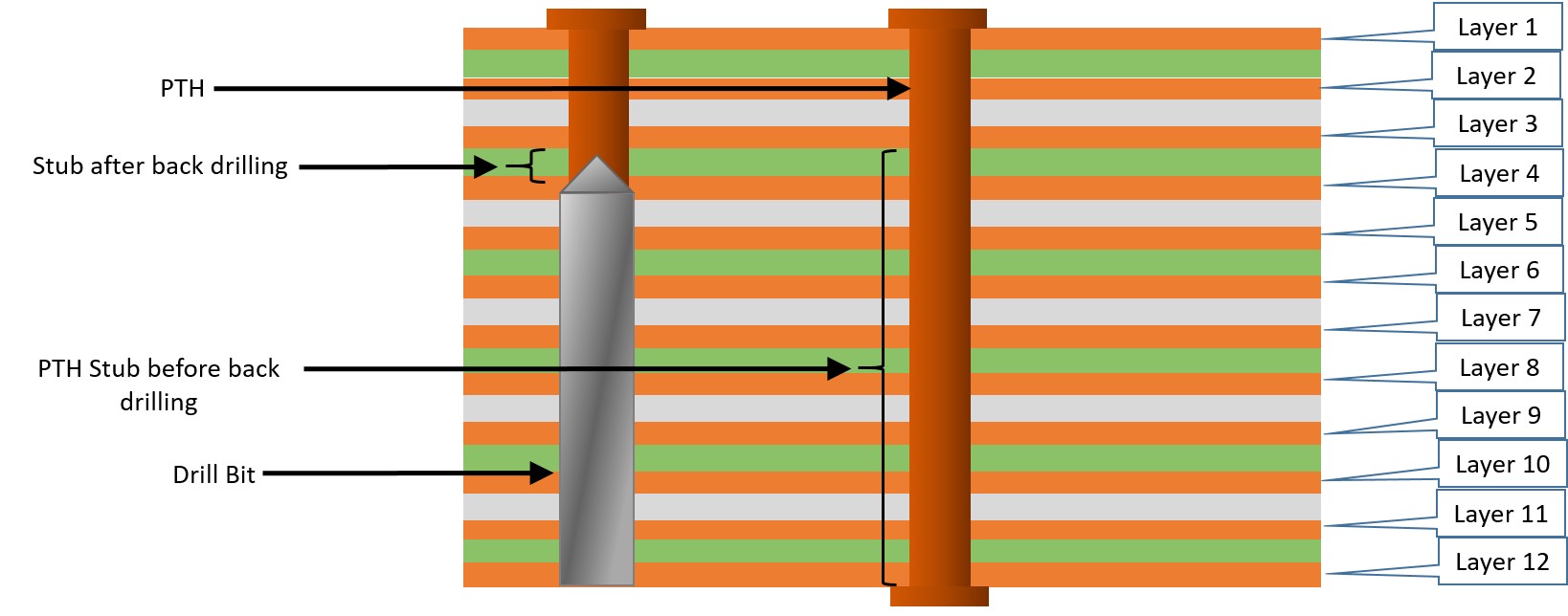

Backdrilling is a precision PCB fabrication process used to remove unused via stubs from multilayer PCB structures.

In conventional multilayer PCB routing, a plated through hole (PTH) may connect only specific signal layers, while unused via sections remain extending beyond the active routing layer. These unused sections are known as via stubs.

At low frequencies, via stubs may have minimal electrical impact. However, in RF PCB systems operating at multi-GHz frequencies, via stubs behave like parasitic resonators that disturb electromagnetic field behavior.

Backdrilling removes these unused conductive sections through controlled-depth drilling after plating processes are completed.

This process significantly improves:
• Controlled impedance stability
• Signal integrity
• RF insertion loss performance
• Return loss behavior
• Differential pair consistency
• High-speed channel quality

Modern high-frequency PCB and PCBA systems increasingly depend on backdrilling to achieve stable RF transmission performance.

Why Via Stubs Cause Severe RF Signal Problems

Via stubs act as unwanted electrical branches attached to high-frequency transmission paths.

At GHz frequencies, these stubs may generate:
• Signal reflection
• Resonance effects
• Impedance discontinuity
• Standing wave behavior
• Increased insertion loss

The longer the via stub becomes, the more severe the electromagnetic disturbance may be.

This problem becomes especially dangerous in:
• 28GHz and 39GHz 5G systems
• 77GHz automotive radar PCBAs
• 112G high-speed digital channels
• Microwave phased-array antennas

In RF routing structures, via stubs may significantly affect:
• S-parameter performance
• Eye diagram quality
• Differential skew
• Antenna phase consistency
• Beamforming stability

For millimeter-wave PCB systems, even small via geometry variation may already create measurable RF degradation.

Why Backdrilling Improves Signal Integrity in RF PCB Design

Signal integrity is fundamentally dependent on transmission path continuity.

When high-frequency signals encounter via stubs, electromagnetic energy may partially reflect backward into the signal path.

This creates:
• Return loss degradation
• Timing instability
• Increased jitter
• Phase distortion
• Channel inconsistency

Backdrilling improves signal integrity by removing the resonant stub structure entirely.

Benefits include:
• Cleaner impedance transitions
• Lower insertion loss
• Reduced signal reflection
• Improved differential pair performance
• Better RF phase stability

In high-speed PCB and RF PCBA systems, backdrilling is now commonly integrated into:
• Controlled impedance routing
• SerDes channel optimization
• RF multilayer stackup engineering
• Antenna feed network design

As frequencies continue increasing, via optimization becomes inseparable from RF routing engineering itself.

Why Backdrilling Is Essential in 5G and Millimeter-Wave PCB Systems

Modern 5G and millimeter-wave PCB architectures operate at frequencies where electromagnetic wavelengths become extremely short.

This creates much higher sensitivity to:
• Via geometry
• Copper roughness
• Stub resonance
• Layer transition discontinuity
• Return current instability

In 5G RF PCB systems, via stubs may directly affect:
• Beamforming accuracy
• Antenna gain consistency
• Multi-channel synchronization
• RF front-end insertion loss

Similarly, automotive radar PCBAs operating at 77GHz require extremely low-loss transmission paths to maintain radar detection precision.

Without proper backdrilling optimization:
• RF channels may become inconsistent
• Signal attenuation increases
• Phase stability deteriorates
• Antenna efficiency decreases

This is why advanced RF PCB manufacturers increasingly treat backdrilling as a standard requirement rather than an optional optimization process.

How Backdrilling Supports High-Speed PCB and PCBA Architectures

Backdrilling is not limited to RF routing alone.

Modern high-speed PCB and PCBA systems also depend heavily on backdrilling for:
• PCIe Gen5/Gen6 routing
• 112G PAM4 channels
• AI server backplanes
• Optical communication modules
• High-speed networking equipment

At ultra-high data rates, via stubs may introduce:
• Eye diagram collapse
• Increased bit error rate
• Timing jitter
• Differential impedance instability

By removing via stubs, backdrilling helps maintain:
• Cleaner high-speed channels
• Stable impedance profiles
• Better differential pair matching
• Lower electromagnetic interference

As RF and high-speed digital systems increasingly integrate onto the same PCB assembly, backdrilling becomes critical for overall system stability.

Why Manufacturing Precision Determines Backdrill Effectiveness

Backdrilling is an extremely precision-sensitive PCB fabrication process.

Critical process variables include:
• Drill depth control
• Layer registration accuracy
• Residual stub length
• Copper plating consistency
• Stackup alignment precision

Improper backdrilling may create:
• Over-drilling damage
• Incomplete stub removal
• Ground plane rupture
• Reliability concerns
• Impedance discontinuity

Advanced RF PCB manufacturers therefore use:
• X-ray registration systems
• Automated depth control equipment
• Precision stackup verification
• AOI inspection
• TDR impedance testing

to ensure backdrilling accuracy.

In high-frequency PCB systems, manufacturing precision itself becomes part of the RF design model.

Real Engineering Case: Backdrilling Optimization in 56G RF Communication PCB

A customer developing a 56G high-speed RF communication PCBA experienced severe insertion loss and channel instability during system validation.

Observed issues included:
• Eye diagram degradation
• Differential skew instability
• Elevated insertion loss
• RF channel inconsistency
• Increased electromagnetic interference

Engineering investigation revealed:
• Excessively long via stubs in multilayer routing transitions
• Impedance discontinuity near BGA breakout regions
• RF resonance behavior inside unused via sections

Optimization actions included:
• Implementing precision backdrilling
• Optimizing multilayer stackup design
• Improving controlled impedance routing
• Enhancing return path continuity
• Reducing via transition density

Results after optimization:
• Insertion loss improved significantly
• Eye diagram margin increased
• RF signal consistency stabilized
• EMI performance improved
• Production yield increased across PCB and PCBA batches

This case demonstrates that backdrilling directly influences both:
• RF electrical performance
• High-speed digital channel quality

in advanced PCB systems.

Why HDI Technology and Backdrilling Work Together in RF PCB Design

Modern RF PCB and PCBA systems increasingly combine:
• HDI technology
• Microvia structures
• Sequential lamination
• Backdrill optimization

to achieve compact and high-performance routing architectures.

HDI advantages include:
• Shorter signal paths
• Reduced via stub length
• Improved grounding density
• Better RF isolation
• Enhanced routing flexibility

Combined with backdrilling, HDI structures help minimize:
• Reflection loss
• Electromagnetic coupling
• Signal discontinuity
• RF phase instability

Learn more about advanced HDI PCB capability here:
Rich Full Joy HDI PCB Solutions

As RF frequencies continue increasing, HDI and backdrilling are becoming deeply integrated technologies in high-frequency PCB engineering.

Applications Where RF Backdrilling Is Mission-Critical

5G RF PCB and PCBA Systems
Require ultra-low-loss multilayer routing for antenna and RF front-end modules.

Automotive Radar PCB Assemblies
Need stable millimeter-wave transmission with minimal via-induced reflection.

Aerospace Microwave Electronics
Require highly reliable RF routing under extreme environmental conditions.

AI High-Speed Server PCBAs
Depend on low-loss high-speed differential signaling for ultra-fast data transfer.

Satellite Communication Hardware
Require stable microwave transmission across dense multilayer PCB architectures.

Phased-Array Antenna Systems
Need highly synchronized RF channels for beamforming accuracy.

Frequently Asked Questions (FAQ)

1. What is PCB backdrilling?
Backdrilling is a process used to remove unused via stubs from multilayer PCB structures.

2. Why are via stubs harmful in RF PCB systems?
Via stubs create resonance, reflection, and impedance discontinuity at high frequencies.

3. How does backdrilling improve signal integrity?
It removes parasitic stub structures that degrade RF transmission quality.

4. Is backdrilling necessary for 5G PCB designs?
Yes. High-frequency 5G systems are highly sensitive to via stub effects.

5. Why is backdrilling important in automotive radar PCBAs?
77GHz radar systems require extremely low-loss and phase-stable RF routing.

6. Does backdrilling improve insertion loss?
Yes. It reduces reflection and resonance caused by via stubs.

7. How does backdrilling affect controlled impedance?
It improves impedance continuity across multilayer routing transitions.

8. Can backdrilling help high-speed digital PCB systems?
Yes. It improves eye diagrams, reduces jitter, and stabilizes differential signaling.

9. What manufacturing challenges exist in PCB backdrilling?
Precise drill depth control and layer registration accuracy are critical.

10. Which industries commonly use RF backdrilling technology?
5G communication, aerospace, automotive radar, AI servers, and satellite communication industries.

Conclusion: Backdrilling Has Become a Core RF Routing Technology

As RF PCB and PCBA systems continue advancing toward:
• Higher frequencies
• Faster data rates
• Greater multilayer density
• More compact routing structures

backdrilling has become one of the most important technologies in high-frequency PCB engineering.

Modern RF routing optimization now depends heavily on:
• Via stub reduction
• Controlled impedance continuity
• HDI stackup engineering
• Precision manufacturing control
• RF-aware signal integrity analysis

Future high-frequency PCB systems will increasingly rely on:
• Advanced backdrill process automation
• Integrated RF simulation
• HDI microvia architectures
• Low-loss multilayer materials
• Automated impedance validation

Only manufacturers with deep RF engineering expertise and advanced PCB fabrication capability can consistently deliver stable, production-ready RF PCB and PCBA solutions for next-generation communication systems.
