RF PCB Copper Foil Selection: Electrolytic vs Rolled vs Reverse-Treated Copper Foils
Why Copper Foil Selection Has Become Critical in Modern RF PCB Design
As RF PCB and PCBA systems continue moving toward:
• Higher frequencies
• Faster data rates
• Millimeter-wave communication
• Dense multilayer architectures
• Low-loss transmission requirements
copper foil selection has become one of the most important factors affecting high-frequency PCB performance.
In conventional low-speed PCB systems, copper was often treated simply as a conductive material. However, in modern RF and microwave PCB applications, copper foil directly influences:
• Insertion loss
• Signal integrity
• Phase stability
• Controlled impedance
• Thermal reliability
• Electromagnetic behavior
At frequencies above several GHz, RF current primarily flows along the conductor surface due to skin effect.
This means copper surface morphology itself becomes an active RF performance variable.
For applications such as:
• 5G RF PCB modules
• Automotive radar PCBAs
• Aerospace microwave systems
• AI high-speed servers
• Satellite communication hardware
• Phased-array antenna systems
copper foil engineering is now a critical part of RF PCB design optimization.
What Are the Main Types of Copper Foils Used in RF PCB Manufacturing?
Modern RF PCB manufacturing primarily uses three major copper foil categories:
• Electrolytic Copper Foil (ED Copper)
• Rolled Annealed Copper Foil (RA Copper)
• Reverse-Treated Copper Foil (RTF Copper)
Each foil type offers different characteristics related to:
• Surface roughness
• Flexibility
• Conductivity
• Adhesion strength
• Mechanical durability
• High-frequency signal performance
Choosing the correct copper foil requires balancing:
• RF electrical performance
• PCB manufacturing capability
• Mechanical reliability
• Cost control
• PCBA assembly requirements
Improper copper foil selection may significantly degrade RF performance even if the PCB layout itself is well optimized.
Why Electrolytic Copper Foil Is Still Widely Used in RF PCB Production
Electrolytic copper foil (ED Copper) remains one of the most commonly used materials in PCB manufacturing.
It is produced through electrochemical deposition processes that create:
• Relatively rough copper surfaces
• Strong resin adhesion capability
• Stable mass-production manufacturability
• Lower material cost
Advantages of ED copper include:
• Excellent lamination bonding
• Mature PCB fabrication compatibility
• Good thermal stability
• Strong mechanical adhesion
However, in high-frequency RF PCB applications, rougher copper surfaces may increase:
• Conductor loss
• Skin effect resistance
• RF insertion loss
• Signal attenuation
This becomes increasingly problematic in:
• 24GHz radar systems
• 77GHz automotive radar
• Millimeter-wave antennas
• High-speed SerDes channels
Despite this, ED copper is still widely used in:
• Mid-frequency RF PCB products
• Industrial communication PCBAs
• General microwave PCB assemblies
• Cost-sensitive high-speed digital systems
because of its excellent process stability and scalable manufacturing capability.
Why Rolled Annealed Copper Foil Provides Better RF Signal Integrity
Rolled annealed copper foil (RA Copper) is manufactured through mechanical rolling processes rather than electrochemical deposition.
This creates:
• Smoother copper surfaces
• Lower conductor roughness
• Improved flexibility
• Better high-frequency electrical performance
The smoother conductor profile significantly reduces:
• Skin effect loss
• RF insertion loss
• Signal reflection
• High-frequency attenuation
RA copper is commonly used in:
• Flexible RF PCB systems
• Aerospace microwave electronics
• High-speed communication modules
• Millimeter-wave antenna designs
Major advantages include:
• Excellent bending resistance
• Lower surface roughness
• Improved RF transmission consistency
• Better phase stability
However, RA copper also introduces several engineering tradeoffs:
• Higher material cost
• More difficult lamination processing
• Reduced resin adhesion compared with rougher copper
• Increased manufacturing complexity
As frequencies continue increasing, many advanced RF PCB manufacturers are adopting RA copper for ultra-low-loss communication systems.
Why Reverse-Treated Copper Foil Has Become Popular in High-Speed RF PCB Applications
Reverse-treated foil (RTF Copper) is designed specifically to balance:
• Low RF loss
• Strong resin adhesion
• Large-scale PCB manufacturability
In RTF copper:
• The smooth side faces the RF transmission path
• The rougher treated side bonds to the laminate resin
This structure helps reduce:
• Copper surface roughness effects
• RF conductor loss
• Signal degradation
while maintaining:
• Strong multilayer bonding reliability
• Stable PCB fabrication yield
• Better thermal cycling durability
RTF copper has become increasingly popular in:
• 5G RF PCB manufacturing
• Automotive radar PCBAs
• AI server high-speed backplanes
• Aerospace RF multilayer PCBs
because it provides an excellent compromise between:
• RF performance
• Process reliability
• Cost efficiency
• Production scalability

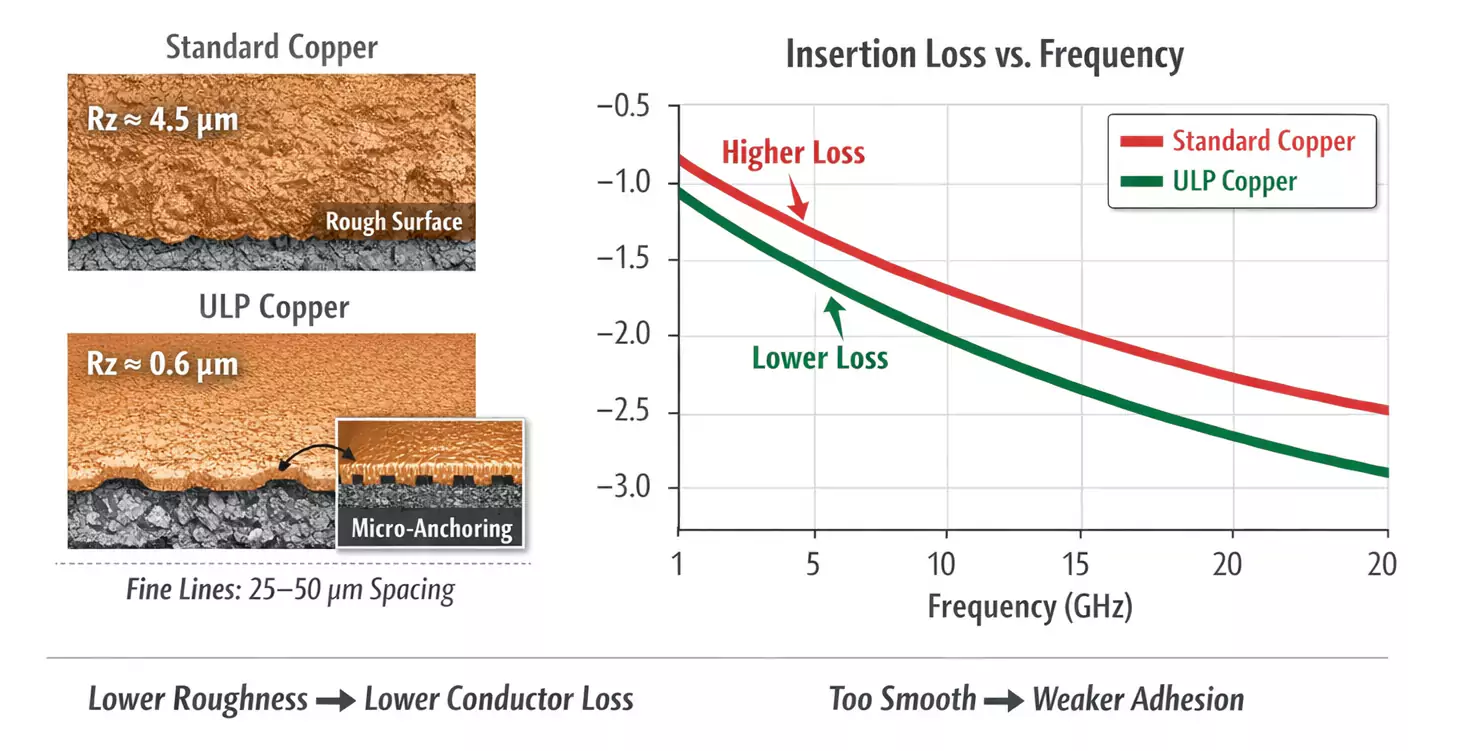

Why Copper Roughness Directly Affects RF Insertion Loss
At GHz and millimeter-wave frequencies, RF current flows primarily on the conductor surface.
When copper surfaces become rough:
• Current path length increases
• Effective resistance rises
• Electromagnetic scattering intensifies
• RF conductor loss increases
This directly impacts:
• Insertion loss (S21)
• Return loss (S11)
• Differential signal integrity
• Antenna efficiency
• RF phase consistency
In modern high-frequency PCB systems, copper roughness has become one of the largest contributors to overall channel loss.
This is especially important in:
• 112G high-speed PCB channels
• Millimeter-wave RF antenna arrays
• 77GHz automotive radar systems
• Satellite microwave communication hardware
As data rates and frequencies continue increasing, low-profile copper technology becomes increasingly important.
How Copper Foil Selection Affects PCB Manufacturing and PCBA Reliability
Copper foil selection influences not only RF electrical performance, but also:
• PCB manufacturability
• Thermal reliability
• Mechanical durability
• Soldering performance
• PCBA assembly consistency
For example:
• Rougher copper improves resin bonding strength
• Smoother copper may reduce adhesion reliability if process control is insufficient
Critical process considerations include:
• Lamination pressure optimization
• Etching compensation
• Controlled impedance stability
• Thermal expansion matching
• Surface finish compatibility
In RF PCB assembly (PCBA), copper selection may also affect:
• Solder joint reliability
• Heat dissipation capability
• Mechanical fatigue resistance
• Long-term environmental durability
Therefore, copper foil engineering must be coordinated with:
• PCB design
• RF simulation
• Manufacturing process control
• Reliability validation
Real Engineering Case: Copper Foil Optimization in 77GHz Automotive Radar PCB
A customer developing a 77GHz automotive radar PCBA experienced excessive insertion loss and unstable antenna performance during validation testing.
Observed problems included:
• Reduced radar detection distance
• RF phase inconsistency
• Elevated channel loss
• Production variability between batches
Engineering investigation identified several root causes:
• Excessive conductor roughness from standard ED copper
• Uneven RF current distribution
• Increased conductor loss in antenna feed networks
Optimization measures included:
• Replacing standard ED copper with reverse-treated copper foil
• Optimizing RF multilayer stackup
• Improving etching compensation control
• Enhancing controlled impedance verification
Results after optimization:
• Insertion loss reduced significantly
• Radar beam stability improved
• Antenna efficiency increased
• RF channel consistency improved across production panels
• PCBA reliability passed thermal cycling validation
This case demonstrates that copper foil selection directly affects both:
• RF electrical performance
• Manufacturing consistency
in high-frequency PCB systems.
Why HDI and Advanced PCB Structures Require Optimized Copper Foils
Modern RF PCB and PCBA systems increasingly depend on HDI technology for:
• Compact RF module integration
• Dense multilayer routing
• High-speed communication architectures
• Miniaturized antenna systems
Advanced HDI processes require copper foils capable of supporting:
• Fine-line etching accuracy
• Stable microvia reliability
• Controlled impedance consistency
• Low conductor loss
Common RF PCB HDI technologies include:
• Laser microvias
• Sequential lamination
• Back-drilling
• Via-in-pad structures
• Ultra-fine trace fabrication
Learn more about advanced HDI PCB capability here:
Rich Full Joy HDI PCB Solutions
As RF frequencies continue increasing, copper foil optimization and HDI fabrication are becoming deeply interconnected engineering disciplines.
Typical Applications of Advanced RF Copper Foils
5G RF PCB and PCBA Systems
Require low-loss transmission and stable impedance control.
Automotive Radar PCB Assemblies
Need ultra-low insertion loss and phase consistency at 77GHz frequencies.
Aerospace Microwave Electronics
Require high reliability under thermal cycling and vibration conditions.
AI High-Speed Server PCBAs
Depend on low-loss differential signaling for ultra-high-speed channels.
Satellite Communication Hardware
Need stable RF performance across wide frequency ranges.
Flexible RF PCB Systems
Require excellent bending durability and stable signal integrity.
Frequently Asked Questions (FAQ)
1. What is electrolytic copper foil?
Electrolytic copper foil is copper produced through electrochemical deposition processes.
2. Why does copper roughness matter in RF PCB design?
Rough surfaces increase conductor loss and insertion loss at high frequencies.
3. What is rolled annealed copper foil?
RA copper is mechanically rolled copper with smoother surfaces and improved flexibility.
4. Why is RA copper good for RF PCB applications?
It provides lower insertion loss and better high-frequency signal integrity.
5. What is reverse-treated copper foil?
RTF copper has a smooth RF-facing surface and a rough bonding surface for better balance between RF performance and adhesion.
6. Which copper foil is best for millimeter-wave PCB systems?
Low-profile RA or reverse-treated copper is commonly preferred for mmWave applications.
7. Does copper foil affect controlled impedance?
Yes. Surface roughness and copper geometry directly influence impedance stability.
8. How does copper foil affect PCB manufacturing?
It impacts etching behavior, lamination reliability, adhesion strength, and fabrication yield.
9. Which industries require advanced RF copper foil technology?
5G, aerospace, automotive radar, satellite communication, and AI networking industries.
10. How is copper foil performance validated in RF PCB systems?
Through insertion loss testing, VNA measurement, impedance analysis, and reliability testing.
Conclusion: Copper Foil Has Become a Core RF Performance Variable
As RF PCB and PCBA systems continue evolving toward:
• Higher frequencies
• Lower loss budgets
• Greater routing density
• Faster digital communication
copper foil selection has become one of the most important engineering decisions in high-frequency PCB manufacturing.
Electrolytic, rolled annealed, and reverse-treated copper foils each offer unique tradeoffs between:
• RF performance
• Manufacturability
• Mechanical reliability
• Thermal durability
• Production scalability
Future RF PCB systems will increasingly depend on:
• Ultra-low-profile copper technology
• Precision HDI fabrication
• RF-aware stackup optimization
• Advanced impedance control
• Integrated PCB and PCBA reliability engineering
Only manufacturers with deep RF engineering expertise and advanced process capability can consistently deliver high-performance RF PCB solutions for next-generation communication systems.
Why Choose Rich Full Joy for RF PCB and PCBA Manufacturing?
Rich Full Joy specializes in:
• High-frequency RF PCB manufacturing
• RF PCB assembly (PCBA) solutions
• Low-loss PCB engineering
• HDI and microvia fabrication
• Controlled impedance optimization
• Precision etching compensation
• Advanced copper foil process integration
We help customers transform complex RF and microwave designs into:
• Scalable
• High-consistency
• High-reliability
• Production-ready
next-generation PCB and PCBA solutions for demanding RF, microwave, aerospace, automotive radar, and high-speed communication applications.
