Why RF PCBs Need Precise Etching Compensation

Why Does Etching Accuracy Matter More in RF PCBs Than Standard PCBs?

In conventional low-speed PCB designs, minor copper width variation may have little impact on overall electrical performance.
However, in RF and high-frequency PCB systems, even micron-level dimensional deviations can significantly affect:
• Controlled impedance
• Insertion loss
• Phase stability
• Signal integrity
• RF consistency across channels
As operating frequencies move into GHz and millimeter-wave ranges, copper trace geometry becomes part of the RF transmission structure itself.
This means PCB etching is no longer simply a manufacturing process — it becomes a critical RF engineering variable.
For applications such as:
• 5G base stations
• Automotive radar systems
• Satellite communication hardware
• AI high-speed servers
• Phased-array antennas
etching accuracy directly influences system-level RF performance.

What Is Etching Compensation in RF PCB Manufacturing?

Etching compensation refers to the intentional adjustment of PCB artwork dimensions to offset copper loss during chemical etching processes.
During fabrication:
• Copper sidewalls are etched laterally
• Trace widths become narrower than original design values
• Fine RF structures become geometrically distorted
Without compensation:
• Actual impedance deviates from target impedance
• Differential pair matching deteriorates
• RF phase consistency becomes unstable
• High-frequency insertion loss increases
Etching compensation predicts these dimensional losses and adjusts trace geometry before fabrication begins.
This process is especially important for:
• Narrow RF transmission lines
• High-density RF routing
• Millimeter-wave antenna structures
• Controlled impedance differential pairs

Why Does Small Trace Width Variation Cause Major RF Problems?

At high frequencies, RF current concentrates near the conductor surface due to skin effect.
This makes RF performance extremely sensitive to conductor geometry.
Even very small trace width deviations can cause:
• Characteristic impedance drift
• Return loss degradation
• Signal reflection
• Differential skew
• Phase mismatch between channels
For example:
A trace width variation of only a few microns may significantly alter impedance in 77GHz radar systems.
In phased-array antennas, this may lead to:
• Beamforming instability
• Reduced antenna gain
• Phase inconsistency
• Degraded radar accuracy
As frequencies increase, manufacturing tolerance becomes an RF design parameter itself.

How Does Copper Thickness Influence Etching Compensation?

Copper thickness directly affects etching behavior.
Thicker copper creates:
• Greater lateral etching
• More sidewall undercutting
• Higher dimensional variation risk
This creates engineering tradeoffs:
• Thicker copper improves current capacity
• But thinner copper improves RF precision
In RF PCB manufacturing, engineers must carefully balance:
• Conductor loss
• Power handling
• Trace accuracy
• Manufacturing stability
Etching compensation models therefore depend heavily on:
• Copper weight
• Etching chemistry
• Line spacing
• RF frequency requirements

Why Is Controlled Impedance Impossible Without Etching Compensation?

Controlled impedance depends directly on precise transmission line geometry.
Critical parameters include:
• Trace width
• Copper thickness
• Dielectric height
• Dielectric constant
• Surface roughness
If copper traces become narrower after etching:
• Impedance rises unexpectedly
• Differential impedance drifts
• Signal reflection increases
• RF insertion loss worsens
This becomes especially dangerous in:
• 56G/112G high-speed channels
• 5G RF front-end modules
• Millimeter-wave communication systems
• Automotive radar PCBs
Without accurate etching compensation, impedance simulation no longer matches the fabricated PCB.

Why Is Etching Compensation Critical for Millimeter-Wave Antenna Structures?

Millimeter-wave antennas require extremely precise conductor geometry.
At frequencies above 24GHz:
• Electromagnetic wavelengths become very short
• RF field concentration increases dramatically
• Geometric sensitivity becomes extremely high
Small etching deviations may affect:
• Antenna resonance frequency
• Beam steering accuracy
• Radiation efficiency
• Phase matching consistency
In phased-array systems, cumulative trace variation across multiple antenna elements can severely degrade beamforming performance.
This is why mmWave PCB manufacturing requires ultra-tight etching process control.

How Do Different RF Materials Affect Etching Compensation?

Different high-frequency laminates respond differently during PCB fabrication.
Factors influencing compensation include:
• Copper adhesion characteristics
• Resin system behavior
• Thermal expansion properties
• Surface treatment compatibility
Materials commonly used in RF PCBs include:
• Hydrocarbon ceramic laminates
• PTFE-based materials
• Low-loss hybrid stackups
• High-speed digital RF composites
Each material requires unique etching process optimization.
This is one reason why RF PCB fabrication cannot rely solely on standard PCB process parameters.

Why Does Etching Uniformity Affect RF Channel Consistency?

In multi-channel RF systems, electrical consistency between channels is often more important than absolute performance itself.
Uneven etching across production panels may cause:
• Impedance mismatch between channels
• Unequal insertion loss
• Phase instability
• Timing skew in differential pairs
Applications highly sensitive to consistency include:
• Massive MIMO antennas
• Automotive radar arrays
• Aerospace RF systems
• High-speed optical communication modules
Modern RF PCB manufacturing therefore requires:
• Real-time etching process monitoring
• Automated line-width measurement
• Statistical impedance verification
• Tight process window control

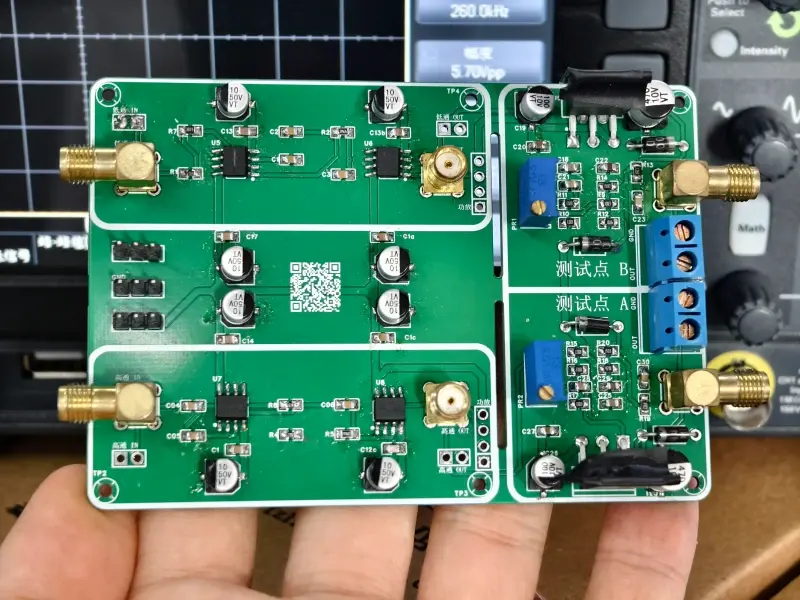

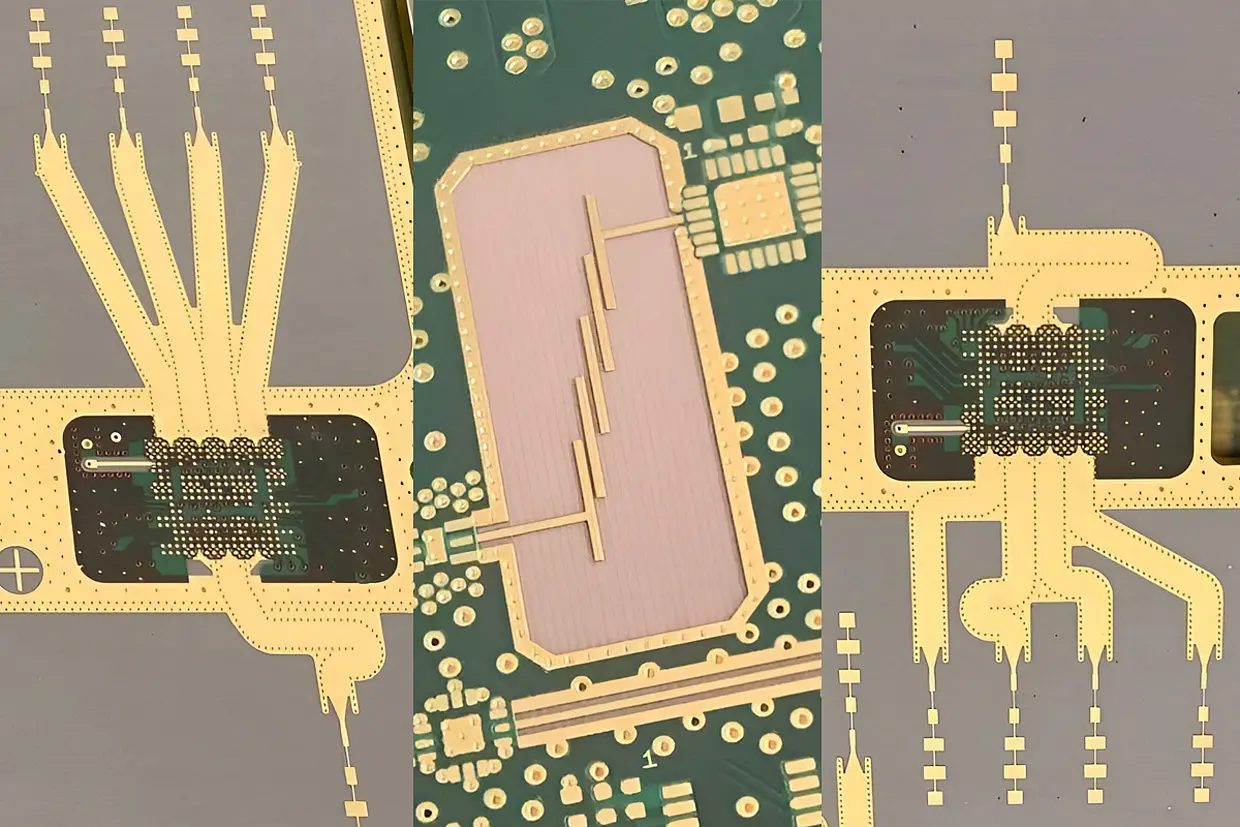

Real Engineering Case: Etching Compensation Optimization in 77GHz Radar PCB

An automotive customer developing a 77GHz radar module experienced severe RF inconsistency between production batches.
Observed issues included:
• Unstable antenna gain
• Phase mismatch between RF channels
• Elevated insertion loss
• Reduced radar detection accuracy
Engineering investigation identified:
• Uneven etching compensation settings
• Excessive line-width shrinkage in fine RF traces
• Localized copper over-etching near antenna feed structures
Optimization actions included:
• Revising artwork compensation algorithms
• Improving etching chemistry stability
• Implementing automated AOI line-width inspection
• Adjusting copper roughness process control
• Enhancing RF impedance verification
Results after optimization:
• RF channel consistency improved significantly
• Insertion loss reduced by approximately 16%
• Antenna phase stability improved
• Beamforming accuracy increased
• Production yield consistency improved across batches
This case demonstrates that etching compensation is fundamentally an RF performance control process, not merely a fabrication adjustment.

Why Is Advanced HDI Manufacturing Closely Related to Etching Precision?

Modern RF systems increasingly depend on HDI technology for:
• Dense RF routing
• Compact antenna modules
• High-speed digital integration
• Fine-pitch RF structures
HDI fabrication requires:
• Ultra-fine trace geometry
• Laser microvia precision
• Tight line-width control
• Stable etching compensation accuracy
Learn more about advanced HDI manufacturing capability here:
Rich Full Joy HDI PCB Solutions
As RF frequencies continue increasing, HDI and precision etching control are becoming deeply interconnected manufacturing disciplines.

Applications Where RF Etching Compensation Is Mission-Critical

5G Base Station RF Modules
Require precise impedance control for stable multi-GHz signal transmission.

77GHz Automotive Radar Systems
Extremely sensitive to phase mismatch and antenna dimensional variation.

Phased-Array Antenna Systems
Depend on highly consistent RF channel geometry for beamforming accuracy.

Satellite Communication Hardware
Requires low-loss RF transmission across wide frequency ranges.

AI High-Speed Computing Systems
Need accurate differential impedance for ultra-high-speed SerDes channels.

Aerospace RF Electronics
Require repeatable RF consistency under harsh environmental conditions.

Frequently Asked Questions (FAQ)

1. What is PCB etching compensation?
Etching compensation is the intentional adjustment of trace geometry to offset copper loss during PCB etching processes.

2. Why is etching compensation important in RF PCBs?
Because small conductor geometry changes can significantly affect impedance and RF signal integrity.

3. How does etching affect controlled impedance?
Over-etching narrows traces, increasing impedance beyond design targets.

4. Why are millimeter-wave PCBs highly sensitive to etching variation?
Because very short RF wavelengths make electromagnetic behavior extremely geometry-sensitive.

5. Does copper thickness influence etching behavior?
Yes. Thicker copper generally increases lateral etching and dimensional variation.

6. How does etching variation impact antenna performance?
It may alter resonance frequency, phase matching, and beamforming stability.

7. Can etching compensation improve insertion loss?
Yes. Accurate trace geometry improves impedance continuity and reduces RF reflection.

8. Why is etching consistency important in phased-array systems?
Uneven RF channels can degrade beamforming accuracy and system reliability.

9. Which industries require precise RF etching compensation?
5G, automotive radar, aerospace, satellite communication, and AI networking industries.

10. How is etching accuracy verified in RF PCB manufacturing?
Through AOI inspection, impedance coupon testing, TDR analysis, and statistical process control.

Conclusion: Etching Compensation Has Become a Core RF Manufacturing Discipline

As RF systems continue evolving toward higher frequencies and denser integration, PCB etching precision is no longer just a fabrication concern — it is a fundamental RF engineering requirement.
Precise etching compensation directly influences:
• Controlled impedance
• Insertion loss
• RF consistency
• Phase stability
• Beamforming accuracy
• High-speed signal integrity
Future RF PCB manufacturing will increasingly depend on:
• Advanced compensation algorithms
• Real-time process monitoring
• Precision HDI fabrication
• Automated RF verification systems
• Statistical manufacturing control
Only manufacturers with deep RF engineering expertise and precision fabrication capability can consistently deliver stable high-frequency PCB performance at production scale.
