RF PCB Filter Implementation: Lumped vs Distributed — PCB Tolerances Define the Selection Boundary

1. The Filter That Never Matches the Simulation

Every RF engineer has experienced this moment. The filter design is perfect in simulation — insertion loss meets specification, rejection skirts are sharp, return loss is well below -15 dB. The PCB is fabricated, assembled, and tested. And the measured response is significantly different — center frequency shifted, bandwidth narrowed, rejection degraded.

The components were within tolerance. The substrate material was what was specified. Yet the filter does not perform as designed.

The culprit is often a fundamental mismatch between the filter topology chosen for the design and the manufacturing tolerances of the PCB fabrication process. A lumped-element filter that works beautifully in simulation may be entirely impractical on a standard PCB because the parasitic capacitance from pads and traces, the variation in component values, and the uncertainty of the substrate dielectric constant all accumulate to shift the response beyond acceptable limits. A distributed-element filter, by contrast, may be insensitive to component tolerances but exquisitely sensitive to etching precision and dielectric thickness variation.

The selection boundary between lumped and distributed filter implementations on RF PCBs is not defined by frequency alone. It is defined by PCB manufacturing tolerances — and the gap between what is simulated and what can be fabricated.

2. Lumped-Element Filters: When Components Are the Circuit

2.1 The Lumped Paradigm
A lumped-element filter is constructed from discrete inductors, capacitors, and sometimes resistors — the familiar LC ladder networks of low-pass, high-pass, band-pass, and band-stop filters. The circuit is designed around ideal, frequency-independent component values: a 3.3 nH inductor is a 3.3 nH inductor, a 1.2 pF capacitor is a 1.2 pF capacitor.

In a lumped filter, the electrical wavelength is much larger than the physical dimensions of the circuit. The components are small enough that their physical size does not affect their electrical behavior. The circuit operates on the principle that voltages and currents are uniform across each component.

2.2 The Frequency Domain
Lumped-element filters are the natural choice for lower frequencies. As a general rule, lumped-element (LE) designs are suitable in the frequency range from 500 MHz to 5 GHz. Below 500 MHz, the component sizes are practical and parasitics are manageable. Above 5 GHz, the self-resonant frequencies of the components begin to interfere with the filter response, and the physical dimensions of the components become a significant fraction of a wavelength.

However, the upper limit is not fixed. With careful component selection — high-quality ceramic capacitors (NPO type) with ±1% capacitance tolerance, inductors with ±2% inductance tolerance — lumped filters can be pushed to higher frequencies. The practical limit is determined not by the components alone, but by the PCB parasitics that accumulate around them.

2.3 The Tolerance Problem
The Achilles' heel of lumped-element filters on PCBs is tolerance accumulation. Every component has a tolerance. Every pad adds parasitic capacitance. Every trace adds parasitic inductance. Every via adds both.

Consider a typical 5th-order Chebyshev band-pass filter at 2.4 GHz:

• Inductor tolerance: ±2%

• Capacitor tolerance: ±1%

• PCB pad capacitance: ±0.05 pF (variable)

• PCB trace inductance: ±0.1 nH (variable)

• Substrate Dk variation: ±5-10%

These tolerances accumulate. The center frequency can shift by 3-5%. The bandwidth can vary by 10-15%. The return loss can degrade from -20 dB to -10 dB.

The problem is compounded by the fact that component parasitics are specified, but PCB parasitics are not. An inductor datasheet specifies the self-resonant frequency. A capacitor datasheet specifies the ESL and ESR. But the parasitic capacitance from the pad to the ground plane, the parasitic inductance from the via to the component, and the coupling between adjacent traces — these are layout-dependent and un-specified.

Table 1 — PCB tolerance sources and their impact on lumped filters

The cumulative effect is that a lumped filter designed for a specific center frequency may measure off by several percent — often requiring multiple PCB revisions to tune.

3. Distributed-Element Filters: When the PCB Is the Circuit

3.1 The Distributed Paradigm

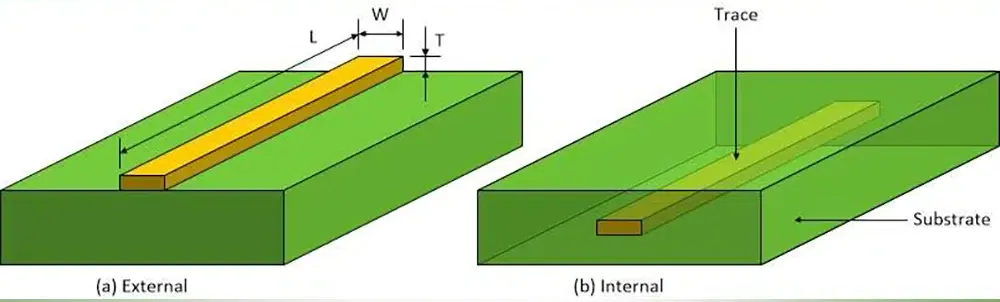

A distributed-element filter uses transmission line sections — microstrip, stripline, or coplanar waveguide — as the reactive elements. Instead of discrete inductors and capacitors, the filter uses quarter-wave resonators, coupled lines, stepped-impedance sections, and stubs.

In a distributed filter, the electrical wavelength is comparable to or smaller than the physical dimensions of the circuit. The components are not components at all — they are sections of transmission line whose distributed inductance and capacitance create the filter response.

The advantages are significant. Distributed filters have no discrete components to tolerance — the reactive elements are defined by the PCB geometry. They can operate at much higher frequencies — from 1 GHz to 100 GHz or higher. They are compatible with standard PCB fabrication processes.

3.2 The Frequency Domain
Distributed-element filters are the standard choice for higher frequencies. As a general rule, distributed (D) designs are suitable in the frequency range from 1 GHz to 100 GHz or higher.

The transition from lumped to distributed occurs when the physical dimensions of the circuit become a significant fraction of a wavelength — typically when the circuit size exceeds λ/10. At this point, the lumped assumption of uniform voltages and currents breaks down.

3.3 The Tolerance Problem — Different but Present
Distributed filters are less sensitive to component tolerances because there are no discrete components. However, they are highly sensitive to PCB fabrication tolerances:

• Etching tolerance: A ±20% variation in trace width changes the characteristic impedance and the resonant frequency of the filter sections. For a microstrip filter, even a 0.1 mm width variation changes impedance by approximately 3Ω.

• Dielectric thickness tolerance: A ±10% variation in substrate thickness changes the impedance and the effective dielectric constant.

• Dielectric constant tolerance: A ±5-10% variation in Dk shifts the center frequency.

• Copper thickness: A ±10% variation in copper thickness affects the conductor loss and, to a lesser extent, the impedance.

These tolerances stack up. A distributed filter designed on FR-4 — with Dk varying from 4.4 to 4.6 — can see microstrip line impedance shift by 5-10Ω. A filter designed with precision etching (±0.05 mm) will perform differently from one fabricated with standard etching (±0.1 mm).

Table 2 — PCB tolerance sources and their impact on distributed filters

4. The Selection Boundary: Where Tolerances Define the Choice

4.1 The Frequency Fallacy
A common misconception is that the selection between lumped and distributed filters is simply a function of frequency — lumped below 5 GHz, distributed above 5 GHz. This is an oversimplification.

The real selection boundary is defined by whether the PCB manufacturing tolerances can achieve the required filter performance in the chosen topology. A lumped filter at 5.8 GHz may be perfectly feasible with tight-tolerance components and careful layout. A distributed filter at 2.4 GHz may be unnecessarily large and expensive.

The selection boundary is where the cumulative effect of PCB tolerances exceeds the filter's performance margin.

4.2 The Tolerance Stack-Up Calculation
For a lumped filter, the tolerance stack-up includes:
Δf/f ≈ (ΔL/L + ΔC/C + ΔC_parasitic/C + ΔL_parasitic/L) / 2

For a distributed filter, the tolerance stack-up includes:
Δf/f ≈ (ΔW/W + Δh/h + ΔDk/Dk) / 2

Where:

• ΔW/W is the etching width variation

• Δh/h is the dielectric thickness variation

• ΔDk/Dk is the dielectric constant variation

The filter design is viable when the tolerance-induced frequency shift is less than the design margin — typically 2-3% of the center frequency.

4.3 The Decision Framework

4.4 Practical Selection Guidelines

Choose lumped when:

• Operating frequency is below 3 GHz

• Tight-tolerance components (±1% capacitors, ±2% inductors) are available

• PCB real estate is constrained

• The design can tolerate 3-5% center frequency variation

• Multiple PCB revisions are acceptable

Choose distributed when:

• Operating frequency is above 3 GHz

• Component tolerances would dominate the filter response

• The design cannot tolerate >2% center frequency variation

• Precision PCB fabrication (±0.05 mm etching) is available

• The PCB real estate can accommodate transmission line sections

5. Mitigating PCB Tolerance Effects

5.1 For Lumped Filters

Select tight-tolerance components. Use NPO/C0G capacitors (±1%) and high-Q inductors (±2%). The cost premium is small compared to the cost of a PCB revision.

Minimize parasitic capacitance. Clear the ground plane beneath the filter components. Use the smallest possible pad sizes. Keep traces short.

Include tuning pads. Add small series or shunt pads that can be populated with trimming components after measurement. A 0.5 pF capacitor in parallel with a 1 pF capacitor allows ±0.5 pF of tuning.

Simulate with tolerance. Run Monte Carlo simulations with component tolerances and estimated PCB parasitics included. If the filter fails at worst-case tolerance, redesign before fabricating.

5.2 For Distributed Filters

Specify precision etching. Standard PCB etching tolerance is ±20%. For distributed filters above 5 GHz, specify ±0.05 mm or better.

Use controlled-Dk materials. FR-4 Dk can vary by ±5-10%. For critical filters, use RF-grade materials (Rogers RO4000 series, PTFE) with specified Dk tolerance.

Include test coupons. Add impedance test coupons to the panel. Measure the actual impedance of the fabricated transmission lines. Adjust the design for production based on the measured values.

Simulate with fabrication tolerances. Include etching variation, dielectric thickness variation, and Dk variation in EM simulations. Use the worst-case results for design validation.

6. Summary: Tolerances Define the Boundary

The selection between lumped and distributed filter implementation on RF PCBs is not simply a function of frequency. It is defined by the manufacturing tolerances of the PCB fabrication process and the performance margin of the filter design.

The key takeaways:

• Lumped filters are sensitive to component tolerances and PCB parasitics. They are viable when component tolerances and PCB parasitics are small relative to the filter's performance margin — typically below 3-5 GHz.

• Distributed filters are sensitive to PCB fabrication tolerances — etching width, dielectric thickness, and Dk variation. They are viable when precision PCB fabrication is available — typically above 3-5 GHz.

• The selection boundary is where the cumulative tolerance-induced frequency shift exceeds the design margin.

• PCB etching tolerance (±20% standard, ±0.05 mm precision) is the single most important fabrication parameter for distributed filters.

• Component tolerance (±1% capacitors, ±2% inductors) is the single most important component parameter for lumped filters.

• Dielectric constant tolerance (±5-10%) affects both lumped and distributed filters through parasitic capacitance and phase velocity.

A filter design that ignores PCB tolerances will fail in production. A design that accounts for them — selecting the right topology for the available manufacturing capability — will perform as simulated, board after board.

7. Frequently Asked Questions

Q1: What is the difference between lumped and distributed filters on PCBs?
A: Lumped filters use discrete inductors and capacitors as reactive elements. Distributed filters use transmission line sections (microstrip, stripline) whose distributed inductance and capacitance create the filter response.

Q2: What frequency range is suitable for lumped-element filters?
A: Lumped-element filters are typically suitable from 500 MHz to 5 GHz. Above 5 GHz, component parasitics and self-resonance begin to dominate the response.

Q3: What frequency range is suitable for distributed-element filters?
A: Distributed-element filters are suitable from 1 GHz to 100 GHz or higher. They are the standard choice for microwave and millimeter-wave applications.

Q4: Why are distributed filters less sensitive to component tolerances?
A: Distributed filters have no discrete components — the reactive elements are defined by PCB geometry. There are no component tolerances to accumulate.

Q5: What is the most critical PCB tolerance for distributed filters?
A: Trace etching width is the most critical. Standard etching tolerance is ±20%. Precision etching at ±0.05 mm is required for filters above 5 GHz. Even a 0.1 mm width variation changes impedance by ~3Ω.

Q6: How does dielectric constant tolerance affect filter performance?
A: Dk variation shifts the phase velocity and characteristic impedance. FR-4 Dk can vary by ±5-10%, which can shift microstrip impedance by 5-10Ω. RF-grade materials have tighter Dk specifications.

Q7: Why do lumped filters often require multiple PCB revisions?
A: Geometry tolerances and Dk tolerances stack up. Component parasitics and PCB parasitics accumulate. The cumulative effect shifts the filter response — often requiring tuning through component value adjustments on subsequent revisions.

Q8: When should I choose lumped over distributed?
A: Choose lumped when operating below 3 GHz, when tight-tolerance components are available, when PCB real estate is constrained, and when 3-5% center frequency variation is acceptable.

Q9: When should I choose distributed over lumped?
A: Choose distributed when operating above 3 GHz, when component tolerances would dominate the response, when precision PCB fabrication is available, and when the design cannot tolerate >2% center frequency variation.

Q10: Can I combine lumped and distributed elements in one filter?
A: Yes. Lumped-distributed co-designed filters are an active area of research and development, combining the compact size of lumped elements with the high-frequency capability of distributed structures.
