RF PCB LNA Input Matching: Parasitic Capacitance from the PCB Is Harder to Control Than the Components Themselves

1. The Matching That Never Matches

A low noise amplifier is the first active stage in any RF receiver chain. Its input matching network determines the noise figure, gain, and input return loss of the entire system. Engineers spend days optimizing the matching network in simulation — selecting the exact inductor values, tuning the series capacitor, balancing the source degeneration inductor — until the noise circle and the gain circle align perfectly.

The boards come back from fabrication. The LNA is assembled. And the measurement shows a noise figure 0.5 dB higher than simulated, a return loss that shifted 3 dB, and an input impedance that no longer sits where it was designed.

The components are within tolerance. The transistor model is accurate. The culprit is almost always the same: parasitic capacitance from the PCB layout.

The input of an LNA is the most sensitive node in the entire receiver. At this node, the signal is at its lowest level — often below -100 dBm — and any degradation is amplified by the entire gain chain. A few tenths of a picofarad of parasitic capacitance at the LNA input can shift the impedance, raise the noise figure, and detune the matching network.

The frustrating reality for RF designers is that PCB parasitic capacitance is fundamentally harder to control than component parasitics. The capacitor you buy has a specified tolerance — ±5%, ±10%, you know what you are getting. The parasitic capacitance from a poorly placed ground plane, an overly large pad, or a via too close to the signal path is unknown, un-specified, and varies from board to board.

This article examines why PCB parasitic capacitance dominates LNA input matching variation, quantifies its impact on noise figure and impedance, and provides practical layout strategies for gaining control over the uncontrollable.

2. The LNA Input: Where Parasitics Matter Most

2.1 Why the Input Is So Sensitive
The input of an LNA is the most critical node in the RF front end for three reasons:

Signal level. The signal at the LNA input is at its lowest point in the entire receiver chain — often -100 dBm or lower. Any loss, mismatch, or noise added here is amplified by the entire gain of the receiver. A 0.1 dB degradation in noise figure at the LNA input is a 0.1 dB degradation in the system noise figure.

High impedance. The input of a common-source or common-emitter LNA presents a high impedance — often capacitive — that must be matched to 50Ω. This high-impedance node is extremely sensitive to any additional shunt capacitance. A few tenths of a picofarad can shift the input impedance by tens of ohms.

Narrowband nature. Most LNA input matching networks are narrowband by design — they use series inductors to resonate with the input capacitance and achieve a conjugate match. Any additional parasitic capacitance shifts the resonant frequency, detuning the match.

2.2 The Input Capacitance Problem
The higher the input capacitance, the higher the amplifier's noise figure, the lower the input impedance, and the higher the optimum noise-match source impedance. In other words, parasitic capacitance at the LNA input makes everything worse — except stability.

The only beneficial effect of input capacitance is that it stabilises the amplifier. As the parasitic capacitance to ground is reduced, the transistor becomes more prone to high-frequency parasitic oscillations. This creates a delicate balance: reduce parasitics too much and the LNA oscillates; leave too much and the noise figure suffers.

At millimeter-wave frequencies, the problem intensifies. Conventional RF front-end LNA circuits have limited performance at high frequencies due to high-frequency parasitic effects of the LNA components. The parasitic capacitance of a pad, a via, or a ground plane that was negligible at 1 GHz becomes a dominant factor at 28 GHz and above.

3. PCB Parasitic Capacitance: Sources and Magnitudes

3.1 Where Does It Come From?
PCB parasitic capacitance at the LNA input comes from multiple sources:

Ground plane proximity. The most significant source of parasitic capacitance is the ground plane beneath the input trace and matching components. A microstrip trace over a solid ground plane has a distributed capacitance to ground. When this trace connects to the LNA input pin, that capacitance adds directly to the input capacitance of the transistor. Clearing the metal below all matching component area reduces the parasitic capacitance.

Pad capacitance. The copper pads used to solder components — and particularly the pad at the LNA input pin — create capacitance to the ground plane below. A typical 0402 pad over a ground plane adds approximately 0.05-0.10 pF of parasitic capacitance. At 5 GHz, that is enough to shift impedance by several ohms.

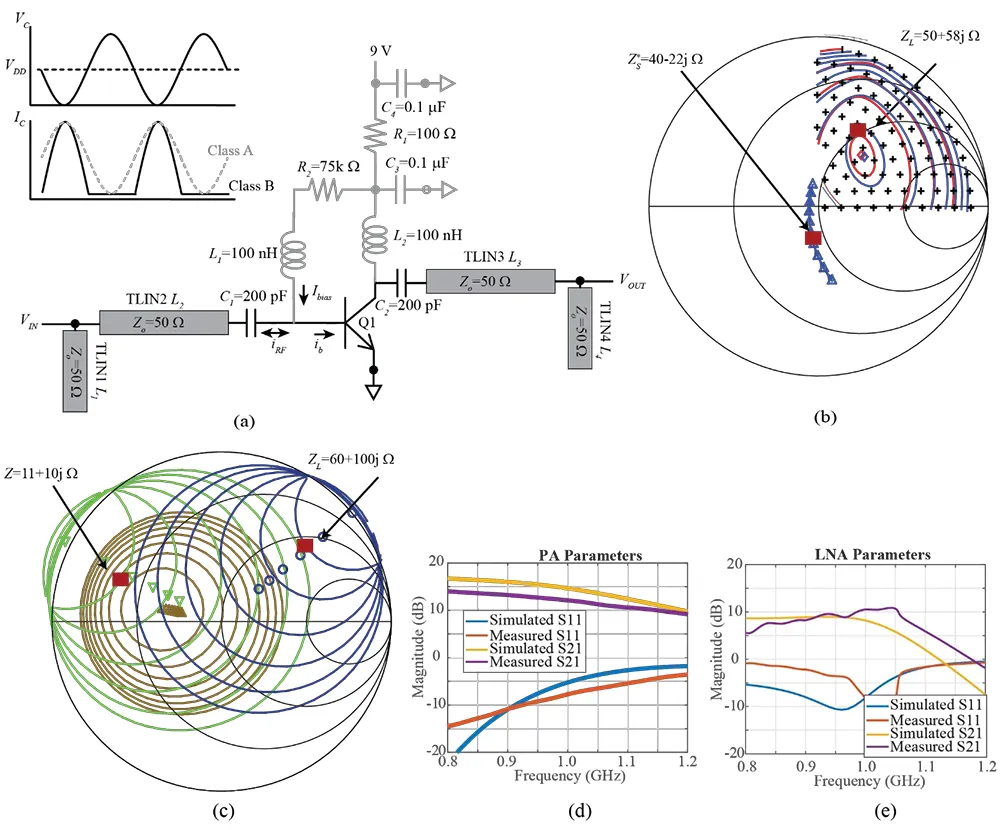

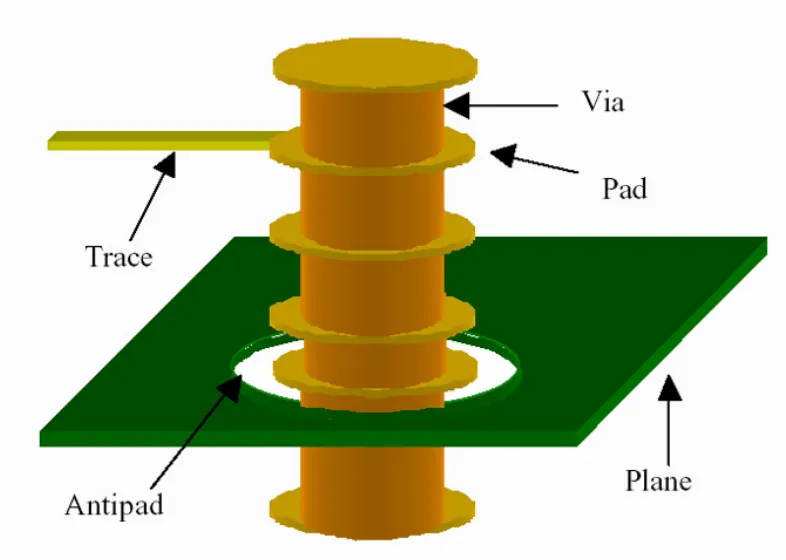

Via capacitance. Every via that connects a signal to an internal layer or to ground adds capacitance. A via in the signal path near the LNA input can add 0.1-0.2 pF of shunt capacitance. The PCB ground plane is removed around the amplifier's inputs to minimise shunt capacitance.

Trace capacitance. The input trace itself — from the connector or filter to the LNA input pin — has distributed capacitance to ground. A 10 mm microstrip trace on 0.8 mm FR-4 adds approximately 0.3-0.5 pF of capacitance. RF paths must be kept as short as possible.

Component body capacitance. Even the matching components themselves contribute. An 0402 inductor has a parasitic capacitance between its terminals and to ground. At high frequencies, the inductor's self-resonant frequency — which decreases as inductance increases — is influenced strongly by stray capacitance.

3.2 Quantifying the Impact
To understand why PCB parasitics dominate, consider a typical LNA input matching network for a 2.4 GHz application. The design uses:

• A series inductor (Lg) of 3.9 nH
• A shunt inductor (Ls) of 0.5 nH for source degeneration
• A DC-blocking capacitor (Cdc) of 100 pF
• The transistor input capacitance (Cgs) of approximately 0.5 pF

The total input capacitance that the matching network must resonate is the sum of Cgs plus all parasitic capacitances. If the PCB adds just 0.2 pF of parasitic capacitance — a very realistic number — that is a 40% increase in the total capacitance that must be matched.

This 40% increase shifts the resonant frequency by approximately:
Δf/f ≈ -0.5 × (ΔC/C) = -0.5 × 0.4 = -20%

A matching network designed for 2.4 GHz now resonates at approximately 1.9 GHz. The return loss at 2.4 GHz degrades from -20 dB to -5 dB or worse.

Table 1 — PCB parasitic capacitance sources and typical values

4. Why PCB Parasitics Are Harder to Control Than Components

4.1 Component Parasitics: Known and Specified
The components you select for your LNA input matching network have known, specified parasitic parameters:

• Inductors: Datasheets specify the self-resonant frequency (SRF) and Q-factor. The parasitic capacitance is implicitly defined by the SRF.
• Capacitors: Datasheets specify the equivalent series resistance (ESR) and equivalent series inductance (ESL).
• Transistors: The model includes the intrinsic Cgs, Cgd, and Cds, along with packaging parasitics.

These parasitics are characterized, specified, and repeatable from component to component. When you simulate with the manufacturer's model, you are accounting for these parasitics.

4.2 PCB Parasitics: Unknown and Variable
PCB parasitic capacitance, by contrast, is:

Unspecified. No PCB manufacturer provides a "parasitic capacitance specification" for your layout. The capacitance depends on your specific trace geometry, pad sizes, via placement, and ground plane clearance.

Layout-dependent. Move a component by 1 mm, change a pad size by 0.1 mm, or add a via, and the parasitic capacitance changes. Small changes in layout create significant shifts in performance.

Frequency-dependent. The parasitic capacitance is not a simple lumped value at high frequencies. Distributed effects, resonances, and coupling between adjacent structures all contribute.

Board-to-board variable. Even with identical layouts, variations in dielectric thickness, copper etching, and lamination pressure change the parasitic capacitance from board to board.

Simulation-ignored. Many designers do not include PCB parasitics in their simulations. They simulate the ideal schematic and assume the layout will "work out." It rarely does.

4.3 The Control Gap
The practical consequence: you can specify a 1% tolerance inductor and a 2% tolerance capacitor. You cannot specify a "0.1 pF maximum parasitic capacitance" for your PCB layout — unless you design it yourself and verify it through EM simulation.

PCB layout parasitic effects have a vital effect on circuit performance and must be accounted for using electromagnetic (EM) simulation. The parasitic inductance of a via is approximately 0.2 nH per PCB via. The parasitic capacitance of a pad, a trace, or a ground plane is equally significant and equally measurable — but only if you simulate.

The difference between a design that works and one that fails is often the difference between a designer who includes PCB parasitics in EM simulation and one who does not.

5. Design Strategies for Controlling PCB Parasitic Capacitance

5.1 Clear the Ground Plane Under the Matching Network
The single most effective technique for reducing parasitic capacitance at the LNA input is to remove the ground plane beneath the input matching network.

By clearing the metal below all matching component areas, you reduce the shunt capacitance to ground. The PCB ground plane should be removed around the amplifier's inputs to minimise shunt capacitance.

Implementation: Create a ground plane cutout beneath the entire input matching network — from the input connector or filter pad to the LNA input pin. The cutout should extend at least 2-3 mm beyond the outermost components. This increases the impedance of the traces and reduces the shunt capacitance.

5.2 Keep the Input Path as Short as Possible
Every millimeter of trace adds capacitance. RF paths must be kept as short as possible for reducing RF signal loss and parasitic capacitance.

Implementation: Place the LNA as close as possible to the input connector or filter. Route the input trace on the surface layer — not on internal layers where additional via capacitance is introduced.

5.3 Minimize Pad Size
The pads at the LNA input and at the matching components create capacitance to the ground plane. Use the smallest pad size that is manufacturable and reliable.

Implementation: For 0402 components, use the minimum recommended pad size. For the LNA input pin, use a pad that is only slightly larger than the pin itself. Avoid unnecessarily large copper pours or thermal relief pads at the input.

5.4 Orient Components at 45 Degrees
To keep stray capacitance to a minimum, inductors should be situated above the ground-plane cutout and oriented at 45 degrees to the signal flow. This orientation allows connections to the terminals to be located as far from each other as practical.

Implementation: Orient the input matching inductor and the LNA transistor at 45 degrees to the signal path. This minimizes the interaction between the component body and the surrounding ground plane.

5.5 Avoid Vias in the Signal Path
Every via adds parasitic inductance and capacitance. At the LNA input, vias should be avoided entirely.

Implementation: Route the input signal on the surface layer from the connector to the LNA input pin. Do not use vias to change layers in the input matching network. If a via is absolutely necessary, keep it as small as possible and place it away from the critical matching nodes.

5.6 Use EM Simulation — Not Just Schematic Simulation
The schematic simulation assumes ideal components and no PCB parasitics. To predict real performance, you must include the PCB layout in your simulation.

Implementation: After completing the layout, extract the parasitic capacitance and inductance using 3D EM simulation (HFSS, CST, Momentum). Include the parasitics in the circuit simulation. Iterate the layout until the simulated performance matches the schematic performance.

For every matching element, parasitic effects must be considered. The major parasitic elements for losses are often the PCB via parasitic inductors. Account for them, or accept that your measurement will not match your simulation.

5.7 Design the L-N-C Node with Extreme Care
The node connecting the series inductor (L₁) and the series capacitor (C₁) in a typical LNA input matching network is a series-resonant point, and is particularly sensitive to stray capacitance.

Implementation: The connection associated with this node should be made as small as possible. Use the shortest possible trace between the inductor and the capacitor. Avoid placing any other components, vias, or copper near this node.

6. Summary: Control the Uncontrollable

LNA input matching is dominated not by component tolerances, but by PCB parasitic capacitance. The components you select have known, specified parasitics. The PCB layout you create has unknown, un-specified parasitics that vary with every design decision.

The key takeaways:

• The LNA input is the most sensitive node in the RF receiver — signal levels are lowest, impedance is highest
• PCB parasitic capacitance shifts impedance, raises noise figure, and detunes matching networks
• Component parasitics are specified and repeatable; PCB parasitics are unknown and layout-dependent
• Clearing the ground plane under the matching network is the single most effective technique
• Keep the input path short, minimize pad sizes, avoid vias, and orient components at 45 degrees
• EM simulation is essential — schematic simulation alone cannot predict PCB parasitic effects
• The series-resonant node (inductor-to-capacitor connection) is particularly sensitive and must be kept minimal

A well-designed LNA layout with controlled PCB parasitic capacitance will achieve the noise figure, gain, and return loss that your simulation predicts. A layout that ignores PCB parasitics will measure differently — often 0.5 dB worse in noise figure and several dB worse in return loss — and the difference will be blamed on everything except the real culprit: the PCB itself.

7. Frequently Asked Questions

Q1: Why is PCB parasitic capacitance more problematic than component tolerances for LNA input matching?
A: Component parasitics are specified in datasheets and included in simulation models. PCB parasitic capacitance is unknown, layout-dependent, and varies from board to board. A 1% tolerance inductor is predictable; a 0.1 pF parasitic capacitance from a ground plane is not.

Q2: How does parasitic capacitance affect LNA noise figure?
A: The higher the input capacitance, the higher the amplifier's noise figure, the lower the input impedance, and the higher the optimum noise-match source impedance. Parasitic capacitance shifts the input impedance away from the optimum noise match, degrading noise figure.

Q3: What is the most effective technique for reducing parasitic capacitance at the LNA input?
A: Clearing the ground plane beneath the entire input matching network. Removing the ground plane below the matching components reduces the shunt capacitance to ground. The PCB ground plane should be removed around the amplifier's inputs.

Q4: How much parasitic capacitance does a typical PCB trace add?
A: A 10 mm microstrip trace on 0.8 mm FR-4 adds approximately 0.3-0.5 pF of capacitance. An 0402 pad over a ground plane adds 0.05-0.10 pF. A via adds 0.1-0.2 pF. These values accumulate quickly at the LNA input.

Q5: Why should I orient inductors and transistors at 45 degrees to the signal flow?
A: To keep stray capacitance to a minimum, the 45-degree orientation allows connections to the terminals to be located as far from each other as practical. It also allows the shortest signal paths and dis-encumbers source connections from other circuit elements.

Q6: What is the most sensitive node in an LNA input matching network?
A: The node connecting the series inductor (L₁) and the series capacitor (C₁) is a series-resonant point and is particularly sensitive to stray capacitance. The connection at this node should be made as small as possible.

Q7: Do I need EM simulation for LNA input matching design?
A: Yes. PCB layout parasitic effects have a vital effect on circuit performance and must be accounted for using electromagnetic (EM) simulation. Schematic simulation alone cannot predict the parasitic capacitance of the layout.

Q8: Does reducing parasitic capacitance always improve LNA performance?
A: Not always. The only beneficial effect of input capacitance is to stabilise the amplifier. As parasitic capacitance to ground is reduced, the transistor becomes more prone to high-frequency parasitic oscillations. There is an optimal balance.

Q9: How does PCB parasitic capacitance affect LNA input impedance?
A: Parasitic shunt capacitance at the input lowers the input impedance and shifts the resonant frequency of the matching network. A 0.2 pF increase in capacitance can shift impedance by 10-20Ω at 2.4 GHz.

Q10: Can I compensate for PCB parasitics with component value adjustments?
A: To some extent, yes. If you know the parasitic capacitance from EM simulation, you can adjust the matching component values to compensate. However, this requires that the parasitics are consistent from board to board — which is not always guaranteed.
