RF PCB Test Fixture Design and De-Embedding Capability

1. The Fixture That Distorts the Measurement

A 50Ω microstrip line on a PCB is designed to have exactly 50Ω characteristic impedance. The simulation says so. The design rules were followed. Yet when the board is measured with a vector network analyzer, the impedance reads 48Ω, the insertion loss is 0.3 dB higher than expected, and the return loss is 3 dB worse.

The PCB is correct. The problem is the test fixture.

For measurements of non-connectorized devices — RF chips, surface-mount components, embedded passives, or PCB transmission lines — test fixtures, probes, or other structures are used to adapt from the coaxial interface of the test setup to the device under test (DUT). These fixtures introduce lead-ins and lead-outs that add their own parasitic capacitance, inductance, and loss to the measurement.

The RF fixture provides a connection port between the VNA and the RF chip, ensuring efficient and stable signal transmission while minimizing signal loss and reflection. However, the fixture itself is not transparent. The connector transition from coaxial to microstrip creates field discontinuities — the coaxial field is cylindrical, while the PCB field is planar. The SMA-to-microstrip interface, vias, pads, and trace sections all contribute parasitics that corrupt the measurement.

Accurate RF PCB characterization requires removing these fixture effects through a process called de-embedding. This article examines why test fixture design matters, what de-embedding is and how it works, the primary de-embedding methods available, and practical guidelines for achieving accurate RF PCB measurements.

2. The Test Fixture Problem: Parasitics That Corrupt Measurements

2.1 What Is a Test Fixture?
A test fixture is the mechanical and electrical interface between the VNA's coaxial measurement ports and the DUT. For RF PCBs, fixtures typically include:

• Coaxial connectors (SMA, 2.92 mm, 1.85 mm) that interface with VNA cables

• Transition structures that convert from coaxial to planar transmission line (microstrip, GCPW, or stripline)

• Launch structures — the pads, vias, and trace sections that couple energy from the connector to the PCB

• Lead-in and lead-out traces that connect the launch to the DUT

The fixture is essential because most RF devices on PCBs — LNA input pads, filter ports, antenna feed points, or surface-mount components — do not have coaxial connectors. A fixture is required to bring the VNA's 50Ω coaxial reference plane to the device terminals.

2.2 The Parasitic Problem
The fixture introduces multiple parasitic effects that corrupt the measurement:

Connector-to-PCB transition. The electromagnetic field in a coaxial cable is cylindrical; in a microstrip line, it is planar. When a signal passes from one propagation medium to another, the field distribution changes, creating anomalies and errors. The impedance at the SMA-to-microstrip interface can vary significantly — one study found impedances of 55.15Ω and 52.24Ω on nominally identical fixtures, a 2.91Ω difference.

Launch vias. Vias connecting the connector footprint to the internal signal layer add series inductance and shunt capacitance, creating impedance discontinuities that degrade return loss.

Lead-in traces. The traces connecting the launch to the DUT add distributed series inductance and shunt capacitance. These traces also contribute insertion loss.

Pad capacitance. The pads at the DUT connection points add shunt capacitance to the ground plane, shifting impedance and altering the measurement.

Asymmetry. Due to process instability and circuit fabrication errors, completely symmetric fixtures cannot be fabricated. Differences in S-parameters between the two fixture halves can lead to inaccurate test results.

2.3 The Frequency Scaling Effect
The impact of fixture parasitics scales with frequency. At low frequencies (<1 GHz), fixture parasitics may be negligible. At 10 GHz, a 0.1 pF pad capacitance creates a reactance of approximately 160Ω — significant enough to shift impedance by several ohms. At 40 GHz and above, the parasitics from a poorly designed launch can dominate the measurement entirely.

For 5G, 6G, and phased-array applications operating from sub-1 GHz to 90-300 GHz, test fixtures must be carefully designed to simulate real-world performance. The higher the frequency, the more critical fixture design and de-embedding become.

3. De-Embedding: Removing the Fixture from the Measurement

3.1 What Is De-Embedding?
De-embedding is the mathematical process of removing the effects of the test fixture from the measured S-parameters, leaving only the DUT's intrinsic performance. The fixture's lead-ins and lead-outs are characterized — their S-parameters are measured or modeled — and then mathematically subtracted from the total measurement.

The fundamental concept is straightforward: the measured S-parameters (S_measured) are the cascade of the fixture's input section (S_fixture_A), the DUT (S_DUT), and the fixture's output section (S_fixture_B). If the fixture sections are known, the DUT can be extracted:

S_DUT = S_fixture_A⁻¹ × S_measured × S_fixture_B⁻¹

In practice, de-embedding is more complex. The fixture sections must be accurately characterized, and the mathematical operations must account for the non-ideal behavior of real fixtures.

3.2 Why De-Embedding Matters
Without de-embedding, the measured S-parameters include the fixture's insertion loss, return loss, phase shifts, and impedance transformations. These errors can be significant:

• Insertion loss: The fixture adds 0.1-0.5 dB of loss that is incorrectly attributed to the DUT

• Return loss: Fixture impedance mismatches degrade return loss by 3-5 dB

• Phase: Fixture delay shifts phase, affecting group delay measurements

• Impedance: Fixture parasitics shift the apparent impedance of the DUT

For device characterization, model extraction, or performance verification, these errors are unacceptable. De-embedding is essential for accurate RF PCB measurements.

4. De-Embedding Methods: From Simple to Sophisticated

4.1 Open-Short De-Embedding
The open-short method is one of the simplest de-embedding techniques. Three test fixtures are fabricated:

1. Open fixture: The DUT is removed, leaving an open circuit at the DUT location

2. Short fixture: The DUT is replaced with a short circuit

3. DUT fixture: The actual DUT is mounted

The process:

1. Measure S-parameters of the open, short, and DUT fixtures

2. Convert S-parameters to impedance (Z) or admittance (Y) parameters

3. Remove series parasitics by subtracting the Z-parameters of the short

4. Remove parallel parasitics by subtracting the Y-parameters of the open from the previous step

Advantages: Simple, requires only three fixtures, widely understood.

Limitations: Assumes fixture parasitics can be modeled as a simple series-shunt network. Less accurate at high frequencies.

4.2 TRL (Thru-Reflect-Line) Calibration
TRL is a calibration and de-embedding technique designed for non-coaxial environments like PCB microstrip lines. It shifts the reference planes from the VNA connectors onto the PCB, effectively de-embedding the connectors and launches.

TRL standards:

• Thru: A direct connection between the two fixture ports (zero-length or known-length)

• Reflect: A high-reflection standard (open or short) at the reference plane

• Line: A transmission line of known length, different from the Thru

Multiline TRL (mTRL) extends the technique using multiple line standards of different lengths, improving accuracy over a wider frequency range.

Advantages: Very accurate, self-calibrating, ideal for PCB measurements.

Limitations: Requires careful design of TRL standards, more complex than open-short.

4.3 2X-Thru De-Embedding
The 2X-thru method is a fixture de-embedding technique that uses a single calibration standard — a "double-length thru" that consists of two identical fixture halves connected back-to-back.

How it works:

1. A 2X-thru structure — fixture A + fixture B in cascade — is fabricated on the same PCB material

2. The S-parameters of the 2X-thru are measured

3. Assuming the fixture halves are symmetric, the fixture's S-parameters are extracted from the 2X-thru measurement

4. The extracted fixture model is used to de-embed the DUT measurement

The 2X-thru is divided into fixtures A and B, which are mirror-symmetric, enabling bidirectional testing. However, due to process instability and circuit fabrication errors, completely symmetric fixtures cannot be fabricated. Impedance-corrected de-embedding addresses this by removing the error introduced by 2X-thru impedance variation.

Advantages: Requires only one calibration standard, simpler than TRL.

Limitations: Assumes fixture symmetry — a significant limitation given real fabrication variations.

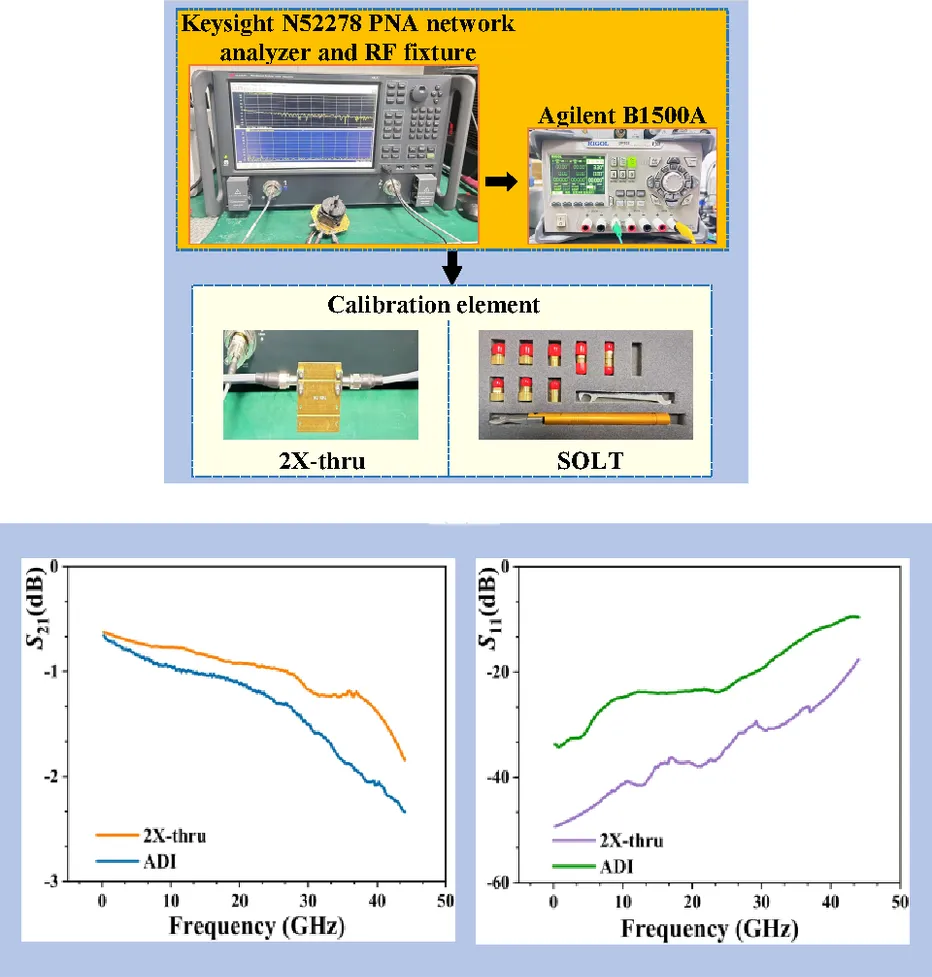

Table 1 — De-embedding methods comparison

4.4 Hybrid and Advanced Methods
For asymmetric or low-loss PCB fixtures, hybrid de-embedding methods combine multiple techniques. One approach combines the unitary condition of lossless networks with impulse response curve truncation. A magnitude-symmetry formula is derived for reciprocal and low-loss PCB fixtures, giving the analytical relationship between S₁₁ and S₂₂ for asymmetric fixtures. Good S-parameter correlations can be observed in all examples.

Automatic Fixture Removal (AFR) is another advanced technique that uses a symmetric "Thru" structure for quick de-embedding. The AFR algorithm extracts the fixture S-parameters from the 2X-thru measurement and applies them to de-embed the DUT.

5. Designing Test Fixtures for Successful De-Embedding

The quality of the de-embedding result depends on the quality of the fixture design. A poorly designed fixture cannot be accurately de-embedded.

5.1 Fixture Design Principles
Design for symmetry. Symmetric fixtures simplify de-embedding and improve accuracy. The 2X-thru method, in particular, relies on fixture symmetry. While perfect symmetry is impossible in production, minimizing asymmetry improves results.

Minimize parasitics. Keep launch structures short. Minimize pad sizes. Use ground plane clearance to reduce shunt capacitance. Avoid unnecessary vias in the signal path.

Use controlled-impedance design. The fixture should maintain 50Ω characteristic impedance throughout — from the connector through the launch to the DUT interface. Impedance discontinuities create reflections that degrade measurement accuracy.

Select appropriate connectors. For high-frequency measurements, use connectors rated for the frequency range — SMA up to 18 GHz, 2.92 mm up to 40 GHz, 1.85 mm up to 67 GHz, and 1.0 mm for sub-terahertz frequencies.

Avoid connector misalignment. At higher frequencies, even slight connector misalignments are sufficient to cause measurement failure. Use connectors with visual alignment indicators or ganged assemblies with alignment features.

5.2 Calibration Standard Design
For TRL de-embedding, the calibration standards must be carefully designed:

• Thru: A zero-length or known-length connection between the two fixture reference planes

• Reflect: An open or short at the reference plane

• Line: A transmission line of known length, with length chosen to provide optimal phase shift across the frequency band

The line standard should be fabricated on the same PCB material as the DUT to ensure consistent dielectric properties.

For 2X-thru de-embedding, the 2X-thru structure should be fabricated on the same PCB panel as the DUT fixtures to minimize process variation.

5.3 Verification and Validation
After fixture design and fabrication, verify the fixture performance before measuring DUTs:

• Measure the fixture's S-parameters (open, short, or 2X-thru) and compare against simulation

• Check impedance at the connector-to-PCB transition — variations indicate launch problems

• Verify symmetry by comparing S-parameters of the two fixture halves

• Validate de-embedding by measuring a known standard (e.g., a known transmission line) and comparing de-embedded results against the known value

6. Summary: Fixture Design and De-Embedding Are Inseparable

Accurate RF PCB measurement requires both a well-designed test fixture and a robust de-embedding capability. The fixture provides the physical interface between the VNA and the DUT; de-embedding removes the fixture's parasitic effects from the measurement.

The key takeaways:

• Test fixtures introduce parasitics — connectors, launches, vias, and lead-in traces all corrupt S-parameter measurements

• De-embedding removes these effects mathematically, revealing the DUT's true performance

• Multiple de-embedding methods exist: Open-Short (simple, low-frequency), TRL (accurate, PCB-optimized), 2X-Thru (single-standard, symmetry-dependent), and hybrid methods (asymmetric fixtures)

• Fixture design quality determines de-embedding success — symmetry, minimized parasitics, controlled impedance, and proper connectors are essential

• Process variation creates asymmetry — even nominally symmetric fixtures have S-parameter differences that must be accounted for

• Verification is critical — validate fixture performance before measuring DUTs

A well-designed fixture with accurate de-embedding delivers S-parameters that match simulation and reveal the true performance of the DUT. A poorly designed fixture with inadequate de-embedding produces measurements that are wrong — and the error is blamed on everything except the fixture itself.

7. Frequently Asked Questions

Q1: What is a test fixture in RF PCB measurements?
A: A test fixture is the mechanical and electrical interface between the VNA's coaxial measurement ports and the non-coaxial DUT — typically including connectors, launch structures, and lead-in/lead-out traces.

Q2: Why does a test fixture corrupt RF measurements?
A: The fixture introduces parasitics — capacitance, inductance, and loss — from connectors, vias, pads, and traces. The coaxial-to-planar transition creates field discontinuities that cause reflections and impedance errors.

Q3: What is de-embedding?
A: De-embedding is the mathematical process of removing the fixture's effects from the measured S-parameters, leaving only the DUT's intrinsic performance.

Q4: What are the most common de-embedding methods for PCB measurements?
A: Open-Short (simple, low-frequency), TRL/mTRL (accurate, PCB-optimized), 2X-Thru (single-standard, symmetry-dependent), and hybrid methods for asymmetric fixtures.

Q5: Why is fixture symmetry important for de-embedding?
A: The 2X-Thru method assumes fixture symmetry. However, due to process instability and circuit fabrication errors, completely symmetric fixtures cannot be fabricated. Asymmetry creates errors in the de-embedded results.

Q6: What is the 2X-Thru de-embedding method?
A: 2X-Thru uses a single calibration standard — two identical fixture halves connected back-to-back. The fixture S-parameters are extracted from the 2X-Thru measurement and used to de-embed the DUT.

Q7: What is TRL calibration and why is it used for PCB measurements?
A: TRL (Thru-Reflect-Line) is a calibration technique designed for non-coaxial environments like PCB microstrip lines. It shifts reference planes onto the PCB, effectively de-embedding connectors and launches.

Q8: How does connector misalignment affect RF measurements?
A: At higher frequencies, even slight connector misalignments are sufficient to cause measurement failure. Misalignment creates impedance mismatches and reflections that corrupt S-parameter measurements.

Q9: Can a fixture be perfectly symmetric in production?
A: No. Due to process instability and circuit fabrication errors, completely symmetric fixtures cannot be fabricated. Differences in S-parameters between fixture halves are inevitable.

Q10: How do I verify that my de-embedding is working correctly?
A: Measure a known standard (e.g., a calibrated transmission line) and compare de-embedded results against the known value. Verify fixture symmetry by comparing S-parameters of the two fixture halves.
