Pcb Trace Manufacturing Process: Equipment, Techniques, and Key Considerations

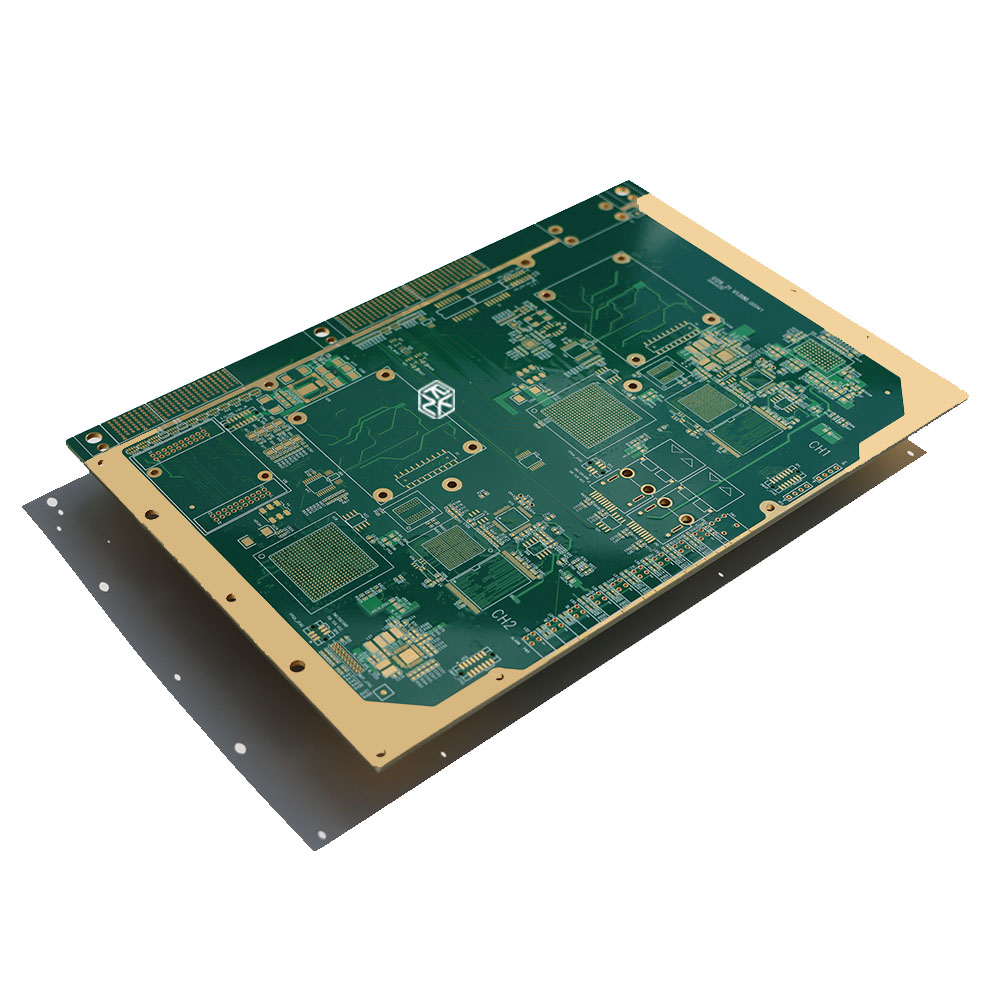

The manufacturing of Printed Circuit Board (PCB) traces is a critical step in the PCB production process. This process involves multiple stages, from circuit design to the actual formation of traces, ensuring that the final product performs reliably. Below is a detailed summary of the equipment, processes, and key considerations involved in trace manufacturing.

1.Trace Design

Equipment and Techniques:

• CAD Software: Tools like Altium Designer, Eagle, and Kicad are essential for designing PCB traces. They help create circuit diagrams and layouts, optimizing the board for electrical performance and functionality.
• Gerber Files: After design completion, Gerber files are generated. These files are the standard format for PCB manufacturing, containing detailed information about each layer of the PCB.

Key Considerations:

• Ensure the design adheres to industry standards and perform Design Rule Checks (DRC) to avoid errors.
• Optimize layout to minimize signal interference and enhance electrical performance.
• Verify the accuracy of Gerber files to prevent issues during manufacturing.

2. Photolithography

Equipment and Techniques:

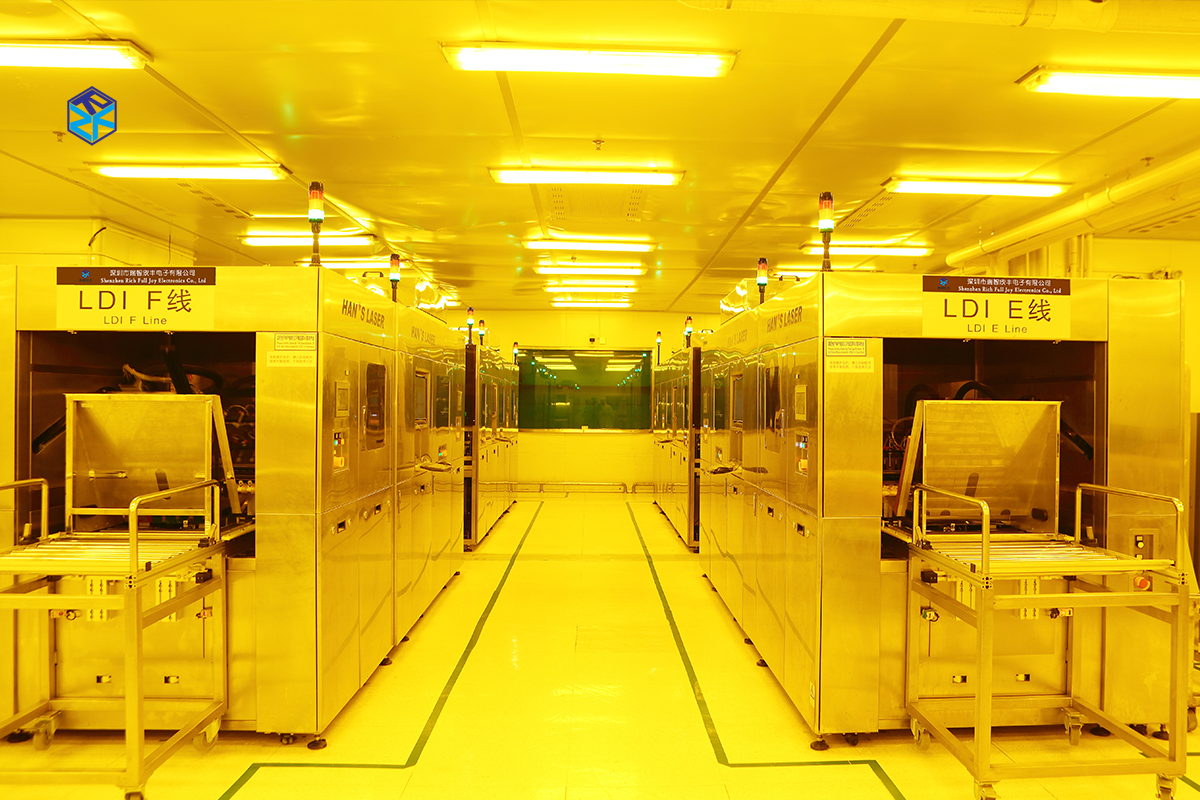

• Photoplotter:Converts CAD designs into photomasks used to transfer trace patterns onto the PCB.
• Exposure Unit:Uses ultraviolet (UV) light to transfer the photomask patterns onto the photoresist-coated copper-clad laminate.
• Developer:Removes the unexposed photoresist, revealing the copper trace patterns.

Key Considerations:

• Ensure precise alignment of photomasks with the laminate to avoid pattern deviations.
• Maintain a clean environment to prevent dust and contaminants from affecting the pattern transfer.
• Control exposure and development times to avoid over or under-development issues.

3. Etching Process

Equipment and Techniques:

• Etching Machine:Utilizes chemical solutions such as ferric chloride or ammonium persulfate to remove unwanted copper, leaving behind the trace patterns.
• Spray Etching:Provides uniform etching and is suitable for high-precision PCB production.

Key Considerations:

• Monitor etching solution concentration and temperature to ensure uniform etching.
• Regularly check and replace etching solutions to maintain effectiveness.
• Use appropriate safety equipment and ventilation due to the hazardous nature of etching chemicals.

4. Plating Process

Equipment and Techniques:

• Electroless Plating:Deposits a thin layer of copper on drilled holes and the PCB surface, creating conductive paths.
• Electroplating:Thickens the copper layer on the surface and in holes, enhancing conductivity and mechanical strength.

Key Considerations:

• Ensure thorough cleaning and activation of PCB surfaces before plating.
• Monitor the composition and conditions of the plating bath to achieve a uniform thickness.
• Regularly inspect the plating quality to meet specification requirements.

5. Copper Lamination

Equipment and Techniques:

• Lamination Machine:Applies copper foil to the PCB substrate through heat and pressure, securing the copper layer.
• Cleaning and Preparation:Ensures that the substrate and copper foil surfaces are clean to improve adhesion.

Key Considerations:

• Control temperature and pressure to ensure even adhesion of copper foil.
• Avoid bubbles and wrinkles that could affect trace connectivity and reliability.
• Conduct quality checks after lamination to ensure uniformity and integrity of the copper layer.

6. Drilling

Equipment and Techniques:

• CNC Drilling Machine:Precisely drills holes for vias, mounting holes, and through-hole components, accommodating various sizes and depths.
• Drill Bits:Typically made from tungsten carbide, these bits are durable and precise.

Key Considerations:

• Regularly inspect and replace drill bits to avoid inaccuracies in drilling.
• Control drilling speed and feed rate to prevent damage to the PCB material.
• Use automated inspection systems to ensure correct hole positioning and dimensions.

7. Cleaning and Final Inspection

Equipment and Techniques:

• Cleaning Equipment:Removes residual chemicals and contaminants from the PCB surface, ensuring cleanliness.
• Final Visual Inspection:Conducted manually to verify trace integrity and overall quality.

Key Considerations:

• Use appropriate cleaning agents and methods to avoid damage to the PCB.
• Ensure thorough final inspection to identify and address any remaining defects.
• Maintain detailed records and labeling for traceability of each batch.

Conclusion

The manufacturing of PCB traces is a complex and precise process that requires specialized equipment and meticulous attention to detail. Each step, from design to the formation of traces, must be executed with high accuracy to ensure the quality and reliability of the final PCB. By adhering to best practices and maintaining rigorous quality control, manufacturers can produce PCBs that meet high standards of performance and durability, fulfilling the demands of various electronic applications.
