Why Plating Uniformity Matters in RF PCBs

Introduction

When RF systems fail to achieve expected performance, engineers often investigate material properties, stackup design, impedance calculations, or connector interfaces. However, one manufacturing variable is frequently overlooked despite its significant impact on microwave performance: plating uniformity.

In traditional digital PCB applications, moderate variations in copper plating thickness may have minimal influence on functionality. In RF and microwave PCBs, however, even small plating inconsistencies can affect conductor loss, impedance control, phase stability, and long-term reliability. As operating frequencies move beyond 10GHz, 24GHz, 39GHz, and into the 77GHz radar range, manufacturing tolerances that were once acceptable become critical performance parameters.

Many RF issues discovered during validation testing—including excessive insertion loss, channel mismatch, phase imbalance, and reduced antenna efficiency—can often be traced back to plating variations introduced during fabrication.

For engineers developing radar systems, satellite communications, phased-array antennas, aerospace electronics, and advanced wireless infrastructure, understanding plating uniformity is no longer simply a manufacturing concern. It is a fundamental part of RF performance engineering.

What Is Plating Uniformity in RF PCBs?

Plating uniformity refers to the ability of the electroplating process to deposit consistent copper thickness across all plated features of a PCB panel.

These features typically include:
• Through holes
• Blind vias
• Buried vias
• Ground vias
• RF transition vias
• Edge plating structures
• Surface copper conductors

Ideally, every plated feature should achieve the target copper thickness specified by the fabrication process. In reality, electroplating is influenced by current density distribution, feature geometry, copper balancing, panel layout, solution chemistry, and equipment capability.

As a result, plating thickness often varies across different locations on a panel.

For low-frequency products, a few microns of variation may not create measurable problems. RF circuits are different. Since high-frequency currents travel primarily along conductor surfaces, any variation in conductor geometry directly affects electrical performance.

In advanced microwave applications, plating uniformity is often treated as a process capability indicator because it influences not only manufacturability but also RF consistency from board to board and lot to lot.

Why RF Signals Are Sensitive to Plating Variations

The fundamental reason lies in the skin effect.

As frequency increases, RF current becomes concentrated near the conductor surface rather than flowing through the entire copper cross-section.

At microwave frequencies, current may only penetrate a small fraction of the conductor thickness. This makes the quality and consistency of plated surfaces critically important.

Several electrical mechanisms are affected by plating variations.

Increased Conductor Loss
Thinner plated regions exhibit higher resistance.
This leads directly to:
• Higher insertion loss
• Reduced transmission efficiency
• Lower signal power at the receiver
The impact becomes increasingly visible at frequencies above 10GHz.

Impedance Instability
Characteristic impedance depends on conductor geometry.
Variations in plated copper thickness alter effective conductor dimensions and can create localized impedance discontinuities.
These discontinuities contribute to:
• Signal reflections
• Return loss degradation
• Reduced matching performance

Phase Variation
In phased-array radar and antenna systems, even small dimensional variations can produce measurable phase errors.
Uneven plating may create differences in propagation characteristics between channels, reducing beamforming accuracy.

Thermal Performance Changes
Localized thin plating increases current density and heat generation.
Over time, this can accelerate material aging and reduce system reliability.

Engineering Data Behind Plating Uniformity

As frequencies continue increasing, plating consistency becomes increasingly important.

Consider a microwave transmission line operating at 28GHz.
A small variation in conductor thickness may appear insignificant from a mechanical perspective, yet it can produce measurable differences in electrical performance.

Typical observations from RF manufacturing evaluations include:

Engineers working with:
• 24GHz automotive radar
• 39GHz wireless infrastructure
• 77GHz radar systems
• Satellite communication modules
often discover that process variation contributes more performance uncertainty than simulation accuracy.

This is especially true for tightly matched antenna arrays and microwave filter structures where dimensional consistency directly influences electrical behavior.

The lesson is clear: achieving the target dimension is important, but maintaining the same dimension everywhere is often more important.

Manufacturing Challenges That Affect Plating Consistency

Maintaining excellent plating uniformity across an RF PCB panel is technically challenging.

Several process variables must be controlled simultaneously.

Copper Density Imbalance
Areas containing dense copper patterns attract more plating current than sparse regions.
This results in localized thickness differences across the panel.
For RF products with large ground planes and narrow transmission lines, copper balancing becomes especially important.

Via Aspect Ratio
Deep vias are more difficult to plate uniformly.
High aspect ratio structures may develop:
• Thin center-wall plating
• Uneven copper distribution
• Reduced reliability margins

Current Density Control
Excessive current density can cause:
• Edge build-up
• Over-plating
• Surface roughness increase
• Thickness variation
Insufficient current density may result in under-plating and reduced conductivity.

Plating Chemistry Stability
Copper plating relies on carefully controlled chemical additives.
Variations in:
• Temperature
• Additive concentration
• Contamination levels
• Solution age
can significantly affect plating quality.

Panel Layout Effects
The arrangement of circuits within the manufacturing panel influences current flow during plating.
Poor panel design often leads to predictable thickness variation patterns.

Design Strategies for Improving RF Plating Performance

Many plating problems originate long before fabrication begins.

Design decisions can significantly improve plating consistency.

Maintain Balanced Copper Distribution
Balanced copper areas help create more uniform current density during plating.
This improves thickness consistency across the entire panel.

Avoid Unnecessarily Extreme Via Structures
Although advanced RF products frequently require blind vias and microvias, excessive aspect ratios increase plating difficulty.
Designs should balance electrical requirements with manufacturing capability.

Optimize Ground Via Placement
Dense via fences are common in RF layouts.
However, excessive via concentration may influence plating current distribution.
Proper spacing helps improve manufacturability.

Consider Manufacturing Early
RF designers often focus on simulation accuracy while overlooking fabrication realities.
Including manufacturing engineers early in the design process frequently prevents costly production issues later.

Design for Repeatability
The best RF design is not necessarily the design with the highest simulated performance.
The best design is often the one that can be manufactured consistently at volume.

Real RF PCB Manufacturing Case Study

A telecommunications customer developed a multi-channel RF module operating near 28GHz.

Initial prototypes showed inconsistent performance between channels despite identical schematic and layout implementation.

Engineers investigated:
• Material variation
• Connector quality
• Simulation assumptions
• Assembly processes
None revealed a significant issue.

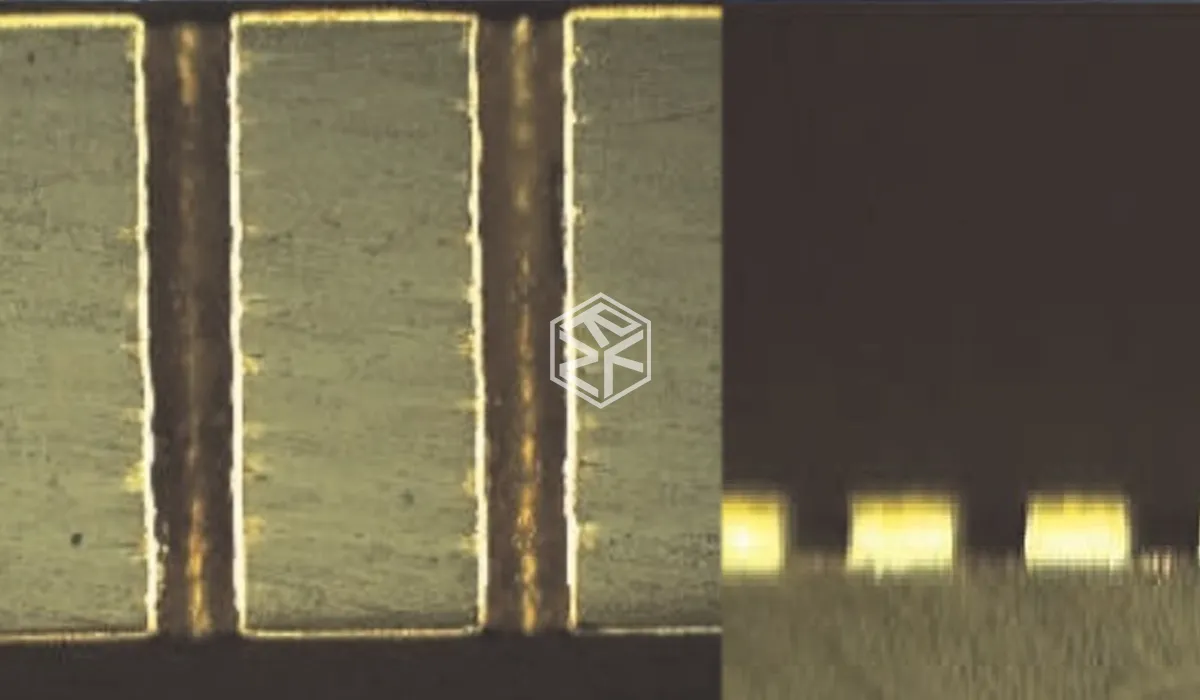

Cross-sectional analysis eventually identified non-uniform via wall plating across different regions of the PCB panel.

Measurements showed that several RF signal vias exhibited noticeably different copper thickness values.

The resulting variation created:
• Different insertion loss characteristics
• Slight impedance changes
• Phase imbalance between channels

After optimizing:
• Panel copper balancing
• Plating current distribution
• Process control procedures
channel-to-channel consistency improved significantly.

The design itself was not the problem. Manufacturing variation was.

Failure Analysis: When Plating Uniformity Is Ignored

Plating-related failures are often difficult to diagnose because symptoms appear as electrical problems rather than manufacturing defects.

Excessive Insertion Loss
Uneven conductor thickness increases resistance and attenuates RF signals.
This is particularly problematic in long transmission paths.

Impedance Mismatch
Localized geometry changes create reflections that degrade return loss performance.

Phase Errors
In phased-array antennas, phase mismatch reduces beam steering accuracy and overall system performance.

Via Reliability Failures
Thin plating sections are more susceptible to:
• Thermal cycling damage
• Copper fatigue
• Barrel cracking
These failures may not appear during initial testing but emerge during field operation.

Reduced Manufacturing Yield
Even if individual boards pass electrical testing, inconsistent plating increases performance variation across production lots.
For RF manufacturers, yield loss often becomes the largest hidden cost associated with poor plating control.

Conclusion

Plating uniformity is one of the most underestimated factors affecting RF PCB performance.

As systems move toward higher frequencies and tighter performance requirements, small variations in copper thickness can influence insertion loss, impedance stability, phase consistency, thermal behavior, and long-term reliability.

For applications such as radar systems, satellite communications, phased-array antennas, and advanced wireless infrastructure, plating consistency should be viewed as a critical electrical parameter rather than merely a manufacturing metric.

Successful RF PCB development requires close collaboration between design engineers and manufacturing teams. The most reliable microwave products are not necessarily those designed with the most aggressive specifications, but those built with the highest level of process consistency.

In RF engineering, repeatability is performance.

FAQ

Why is plating uniformity important in RF PCBs?
Because RF currents travel near conductor surfaces, variations in plating thickness directly affect insertion loss, impedance control, and phase stability.

Does plating thickness affect RF signal loss?
Yes. Thinner copper regions have higher resistance, which increases conductor loss and signal attenuation.

How does plating uniformity impact radar PCBs?
Radar systems rely on accurate phase matching. Uneven plating can introduce phase errors that reduce antenna and beamforming performance.

What manufacturing factors influence plating consistency?
Key factors include copper density distribution, via aspect ratio, current density, panel layout, and plating chemistry control.

Can plating variation affect via reliability?
Absolutely. Thin via wall plating increases the risk of barrel cracking, thermal fatigue, and long-term reliability failures.

Is plating uniformity more critical at higher frequencies?
Yes. As frequency increases, skin effect becomes stronger, making conductor surface characteristics increasingly important.

How can PCB designers improve plating uniformity?
By balancing copper distribution, optimizing via structures, avoiding excessive aspect ratios, and involving manufacturers during the design phase.

Which applications are most sensitive to plating variation?
77GHz automotive radar, phased-array antennas, satellite communications, aerospace electronics, and high-frequency wireless infrastructure are among the most sensitive applications.
