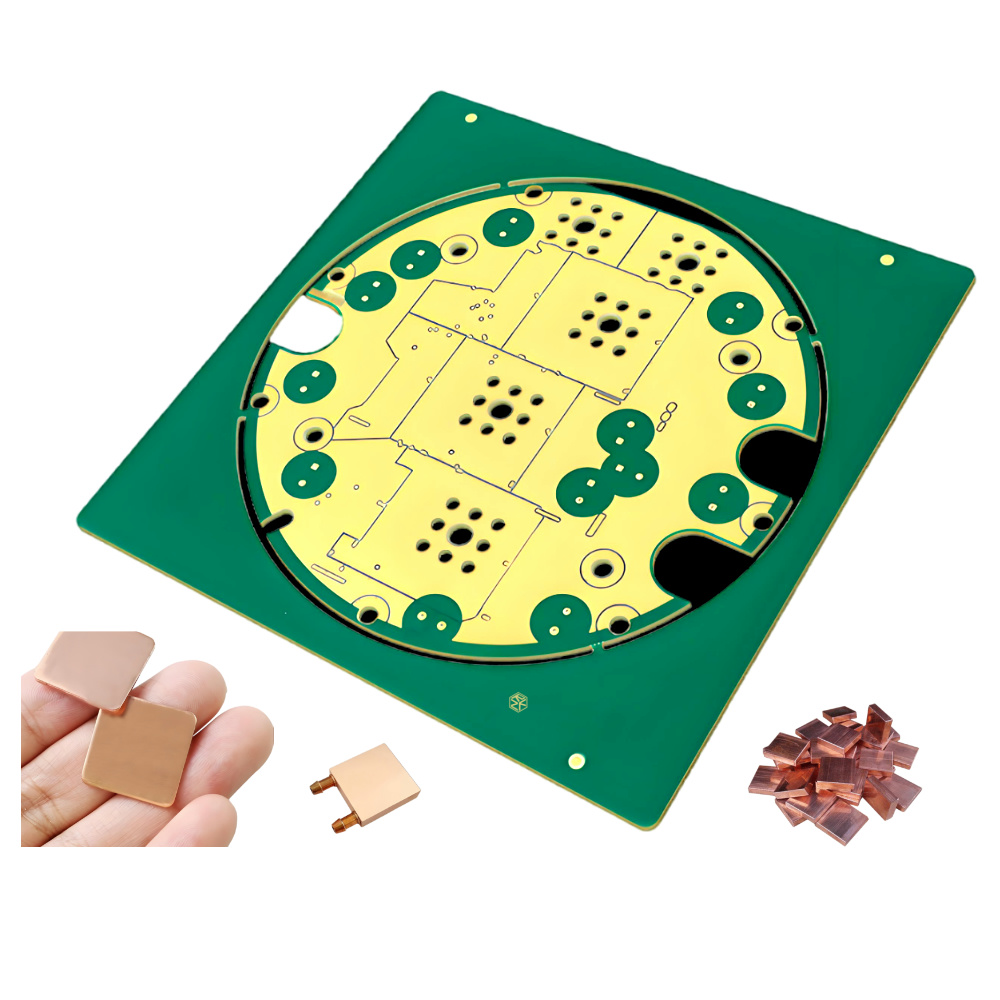

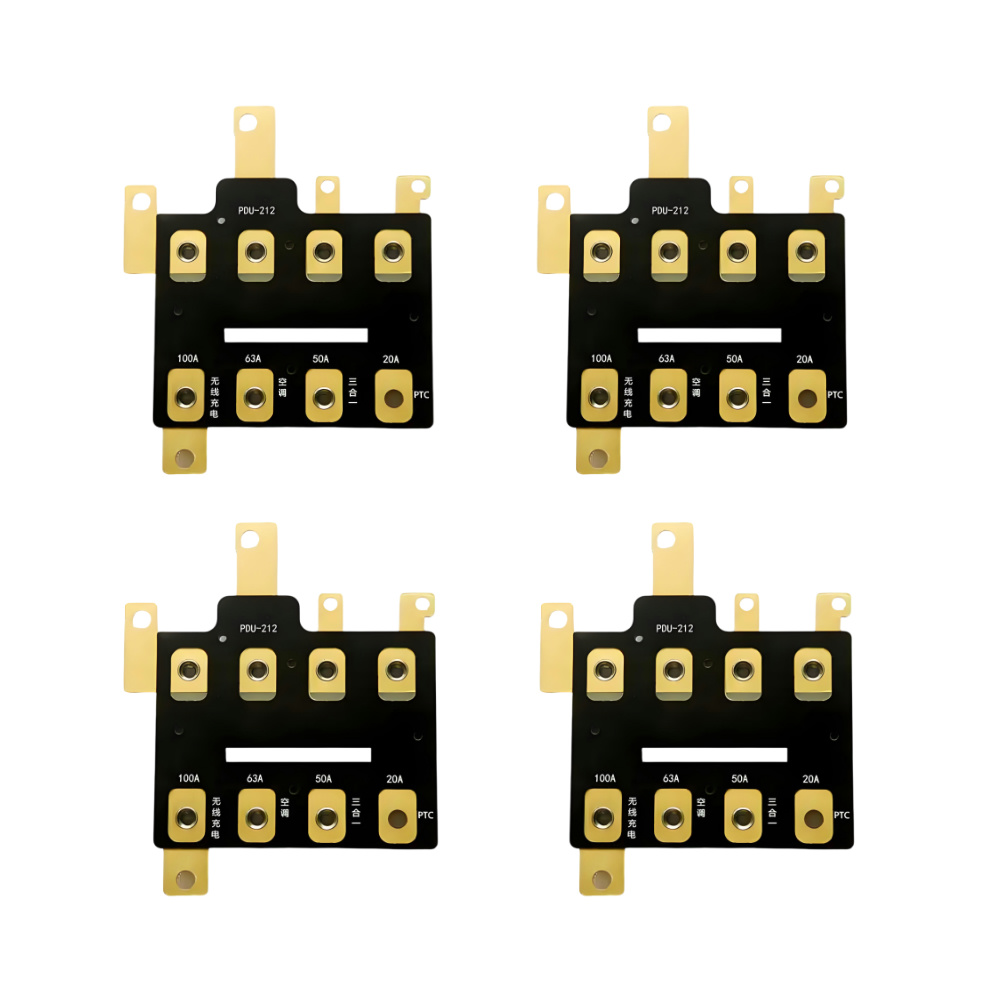

Buried Copper PCB: A Comprehensive Analysis of High-Power Thermal Solutions
With the rapid development of electronic technology, electronic devices are continuously moving towards miniaturization and high performance. This has led to the widespread use of high-power electronic components in various electronic products. However, the accompanying heat dissipation issues have become a critical factor limiting device performance and reliability. Buried Copper Pcb, as an efficient thermal solution, is increasingly favored by the electronics industry due to its excellent thermal conductivity, heat dissipation capabilities, and space-saving features. This article will delve into the production process, unique characteristics, material properties, application fields, advantages, and technical principles of buried copper PCB, providing readers with a comprehensive understanding of this advanced technology.
一. Advantages of Buried Copper PCB
(1) Thermal Performance Advantages
Rapid Heat Dissipation: Compared to traditional PCBs, buried copper PCBs can transfer heat away more quickly, reducing the temperature of electronic components. Experimental data shows that under the same operating conditions, electronic devices using buried copper PCBs can reduce component temperatures by 10 - 30°C, significantly improving device performance and reliability.
Uniform Heat Distribution: The large-area heat dissipation characteristics of copper blocks allow heat to be evenly distributed across the PCB, preventing localized overheating. This helps extend the lifespan of electronic components and enhances the overall stability of the system.
(2) Electrical Performance Advantages
Low-Loss Transmission: The low-resistance conNection between the copper block and the internal circuitry of the PCB reduces signal transmission losses and improves signal integrity. This advantage is particularly evident in high-speed and high-frequency circuits, effectively reducing signal distortion and increasing data transmission rates.
Strong Anti-Interference Capability: The electromagnetic shielding properties of copper blocks effectively suppress electromagnetic interference, enhancing the PCB's anti-interference capability. This allows buried copper PCBs to operate stably in complex electromagnetic environments, making them suitable for applications with high electromagnetic compatibility requirements.
(3) Space Utilization Advantages
Compact Design: The space-saving feature of buried copper PCBs enables more compact designs for electronic devices. This not only facilitates product miniaturization but also reduces production costs and enhances market competitiveness.
Simplified Structure: The elimination of additional heat dissipation components simplifies the PCB structure, reducing assembly workload and error rates. Additionally, it lowers the risk of device damage due to heat dissipation failures, improving product reliability.
(4) Cost-Effectiveness Advantages
Long-Term Cost Reduction: Although the production cost of buried copper PCBs is relatively high, their ability to enhance device performance and reliability, as well as extend device lifespan, reduces maintenance and replacement costs. In the long run, this offers significant cost-effectiveness advantages.
Improved Production Efficiency: The simplified structure and assembly process enhance production efficiency and shorten production cycles. This helps companies respond quickly to market demands and improve production efficiency.
II. Technical Principles of Buried Copper PCB
(1) Heat Conduction Principles
High Thermal Conductivity of Copper: Copper is an excellent thermal conductor with a thermal conductivity coefficient between 380 - 400W/(m・K). When high-power electronic components generate heat, the heat is rapidly conducted away through the copper block. According to Fourier's law of heat conduction, the heat conduction rate is proportional to the material's thermal conductivity, temperature gradient, and conduction area. The high thermal conductivity and large conduction area of copper blocks enable rapid heat transfer, effectively reducing component temperatures.
Thermal Resistance Analysis: Thermal resistance is a critical parameter in the heat dissipation process of buried copper PCBs. The lower the thermal resistance, the easier the heat transfer and the better the heat dissipation. Buried copper PCBs reduce thermal resistance by optimizing the bonding between the copper block and the PCB. For example, high-temperature and high-pressure lamination processes create a strong metallurgical bond between the copper block and the substrate, reducing interfacial thermal resistance and improving heat dissipation efficiency.
(2) Electrical Connection Principles
Metal Bonding: Electrical connections between the copper block and the internal circuitry of the PCB are achieved through metal bonding. Under high temperature and pressure, atoms between the copper block and the circuitry diffuse, forming a strong metallic bond. This connection method has extremely low resistance, ensuring stable signal transmission.
Via Connections: To achieve electrical connections between multi-layer PCBs and between the copper block and different circuit layers, via technology is commonly used. Vias are small holes drilled into the PCB, and metal is deposited on the hole walls through processes like electroplating to form conductive pathways. By optimizing the size, number, and placement of vias, electrical connection performance can be enhanced, ensuring accurate signal transmission.
(3) Electromagnetic Shielding Principles
Faraday Cage Effect: Copper blocks have excellent conductivity. When external electromagnetic interference signals act on the copper block, induced currents are generated on its surface. These currents create a magnetic field opposite to the external interference field, partially canceling the interference and providing electromagnetic shielding. This phenomenon, similar to the Faraday cage effect, effectively protects electronic components on the PCB from electromagnetic interference.
Skin Effect: In high-frequency electromagnetic environments, current primarily flows on the surface of the conductor, a phenomenon known as the skin effect. The skin effect in copper blocks allows their surfaces to better absorb and reflect electromagnetic interference signals, further enhancing electromagnetic shielding effectiveness.
III. Unique Features of Buried Copper PCB
(1) Efficient Heat Dissipation Structure
Direct Heat Conduction: The copper block directly contacts high-power electronic components, quickly conducting heat away. Compared to traditional PCB heat dissipation methods, this reduces intermediate heat transfer steps, significantly improving efficiency. For example, in a 100W power module, using a buried copper PCB reduced thermal resistance by approximately 30%.
Large-Area Heat Dissipation: Copper blocks have a large heat dissipation area, evenly distributing heat across the PCB and preventing localized overheating. By optimizing the shape and placement of copper blocks, heat dissipation can be further improved, enhancing the overall thermal performance of the PCB.
(2) Electrical Performance Optimization
Low-Resistance Connections: The connection resistance between the copper block and the internal circuitry of the PCB is extremely low, effectively reducing signal transmission losses and improving signal integrity. This is particularly important for high-speed and high-frequency electronic devices, ensuring accurate signal transmission and reducing distortion.
Electromagnetic Shielding: Copper blocks have excellent electromagnetic shielding properties, effectively suppressing electromagnetic interference generated by electronic components and enhancing the PCB's anti-interference capability. This feature is particularly advantageous in applications with high electromagnetic compatibility requirements, such as medical and aerospace equipment.
(3) Space-Saving Design
Integrated Design: Embedding copper blocks within the PCB eliminates the need for additional heat dissipation components, significantly saving board space. This enables more compact PCB designs, allowing more electronic components to be integrated into limited spaces and meeting the demand for device miniaturization. For example, in a smartphone motherboard design, using a buried copper PCB reduced the board area by approximately 15%.
Simplified Structure: The elimination of complex heat dissipation structures like external heat sinks simplifies the PCB design, reducing production costs and assembly complexity. Additionally, it enhances product reliability and stability, minimizing device damage caused by heat dissipation failures.
IV. Production Process of Buried Copper PCB
(1) Copper Block Preparation
Material Selection: Copper blocks for embedding are typically made of high-purity electrolytic copper with a purity of over 99.95%. High-purity copper offers excellent electrical and thermal conductivity, significantly enhancing the PCB's heat dissipation performance. For example, a renowned electronics manufacturer uses copper blocks with a purity of 99.98% in its buried copper PCBs, ensuring superior heat dissipation.
Processing: Copper blocks are precisely machined according to the PCB design requirements. This includes cutting, drilling, and milling processes to meet the connection needs between the copper block and the internal circuitry. For example, in some complex designs, micro-vias with diameters of 0.2 - 0.5mm are drilled into the copper block to enable electrical connections with the inner layers of the PCB, requiring extremely high machining precision.
(2) PCB Fabrication
Inner Layer Circuit Fabrication: Similar to standard PCBs, the inner layer circuits are designed and fabricated first. Processes like pattern transfer and etching are used to create the circuit patterns on the inner substrate. The difference lies in the precise space reserved for the copper block embedding.
Copper Block Embedding: The processed copper block is accurately placed in the reserved position, and high-temperature, high-pressure lamination is used to bond the copper block tightly with the inner substrate. During lamination, parameters such as temperature, pressure, and time are strictly controlled to ensure a strong metallurgical bond and avoid defects like delamination or air bubbles. For example, in one production process, the lamination temperature is controlled at 180 - 200°C, pressure at 3 - 5MPa, and lamination time at 60 - 90 minutes.
Outer Layer Circuit Fabrication: After embedding the copper block and completing inner layer lamination, the outer layer circuits are fabricated. Similar processes like pattern transfer and etching are used to create the outer layer circuit patterns. Drilling and electroplating processes are then employed to establish electrical connections between the inner and outer layers and the copper block.
(3) Quality Inspection
Visual Inspection: The completed buried copper PCB undergoes visual inspection to check for obvious defects such as copper block misalignment, surface scratches, or short circuits. Optical inspection equipment is used to quickly and accurately detect surface defects, improving inspection efficiency.
Electrical Performance Testing
Professional electrical testing equipment is used to comprehensively test the electrical performance of the PCB, including circuit continuity, insulation resistance, and impedance matching. For example, high-precision digital multimeters can accurately measure the conduction resistance of circuits to ensure they meet design requirements.
Thermal Performance Testing
Thermal imaging equipment is used to test the heat dissipation performance of buried copper PCBs. By simulating real-world operating conditions, the temperature distribution on the PCB surface is observed to evaluate the heat dissipation effect of the copper block. For example, in a thermal test of a high-power chip, the use of a buried copper PCB reduced the chip surface temperature by 15 - 20°C.
V. Materials for Buried Copper PCB
(1) Copper Block Materials
Electrolytic Copper: As mentioned earlier, high-purity electrolytic copper is the preferred material for buried copper blocks. It offers excellent electrical conductivity, thermal conductivity, and machinability, meeting the heat dissipation and electrical performance requirements of buried copper PCBs. Additionally, the price of electrolytic copper is relatively stable, and its supply is abundant, making it suitable for large-scale production.
Copper Alloys: In some special applications, copper alloys are also used as buried copper block materials. For example, beryllium copper alloys offer high strength, elasticity, and good thermal conductivity, making them suitable for applications requiring high mechanical and thermal performance. However, copper alloys are relatively expensive and more challenging to process, so their use should be based on specific requirements.
FR-4: FR-4 is a commonly used PCB substrate material with excellent electrical, mechanical, and flame-retardant properties. In buried copper PCBs, FR-4 substrates can form a strong bond with copper blocks and withstand high-temperature, high-pressure lamination processes. However, FR-4 has relatively low thermal conductivity, so improvements or alternative materials may be needed for applications with extremely high heat dissipation requirements.
Metal-Clad Substrates: To further enhance the heat dissipation performance of PCBs, metal-clad substrates (such as aluminum-clad and copper-clad substrates) are widely used in the production of buried copper PCBs. These substrates offer excellent thermal conductivity, quickly dissipating heat from the copper blocks. They also have good mechanical properties, meeting the needs of various applications. However, metal-clad substrates are relatively expensive and require specialized processes and equipment for fabrication.
Ceramic Substrates: Ceramic substrates have extremely high thermal conductivity, excellent insulation properties, and high-temperature resistance, making them ideal materials for buried copper PCBs. They are widely used in high-end electronic devices, such as high-power LED lighting and aerospace electronics. However, ceramic substrates are difficult to process and relatively expensive, limiting their use in cost-sensitive applications.
VI. Application Fields of Buried Copper PCB
(1) Consumer Electronics
Smartphones: With the continuous enhancement of smartphone functionalities, the power consumption of components like processors and image sensors has increased, making heat dissipation a critical issue. Buried copper PCBs effectively address smartphone heat dissipation challenges, improving performance and stability. For example, a well-known smartphone brand adopted buried copper PCBs, significantly reducing overheating during high-intensity usage scenarios like gaming and enhancing user experience
Tablets: Similar to smartphones, tablets also face heat dissipation challenges. The use of buried copper PCBs helps tablets dissipate heat more effectively, ensuring stable performance during prolonged use. Additionally, the space-saving feature enables thinner and lighter designs, meeting consumer demands for portability.
Laptops: The limited internal space of laptops makes heat dissipation a key factor limiting performance improvements. Buried copper PCBs enable efficient heat dissipation within confined spaces, ensuring high-performance operation. Moreover, their optimized electrical performance enhances signal transmission quality, boosting overall performance.
(2) Automotive Electronics
Automotive Engine Control Systems: The electronic control unit (ECU) in automotive engine control systems processes large amounts of data and signals while enduring harsh conditions like high temperatures and vibrations. The high heat dissipation and reliability of buried copper PCBs ensure stable ECU operation in complex environments, improving engine control precision and efficiency.
Automotive Lighting Systems: With advancements in automotive lighting technology, high-power LED lighting is increasingly used in vehicles. LEDs generate significant heat during operation, requiring effective heat dissipation solutions. Buried copper PCBs provide excellent thermal management for LEDs, extending their lifespan and enhancing lighting performance.
Automotive Audio Systems: Components like power amplifiers in automotive audio systems also require heat dissipation. Buried copper PCBs not only address heat dissipation but also optimize electrical performance, reduce electromagnetic interference, and improve audio quality.
(3) Industrial Control
Frequency Converters: Frequency converters are widely used in industrial production, and their internal power modules generate significant heat during operation. Buried copper PCBs effectively reduce the temperature of power modules, enhancing the reliability and stability of frequency converters and extending their lifespan.
Servo Drives: Servo drives are used to control motor operation and require high heat dissipation and electrical performance. Buried copper PCBs meet these requirements, ensuring reliable operation in high-precision control applications.
Industrial Power Supplies: Industrial power supplies provide stable power to various industrial equipment, and their heat dissipation issues cannot be overlooked. Buried copper PCBs improve the heat dissipation efficiency of industrial power supplies, ensuring stability and reliability during prolonged operation.
(4) Communication Equipment
Base Station Equipment: Components like power amplifiers and filters in base station equipment require efficient heat dissipation. Buried copper PCBs meet the stringent heat dissipation and electrical performance requirements of base station equipment, ensuring stability and reliability under high-load conditions and improving communication quality
Communication Servers: Communication servers process large amounts of data, and the heat dissipation of internal chips like CPUs and GPUs is critical. Buried copper PCBs provide effective thermal solutions for communication servers, ensuring high-performance operation and improving data processing speed and efficiency.
As an innovative thermal solution, buried copper PCBs have demonstrated exceptional performance in dissipating heat from high-power electronic components. Through unique production processes, high-purity copper blocks are seamlessly integrated with PCBs, achieving multiple advantages such as efficient heat dissipation, optimized electrical performance, and space-saving designs. Widely used in consumer electronics, automotive electronics, industrial control, and communication equipment, buried copper PCBs provide strong support for the miniaturization and high-performance development of electronic devices. With continuous advancements in electronic technology, buried copper PCB technology will also innovate and improve, playing a significant role in more fields and contributing to the development of the electronics industry.
In practical applications, enterprises should select materials and production processes for buried copper PCBs based on specific requirements to fully leverage their advantages and enhance product competitiveness. At the same time, continuous research and development of buried copper PCB technology are necessary to further improve its performance and reliability, meeting the growing market demands.Shenzhen Rich Full Joy Electronics Co., Ltd
As a company with 20 years of manufacturing experience, Shenzhen Rich Full Joy Electronics Co., Ltd has accumulated extensive expertise in thick copper PCB production. We understand the critical role of thick copper PCBs in heat dissipation and electrical performance, so we strictly control every step of the production process to ensure that every buried copper PCB meets the highest quality standards. Our thick copper PCB products not only offer excellent thermal performance but also maintain stable electrical performance in high-frequency and high-speed circuits, meeting the needs of various complex application scenarios.
In the trending topics of thick copper PCBs, Shenzhen Rich Full Joy Electronics Co., Ltd pays special attention to "thick copper PCBs," "high thermal conductivity PCBs," "buried copper PCBs," and "thick copper PCB thermal solutions." These topics not only reflect the market demand for thick copper PCB technology but also provide direction for our technological innovation. By continuously optimizing production processes and material selection, we are committed to providing customers with the highest-quality thick copper PCB products, helping them stand out in the competitive market.
In summary, as an advanced thermal solution, the technical depth and application scope of buried copper PCBs are continuously expanding. Shenzhen Rich Full Joy Electronics Co., Ltd will continue to uphold the philosophy of "quality first, customer foremost," providing customers with the highest-quality thick copper PCB products and services, and jointly driving the development of the electronics industry.
