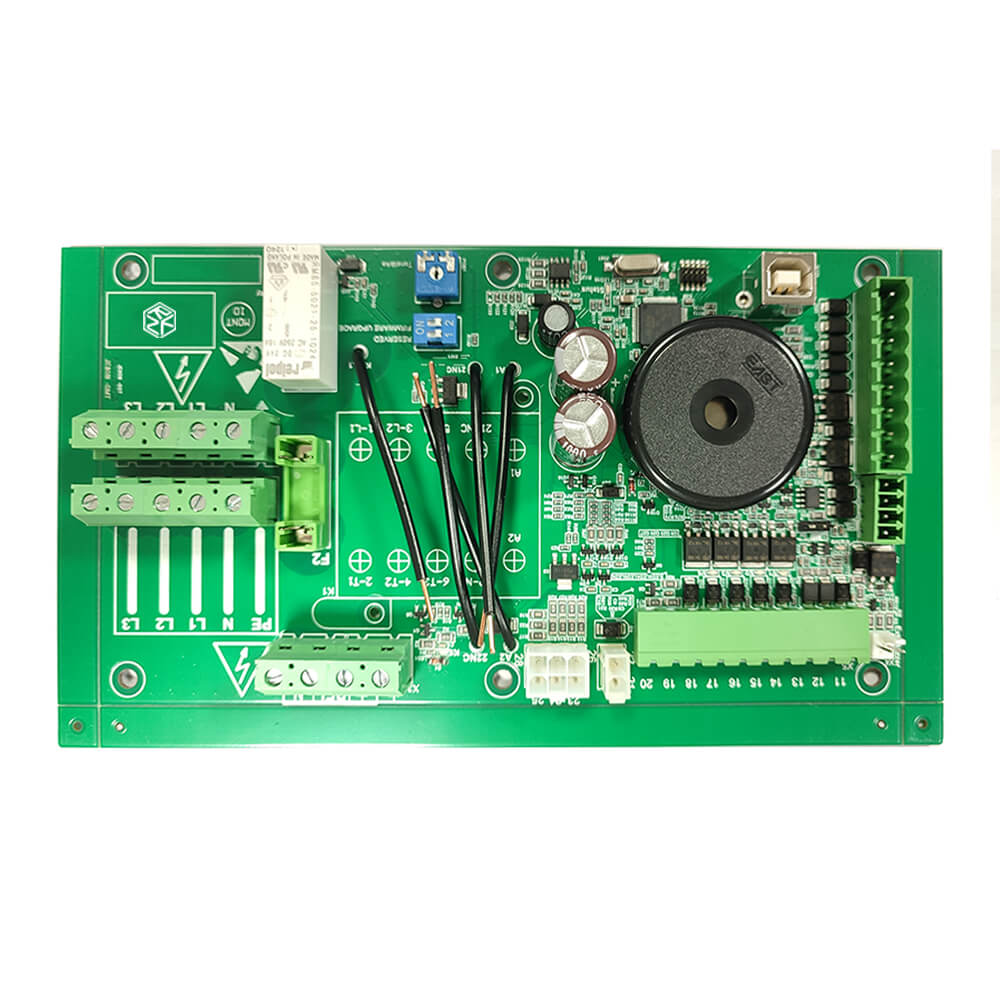

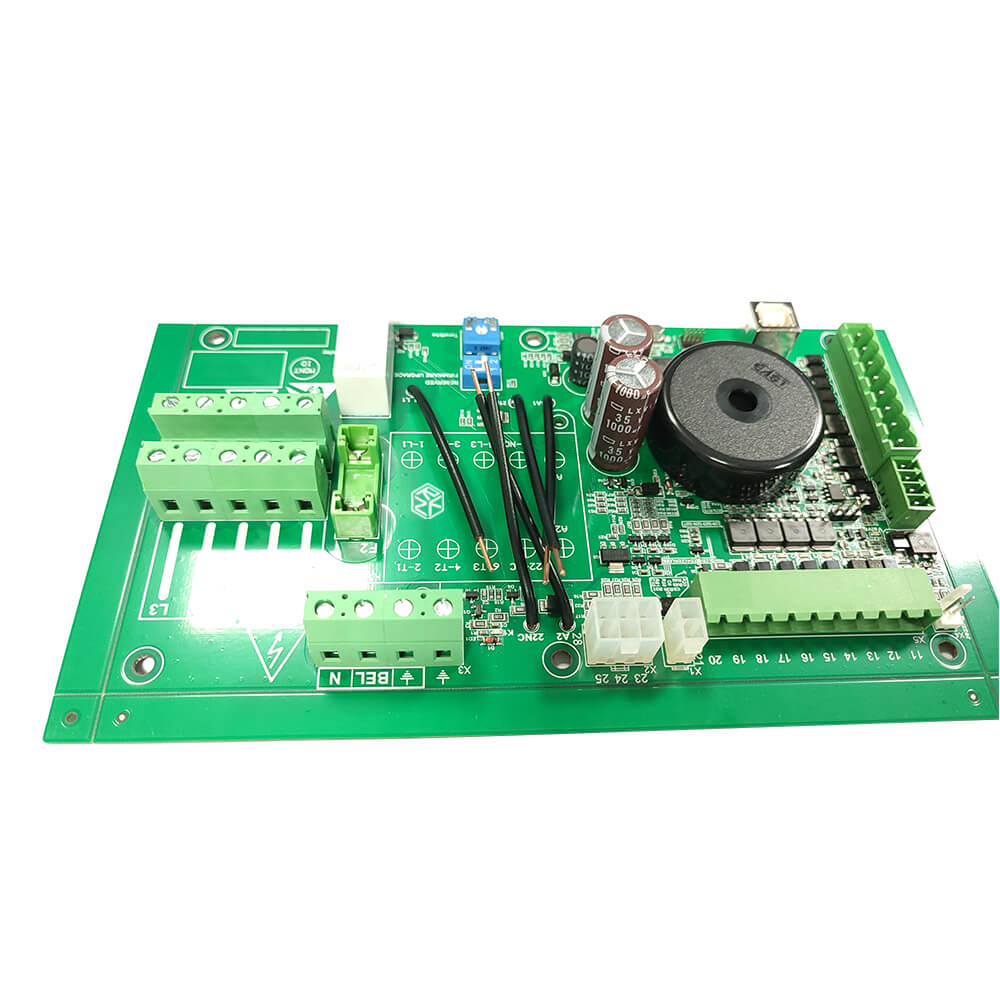

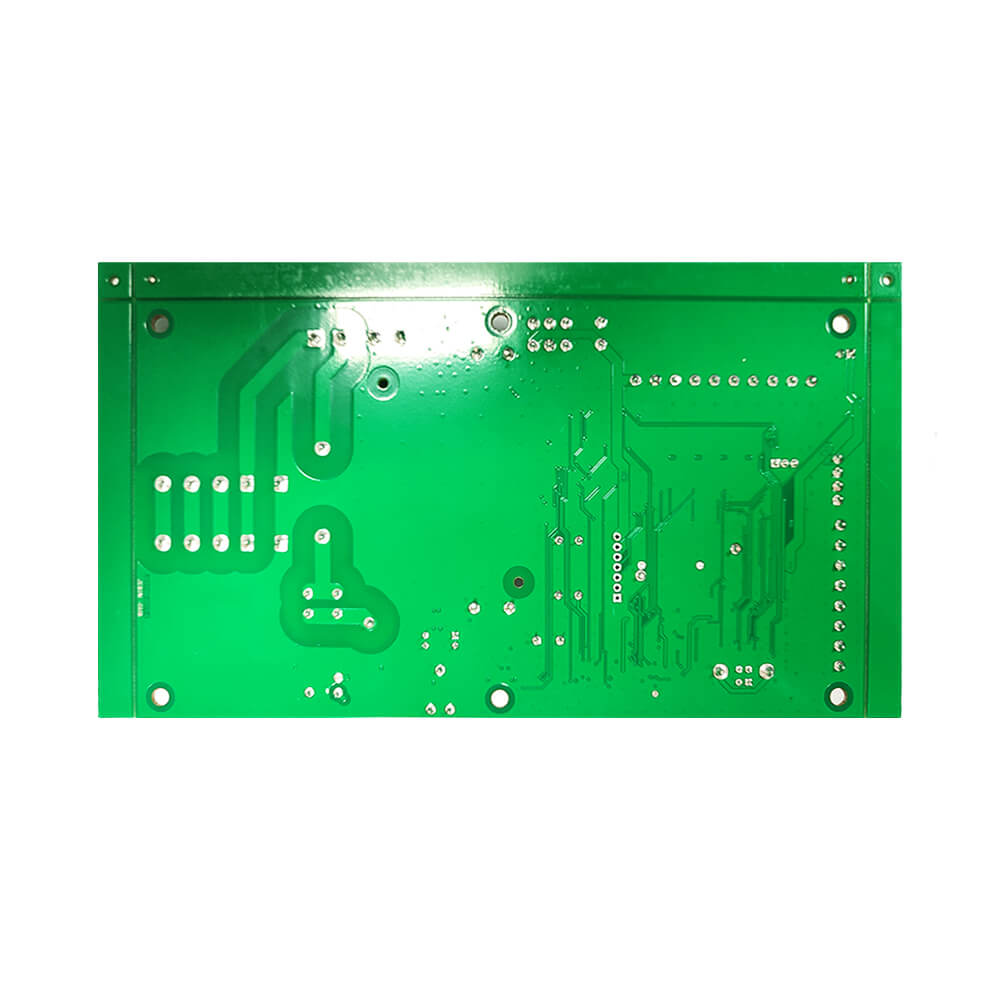

Industrial-grade high-performance power board PCBA: Providing stable and efficient power solutions
Power Board PCBA Design Features
●Advanced Power Management Chip: An industry-leading power management chip is selected, which has efficient control algorithms and intelligent protection functions. It can monitor and adjust the power output in real-time to ensure the stability and reliability of the system.
●Precision Circuit Layout: Professional circuit design software is used for layout optimization, reducing line impedance and electromagnetic interference, and improving power conversion efficiency and signal integrity.
●Multi-layer Circuit Board Design: A multi-layer circuit board structure is used, effectively increasing the wiring density and improving the integration and heat dissipation performance of the power board.
●Strict Production Process: From raw material procurement to finished product assembly, every step follows strict production processes and quality control standards to ensure product consistency and reliability.
What are the common methods for optimizing the heat dissipation design of power board PCBA?
1. Circuit board design level
Increasing the Copper Foil Area
In PCB design, increasing the area of the copper foil can effectively improve the heat dissipation capacity. For example, designing the power layer and ground layer thicker or using a large - area copper foil as a heat dissipation path. For some high - power devices, the number of vias can also be increased to conduct heat from the top layer to the bottom layer, taking advantage of the multi - layer board to enhance heat dissipation.
Reasonable Component Layout
Reasonably arrange the heat - generating components to avoid concentrated placement and prevent heat accumulation. Disperse the high - heat - generating components on the circuit board and keep a certain distance from other temperature - sensitive components. For example, arrange heat - generating components such as power transistors and transformers separately and keep them away from temperature - sensitive components such as electrolytic capacitors.
Adopting Heat Dissipation Layers
A dedicated heat dissipation layer is designed in the PCB. Usually, one or more metal layers are set inside the circuit board as heat dissipation channels. These heat dissipation layers can be connected to the heat - generating components through vias to quickly conduct heat away and improve the heat dissipation efficiency.
2. Application level of heat dissipation materials
Thermal Pads
A thermal pad is a common heat dissipation material with good flexibility and thermal conductivity. It can be placed between the heat - generating component and the heat sink to fill the gap between them and improve the heat conduction efficiency. The materials of thermal pads are usually silicone, graphite, etc. Choose a suitable thermal pad according to different application scenarios and heat dissipation requirements.
3. Process manufacturing level
Surface Treatment
Special treatment of the PCB surface, such as nickel plating and gold plating, can improve the surface heat dissipation performance. These metal coatings have good thermal conductivity and can dissipate heat more quickly. At the same time, the surface treatment can also improve the oxidation and corrosion resistance of the circuit board and extend its service life.
Soldering Process
A good soldering process can ensure good electrical and thermal connections between the heat - generating component and the circuit board. Problems such as cold solder joints and false soldering will increase the contact resistance and cause heat accumulation. Using advanced soldering processes such as reflow soldering and wave soldering and strictly controlling the soldering parameters can ensure the soldering quality and improve the heat dissipation effect.
Power Board PCBA FAQ
Can the power board PCBA withstand large power fluctuations?
Yes, our power board PCBA has excellent ability to withstand power fluctuations. It uses high - performance power devices and advanced circuit design, and can handle rapid power changes within a certain range while maintaining a stable output. If you have specific requirements for the power fluctuation range, please let us know, and our technical team will further evaluate and provide professional advice
How does the power board PCBA perform in a low - temperature environment?
Our power board PCBA has undergone strict testing in low - temperature environments. By using electronic components with good low - temperature characteristics and special material selection, it can work normally in an environment of [specific low temperature, e.g., - 20°C]. However, extreme low temperatures may have a slight impact on some parameters. For example, the output voltage may fluctuate slightly, but it can still meet the needs of most application scenarios.
Can the size of the power board PCBA be customized?
Of course. We can customize the size of the power board PCBA according to the equipment space requirements of our customers. You just need to provide specific size specifications and installation requirements, and our design team will carry out an optimized design to ensure that the performance and reliability of the power board are guaranteed while meeting the size requirements.
How to diagnose and repair faults in the power board PCBA?
We provide detailed fault diagnosis guides and technical support. The power board PCBA is equipped with test points and monitoring interfaces, which facilitate the use of professional test equipment for fault troubleshooting. If you encounter problems, you can follow the diagnosis process we provide or contact our technical support team, and we will provide you with remote assistance or on - site maintenance services.
How is the compatibility of the power board PCBA with electronic devices of other brands?
Our power board PCBA has good compatibility. During the design process, the electrical characteristics and interface standards of electronic devices from different brands are fully considered. After a large number of compatibility tests, it can be stably connected and work in coordination with electronic devices of mainstream brands in the market. If you have compatibility requirements for specific brand devices, please let us know, and we can conduct targeted tests and verifications.
What is the production cycle of the power board PCBA?
The production cycle varies according to the order quantity and customization requirements. For power board PCBAs of standard specifications, the general production cycle is [5-7 days]. If it is a customized product, the production cycle may be extended to [10 - 15 days]. We will provide you with a detailed production plan and delivery time after the order is confirmed.
What is the protection level of the power board PCBA?
Our power board PCBA can provide different protection levels according to customer needs. Common protection levels include IP20, IP30, etc., which can effectively prevent dust and foreign objects from entering. If your application scenario has high protection requirements, such as waterproof and dust - proof, we can use special packaging processes and protective materials to increase the protection level to IP65 or even higher.
How stable is the power board PCBA in a high - frequency environment?
In a high - frequency environment, our power board PCBA has good stability. By optimizing the circuit layout, selecting low - loss high - frequency components, and adopting special electromagnetic shielding measures, the influence of high - frequency interference is effectively reduced, ensuring that the power board can output stably in a high - frequency environment. We can also carry out targeted optimization design according to specific high - frequency operating frequencies and environmental requirements.
Does the power board PCBA support parallel connection to increase the output power?
Yes, our power board PCBA supports parallel connection. Through a reasonable current - sharing design and control strategy, it can ensure uniform current distribution when multiple power boards are connected in parallel, thus safely and reliably increasing the output power. Before using them in parallel, please communicate with our technical team, and we will provide a detailed parallel connection plan and technical guidance.
What are the certifications of the power board PCBA?
Our power board PCBA has obtained multiple international certifications, such as CE, UL, etc. These certifications indicate that the product meets relevant international safety and quality standards. We strictly produce and test according to the certification requirements to ensure that each power board has high quality and reliability. If you need specific certifications, we can also apply for and conduct relevant certification tests as required.
Functions of Power PCBA
● Provide stable power supply
o The power PCBA converts the input power into a stable output voltage and current by adopting advanced power conversion technologies such as switching power supply technology and linear voltage regulation technology, providing stable power support for various electronic devices. A stable power supply can ensure the normal operation of the equipment and reduce equipment failures and performance degradation caused by power fluctuations.
● Implement power management
o The power PCBA integrates a power management chip and related circuits, enabling intelligent management of the power supply. For example, it can automatically adjust the power output according to the operating state of the equipment to achieve energy - saving and consumption - reduction; when an abnormal situation occurs in the equipment, it can automatically cut off the power supply to protect the equipment and personnel safety.
● Ensure equipment safety
o The power PCBA has multiple protection functions such as over - voltage protection, over - current protection, and short - circuit protection, which can effectively prevent equipment damage caused by abnormal power supply. For example, when the output voltage exceeds the set value, the over - voltage protection circuit will automatically cut off the power supply to avoid damage to the equipment due to excessive voltage.
● Adapt to different application requirements
o The power PCBA can be custom - designed according to different application scenarios and equipment requirements. For example, for medical and communication equipment with high requirements for power supply noise, the power PCBA can adopt a low - noise power supply design; for portable devices with high requirements for volume and power consumption, the power PCBA can adopt a miniaturized and high - efficiency power supply design.
Applications of Power PCBA
Industrial Field
●Industrial automation equipment
o Industrial robots undertake tasks such as high - precision assembly, welding, and handling in modern manufacturing. The power PCBA provides a stable and precise power supply to ensure that the drive motors, sensors, and control systems of each joint of the robot can operate accurately, achieving efficient production operations. For example, in an automobile manufacturing production line, welding robots require a stable power supply from the power PCBA to ensure welding quality and precision.
o Automated production lines consist of numerous conveying, processing, and testing equipment. The power PCBA provides a reliable power supply, enabling the production line to operate continuously and stably, thereby improving production efficiency and product quality. For instance, the automated production line for electronic chip manufacturing has extremely high requirements for power stability, and the power PCBA can effectively ensure the normal operation of the production line.
●Industrial control system
o Programmable Logic Controllers (PLCs) are the core equipment in industrial control, used to control various parameters and actions in the production process. The power PCBA provides a stable power supply to ensure the accuracy of its logical operations and signal processing, thus achieving precise control over the industrial production process.
o Industrial monitoring systems need to collect and transmit various data from the production site in real - time, such as temperature, pressure, and flow. The power PCBA provides reliable power support for monitoring equipment, ensuring the accurate collection and transmission of data to detect abnormal situations in the production process in a timely manner.
Communication Field
● Communication base station
o Base stations are the core infrastructure of mobile communication networks, responsible for the transmission and reception of wireless signals. The power PCBA provides a stable power supply for the radio frequency modules, signal processing modules, and control modules of the base station, ensuring its long - term stable operation and guaranteeing the coverage and quality of communication signals.
o With the development of 5G technology, base stations have higher requirements for power and stability. The power PCBA meets the high - power requirements and low - power consumption requirements of 5G base stations through optimized design and the adoption of efficient power conversion technologies.
● Data Center
o Data centers are places for storing and processing large amounts of data, containing numerous servers, switches, and storage devices. The power PCBA provides a reliable power supply to ensure that the data storage and processing processes are not affected by power fluctuations, guaranteeing the stable operation of the data center.
o To improve the energy efficiency of data centers, the power PCBA adopts advanced power management technologies, such as intelligent voltage regulation and dynamic energy - saving, to reduce the energy consumption of data centers.
Medical Field
● Medical monitoring equipment
o Medical monitoring devices such as electrocardiographs, blood pressure monitors, and blood glucose meters require a precise power supply to ensure the accuracy of measurement results. The power PCBA provides a stable and low - noise power supply, ensuring that sensors can accurately collect human physiological signals and convert them into accurate measurement data.
o Portable medical monitoring devices have high requirements for power supply volume and power consumption. The power PCBA meets the needs of portable devices through a miniaturized and high - efficiency power supply design, facilitating patients to conduct health monitoring anytime and anywhere.
● Medical diagnostic instruments
o Large - scale medical diagnostic instruments such as CT scanners and Magnetic Resonance Imaging (MRI) devices require a high - power and high - stability power supply. The power PCBA provides reliable power support for these instruments, ensuring their high - precision imaging and diagnostic functions.
o Surgical equipment such as laser scalpels and ultrasonic scalpels have extremely high requirements for the response speed and stability of the power supply. The power PCBA can quickly respond to changes in the power requirements of the equipment, providing a stable power supply for surgical equipment and ensuring the safe conduct of surgeries.
● Security monitoring equipment
o Security monitoring equipment such as cameras and access control systems need to operate continuously 24 hours a day, with high requirements for power supply reliability. The power PCBA provides a stable power supply for these devices, ensuring that they can monitor the home security situation in real - time and send alarm information to users in a timely manner.
As you navigate the quest for reliable power solutions in modern electronics, our high-performance Power Board PCBA emerges as the ideal choice. With cutting-edge technology, precise engineering, and superior performance, it delivers stable, efficient, and dependable power to your devices. Whether for industrial applications or the highly demanding medical electronics sector, our Power Board PCBA is designed to meet your needs with precision and reliability.
We are committed to driving advancements in electronic technology through innovation and craftsmanship. Choosing our Power Board PCBA means partnering with a trusted provider, ready to support your journey towards smarter and more efficient electronics. If you have any questions or wish to learn more about our products, please don't hesitate to reach out. We look forward to collaborating with you and unlocking new chapters in electronic performance.
