Benefits of Multi-Layer Rigid-Flex Circuits
1.Superior Signal Integrity
Multi-layer rigid-flex PCBs provide excellent signal integrity, ensuring reliable signal transmission with minimal interference or distortion. This makes them perfect for high-frequency applications where signal clarity is essential, such as medical devices, FPV drones, and communication systems.
2.Increased Component Density
The ability to place multiple layers in a compact design allows for greater component density, optimizing the performance of digital and analog systems. This is particularly beneficial in applications where space is limited, such as wearable technology and compact consumer electronics.
3.Improved Connectivity
With the ability to integrate both rigid and flexible circuits, these boards allow for complex interconnections that enhance signal routing, while reducing the need for additional connectors or wiring. This leads to reduced assembly complexity, faster manufacturing time, and lower costs.
4.Customization for Complex Designs
Rigid-flex circuits can be designed to accommodate up to 14 layers, allowing for sophisticated and highly customizable solutions. Whether it’s for medical devices, telecommunications, or aerospace, these boards can be tailored to meet the specific needs of the most demanding applications.
Why Choose Multi-Layer Rigid-Flex Circuits for Your Projects?
If you're looking for a reliable, high-performance solution for complex circuit designs, multi-layer rigid-flex PCBs offer the best combination of flexibility, high component density, and signal integrity. These boards can handle intricate designs that require both rigid and flexible properties, ensuring reliable performance in even the most challenging environments.
As the demand for compact, high-performance electronics grows, rigid-flex circuits are becoming the go-to solution for industries where reliability, signal clarity, and space-saving designs are paramount. Whether you’re designing medical devices, automotive systems, or high-performance consumer electronics, multi-layer rigid-flex PCBs provide the ideal platform for your next project.

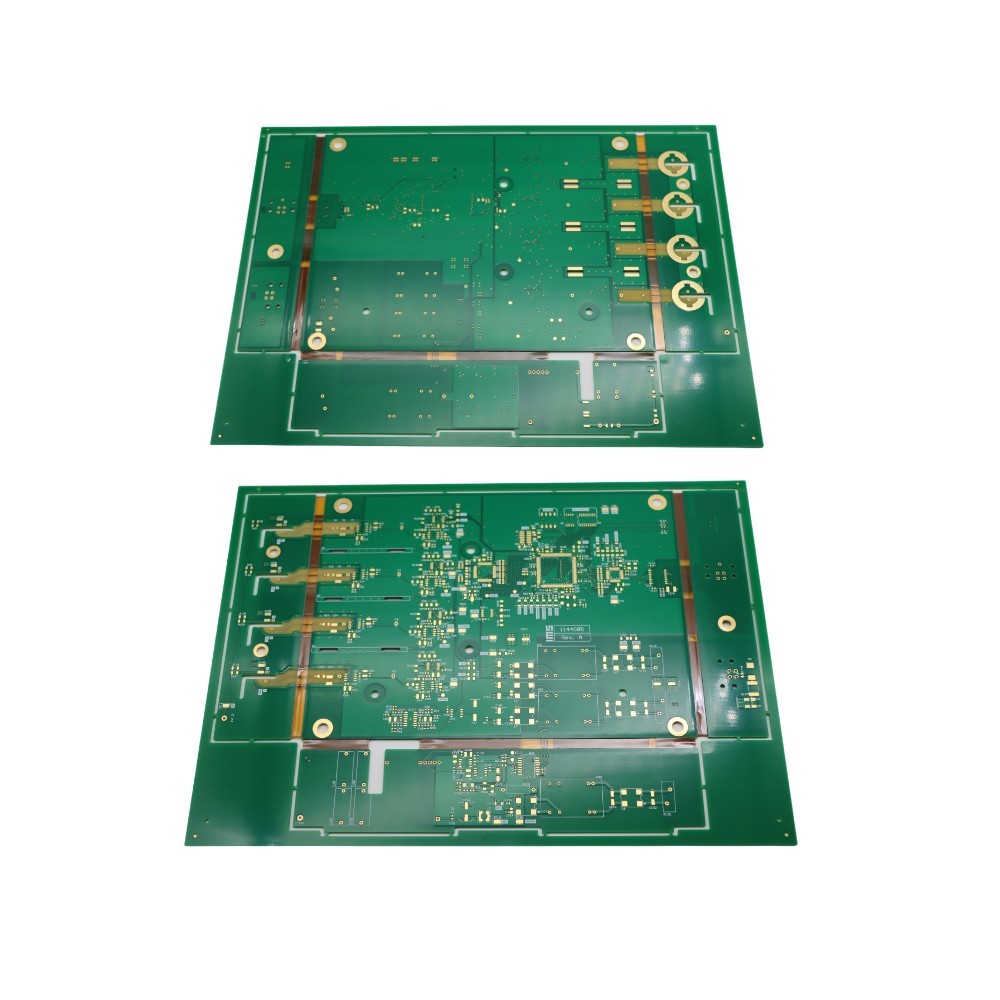

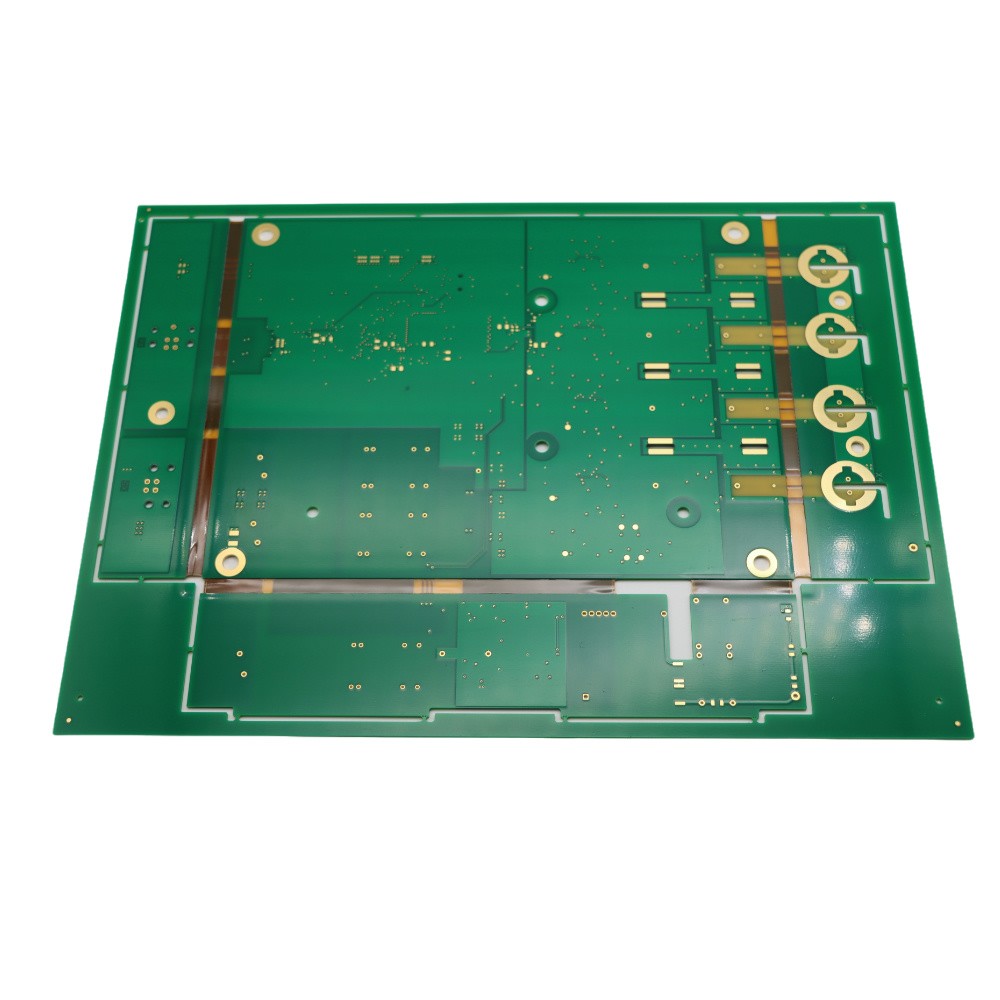

Product Specifications
| Type | Multi-layer Rigid-Flex |
| Materia | Polyimide+FR-4 |
| Number of layer | 4L |
| Board Thickness | 1.5mm |
| Single size | 312*224mm/1PCS |
| Surface finish | ENIG |
| Inner copper thickness | 35um |
| Outer copper thickness | 35um |
| Color of solder mask | green(GTS，GBS) |
| Silkscreen color | white(GTO,GBO) |
| Via treatment | Solder mask plug holes |
| Density of mechanical drilling hole | 2W/㎡ |
| Density of laser drilling hole | / |
| Min via size | 0.25mm |
| Min line width/space | 4/4mil |
| Aperture ratio | 4mil |
| Pressing times | 1 time |
| Drilling times | 1 time |
| PN | B0491000A |
Key Features of Multi-Layer Rigid-Flex PCBs
1.High-Density Component Placement
Multi-layer rigid-flex PCBs allow for the integration of more components per unit area, which is essential for applications that demand high functionality in a compact form.
2.Superior Signal Integrity
These PCBs provide excellent signal transmission, minimizing distortion, attenuation, and interference, making them ideal for high-speed and high-frequency applications such as RF systems and medical devices.
3.Enhanced Flexibility and Durability
The flexible layers of the PCB allow it to bend, twist, and flex without breaking or losing connectivity, providing increased durability and flexibility. This is especially useful in applications like wearables and aerospace systems that require both rigidity and flexibility.
4.Customizable Designs
Our multi-layer rigid-flex PCBs can be customized to meet specific application requirements, with options for layer counts up to 14 and integrated features like stiffeners, heat sinks, and connectors.
5.Temperature and Vibration Resistance
Designed to operate in extreme conditions, these PCBs can withstand high temperatures, vibration, and mechanical shock, making them ideal for applications in automotive and aerospace industries.
Quality Control and Assurance
At Rich Full Joy, we adhere to the highest standards of quality and reliability to ensure that our multi-layer rigid-flex PCBs perform seamlessly under even the most demanding conditions. Our quality control process includes:
1.Advanced Inspection Technologies:
We use optical inspection, X-ray inspection, and electron microscopy to check the quality of each layer, ensuring zero defects.
2.Rigorous Testing:
Our multi-layer rigid-flex PCBs undergo extensive testing, including thermal cycling, vibration, and electrical performance tests, to guarantee their reliability in real-world applications.
3.Certifications:
Our products meet the strictest industry standards, including ISO9001, IATF16949, and UL certification, ensuring that our PCBs are manufactured to the highest quality specifications.
Frequently Asked Questions
Q1: What are the advantages of using multi-layer rigid-flex PCBs over traditional PCBs?
A1: Multi-layer rigid-flex PCBs combine the flexibility of flexible circuits with the rigidity of rigid PCBs, allowing for high-density component placement, superior signal integrity, and enhanced durability in harsh environments.
Q2: Can multi-layer rigid-flex PCBs be used for high-frequency applications?
A2: Yes, multi-layer rigid-flex PCBs are excellent for high-frequency applications, as they offer minimal signal loss and high-speed performance with superior signal integrity.
Q3: What industries benefit from multi-layer rigid-flex PCBs?
A3: Multi-layer rigid-flex PCBs are used in a wide range of industries, including medical devices, consumer electronics, automotive, aerospace, and industrial control, thanks to their flexibility, reliability, and high-performance capabilities.
Q4: How customizable are multi-layer rigid-flex PCBs?
A4: Our multi-layer rigid-flex PCBs are highly customizable, with options for layer counts up to 14 layers, integrated components, and flexible designs that meet specific application requirements.
Q5: How do you ensure the quality of your multi-layer rigid-flex PCBs?
A5: We implement a rigorous quality control process, including optical inspection, X-ray inspection, and extensive testing to ensure that every PCB meets the highest standards of performance and reliability.
Multi-layer rigid-flex PCBs provide the perfect combination of flexibility, high-density component placement, and superior signal integrity, making them essential for industries like medical, consumer electronics, automotive, and aerospace. With customizable designs, robust performance, and stringent quality controls, these PCBs are the ideal solution for complex applications requiring high performance in compact and challenging environments.
High-Performance Multi-Layer Rigid-Flex PCBs for Advanced Applications
Rigid-Flex PCBs are innovative, high-performance circuit boards that combine the benefits of rigid boards and flexible circuits into a single, integrated design. These multi-layer circuits offer superior performance, high-density component placement, and enhanced signal integrity, making them ideal for demanding applications in medical devices, consumer electronics, automotive systems, aerospace, and more.
At Rich Full Joy, we specialize in manufacturing multi-layer rigid-flex PCBs with up to 14 layers, offering flexible, durable, and high-performance solutions that cater to the needs of industries that require reliability, flexibility, and precision in their electronic designs.
Applications of Multi-Layer Rigid-Flex PCBs
1.Medical Devices
Rigid-flex PCBs are widely used in medical applications like implantable devices, portable diagnostic tools, and wearable health monitoring systems. The flexibility and compact design of these PCBs make them ideal for devices that need to fit into small, constrained spaces, while the rigid portion ensures high mechanical strength. Their durability in extreme environments such as body temperature regulation and humidity makes them perfect for continuous, long-term use in medical equipment.
Key Benefits for Medical Devices:
●Miniaturization for small, compact medical equipment
●Flexibility for wearable devices
●Enhanced signal integrity for precise data transmission
●Durability to withstand harsh environments
2.Consumer Electronics
With the rise of smartphones, tablets, wearables, and other compact electronics, multi-layer rigid-flex PCBs have become an essential component in designing high-performance consumer electronics. Their compact size and high-density capabilities allow for the integration of complex functions in space-constrained devices while maintaining excellent signal transmission and reliability.
Key Benefits for Consumer Electronics:
●Space-saving designs for smaller, lighter devices
●High-speed signal transmission for real-time data processing
●Longer operational life through enhanced durability
3.Automotive Systems
Rigid-flex PCBs are extensively used in automotive electronics for systems like advanced driver-assistance systems (ADAS), infotainment systems, and power control units. These PCBs are designed to withstand harsh conditions, including high vibrations, temperature extremes, and electromagnetic interference (EMI), all of which are common in automotive environments.
Key Benefits for Automotive Systems:
●Durability and resilience in high-vibration and high-temperature environments
●Signal clarity for advanced communication systems
●Optimized for long-term reliability in critical automotive systems
4.Aerospace & Avionics
In the aerospace and aviation industry, the need for lightweight, high-performance electronics is paramount. Rigid-flex PCBs are widely used in satellite communication, navigation systems, and flight control systems. The high-density nature of these boards allows for the integration of complex functions, while the flexible design accommodates space constraints without compromising on reliability or performance.
Key Benefits for Aerospace & Avionics:
●Compact and lightweight for weight-sensitive aerospace applications
●Exceptional reliability for mission-critical systems
●Stable signal transmission even in harsh environmental conditions
5.Industrial Control
Rigid-flex PCBs are also used in industrial control systems where high-performance and reliability are crucial. These circuits are used in automation systems, robotics, and machine control systems, where the integration of flexible and rigid technologies allows for high-density wiring and enhanced mechanical strength.
Key Benefits for Industrial Control:
●High-density circuit design for improved functionality in space-constrained systems
●Robust and flexible for demanding industrial environments
●Improved reliability for mission-critical operations
At Rich full joy, we specialize in providing high-performance Flexible Printed Circuits and Rigid-Flex PCBs, tailored to meet the needs of a variety of industries, including medical, automotive, aerospace, and consumer electronics. Our multilayer rigid-flex PCBs combine the best of both worlds—rigid and flexible components—offering superior signal integrity, reliability, and space-saving designs. With advanced manufacturing techniques, customizable solutions, and a commitment to quality control, we deliver products that perform in the most demanding environments. Whether you require complex designs, high-frequency capabilities, or compact solutions, our rigid-flex PCBs are engineered to exceed your expectations. Let us help you bring your project to life with cutting-edge technology and exceptional service.
Application
HDI PCB has a wide range of application scenarios in the electronic field, such as :
-Big Data & AI : HDI PCB can improve the signal quality, battery life and functional integration o mobile phones, while reducing their weight and thickness. HDI PCB can also support the development of new technologies such as 5G communication, AI and IoT, etc.
-Automobile : HDI PCB can meet the complexity and reliability requirements of automotive electronic systems, while improving the safety, comfort and intelligence of automobiles. It can also be applied to functions such as automotive radar, navigation, entertainment and driving assistance.
-Medical : HDI PCB can improve the accuracy, sensitivity and stability of medical equipments, while reducing their size and power consumption. It can also be applied in fields such as medical imaging, monitoring, diagnosis and treatment.
The mainstream applications of HDI PCB are in mobile phones, digital cameras, AI, IC carriers, laptops, automotive electronics, robots, drones, etc., being widely used in multiple fields.
