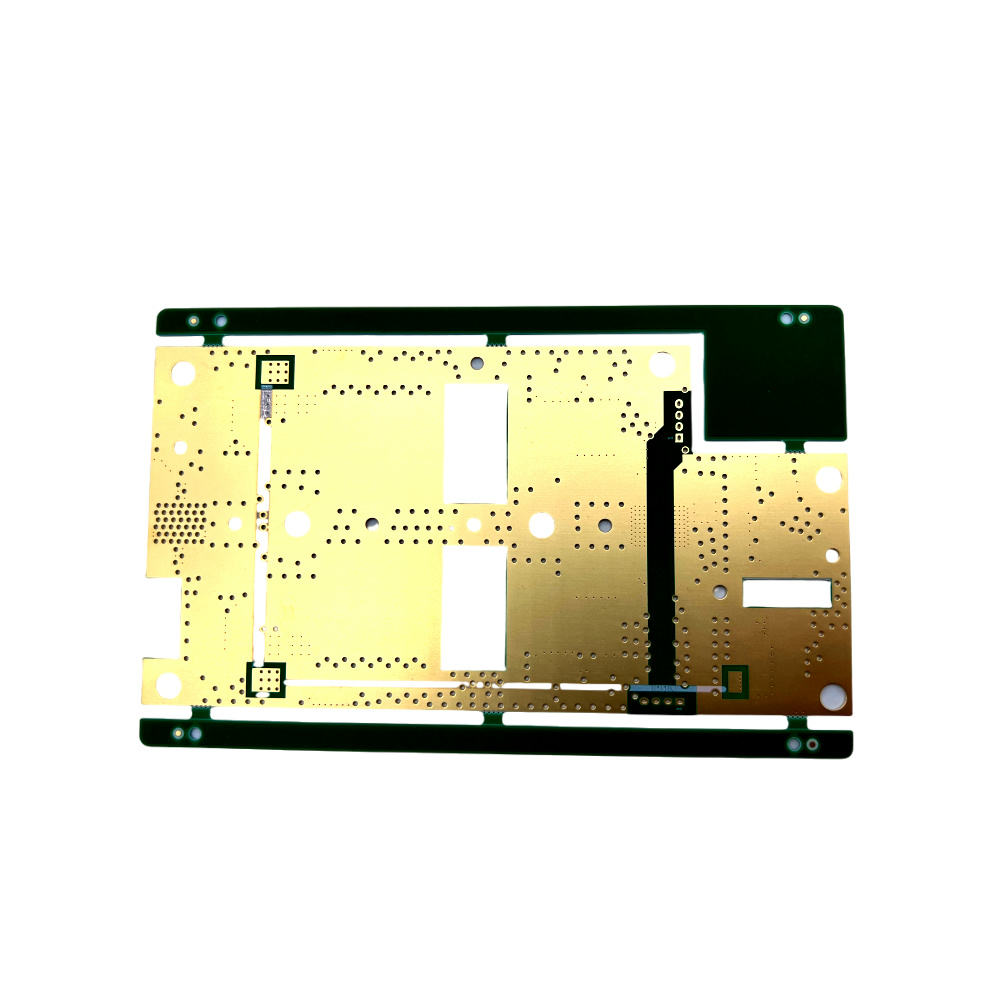

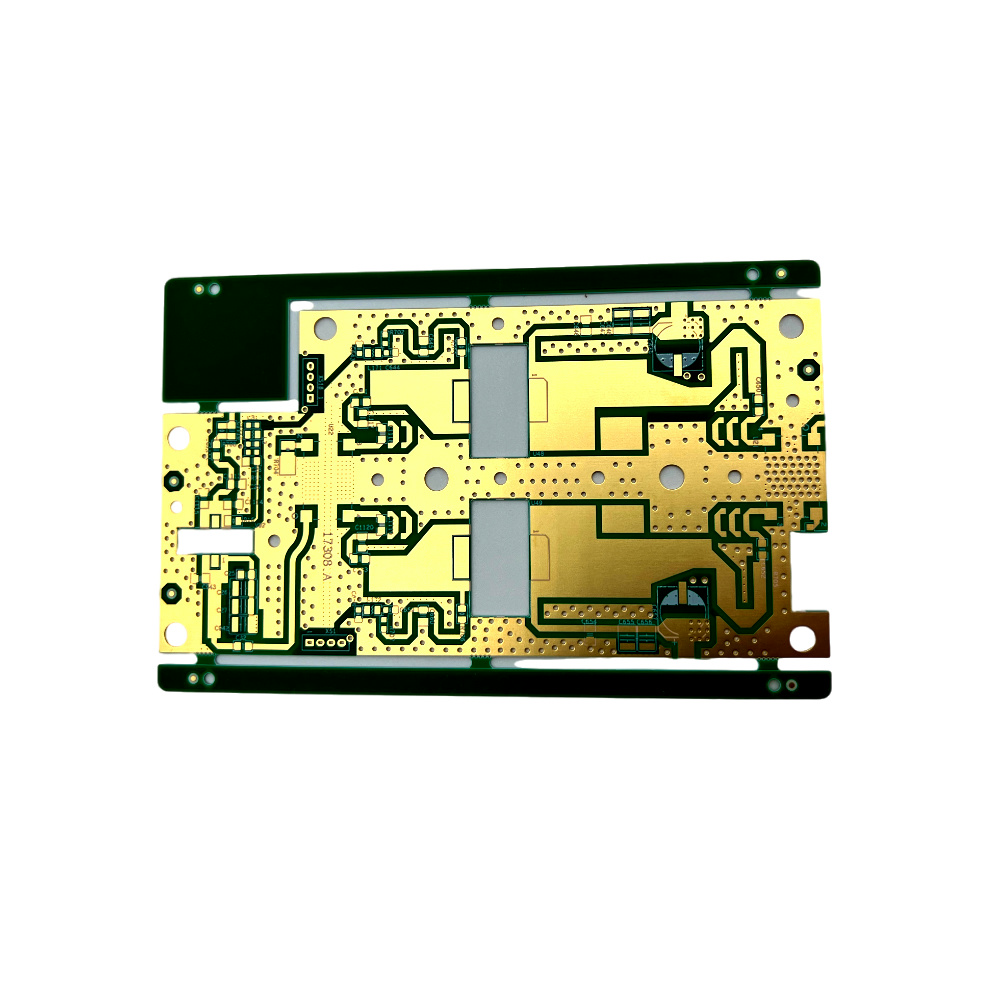

Four-Layer Gold-Plated Multifunction PCB: High-Frequency Materials & Impedance Control
Dominate the High - performance PCB Field with Special High - frequency Processes
Introduction
In the realm of high-performance electronics, the demand for advanced printed circuit boards (PCBs) that can handle complex functionalities and high-frequency applications is ever-increasing. The Four-Layer Gold-Plated Multifunction Board is a cutting-edge solution designed to meet these demands. This PCB incorporates specialized processes and high-frequency materials to ensure optimal performance in a variety of applications. In this article, we will delve into the design, materials, special processes, and manufacturing steps that make this multifunction board a standout choice for high-performance applications.
Design and Product Features
Multilayer Structure for Enhanced Functionality
The Four-Layer Gold-Plated Multifunction Board is designed with a four-layer structure, which provides several advantages over single or double-layer boards. The additional layers allow for more complex circuitry, improved signal integrity, and better power distribution. This makes the board suitable for applications that require high-speed data transmission and high-frequency signal processing.
Gold-Plating for Superior Conductivity and Durability
One of the standout features of this multifunction board is its gold-plated surface. Gold plating is used in high-performance PCBs due to its excellent conductivity, corrosion resistance, and durability. The gold plating ensures reliable electrical connections, even in harsh environments, and reduces the risk of signal loss or interference.
Specialized Processes for High-Frequency Applications
The board incorporates several specialized processes that are essential for high-frequency applications:
●Through-Hole Technology: Through-hole technology is used to create reliable electrical connections between different layers of the PCB. This process involves drilling holes through the board and plating them with conductive material to ensure a secure connection.
●High-Frequency Mixed-Pressure Boards:High-frequency mixed-pressure boards are designed to handle both high-frequency signals and standard electrical signals. This is achieved by using a combination of materials with different dielectric properties, which allows for optimal signal transmission across a wide range of frequencies.
●Impedance Control:Impedance control is critical in high-frequency applications to ensure that signals are transmitted without distortion or loss. The board is designed with precise impedance control to maintain signal integrity, even at high frequencies.
●Half-Holes: Half-holes are used to create connections between the board and external components. This process involves drilling holes that are only partially through the board, allowing for secure connections without compromising the board's structural integrity.
Four Different Designs Combined on One Board
The multifunction board combines four different designs, each tailored to specific functionalities. This allows for a high degree of customization and flexibility, making the board suitable for a wide range of applications. The combination of designs also reduces the need for multiple boards, simplifying the overall design and reducing costsExploring the Four - Layer Gold - Plated Multifunctional Board: Led by Special Processes, Winning with Manufacturing Details
High-Frequency Materials for Optimal Performance
The Four-Layer Gold-Plated Multifunction Board is constructed using high-frequency materials that are specifically chosen for their dielectric properties and thermal stability. These materials include:
●FR-4 TG170:FR-4 is a widely used PCB material known for its excellent electrical insulation properties and mechanical strength. The TG170 variant has a high glass transition temperature (Tg), making it suitable for high-temperature applications.
●RO4350B: RO4350B is a high-frequency laminate material with a low dielectric constant and low loss tangent. This makes it ideal for high-frequency applications where signal integrity is critical.
●IT180A: IT180A is another high-frequency material that offers excellent thermal stability and low dielectric loss. It is commonly used in applications that require high-speed signal transmission.
Board Thickness and Tolerance
The board has a thickness of 1.20±0.12mm, which provides a balance between mechanical strength and flexibility. The tight tolerance ensures that the board meets the precise specifications required for high-performance applications.
Soldermask and Silk-Screen
The board features a green soldermask and white silk-screen. The soldermask protects the copper traces from oxidation and prevents solder bridges during assembly. The white silk-screen is used for labeling and component placement, ensuring accurate assembly and easy identification of components.
Special Processes and Manufacturing Steps
Through-Hole Technology
Through-hole technology is a critical process in the manufacturing of the Four-Layer Gold-Plated Multifunction Board. This process involves drilling holes through the board and plating them with conductive material to create electrical connections between different layers. The through-hole process ensures reliable connections, even in high-vibration environments, and is essential for boards that require high mechanical strength.

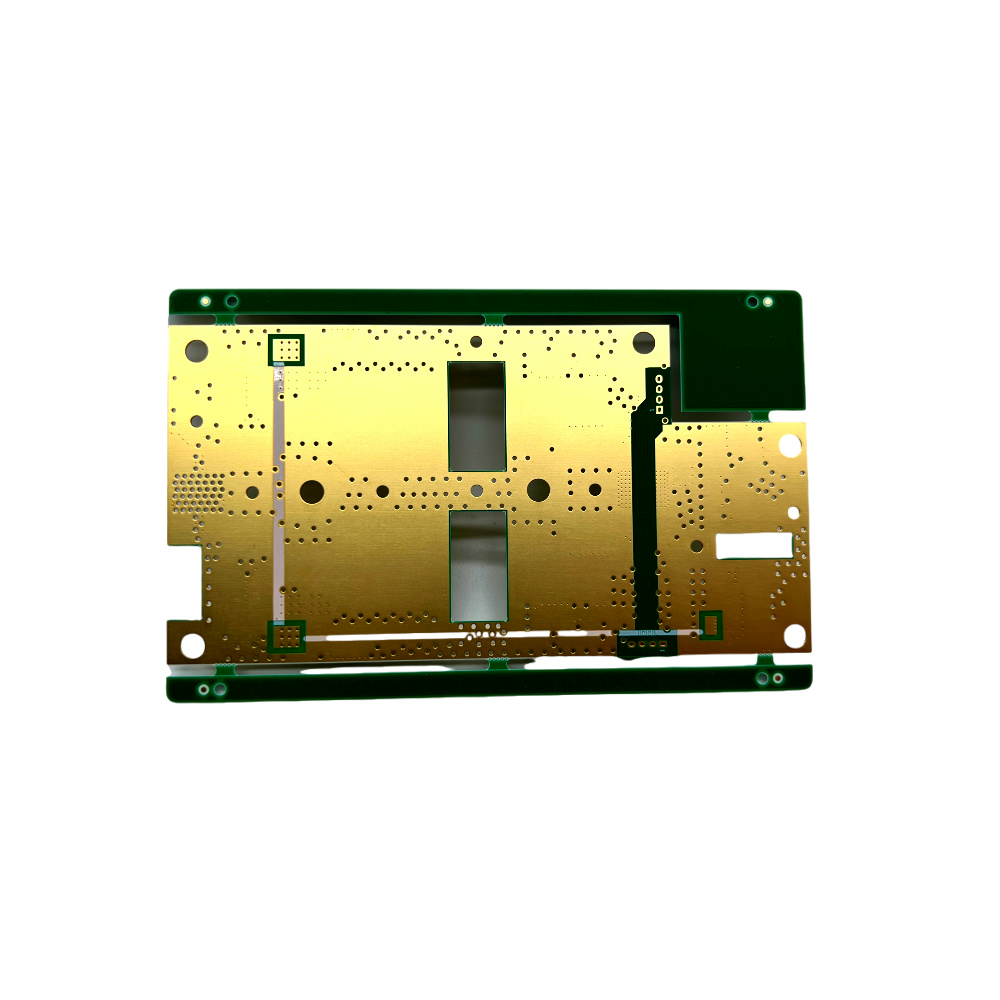

High-Frequency Mixed-Pressure Boards
The high-frequency mixed-pressure process involves combining different materials with varying dielectric properties to create a board that can handle both high-frequency and standard electrical signals. This process requires precise control over the lamination process to ensure that the materials bond correctly and maintain their dielectric properties. The result is a board that can handle a wide range of frequencies without signal loss or distortion.
Impedance Control
Impedance control is a critical aspect of high-frequency PCB design. The Four-Layer Gold-Plated Multifunction Board is designed with precise impedance control to ensure that signals are transmitted without distortion or loss. This is achieved by carefully controlling the width and spacing of the traces, as well as the dielectric properties of the materials used. Impedance control is essential for maintaining signal integrity, especially in high-speed data transmission applications.
Half-Holes
Half-holes are used to create connections between the board and external components. This process involves drilling holes that are only partially through the board, allowing for secure connections without compromising the board's structural integrity. Half-holes are commonly used in applications where the board needs to be mounted to another surface or connected to external components.
Lamination and Drilling
The board undergoes 1 lamination and 1 drilling process. The lamination process involves bonding the different layers of the board together under high pressure and temperature. This ensures that the layers are securely bonded and that the board has the required mechanical strength. The drilling process involves creating the necessary holes for through-hole connections and half-holes. The board is drilled with a precision of 0.2mm, ensuring that the holes are accurately placed and sized.
Appearance and Surface Finish
Green Soldermask and White Silk-Screen
The Four-Layer Gold-Plated Multifunction Board features a green soldermask and white silk-screen. The soldermask is applied to the board to protect the copper traces from oxidation and to prevent solder bridges during assembly. The green color is a standard choice for soldermasks due to its contrast with the white silk-screen, making it easy to identify components and traces.
The white silk-screen is used for labeling and component placement. The silk-screen is applied using a precise printing process that ensures clear and accurate labeling. This is essential for ensuring that the board is assembled correctly and that components are placed in the correct locations.
Gold-Plated Surface Finish
The board's surface is gold-plated to ensure excellent conductivity and durability. The gold plating is applied using an electroplating process, which ensures a uniform and consistent layer of gold across the entire surface of the board. The gold plating not only enhances the board's electrical performance but also provides a protective layer that prevents corrosion and oxidation.
Dimensions and Drilling Details
Board Thickness and Tolerance
The Four-Layer Gold-Plated Multifunction Board has a thickness of 1.20±0.12mm. This thickness provides a balance between mechanical strength and flexibility, making the board suitable for a wide range of applications. The tight tolerance ensures that the board meets the precise specifications required for high-performance applications.
Drilling Diameter and Precision
The board is drilled with a precision of 0.2mm. This ensures that the holes are accurately placed and sized, which is essential for creating reliable electrical connections. The drilling process is carried out using advanced CNC drilling machines, which ensure high precision and consistency.
Lamination and Drilling Process
The board undergoes 1 lamination and 1 drilling process. The lamination process involves bonding the different layers of the board together under high pressure and temperature. This ensures that the layers are securely bonded and that the board has the required mechanical strength. The drilling process involves creating the necessary holes for through-hole connections and half-holes. The board is drilled with a precision of 0.2mm, ensuring that the holes are accurately placed and sized.
Applications of the Four-Layer Gold-Plated Multifunction Board
The Four-Layer Gold-Plated Multifunction Board is a versatile and high-performance PCB designed for demanding applications across various industries. Below are ten detailed application areas where this board excels:
1.High-Frequency Communication Systems:
●Description: The board is ideal for high-frequency communication systems, such as RF (radio frequency) and microwave applications. Its high-frequency materials and precise impedance control ensure minimal signal loss and distortion.
●Applications: Wireless communication base stations, satellite communication systems, radar systems, and 5G infrastructure.
●Benefits:Ensures reliable signal transmission in high-frequency environments, making it suitable for critical communication networks.
2.High-Speed Data Transmission
●Description: The four-layer structure and gold-plated surface enable the board to handle high-speed signals with minimal loss or interference.
●Applications: Data centers, networking equipment, high-speed servers, and fiber-optic communication systems.
● Benefits: Supports high-speed data transfer rates, ensuring efficient and reliable performance in data-intensive environments.
3.Automotive Electronics
●Description: The board’s gold-plated surface provides excellent corrosion resistance, making it suitable for harsh automotive environments. Its high-frequency capabilities and precise impedance control are ideal for advanced automotive systems.
●Applications: Infotainment systems, advanced driver-assistance systems (ADAS), vehicle-to-everything (V2X) communication, and engine control units (ECUs).
● Benefits: Enhances the reliability and performance of automotive electronics, ensuring safety and connectivity in modern vehicles.
4.Industrial Control Systems：
●Description:The board’s robust design and specialized processes make it suitable for industrial control systems that require high-speed signal processing and durability.
●Applications: Programmable logic controllers (PLCs), industrial robots, motor drives, and factory automation systems.
●Benefits: Provides reliable performance in harsh industrial environments, ensuring efficient operation of control systems.
5.Medical Devices:
●Description:The board’s high precision and reliability make it ideal for medical devices that require accurate signal processing and data transmission.
●Applications: Medical imaging systems (CT, MRI, ultrasound), patient monitoring devices, and surgical robots.
●Benefits: Ensures high performance and reliability in critical healthcare applications, improving patient outcomes.
6.Aerospace and Defense：
●Description:The board’s ability to withstand extreme conditions and its high-frequency performance make it suitable for aerospace and defense applications.
●Applications: Avionics systems, satellite communication, radar systems, and unmanned aerial vehicles (UAVs).
●Benefits: Provides reliable performance in extreme environments, ensuring the success of mission-critical operations.
7.Consumer Electronics:
●Description:The board’s compact design and high-speed capabilities make it ideal for consumer electronics that require high performance in a small form factor.
●Applications: Smartphones, tablets, wearables, and smart home devices.
●Benefits: Enhances the functionality and reliability of consumer electronics, improving user experience.
8.IoT (Internet of Things) Devices:
●Description:The board’s ability to handle high-speed data and its durability make it suitable for IoT devices that require reliable connectivity and performance.
●Applications: Smart sensors, edge computing devices, and IoT gateways.
●Benefits: Ensures seamless connectivity and data processing in IoT networks, enabling smart solutions.
9.Research and Development:
●Description:The board’s robust design and high-frequency capabilities make it ideal for energy management systems that require efficient power distribution and monitoring.
●Applications: Smart grid systems, energy storage controllers, and solar inverters.
●Benefits:Enhances the efficiency and reliability of energy management systems, supporting sustainable energy solutions.
10.High-Speed Computing:
●Description:The board’s ability to handle high-speed signals and its precise impedance control make it suitable for high-performance computing applications.
●Applications: Servers, data centers, AI accelerators, and high-performance computing clusters.
●Benefits:Supports fast data processing and efficient operation in high-performance computing environments.
The Four-Layer Gold-Plated Multifunction Board is a high-performance PCB designed to meet the demands of complex and high-frequency applications. With its four-layer structure, gold-plated surface, and specialized processes, this board offers superior performance, reliability, and durability. Whether you're designing high-frequency communication systems, high-speed data transmission equipment, automotive electronics, or industrial control systems, the Four-Layer Gold-Plated Multifunction Board is an excellent choice that will meet your needs and exceed your expectations.
