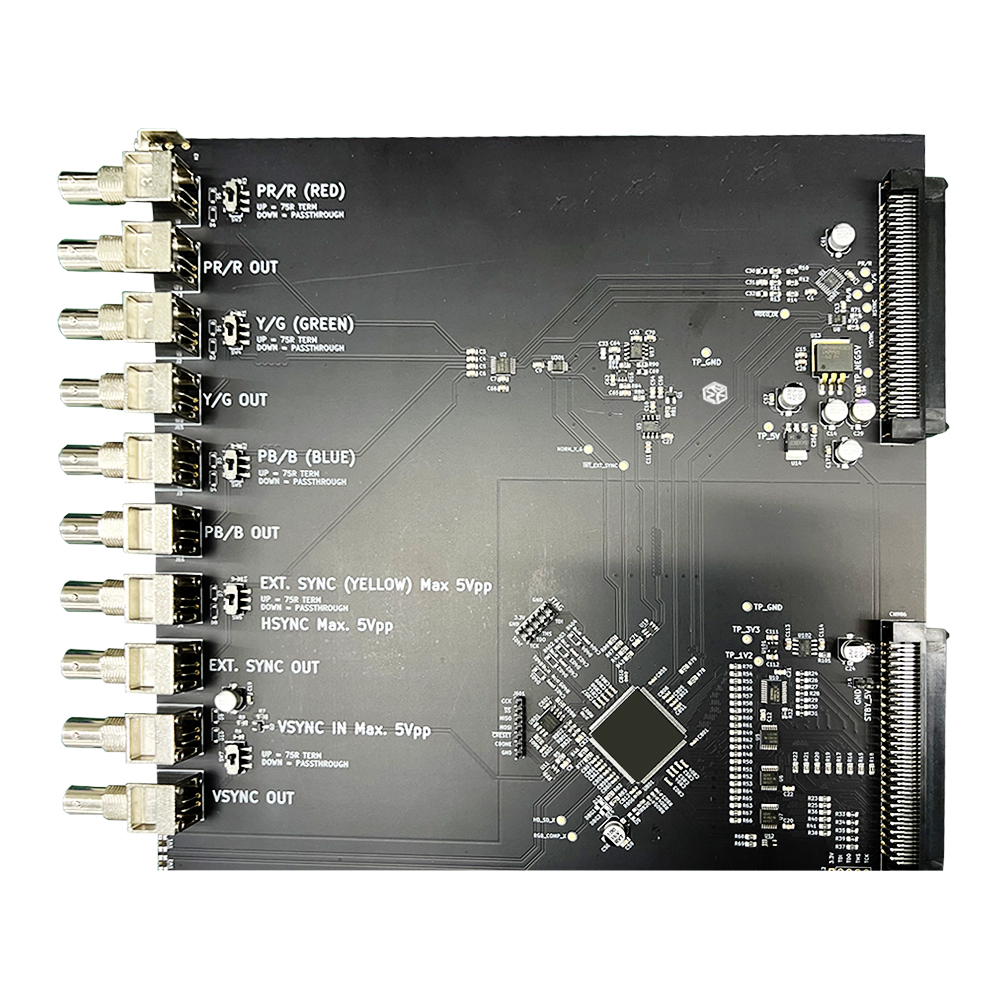

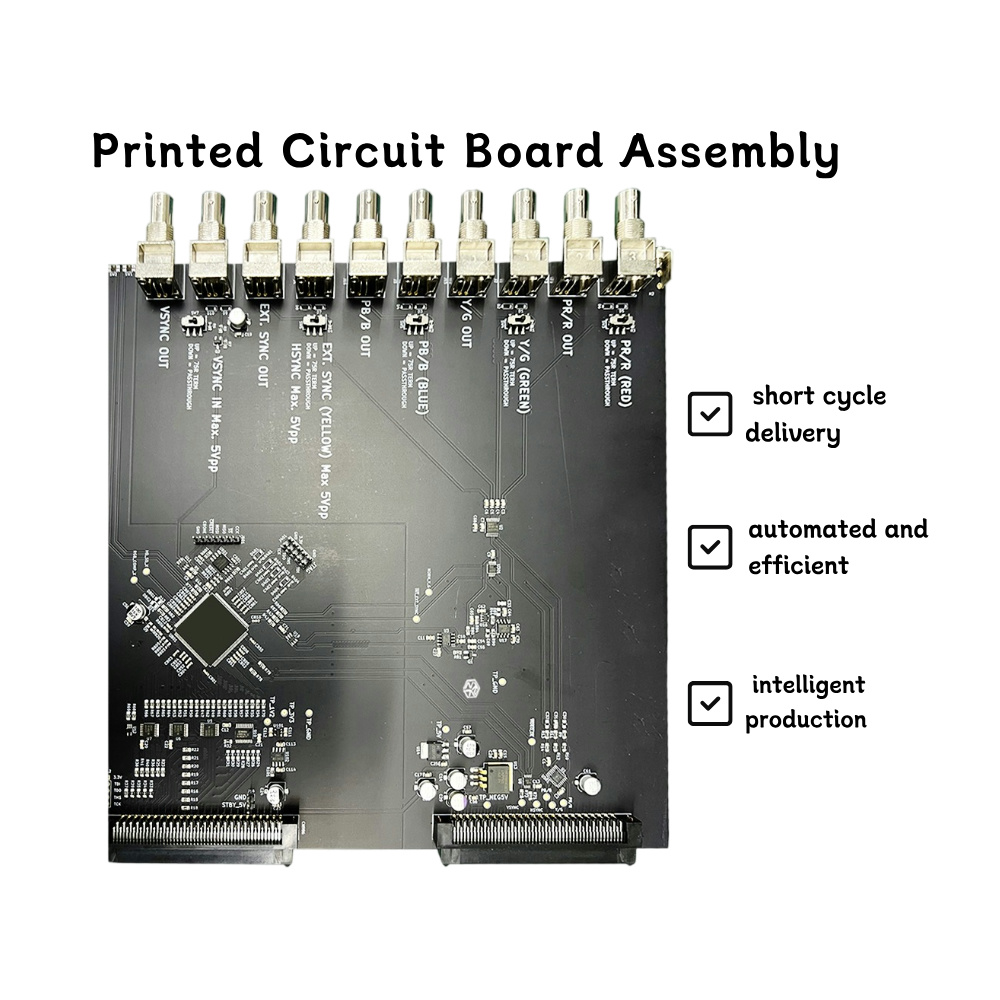

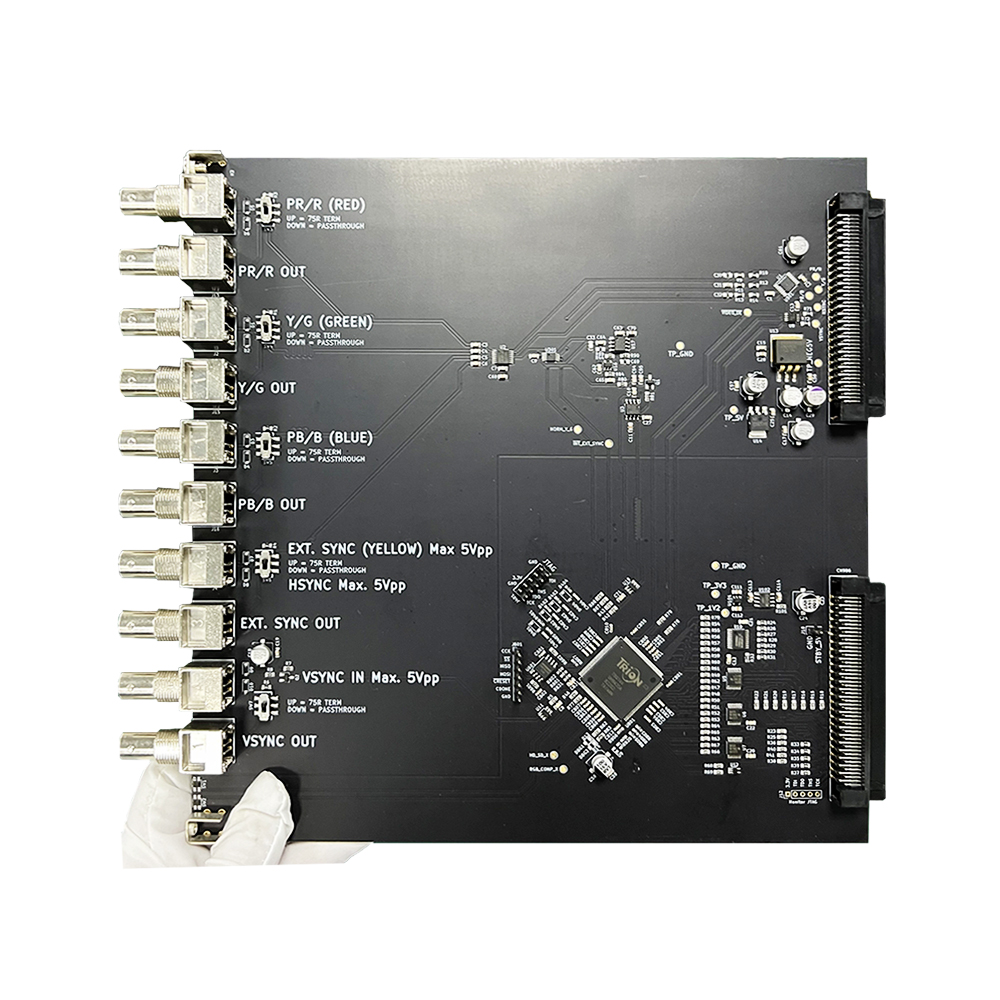

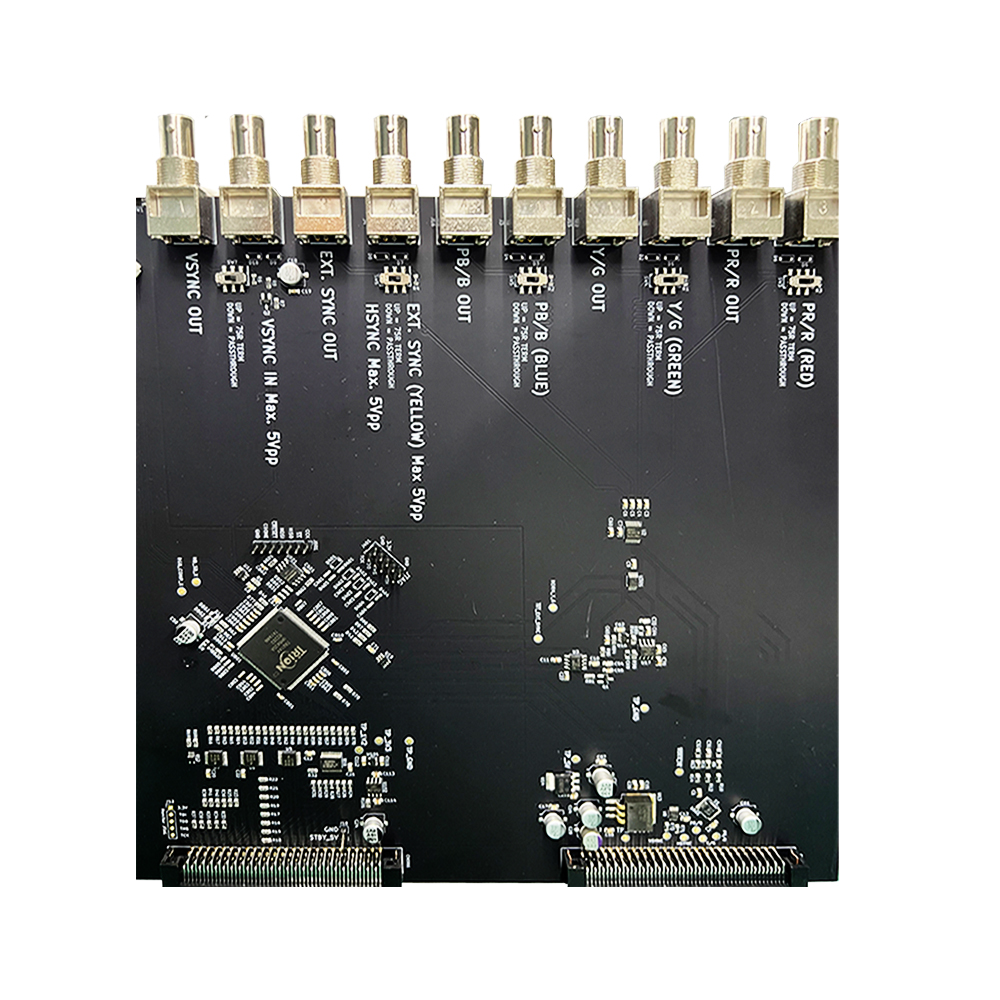

Multi-channel High-speed AD FMC Daughter Board PCBA: Outstanding Performance, Leading the New Heights of Data Acquisition
Why can the multi - channel high - speed AD FMC daughter board PCBA ensure high - precision acquisition? In - depth analysis of key components
The reason why this multi - channel high - speed AD FMC daughter board PCBA can achieve high - precision and high - speed data acquisition lies in a series of high - quality electronic components it uses. During the PCB assembly production process, every link, from the screening of components to the final assembly into a complete PCBA, follows strict standards. When selecting analog - to - digital converters (ADCs), we use high - performance chips from internationally renowned brands. These chips have extremely high sampling rates and resolutions, and can perform high - precision digital conversion of input analog signals in a short time. The chips are built - in with multiple anti - interference mechanisms, such as digital filtering and noise suppression, which can effectively remove noise and interference from the signals, ensuring the accuracy of the collected digital signals. At the same time, the chips also have an automatic calibration function, which can automatically adjust parameters during long - term use to ensure the stability of acquisition accuracy. In terms of capacitors, we adopt a configuration combining multi - layer ceramic capacitors (MLCC) and tantalum capacitors.
Multi - layer ceramic capacitors have the characteristics of low equivalent series resistance (ESR) and low equivalent series inductance (ESL), which can effectively filter out high - frequency noise in the power supply and provide a stable and pure DC power supply for the ADC, ensuring the stability of the ADC's operation. Tantalum capacitors, with their high capacitance and good low - frequency characteristics, can provide sufficient energy support when the power supply fluctuates instantaneously, ensuring a stable power supply for the ADC during the high - speed sampling process. The inductors used are low - loss ferrite inductors and high - precision wire - wound inductors. Ferrite inductors can effectively suppress electromagnetic interference (EMI). In a complex electromagnetic environment, the interference generated may affect the normal operation of the ADC. Ferrite inductors can shield these interferences, ensuring the stable operation of the PCBA itself and reducing electromagnetic interference to other devices. Wire - wound inductors have high precision and high stability. During the power conversion process, they can accurately control the change of current, ensure the stability of power output, and provide stable and reliable power support for the ADC. High - precision thin - film resistors are used. They have high resistance accuracy and low temperature coefficients, and can maintain a stable resistance value at different working temperatures, providing accurate reference voltages and currents for various signal processing and control in the ADC circuit and ensuring the accuracy and stability of circuit control. All electronic components must undergo strict quality inspections before entering the production line, which is an important part of high - quality PCB assembly production. We use advanced automated optical inspection (AOI) equipment to comprehensively inspect the appearance of components to ensure no appearance defects. X - ray inspection equipment is used to deeply detect the internal structure of components and eliminate potential hidden dangers. On the advanced production lines in China, these components are installed on the circuit board through a precise automated assembly process, which reflects the advantages of efficient PCB assembly production. The production line is equipped with an advanced quality control system that monitors various parameters during the assembly process in real - time, such as placement pressure and soldering temperature, ensuring a high degree of consistency and reliability for each product, achieving the goal of zero - defect PCB assembly production. Each multi - channel high - speed AD FMC daughter board PCBA must undergo strict functional tests and aging tests before leaving the factory, simulating various operating conditions in actual applications, including high temperature, low temperature, high humidity, etc., to ensure its stable and reliable operation in practical applications and provide a solid guarantee for high - speed data acquisition.
Working Principle of the Multi - channel High - speed AD FMC Daughter Board PCBA
Signal Reception and Conditioning: Front - end Guarantee for Data Acquisition
The input interface of the multi - channel high - speed AD FMC daughter board PCBA can receive multiple analog signals simultaneously. These signals may come from different sensors or other analog devices, with different characteristics such as amplitude and frequency. The signal conditioning circuit inside the PCBA pre - processes these input signals, including operations such as amplification, filtering, and level conversion. For example, for weak analog signals, the signal conditioning circuit amplifies them to an appropriate amplitude range so that the ADC can accurately sample them. For signals containing high - frequency noise, a low - pass filter is used to remove the noise and improve the signal quality. During this process, the PCB assembly production processes involved ensure the stability and reliability of the signal conditioning circuit, reflecting the important supporting role of high - precision PCB assembly production in product performance.
Analog - to - Digital Conversion: The Leap from Analog Signals to Digital Signals
The conditioned analog signals are sent to the ADC for digital conversion. The ADC samples the analog signals periodically according to the preset sampling rate and resolution, and converts the sampled analog values into corresponding digital codes. The high sampling rate enables the PCBA to quickly collect changing analog signals, while the high resolution ensures that the collected digital signals can accurately reflect the characteristics of the analog signals. For example, in the speed measurement of high - speed moving objects, an ADC with a high sampling rate and high resolution can accurately capture the changes in the object's speed. This process depends on high - performance ADC chips and the PCB assembly production technology that matches them, ensuring the efficiency and accuracy of analog - to - digital conversion, demonstrating the key role of advanced PCB assembly production technology in the realization of the product's core functions.
Data Processing and Transmission: Efficient Data Management
The microprocessor inside the PCBA further processes the digital signals output by the ADC, such as data verification and format conversion. Then, the processed data is transmitted to the host device (such as FPGA or CPU) through the FMC interface. The FMC interface has high - speed and reliable data transmission capabilities, which can meet the real - time requirements of multi - channel high - speed data acquisition. At the same time, the PCBA also supports multiple data transmission protocols and can be flexibly configured according to the needs of the host device. During the data processing and transmission process, the optimization of the PCB assembly production process ensures the efficiency of data processing and the stability of data transmission, reflecting the role of efficient PCB assembly production in improving the overall performance of the product.
Power Management and Protection: Foundation for Stable Operation
The PCBA is equipped with an efficient power management circuit that can provide a stable power supply for each component. At the same time, multiple protection mechanisms such as over - current protection, over - voltage protection, and under - voltage protection are set up. When an abnormality occurs in the power supply, the power can be automatically cut off or other protection measures can be taken to prevent component damage and ensure the safe and stable operation of the PCBA. During the design and assembly of the power management and protection circuit, advanced PCB assembly production processes are used to ensure the reliability and stability of the circuit, laying a solid foundation for the stable operation of the entire PCBA, reflecting the important significance of high - quality PCB assembly production in ensuring product stability.
Clock Management: Precise Time Synchronization
To ensure the sampling accuracy of the ADC and the synchronization of data transmission, the PCBA uses a high - precision clock source. The clock management circuit distributes the clock signal to each required component to ensure that they work at the same clock cycle. At the same time, the clock management circuit also has the functions of clock frequency adjustment and phase compensation, which can be flexibly configured according to the needs of actual applications. During the implementation of the clock management circuit, high - precision PCB assembly production technology ensures the accuracy and stability of clock signal transmission, providing a guarantee for the accurate sampling of the ADC and the synchronous transmission of data, highlighting the important impact of high - precision PCB assembly production on the key performance indicators of the product.
Revealing Common Questions about the Multi-channel High-speed AD FMC Daughter Board PCBA
Where is this multi - channel high - speed AD FMC daughter board PCBA produced?

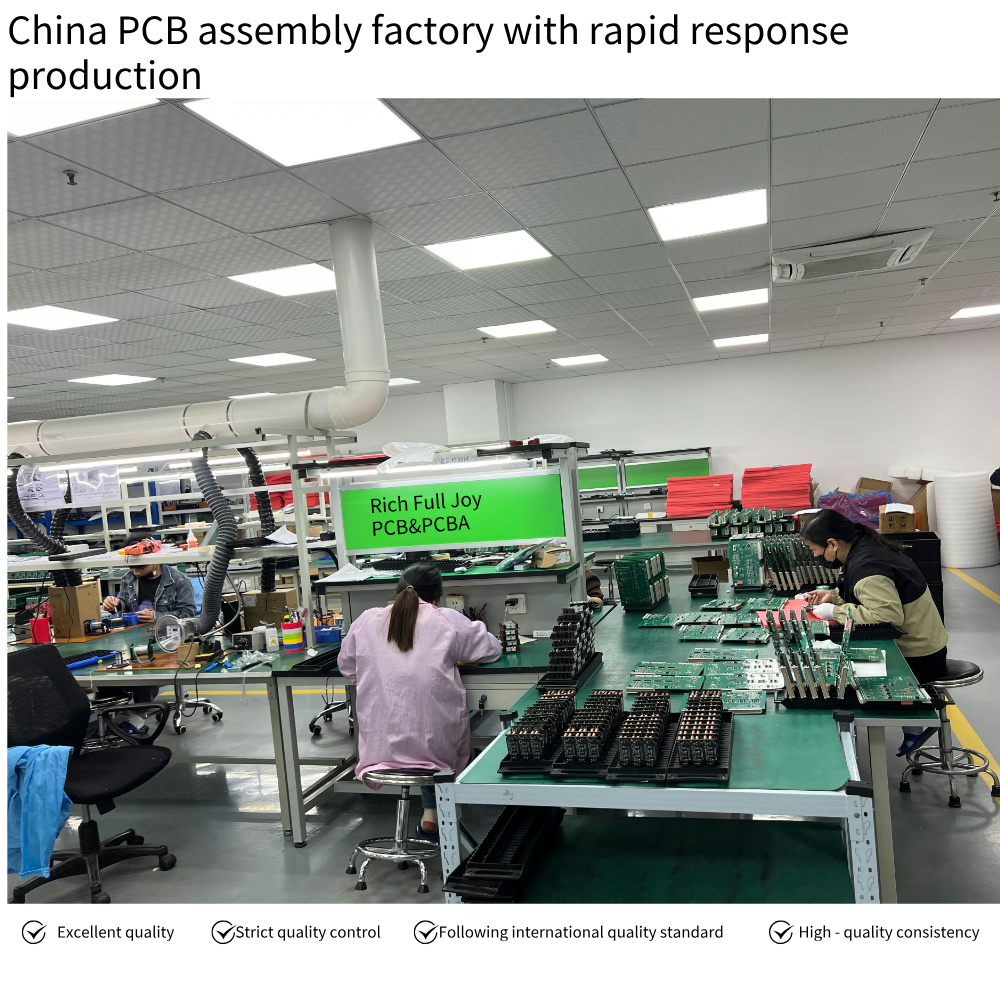

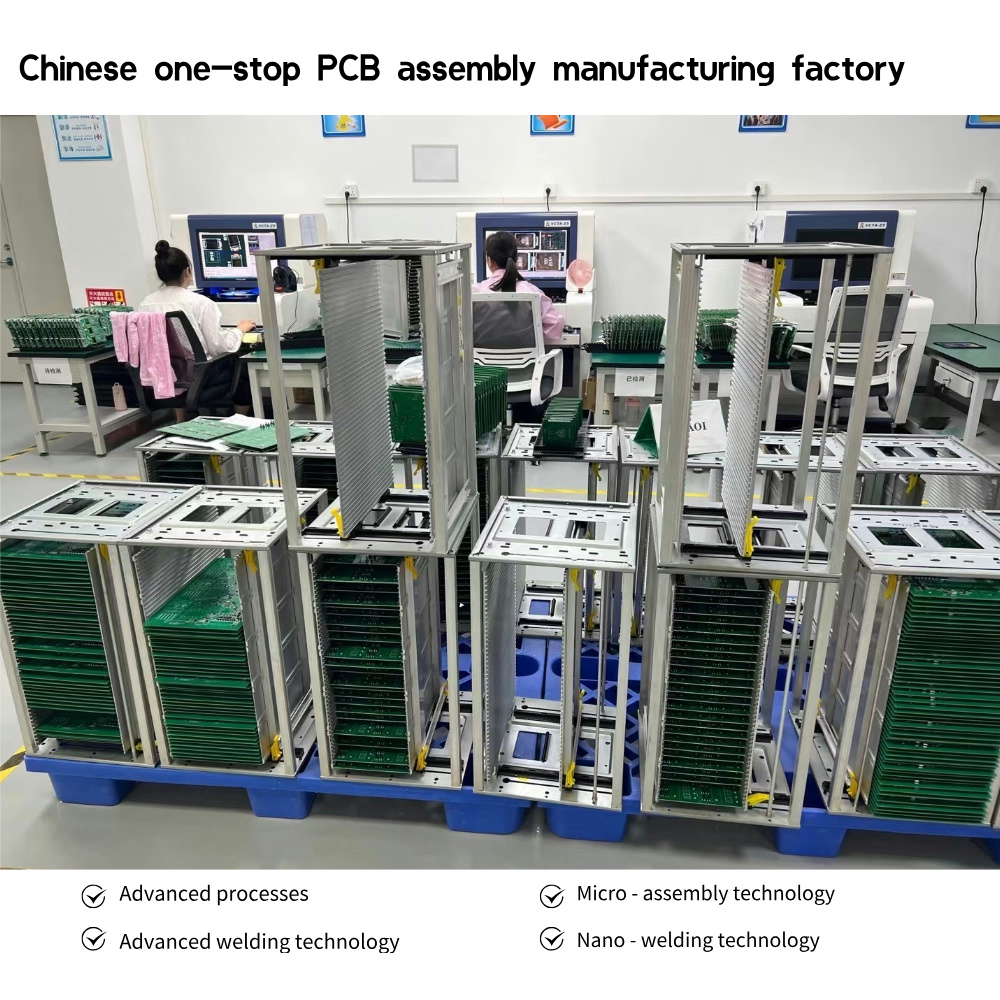

Answer: It is produced in China, making full use of China's high - quality PCB manufacturing and assembly resources. In the field of electronics manufacturing, China, with its advanced PCB assembly production technology, has a complete industrial chain and experienced professionals. Starting from raw material procurement, a high - standard process is strictly followed, and then it enters the high - precision PCB assembly production stage. During this process, with high - precision PCB assembly production processes, skilled technicians operate advanced pick - and - place machines to accurately perform component soldering, placing surface - mount components onto the PCB board with extremely high precision. This soldering process fully demonstrates the importance of surface - mount technology (SMT) in PCB assembly production. For components that need to be installed through holes, through an efficient plug - in process, using plug - in machines or manual labor, the components are accurately inserted into the holes of the PCB. Subsequently, with the help of intelligent soldering equipment, advanced soldering techniques such as reflow soldering and wave soldering are used to strictly control the soldering temperature and time, ensuring that each solder joint has good electrical connection performance and mechanical strength, achieving high - quality soldering results. At the same time, advanced inspection equipment such as AOI automated optical inspection equipment and X - Ray inspection equipment are used to comprehensively inspect the PCB, leaving no possible defects overlooked. This series of inspection processes is an important guarantee for zero - defect PCB assembly production. Finally, in the finished product assembly, every link strictly follows international high standards, achieving efficient, high - quality, and zero - defect production, providing a solid guarantee for the excellent quality of the product.
How is the performance of the product?
Answer: This multi - channel high - speed AD FMC daughter board PCBA has excellent performance. It uses high - performance ADCs, high - quality capacitors, inductors, resistors, and other components. After these components are strictly screened, they are accurately assembled onto the PCB board through an advanced PCB assembly production process. During the PCB assembly process, advanced soldering technology ensures the accurate installation of surface - mount components, efficient plug - in technology ensures the correct insertion of through - hole components, and intelligent soldering technology enables good electrical connections between components and the PCB board. With these advanced PCB assembly production processes and technologies, the product can achieve high - speed and high - precision data acquisition. In different application scenarios, such as industrial automation, communication testing, medical equipment, etc., it can stably collect analog signals and convert them into accurate digital signals, effectively ensuring the quality and efficiency of data acquisition, reflecting the strong support of efficient PCB assembly production for product performance. This efficient production model relies on skilled technicians, engineers, and managers. With their professional capabilities, they operate advanced equipment and optimize the production process to ensure the smooth progress of the entire production process.
Is the quality of the components guaranteed?
Answer: Undoubtedly, we implement an extremely strict quality inspection process for all components. Before the components enter the production line, advanced automated optical inspection (AOI) equipment and X - ray inspection equipment are used to conduct a comprehensive and detailed inspection of the appearance, size, and internal structure of the components, ensuring that they meet the strict requirements of components for high - precision PCB assembly production. At the same time, the production line is equipped with an advanced quality control system, which is a key part of intelligent PCB assembly production. It monitors key parameters during the assembly process in real - time, such as component placement position, soldering temperature, and time. This quality control link in intelligent PCB assembly production ensures that each component can be accurately installed on the PCB board, and each solder joint has good electrical connection performance and mechanical strength, meeting strict high - quality standards, and thus guaranteeing the overall quality of the product and achieving the goal of zero - defect PCB assembly production. From raw material procurement to finished product assembly, every link is strictly controlled by professionals to ensure that the entire production process meets the requirements of high - quality PCB assembly production.
What environmental conditions can the multi - channel high - speed AD FMC daughter board PCBA adapt to?
Answer: This multi - channel high - speed AD FMC daughter board PCBA has good environmental adaptability. The selected components can work normally in a temperature range of - 40°C to 85°C and a relative humidity environment of 5% - 95% (non - condensing). During the design and production of the entire module, environmental factors are fully considered, and special moisture - proof, dust - proof, and vibration - resistant designs and processes are adopted. In the PCB assembly production process, advanced processes ensure the tightness and stability of the module, effectively resisting the influence of dust, moisture, and vibration in the industrial environment. This production method that pays attention to details enables the PCBA to always provide stable performance for the data acquisition system, and can calmly cope with various harsh working environments, demonstrating the advantages of high - quality PCB assembly production in improving product environmental adaptability. In the entire production process, from the selection of raw materials, to the assembly of components, and then to the inspection of the finished product, every step follows the process of high - quality PCB assembly production to ensure that the product can operate stably in various environments.
How is the electromagnetic compatibility of the product?
Answer: Our multi - channel high - speed AD FMC daughter board PCBA has excellent electromagnetic compatibility. During the design process, components with high magnetic permeability and low - loss characteristics, such as ferrite inductors, are used to effectively suppress electromagnetic interference (EMI). Through a carefully designed circuit layout and multi - layer circuit board structure, the electromagnetic coupling between circuits is reduced, and the anti - interference ability of the circuit is enhanced. During the PCB assembly production process, components are installed and wired strictly in accordance with the design requirements to ensure that all electromagnetic compatibility designs are accurately implemented. This enables the PCBA to operate stably in a complex electromagnetic environment, without interfering with other electronic devices, and can also resist external electromagnetic interference, ensuring the accuracy of data acquisition, reflecting the key role of advanced PCB assembly production technology in ensuring product electromagnetic compatibility. In this process, advanced PCB assembly production processes and technologies, as well as the precise operation of professionals, ensure that the product reaches an excellent level in terms of electromagnetic compatibility.
How about the power consumption of the product?
Answer: The product performs excellently in terms of power consumption. The high - performance ADCs and other components use advanced manufacturing processes and have low - power consumption characteristics. At the same time, during the PCB assembly production process, the circuit layout of the entire module is optimized through reasonable circuit design and component selection, reducing unnecessary circuit losses. For example, during the soldering and plug - in processes, the accurate component layout makes the signal transmission path shorter, reducing signal transmission losses; intelligent soldering technology ensures the quality of solder joints, reducing additional power consumption caused by poor soldering. These efficient PCB assembly production measures enable the entire module to effectively reduce its own power consumption while meeting the high - speed data acquisition requirements. In different working modes, the power consumption can be intelligently adjusted to improve energy utilization efficiency, which is in line with the development trend of green energy - saving. In the entire production process, the efficient PCB assembly production method runs through from design to assembly, and every link contributes to reducing power consumption and improving performance.
What is the production cycle of the multi - channel high - speed AD FMC daughter board PCBA?
Answer: The production cycle varies depending on the order quantity and specific requirements. Generally, for orders of standard specifications, with advanced PCB assembly production equipment and efficient production processes, we can achieve rapid PCB assembly production, and the production cycle is approximately 20 days. For customized products, since special design and process adjustments are required, including modifying the circuit design according to customer needs, selecting specific components, and adjusting production process parameters, the production cycle may be extended to 40 days. After the order is confirmed, we will quickly formulate a detailed production plan for you and clarify the delivery time, making full use of the efficient production model to ensure timely response to customer needs and shorten the delivery cycle. In the entire production process, whether it is a standard order or a customized product, it relies on advanced equipment, professional personnel, and an efficient PCB assembly production process to ensure the on - time delivery of the product.
Does the product support customized design?
Answer: Of course, it does. We have a professional R & D team that can carry out customized design according to different customer needs. Whether it is technical parameters such as the number of channels, sampling rate, and resolution, or aspects such as the module size and interface type, they can be adjusted and optimized according to your specific requirements. During the customization process, our R & D team will fully consider the actual application scenarios and technical indicators, combined with advanced PCB assembly production technologies and processes, to ensure that we provide you with the most suitable multi - channel high - speed AD FMC daughter board PCBA solution. From the design stage, we will maintain close communication with customers and adjust the design plan in a timely manner according to customer feedback; during the production stage, we will use high - precision and efficient PCB assembly production processes to accurately transform the customized design into an actual product, meeting the unique needs of different projects and customers. In this process, professional personnel, advanced technologies, and efficient processes cooperate with each other to ensure the high - quality delivery of customized products.
Application: Five Unique Advantages of the Multi-channel High-speed AD FMC Daughter Board PCBA, Creating an Industry Model
Ultra - high - speed and High - precision Acquisition: Providing a Precise Foundation for Data Processing
By using high - performance ADCs, multiple analog signals can be synchronously collected at an extremely high sampling rate and resolution. Whether it is a rapidly changing signal or a weak signal, it can be accurately converted into a digital signal, providing a precise data foundation for subsequent data processing and analysis, and effectively meeting the requirements of high - speed data acquisition.
Excellent Stability and Reliability: Ensuring Continuous and Stable Data Acquisition
High - quality electronic components are carefully selected, such as multi - layer ceramic capacitors with low ESR paired with high - capacity tantalum capacitors, to ensure a pure and stable power supply and reduce ripple interference. High - magnetic - permeability ferrite inductors and high - precision wire - wound inductors suppress electromagnetic interference and enhance the anti - interference ability of the circuit. At the same time, through a strict quality inspection process, including advanced AOI and X - ray inspections, as well as functional and aging tests simulating actual application conditions, the PCBA can work stably and reliably in complex environments and during long - term operation, greatly extending the fault - free operation time of the data acquisition system.
Excellent Environmental Adaptability: Coping with Complex Working Environments with Ease
The complexity of the data acquisition environment is fully considered in the design. The selected components can work normally in a temperature range of - 40°C to 85°C and a relative humidity environment of 5% - 95% (non - condensing). The entire module has special moisture - proof, dust - proof, and vibration - resistant design and process treatment, which can effectively resist the influence of dust, moisture, and vibration in the industrial environment, and always provide stable performance for the data acquisition system, adapting to various harsh working environments.
High - efficiency and Energy - saving Design: Leading the New Trend of Energy - saving in Data Acquisition
The high - performance ADCs and other components use advanced manufacturing processes and have low - power consumption characteristics. Combined with a reasonable circuit design and component selection, the PCBA can intelligently adjust the power consumption in different working modes. While meeting the high - speed data acquisition requirements, it maximally reduces its own energy consumption, improves energy utilization efficiency, saves long - term operating costs for users, and conforms to the development trend of green energy - saving.
Flexible Customization Service: Creating Exclusive Data Acquisition Solutions
We have a professional R & D team that can provide customized designs according to the diverse needs of customers. Whether it's technical parameters such as the number of channels, sampling rate, and resolution, or aspects like the module's size and interface type, we can tailor the most suitable multi - channel high - speed AD FMC daughter board PCBA solutions based on the actual application scenarios and technical indicators to meet the unique needs of different projects and customers.
