High-Frequency PCB with Rogers RO4003C | Multi-Layer Back Drilling Boards | China Manufacturer

Our high-frequency PCBs are crafted using Rogers RO4003C material, ensuring superior performance for RF applications. These multi-layer boards, with a thickness of 0.7mm, feature gold surface treatment and a 3:1 aspect ratio for precision. The resin-filled vias enhance durability and signal integrity. Ideal for high-frequency and high-speed applications, our PCBs are designed to meet the stringent demands of the telecommunications, aerospace, and defense industries. Custom solutions are available to fit specific project requirements.

    quote now

    Multilayer PcB, any layer HDI PCB

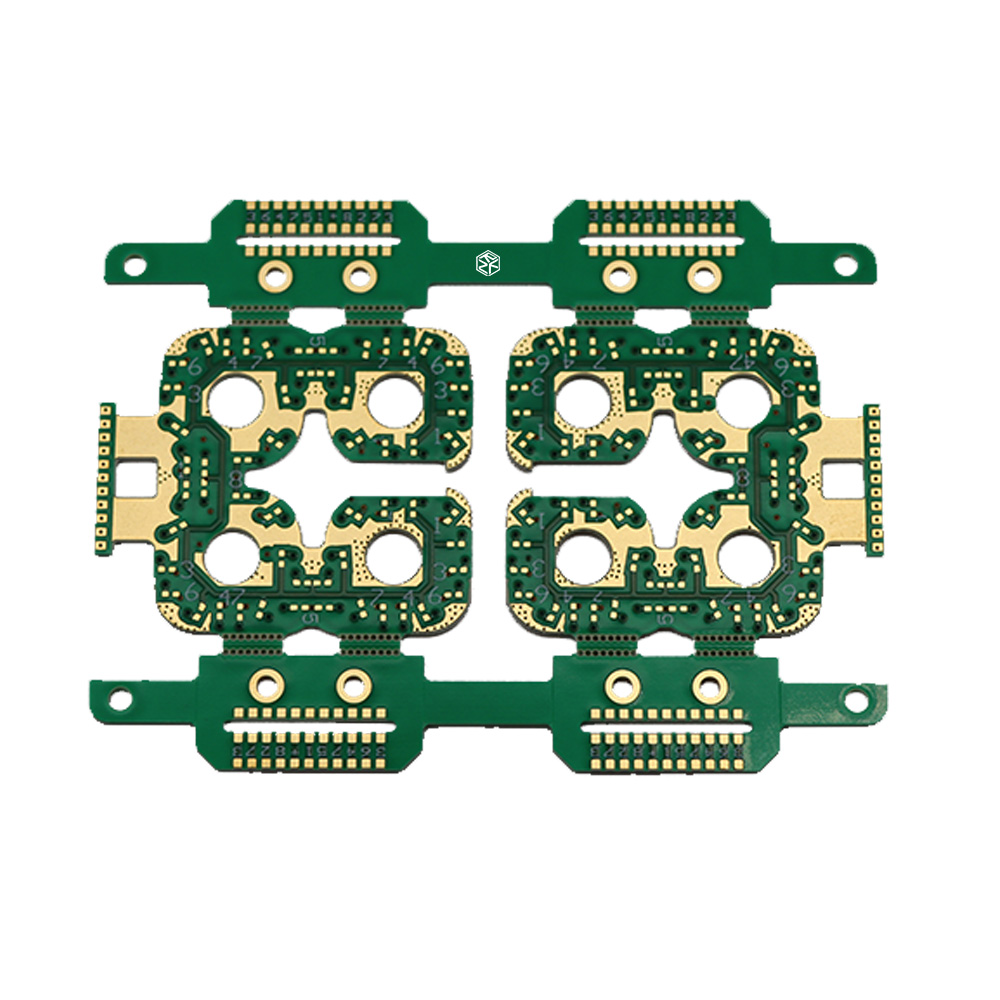

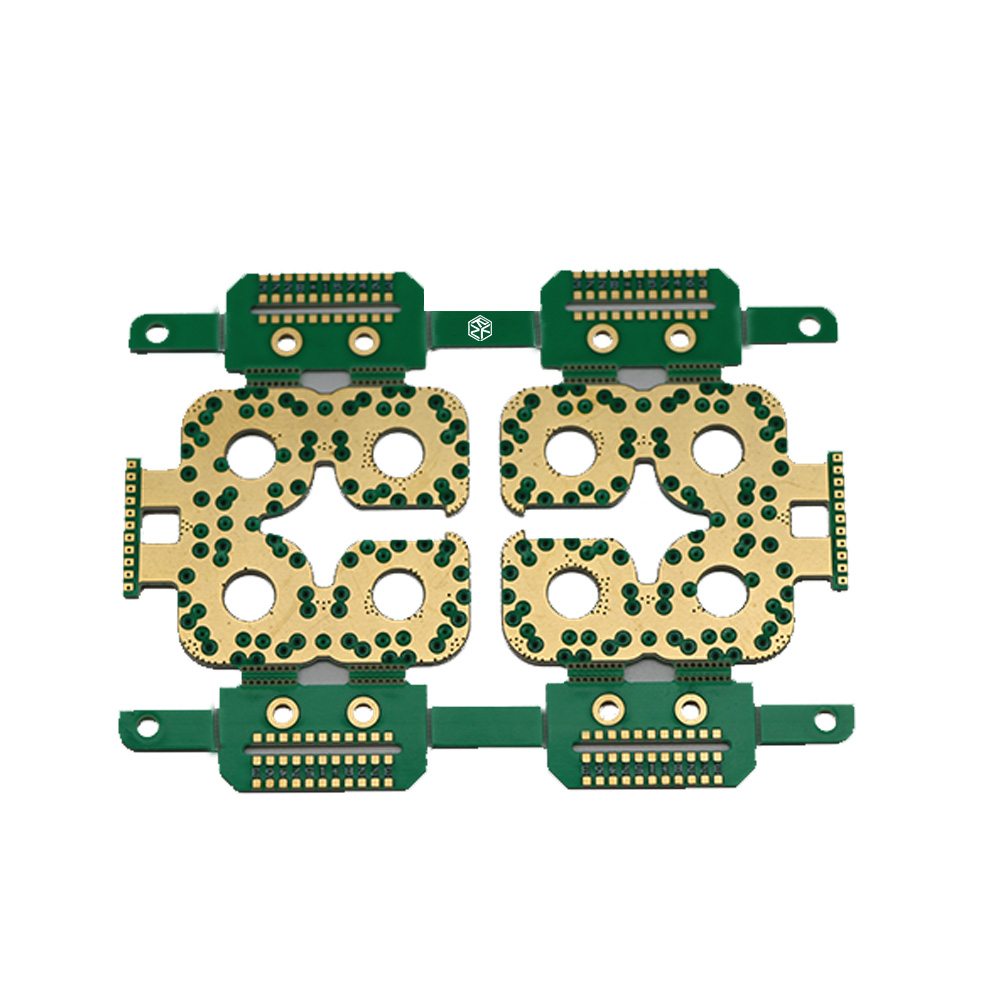

    Type High-frequency PCB | Back drilling | resin plug hole | panelized of 2 kinds PCBs
    Materia Regular Substrates RO4003C
    Number of layer 4L
    Board Thickness 0.7mm
    Single size 73.41*55mm/2PCS
    Surface finish ENIG
    Inner copper thickness 35um
    Outer copper thickness 35um
    Color of solder mask green(GTS,GBS)
    Silkscreen color white(GTO,GBO)
    Via treatment resin plug hole
    Density of mechanical drilling hole 15W/㎡
    Density of laser drilling hole /
    Min via size 0.3mm
    Min line width/space 10/10mil
    Aperture ratio 3mil
    Pressing times 1 time
    Drilling times 2 time
    PN B0490066A

    High-Frequency PCB Specifications and Key Features

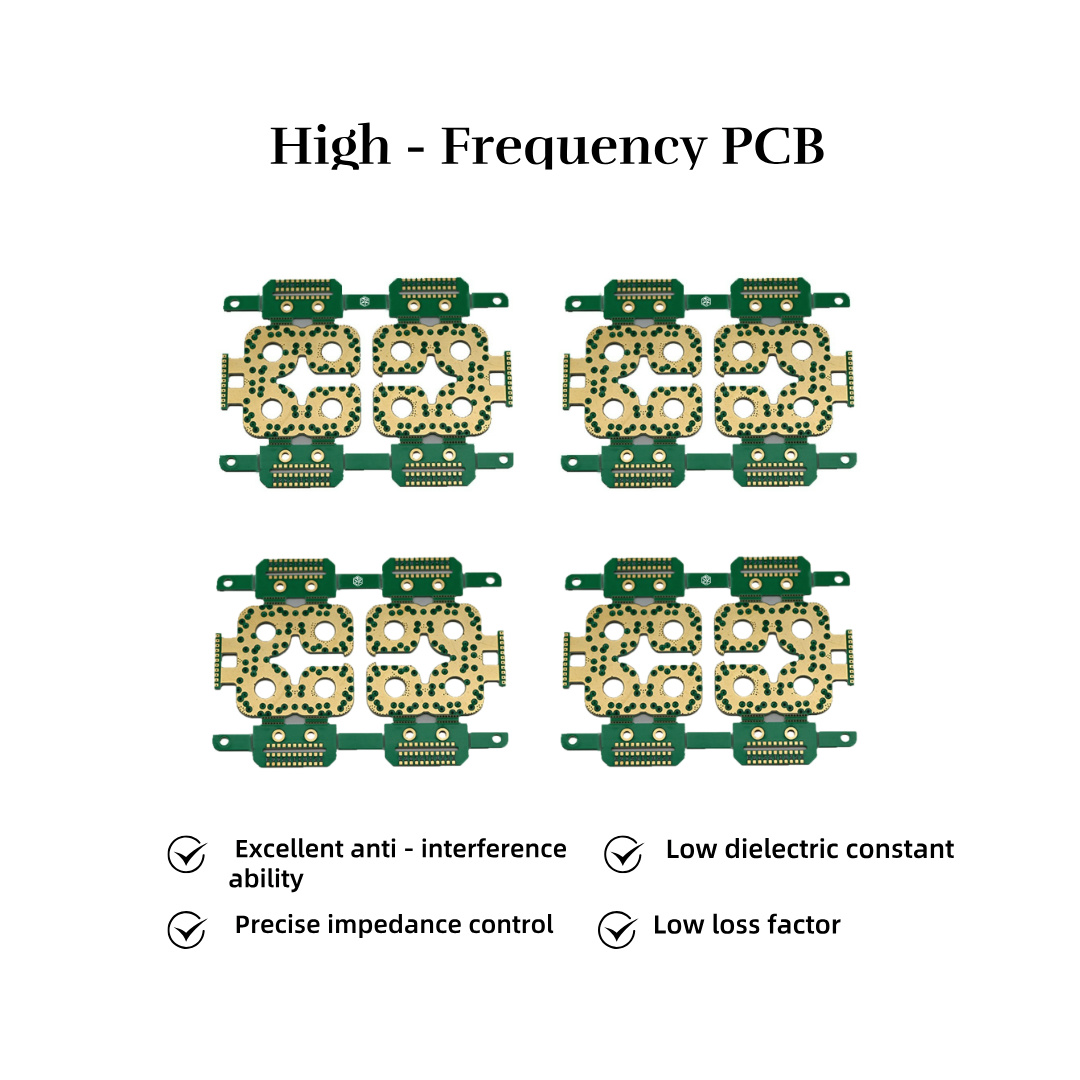

    high frequency board factory

    High-Frequency PCB Specifications and Key Features
    This high-frequency PCB combines several advanced techniques to enhance signal integrity and mechanical strength. With back drilling to eliminate via redundancy, resin plug holes for improved soldering reliability, and panelized design for cost-effective manufacturing, this PCB is designed to meet the demanding requirements of 5G, radar, and aerospace applications.
    High-Frequency PCB Specifications
    Material: Rogers RO4003C
    Layers: Multi-layer (4 layers)
    Thickness: 0.7mm
    Surface Treatment: Immersion Gold
    Aspect Ratio: 3:1
    Via Filling: Resin-filled

    High-Frequency PCB Key Features
    1.Material Excellence: Our high - frequency boards are made from Rogers RO4003C, a material renowned for its outstanding electrical properties. Its low dielectric constant and loss tangent make it ideal for minimizing signal loss in high - frequency applications. In Chinese:
    2.Precision Construction: With a 4 - layer structure and a precisely controlled thickness of 0.7mm, these boards are designed to meet the most demanding requirements. The 3:1 aperture ratio and resin - filled vias further enhance their performance. In Chinese:
    3.Advanced Techniques: Our manufacturing process incorporates advanced techniques to ensure the highest quality. From circuit layout design to final assembly, every step is carefully executed. In Chinese
    4: Quality Assurance: We have a comprehensive quality assurance system in place. Each board undergoes rigorous testing, including electrical, mechanical, and environmental tests, to guarantee its reliability. In Chinese:
    Advantages of High-Frequency PCB Special Processes
    🔹 Low Dielectric Loss & Minimal Signal Attenuation – Ensures high-speed signal transmission over long distances.
    🔹 Stable Electrical Performance – Low Dk (Dielectric Constant) variation reduces phase distortion.
    🔹 Excellent Thermal Stability – Withstands high temperatures in aerospace, automotive radar, and satellite systems.
    🔹 High Manufacturing Precision – Microvias, back drilling, and resin plugging ensure signal integrity.
    🔹 Reduced Cross-Talk & Noise – Advanced PCB stack-up and controlled impedance design enhance signal isolation.
    🔹 Optimized for High-Frequency Designs – Capable of supporting millimeter-wave (mmWave) frequencies, essential for 5G, radar, and satellite communications.

    Challenges in High-Frequency PCB Manufacturing

    Despite its numerous advantages, high-frequency PCB production involves several manufacturing challenges:

    1 .Material Processing Complexity

     PTFE-based materials require specialized handling, including plasma etching and surface roughening, due to their low adhesion properties.

    2 .Precise Drilling and Via Processing

     Laser drilling must be precisely controlled to prevent misalignment or damage to the substrate.

     Back drilling depth must be carefully calibrated to remove stub effects while maintaining structural integrity.

    3 .Thermal Expansion and Warpage Control

     High-frequency materials often have different Coefficient of Thermal Expansion (CTE) values, causing potential delamination issues.

     Hybrid PCBs (FR4 + Rogers) require tight process control to prevent warpage during reflow soldering.

    4. High Manufacturing Costs3.4

     Specialized materials (Rogers/PTFE) are significantly more expensive than FR4.

     Advanced techniques (microvias, back drilling, resin plug via filling) increase fabrication complexity and costs.

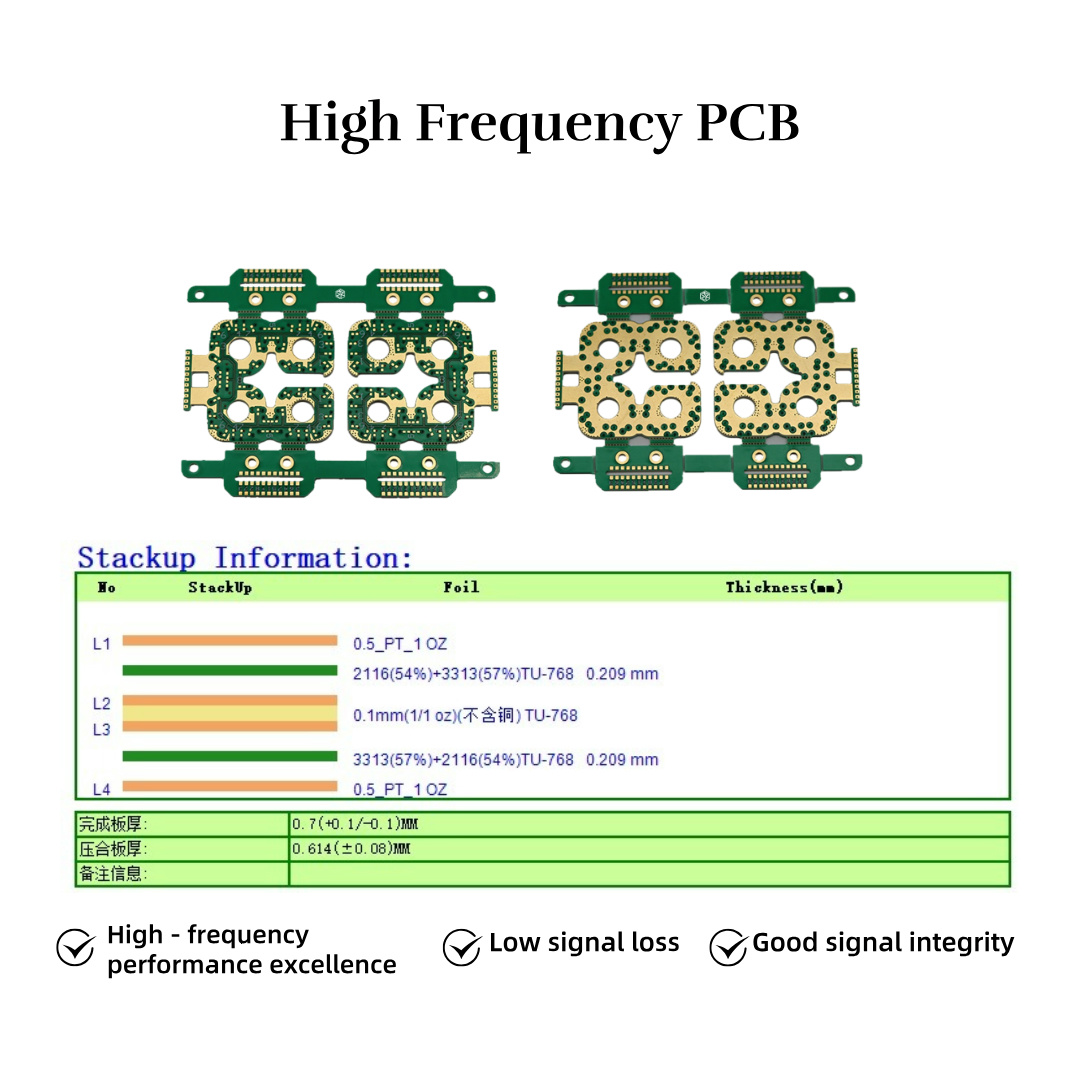

    high frequency board material,

    Special Fabrication Techniques for Microblind Holes in High-Frequency PCBs

    1. What Are Microblind Holes?

    Microblind holes are laser-drilled vias used in HDI high-frequency PCBs

    ✅ Enable high-speed signal transmission

    ✅ Support multilayer high-frequency PCB designs

    ✅ Reduce electromagnetic interference (EMI)

    2. Key Challenges in Microblind Hole Fabrication

    Drilling Accuracy – High-frequency PCBs require ±10µm tolerance for microblind holes to avoid impedance mismatches.

    Hole Plating Quality – Electroless copper plating must ensure uniform conductivity without defects.

    Blind Via Reliability – Filling vias with conductive paste or resin prevents voids and improves signal integrity.

    3. Microblind Hole Fabrication Steps

    ✔ Step 1: Laser Drilling – Precision laser drilling creates high-density microvias with controlled aspect ratios.

    ✔ Step 2: Plasma Cleaning – Removes residue to ensure clean via walls.

    ✔ Step 3: Electroless Copper Deposition – Ensures proper conductivity for signal transmission.

    ✔ Step 4: Via Plugging & Filling – Resin or conductive material is applied to reinforce the vias.



    Why Choose Us for High-Frequency PCB Manufacturing?

    ✅ 20+ Years of Experience – Specializing in RF, microwave, and high-frequency PCB solutions.

    ✅ Advanced Manufacturing Capabilities – Precision back drilling, microblind vias, and hybrid PCB stack-up.

    ✅ High-Performance Materials – Expertise in Rogers, PTFE, and hybrid PCB fabrication.

    ✅ Stringent Quality Control – 100% impedance control, X-ray inspection, AOI testing.

    ✅ Custom Solutions & Fast Prototyping – Tailored high-frequency PCB designs for aerospace, 5G, and medical applications.

    Frequently Asked Questions (FAQs) About High-Frequency PCBs

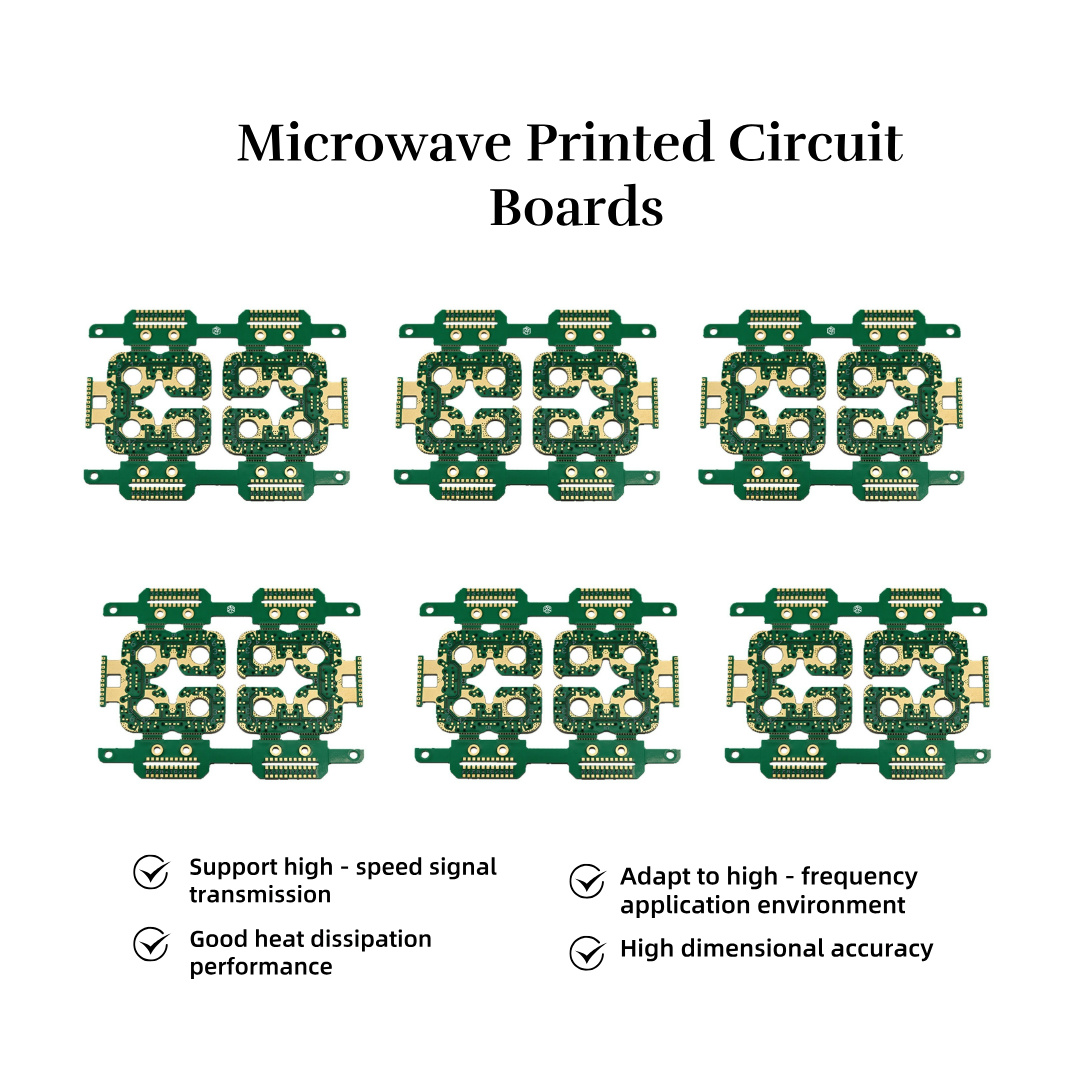

    high frequency board supplier

    1. What is a high-frequency PCB?

    A high-frequency PCB is specifically designed for the transmission of high-frequency electronic signals. It is commonly used in RF (radio frequency) and microwave applications, where signal integrity and minimal signal loss are critical. These PCBs are engineered to handle high-frequency signals, often above 500 MHz, with minimal attenuation.

    2. What are the key applications for high-frequency PCBs?

    High-frequency PCBs are widely used in industries such as:

    Telecommunications: 5G base stations, antennas, and mobile devices.

    Aerospace & Defense: Satellite communication, radar systems, and avionics.

    Medical Devices: High-precision medical equipment requiring high-speed signal processing.

    Automotive: Radar systems for autonomous vehicles, advanced driver-assistance systems (ADAS).

    IoT: Industrial IoT applications that require high-frequency signal transmission.IoT :

    3. What is the role of back drilling in high-frequency PCB?

    Back drilling is a process used to remove the unnecessary portion of through vias that can cause signal degradation. By removing excess copper from the via barrel, back drilling ensures that the signal paths remain uninterrupted, improving overall signal integrity and reducing signal reflection.

    4. What are resin plug holes?

    Resin plug holes are used in PCBs to fill and seal vias with resin, enhancing the board’s mechanical strength and improving the reliability of the soldering process. This technique prevents the vias from causing soldering defects, ensuring the robustness of the PCB in high-frequency applications.



    5. What are panelized PCBs, and how do they improve production efficiency?

    Panelized PCBs are multiple smaller PCBs that are grouped together on a single larger board for manufacturing efficiency. This method reduces material waste and improves the throughput during production, making it ideal for high-volume manufacturing of PCBs for large-scale applications.



    6. What are the advantages of using RO4003C material?RO4003C is a high-frequency laminate material with low dielectric loss, making it ideal for microwave and RF applications. It provides excellent signal integrity, thermal stability, and low insertion loss, ensuring high performance in communication systems and other high-frequency applications.

    7. What is the minimum hole size and line width for this PCB?7.

    The minimum via size is 0.3mm, and the minimum line width/space is 10/10mil. These precise specifications allow for the creation of highly detailed and dense circuit designs while maintaining signal integrity and reliability.

    8. How is the PCB's surface treated for high-frequency applications?

    The surface of this PCB is treated with ENIG (Electroless Nickel Immersion Gold), which provides excellent corrosion resistance, good solderability, and high reliability in high-frequency applications. ENIG treatment ensures stable performance in harsh environments.

    9. What is the importance of using microblind hole technology in high-frequency PCBs?

    Microblind hole technology is used in high-frequency PCBs to create very small vias that are partially drilled and blind-ended. These holes are essential for creating densely packed circuits in high-performance applications, reducing the overall PCB size while maintaining optimal signal routing.

    10. What are the key challenges in manufacturing high-frequency PCBs?

    The primary challenges in manufacturing high-frequency PCBs include:



    Signal Integrity: Maintaining the quality of high-frequency signals over long distances and through complex circuit paths.

    Material Handling: Using the right materials (such as RO4003C) to minimize losses and maintain signal performance.

    Precision Drilling: Ensuring accurate hole placement and size to avoid signal degradation and electrical failures.

    Applications of High-Frequency PCBs

    1.Wireless Communication: High - frequency boards are crucial in wireless communication devices such as smartphones, base stations, and Wi - Fi routers. They enable high - speed data transmission and reception. In Chinese:
    2.Satellite Communication: In satellite communication systems, our high - frequency boards ensure reliable signal transmission over long distances. The low - loss properties of Rogers RO4003C are especially beneficial in this application. In Chinese:
    3.Radar Systems: Radar systems rely on high - frequency boards for accurate target detection and tracking. The 4 - layer structure and 0.7mm thickness of our boards contribute to the precise functioning of radar components. In Chinese:
    4.Medical Equipment: Some medical imaging devices, like MRI machines, use high - frequency boards for signal processing. The stable performance of our boards helps in obtaining clear and accurate medical images. In Chinese:

    5.Aerospace Applications: In aerospace, high - frequency boards are used in avionics systems. They need to withstand harsh environmental conditions, and the quality construction of our boards makes them suitable for such demanding applications. In Chinese:

    High frequency multilayer board

    1.Automotive Radar: With the development of autonomous driving, automotive radar systems are becoming more important. High - frequency boards play a key role in these radar systems, enabling features like collision avoidance. In Chinese:
    2.Industrial Control: In industrial control systems, high - frequency boards are used for high - speed data communication between different components. The 3:1 aperture ratio and resin - filled vias of our boards ensure reliable data transfer. In Chinese:
    3.Test and Measurement Equipment: Test and measurement equipment, such as oscilloscopes and spectrum analyzers, require high - frequency boards for accurate signal analysis. Our high - quality boards contribute to the precision of these instruments. In Chinese:
    4.Military Applications: Military communication and surveillance systems often use high - frequency boards. The strict quality control and performance of our boards meet the high - standard requirements of military applications. In Chinese:
    5.Consumer Electronics: In addition to smartphones, other consumer electronics like smart TVs and gaming consoles also use high - frequency boards for better wireless connectivity and signal processing. Our boards' features make them suitable for these applications. In Chinese:
    6.IoT Devices: Internet of Things (IoT) devices, which are becoming increasingly popular, rely on high - frequency boards for efficient communication. Our boards can support the growing demand for high - speed data transfer in IoT applications. In Chinese:



     High-frequency PCBs are critical for advanced applications in telecommunications, aerospace, radar, and automotive electronics. Their manufacturing involves specialized materials, precise drilling, microblind hole fabrication, and back drilling to ensure optimal signal integrity and high-speed performance.



    If you are looking for high-quality, precision-manufactured high-frequency PCBs, contact us today for custom solutions that meet your specific application needs.

    Expanded Applications of High-Frequency Hybrid PCBs

    1. 5G Wireless Communication Systems
    Base station antennas and transceivers
    Millimeter-wave (mmWave) RF front-end modules
    High-speed backhaul and fiber-optic networks
    Why it matters: 5G networks operate at higher frequencies (24 GHz to 100 GHz), requiring low-loss PCB materials like Rogers RO4350B for minimal signal degradation.

    2. Satellite and Aerospace Electronics
    GNSS navigation systems
    Phased array antennas for satellite communication
    Radar and telemetry systems
    Why it matters: Aerospace applications demand lightweight, high-reliability PCBs that can withstand extreme temperatures and radiation exposure.

    3. Automotive Radar and ADAS Systems
    77 GHz automotive radar
    Lidar and vehicle-to-everything (V2X) communication
    Electronic control units (ECUs) for ADASADAS
    Why it matters: Modern cars require high-frequency PCBs for collision avoidance, adaptive cruise control, and autonomous driving systems.

    4. IoT and Smart Devices
    Smart home automation systems
    Wearable health monitors
    Wireless sensor networks
    Why it matters: IoT devices require compact, high-performance PCBs with low power consumption and efficient wireless connectivity.

    5. RF Power Amplifiers and High-Power Transmitters
    Microwave and RF power modules
    Broadband amplifiers for military applications
    Telecom power distribution systems
    Why it matters: High-frequency PCBs with excellent thermal conductivity are crucial for preventing overheating in high-power RF systems.

    6. High-Speed Computing and Data Centers
    High-speed network switches
    Optical transceivers for data centers
    Cloud computing infrastructure
    Why it matters: Modern data centers require low-latency PCBs with stable impedance to support 40G/100G Ethernet and AI computing workloads.

    7. Medical Imaging and RF Therapy Equipment
    MRI and CT scan signal processing boards
    Wireless medical telemetry systems
    Implantable medical devices
    Why it matters: High-frequency hybrid PCBs enable precise medical imaging and wireless communication in healthcare applications.

    8. Defense and Electronic Warfare Systems
    Military radar and surveillance systems
    Secure encrypted communication modules
    Unmanned aerial vehicle (UAV) avionics
    Why it matters: Rugged high-frequency PCBs ensure stable signal transmission in harsh environments, making them ideal for military applications.

    9. Test and Measurement Equipment
    High-frequency signal analyzers
    Microwave frequency generators
    Network and spectrum analyzers
    Why it matters: Precision impedance control is essential for accurate signal measurement in RF testing applications.

    10. Industrial Automation and Robotics
    5G-connected industrial sensors
    Autonomous robotic control systems
    Wireless factory automation modules
    Why it matters: High-frequency PCBs improve wireless communication in smart factories and Industry 4.0 environments.

    The Role of High-Frequency PCB Materials in Signal Transmission
    ✔ Stable Dielectric Constant (Dk): Ensures uniform signal propagation across the PCB.
    ✔ Low Loss Tangent (Df): Minimizes signal loss, especially at microwave and mmWave frequencies.
    ✔ Thermal Conductivity: Helps dissipate heat in high-power RF applications.
    ✔ Moisture Resistance: Prevents signal degradation in humid environments.
    ✔ Impedance Control: Ensures predictable performance for high-speed digital and RF circuits.
    Looking for a trusted high-frequency PCB supplier in China? Contact us for customized Rogers RO4350B PCB solutions!
