At Rich Full Joy, we offer a complete lineup of 5.8GHz, 3.3GHz, 1.3GHz video transmitters (VTX) designed for FPV drones, industrial UAVs, and long-distance aerial systems. From 25mW to 5W, our VTX modules ensure crystal-clear video, EMI-resistance, and stable performance up to 30km transmission distance.
Key Features of Our Drone VTX Modules
- Multiple Power Levels: From 25mW up to 5000mW for various mission demands
- Ultra-Long Range: Up to 30km transmission at 5W output
- Wide Voltage Input: Supports 7V–36V for broad system compatibility
- SmartAudio / Manual Modes: Onboard button & remote power/channel control
- Low Latency, PAL/NTSC Support: Ideal for real-time FPV or precision monitoring
- MMCX Antenna Interface: Reliable and robust connection
Product Lineup Overview

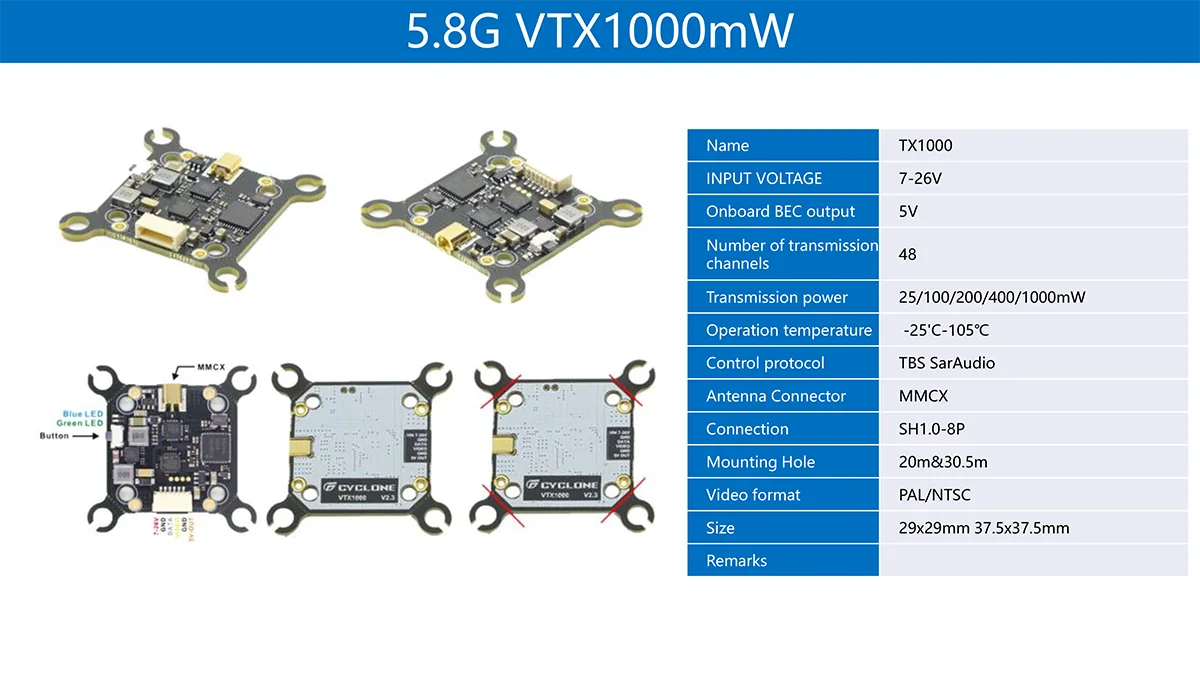

TX1000 VTX 5.8GHz
Power Output: 25/100/200/400/1000mW
Input Voltage: 7–26V | Channels: 48CH | BEC Output: 5V
Mounting: 20mm & 30.5mm
Perfect for short- to mid-range FPV & mapping drones

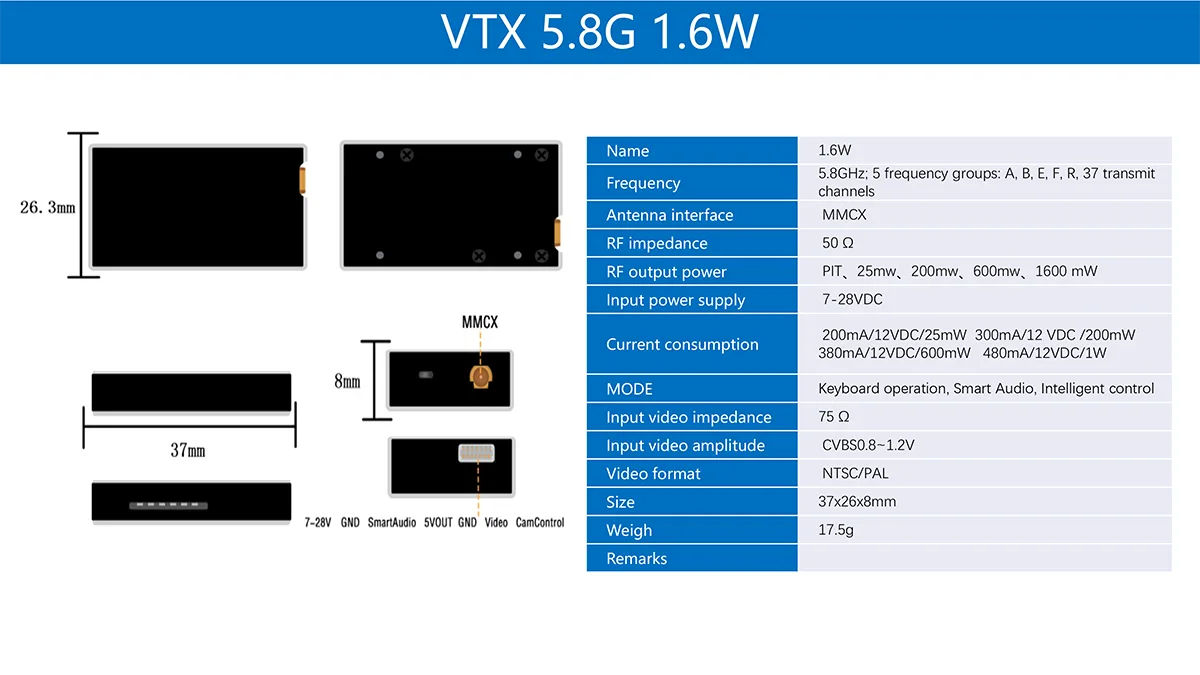

VTX 1.6W (5.8GHz)
Power Output: 25–1600mW
Voltage Range: 7–28V | Mode: Button / SmartAudio / Auto
Power Consumption: 200–480mA @ 12V
Reliable for semi-long-range FPV drones

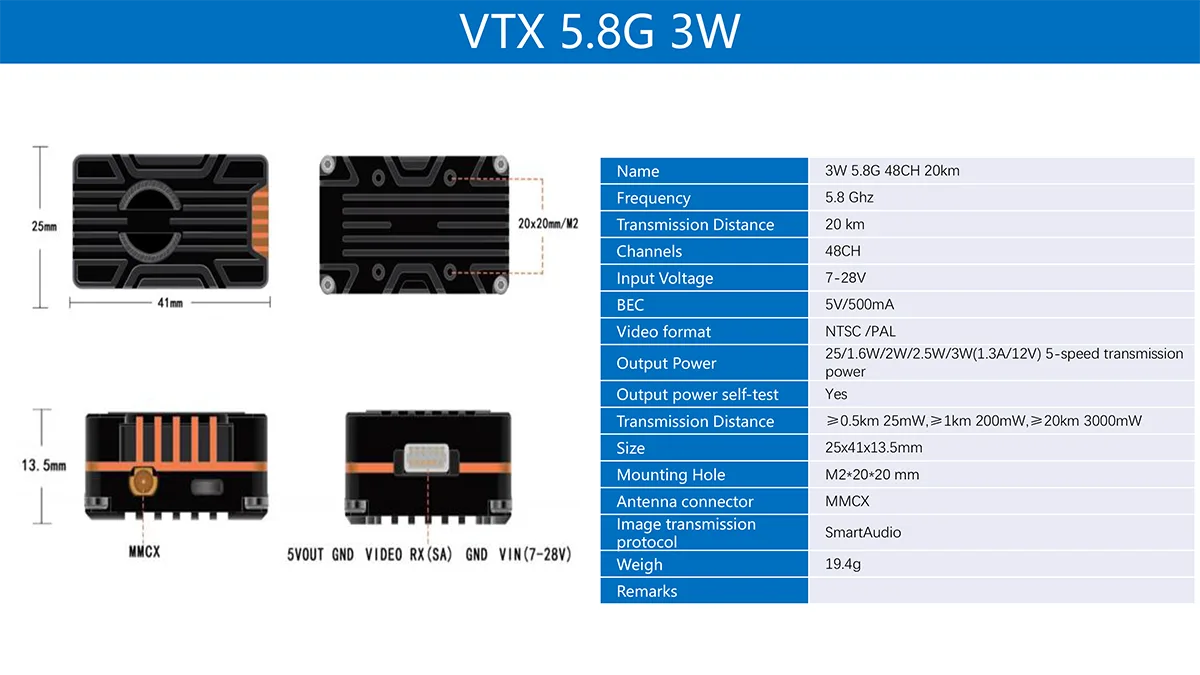

3W 5.8GHz VTX (20KM)
Power Options: 25mW to 3000mW
Transmission Distance: Up to 20km | Output Self-Test: Yes
Best for professional UAVs & fixed-wing long-range platforms

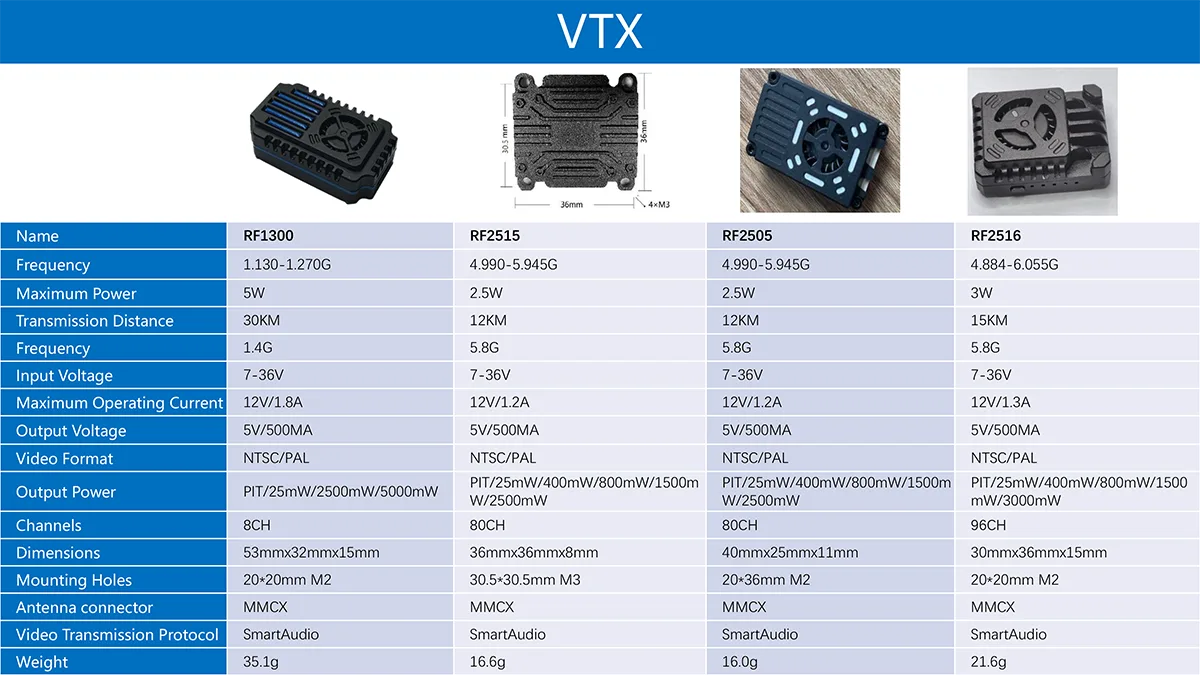

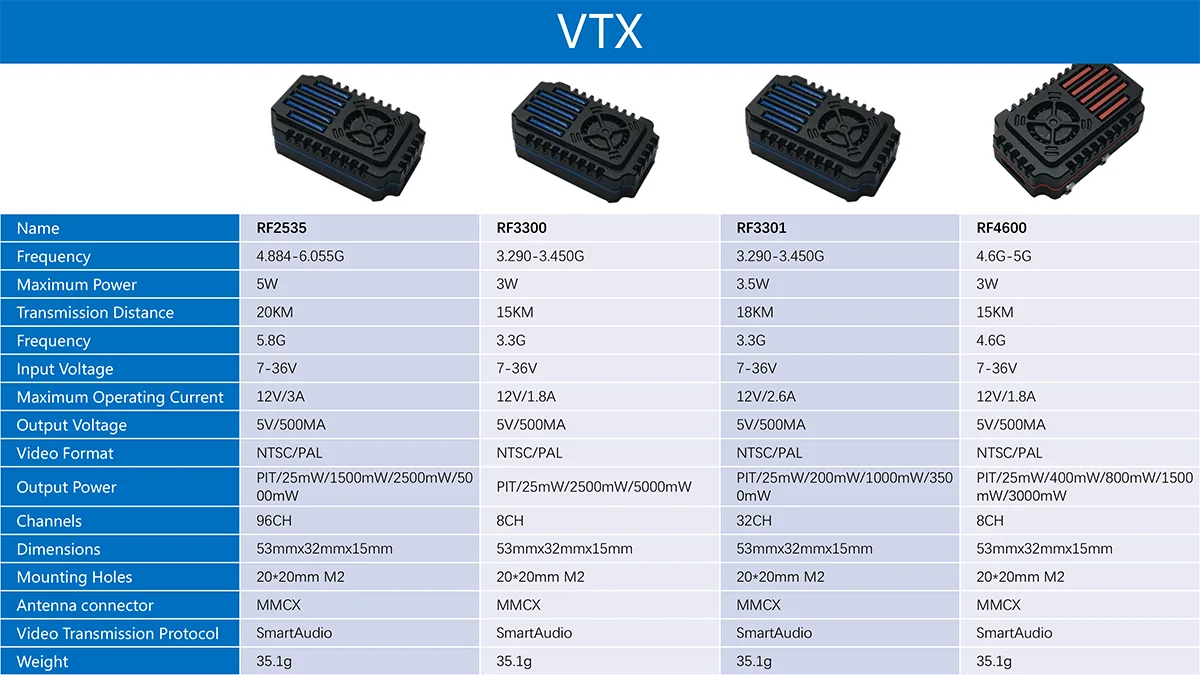

RF Series - High-Power Industrial Modules
| Model | Frequency | Max Power | Distance | Channels | Size (mm) | Weight |
|---|---|---|---|---|---|---|
| RF2515 | 5.8G (80CH) | 2.5W | 12KM | 80CH | 36×36×8 | 16.6g |
| RF2535 | 5.8G (96CH) | 5W | 20KM | 96CH | 53×32×15 | 35.1g |
| RF1300 | 1.3G (8CH) | 5W | 30KM | 8CH | 53×32×15 | 35.1g |
| RF3301 | 3.3G (32CH) | 3.5W | 18KM | 32CH | 53×32×15 | 35.1g |
| RF4600 | 4.6–5G (8CH) | 3W | 15KM | 8CH | 53×32×15 | 35.1g |
Engineered for EMI-heavy environments, security drones, oil & gas, agriculture, SAR, and UAV integration projects
VTX Key Specifications
- Frequencies Supported: 1.3G / 3.3G / 5.8G / 4.9–6.0GHz
- Transmission Distance: Up to 30KM (depending on power + antenna)
- Protocols: SmartAudio, TBS, Manual control
- Output Power Tiers: PIT/25mW → 5W multi-stage output
- Video Format: PAL / NTSC compatible
- Mounting Holes: 20×20mm / 30.5×30.5mm / M2 or M3
Application-Specific VTX Recommendations
| Application | Recommended VTX Model | Reason |
|---|---|---|
| FPV Freestyle & Racing | TX1000 / VTX 1.6W | Low latency, compact size |
| Long-Range Surveillance | RF2535 (5.8G 5W) | 20KM range, stable 96CH output |
| UAV in Oil & Gas Field | RF1300 (1.3GHz 5W) | Best signal penetration, 30KM support |
| Agricultural Mapping UAVs | RF2515 / RF4600 | Wide voltage input, SmartAudio, 2.5–3W output |
OEM/ODM Custom VTX Solutions
With over 20 years in RF PCB and drone system integration, we offer:
- Custom RF layout & antenna tuning
- PCB + SMT + firmware flashing
- System-level assembly with flight controller + ESC
- Signal shielding, heat dissipation & test calibration
Build Your Drone's Video System
Contact our VTX specialists for technical support, datasheets, or OEM orders.
