Drone Flight Controllers: Precision & Performance for Every Mission
Rich Full Joy provides high-performance flight controllers optimized for FPV racing, industrial UAVs, AI drones, and autonomous platforms. Our FCs feature DJI plug-and-play support, ultra-low latency, wide voltage compatibility, and industrial-grade sensors.
Table of Contents
Why Choose Our Flight Controllers?
- ✅ DJI Compatibility – Plug-and-play support for DJI Air Units
- ✅ Ultra-Low Latency – High-speed MPU/ICM gyroscopes
- ✅ Flexible Power Input – Supports 3S to 8S LiPo
- ✅ Integrated OSD & Black Box – Flight data recording
- ✅ Multi-Protocol Receiver Support – PPM, SBUS, IBUS, DSMX, CRSF
- ✅ Industrial-Grade Sensors – Bosch BMP280 barometers, AT7456E OSD

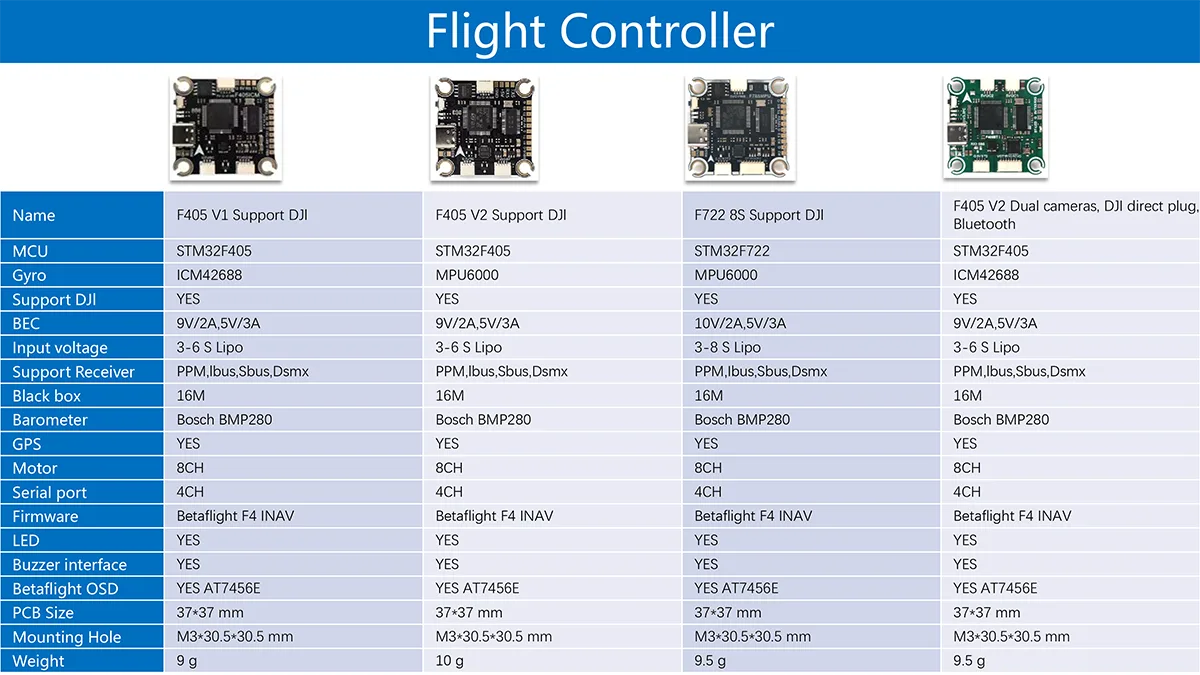

Hot-Selling Models Overview
F405 V2 Series
MCU: STM32F405 | Gyro: ICM42688 / MPU6000 | Voltage: 3–6S LiPo | Features: DJI support, GPS-ready, 8 motor outputs | Size: 37×37mm | ✅ Ideal for FPV drones & mapping UAVs
F722 8S Series
MCU: STM32F722 | BEC: 10V/2A, 5V/3A | Voltage: 3–8S LiPo | Features: Extended power range, enhanced GPS precision | ✅ Built for large payload drones & AI applications

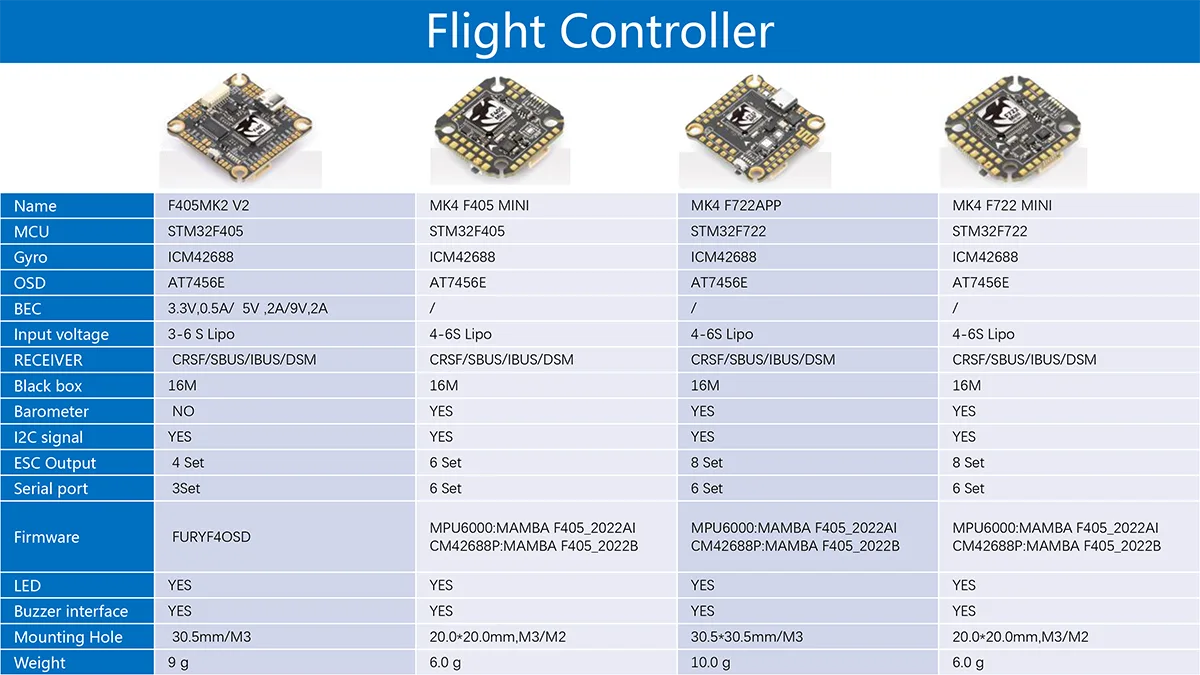

MK4 MINI & APP Series
Ultra-Compact: 20×20mm & 30.5×30.5mm | OSD: AT7456E | Multiple Serial Ports: Up to 6 | ✅ Perfect for racing drones & compact platforms

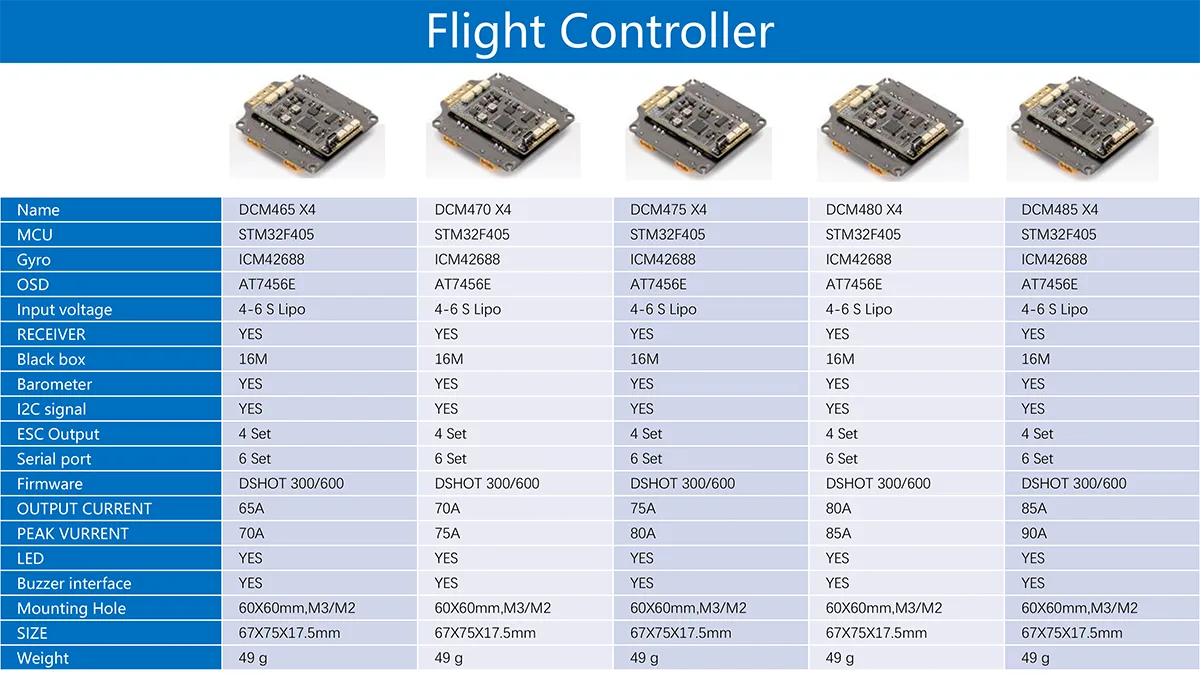

DCM X4 Integrated FC-ESC Units
MCU: STM32F405 | ESC Output: 4 Set, 70–90A Peak | Mounting Size: 60×60mm | ✅ All-in-one unit for heavy-lift drones & industrial UAVs
Firmware Support
Compatible with Betaflight / INAV / FURYF4OSD. Fully customizable via USB with support for OSD tuning, PID configuration, and mission profiles.
Application Scenarios
| Use Case | Recommended Model | Key Feature |
|---|---|---|
| FPV Racing | F405MK2 / MK4 MINI | Lightweight, fast response |
| Aerial Photography (DJI) | F405 V2 / F722 | DJI plug-in, dual camera support |
| Autonomous Mapping | F722 8S / DCM X4 | High current, GPS, black box |
| Industrial Inspection | DCM480 / DCM485 | Integrated ESC, up to 90A peak load |
Customization & PCBA Services
We provide custom FC boards with your branding or interface layout including:
- ✔ PCB layout design
- ✔ SMT + DIP + firmware flashing
- ✔ Full PCBA manufacturing
