High-Frequency PCB Design Taboos Checklist

In today’s high-speed digital world, high-frequency printed circuit boards (PCBs) are the backbone of advanced technologies such as 5G communications, satellite navigation, radar systems, high-performance computing, and premium consumer electronics. The quality of high-frequency PCB design directly impacts the stability, efficiency, and reliability of the entire electronic system.

For PCB design engineers, mastering Rf Pcb design principles and avoiding critical design mistakes is essential. This article dives into the most common high-frequency PCB design taboos, explains their underlying causes and effects, and highlights the stark performance differences between top-tier and low-performing designs.

1、Routing Design Taboos

✕ Ignoring Characteristic Impedance Matching

Signal transmission in high-frequency PCBs demands tight impedance control, typically within ±5% of target values like 50Ω or 75Ω. Failing to account for trace width, spacing, dielectric thickness, and material Dk can cause impedance discontinuity, resulting in:

● Signal reflection
● Waveform distortion
● Increased bit error rate
● Severe signal attenuation
For example, in 5G base stations, an impedance mismatch leads to data packet loss, weak connectivity, and poor user experience. Use electromagnetic simulation tools to calculate impedance precisely, and always consider manufacturing tolerances and stackup dependencies.

✕ Poor Routing Topology

Poor routing decisions—such as overly long, narrow, or tightly packed traces—can cause:

● Delay and signal loss due to excessive length
● High resistance and heat from narrow traces
● Crosstalk interference between adjacent lines
Adhere to design standards like:
● NEXT < -30dB
● FEXT < -40dB
In high-speed interfaces (USB 3.0, HDMI), tight differential pair matching (±5mil) and optimized routing paths are crucial to maintaining signal integrity.

2、Stackup Structure Design Taboos

✕ Arbitrary Layer Count and Material Selection
Layer count should reflect circuit complexity and isolation needs. Excess layers increase cost and processing complexity; too few layers limit signal and power planning.

Don’t compromise on material selection: use high-frequency materials like Rogers RO4350B with:

● Low dielectric constant (Dk)
● Low dissipation factor (Df)
Using standard FR4 or unsuitable substrates in mmWave PCBs (24–52GHz) leads to:

● Excessive signal loss
● Impedance instability
● Reduced data transmission performance

✕ Overlooking Interlayer Registration and Lamination Requirements

Interlayer misalignment > ±50μm can cause shorts, open circuits, and performance failures. Poor lamination leads to:

● Delamination
● Signal reflection
● Mechanical instability
Designers must coordinate closely with manufacturers, specifying:
● Lamination temperature: 180–220°C
● Pressure: 5–10MPa
● Duration: 30–60 minutes
● Copper balance and symmetrical stackups to minimize stress

3、 Via and Pad Design Taboos

✕ Wrong Via Type and Size for High-Frequency Signals

Choosing through-holes instead of blind or buried vias increases parasitic inductance/capacitance, causing:

● Signal delay
● Distortion
● Reflection in high-speed channels
Also, avoid too-small via diameters (<0.2mm), which cause:
● Drill misalignment
● Poor plating
● High resistance
Proper via selection enhances signal integrity and manufacturability.

✕ Ignoring Pad Design and Soldering Compatibility

Pads must be designed for the intended soldering method:
● Reflow soldering requires precise pad sizes for wetting
● Wave soldering demands spacing to prevent bridging
Surface finishes like ENIG (Electroless Nickel Immersion Gold) enhance solderability and oxidation resistance. Poor pad design or finish causes:
● Cold joints
● Solder bridging
● Oxidation and open circuits

4、Defects, Root Causes, and Design Quality Gaps

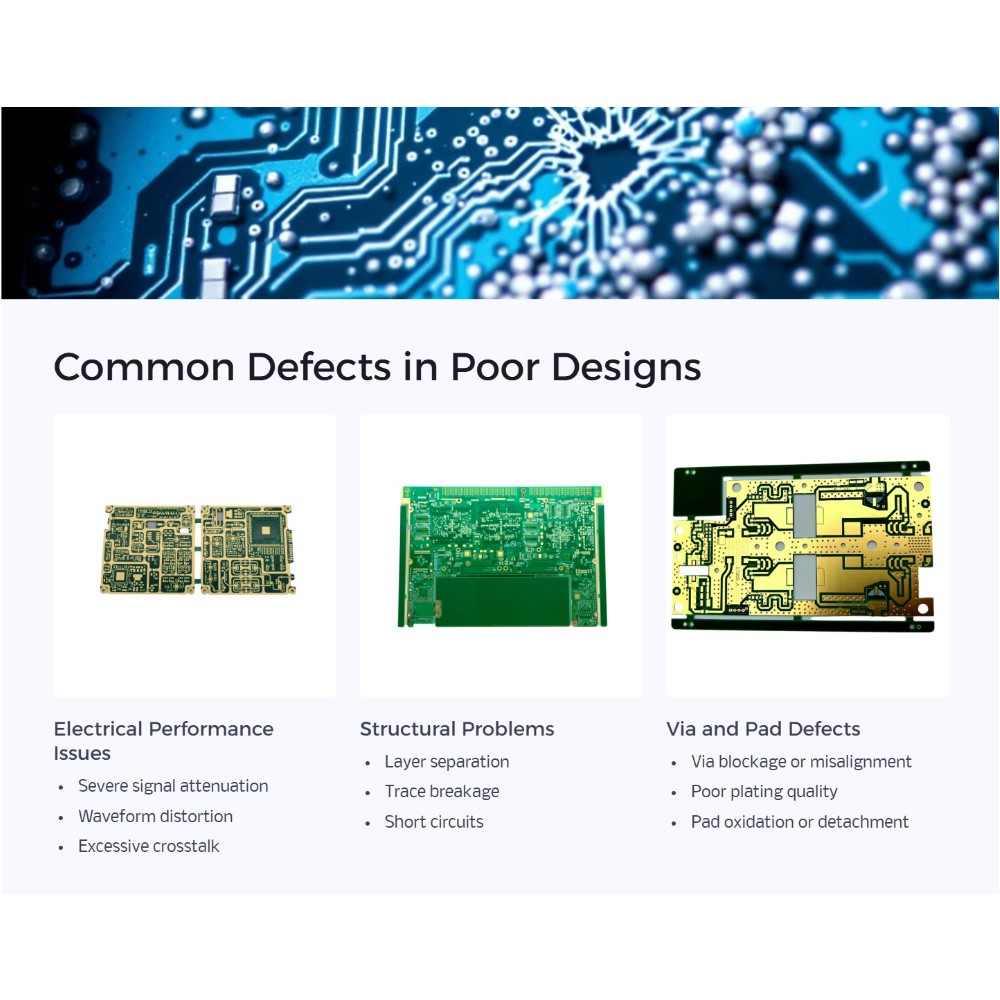

Common Defect Symptoms

● Signal attenuation and waveform distortion

● Crosstalk between traces

● Layer delamination and short circuits

● Trace fractures, via blockage, or pad oxidation

Root Causes

● Impedance mismatches from poor trace calculations

● Inadequate material selection for RF frequencies

● Poor stackup planning without process alignment

● Underestimated via parasitics and drilling tolerances

● Pad dimensions mismatched to soldering process

Design Gap Comparison

5、Rich Full Joy Can Tackle All Challenges

Every design flaw—from impedance mismatch and trace crosstalk to stackup failures and poor via design—can derail RF PCB performance. At Rich Full Joy, our RF engineers and manufacturing experts work in tandem to:

● Ensure design-for-manufacturing (DFM) compliance
● Use advanced EM simulation tools
● Apply high-frequency material expertise
● Provide high-yield, production-ready layouts
Whether it's for 5G base stations, radar systems, or satellite communication, we ensure your high-frequency PCB performs with speed, integrity, and reliability.

6、Partner With Rich Full Joy: Design Smarter, Perform Better

With decades of RF PCB experience, Rich Full Joy has mastered the science of high-frequency signal control. We combine simulation-driven design, materials science, and advanced manufacturing to create PCBs that pass the toughest quality and performance benchmarks.

Follow us for more expert insights, or reach out to discuss your next high-frequency project!
