High-Frequency PCB Quality Control White Paper
Frontline Insights: The Critical Role of Quality Control in the Age of High-Frequency Pcbs
Today’s high-frequency printed circuit boards (PCBs) serve as the technological foundation for a multitude of advanced electronic systems. From ultra-low latency in 5G communication and precise positioning in satellite navigation, to radar signal processing in complex electromagnetic environments and high-performance computing, the reliability and precision of high-frequency PCBs are indispensable.
For quality professionals and engineers alike, mastering the intricate details of high-frequency PCB quality control is essential. This white paper provides a deep dive into each stage of quality assurance—from design to production—and outlines strategies to meet the increasingly demanding performance standards of next-gen applications.

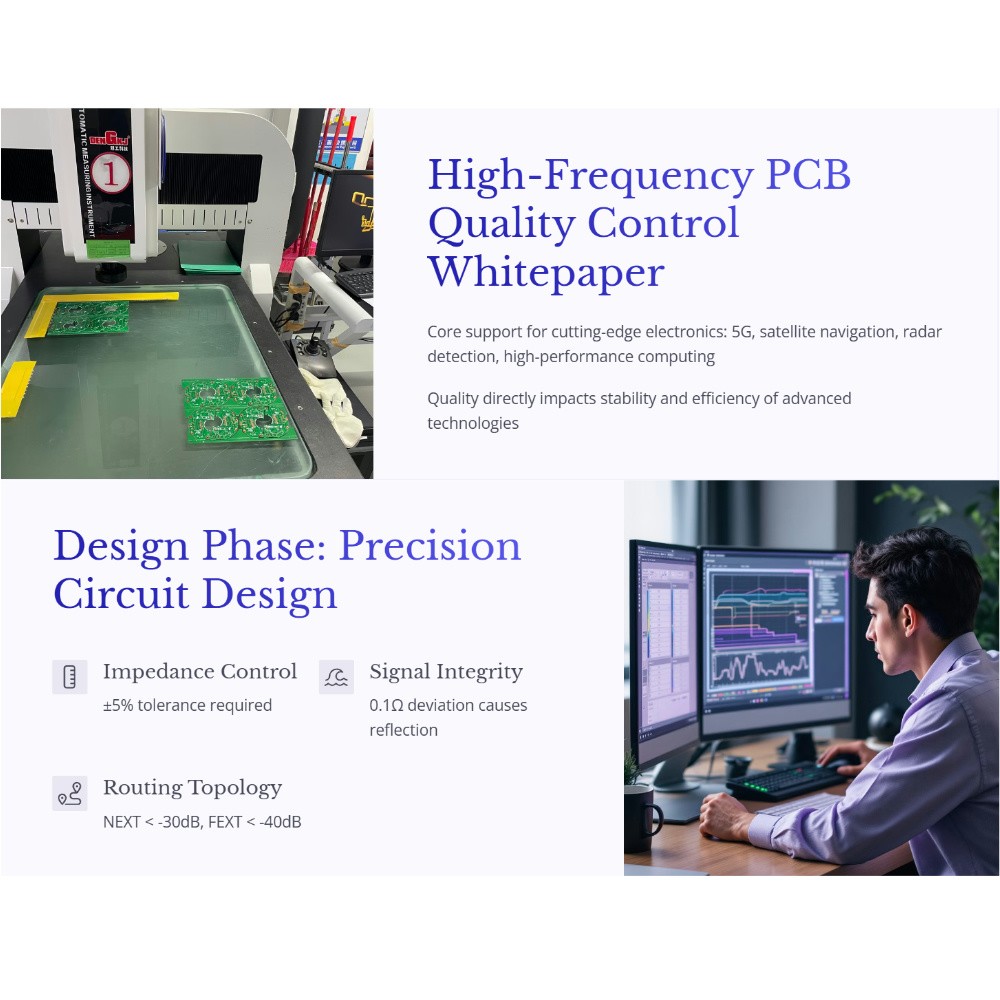

Design: The Foundation of Quality
Circuit Layout: Precision is Paramount
In high-frequency circuits, signal integrity hinges on meticulous impedance control. For example, maintaining characteristic impedance within ±5% (typically 50Ω or 75Ω) is critical, especially in5G base station PCBs. Slight deviations, such as a 0.1Ω mismatch at millimeter-wave frequencies (24–52GHz), can lead to severe reflection, signal attenuation, and increased bit error rates.
To mitigate this, design engineers rely on advanced electromagnetic simulation software to optimize line width, spacing, dielectric thickness, and dielectric constant (Dk). In such high-frequency environments, even microscopic layout inconsistencies can undermine performance.
Furthermore, routing topology must be carefully managed:
● Excessive trace length increases signal delay and loss.
● Narrow traces raise resistance.
● Dense layouts cause crosstalk, which should stay below:
● Near-End Crosstalk (NEXT): -30dB
● Far-End Crosstalk (FEXT): -40dB
For high-speed interfaces like USB 3.0 or HDMI, differential pair routing must maintain a length matching precision of ±5mil to ensure signal fidelity.
Stackup Design: Balancing Physics and Manufacturability
Modern high-frequency PCBs, especially in telecom and aerospace, often exceed 10 layers. These designs demand materials with low Dk and low Df, such as Rogers RO4350B, to reduce signal loss and maintain data speed. However, these materials introduce higher costs and processing complexity.
Key parameters include:
● Interlayer registration accuracy: must be within ±50μm to avoid misalignment or shorts.
● Lamination conditions:
● Temperature: 180–220°C
● Pressure: 5–10MPa
● Time: 30–60 minutes
Engineering and production teams must collaborate closely to ensure stackup designs align with the manufacturer’s lamination capabilities.
Manufacturing: From Material to Masterpiece
Raw Material Control: Quality from the Source
A robust incoming quality inspection system is vital. For example:
● Dk deviation: ≤ ±0.1
● Df (loss tangent): < 0.003
● Thickness tolerance: tightly controlled
● Visual defects: such as bubbles, delamination, and scratches must be avoided
Copper foil purity and prepreg resin content also significantly affect performance. High-purity copper ensures low resistance, while the right resin flow ensures strong interlayer bonding. Periodic sampling and testing help maintain material compliance with RF-grade standards.

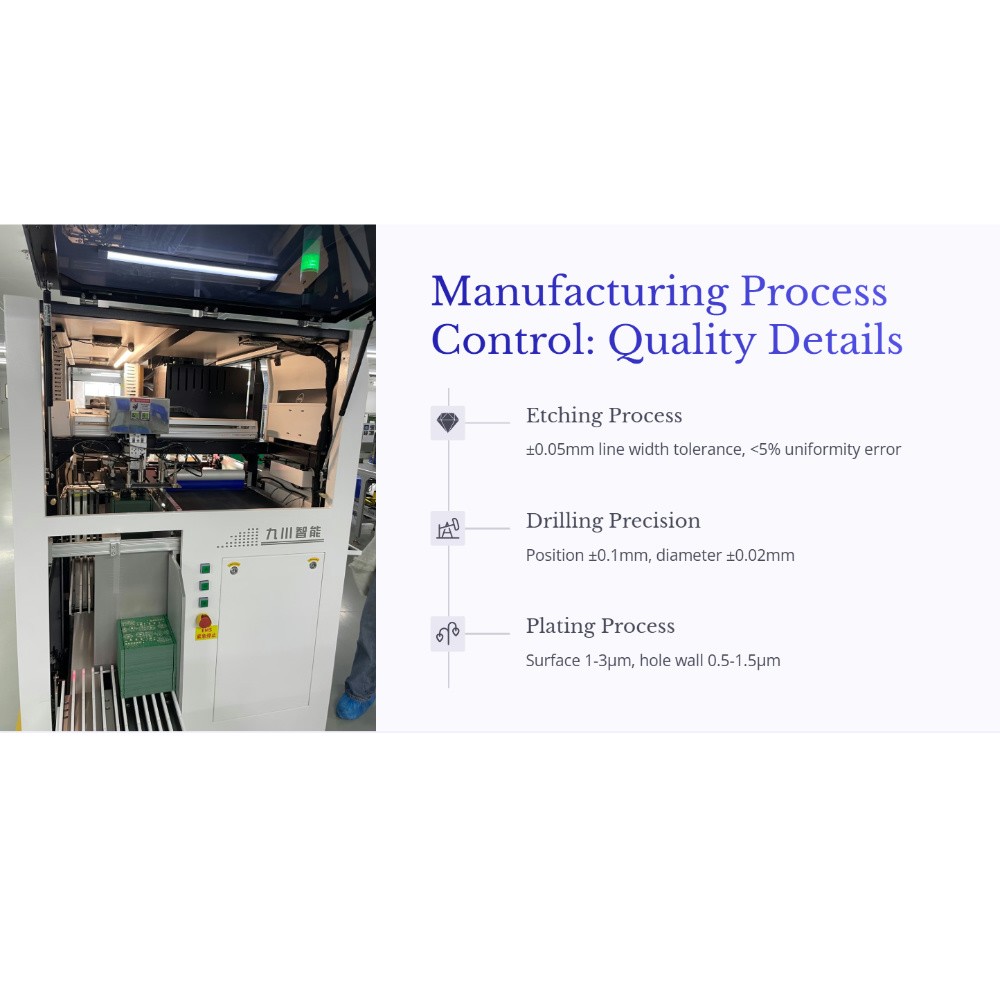

Process Quality Control: Precision in Every Detail
Etching:
● Line width tolerance: ±0.05mm
● Etch uniformity: < 5% variation
Poor control can result in undercut or over-etching, compromising circuit integrity.
Drilling:
● Hole position accuracy: ±0.1mm
● Hole diameter tolerance: ±0.02mm
Post-drilling cleaning removes debris to prevent shorts. Copper plating of vias ensures conductivity and reliability.
Electroplating:
● Surface plating thickness: 1–3μm
● Via wall plating: 0.5–1.5μm
Precise control of solution chemistry and current density prevents issues like voids, bubbles, or delamination, ensuring long-term performance.
Failure Analysis and Preventive Measures
Electrical Failures: Silent Killers of Signal Integrity
Symptoms: attenuation, distortion, excessive crosstalk, and waveform degradation
Causes:
● Impedance mismatch
● Material inconsistencies
● Inaccurate etching or plating
Solutions:
● Simulation-based design optimization
● Strict material quality assurance
● Enhanced process controls and inspection
Structural Defects: Hidden Physical Risks
Common issues:
● Delamination
● Trace breakage
● Short circuits
● Blocked vias
Root causes range from lamination defects and drilling misalignment to plating impurities. Addressing them requires:
● Process optimization
● Automated inspection
● Cleaner production environments
Long-Term Reliability: The Real Test
Critical concerns:
● Solder joint cracks
● PCB warpage
● Insulation failure
Preventive strategies include:
● Optimizing soldering profiles and material selection
● Matching material CTEs in stackup
● Tight environmental controls during production

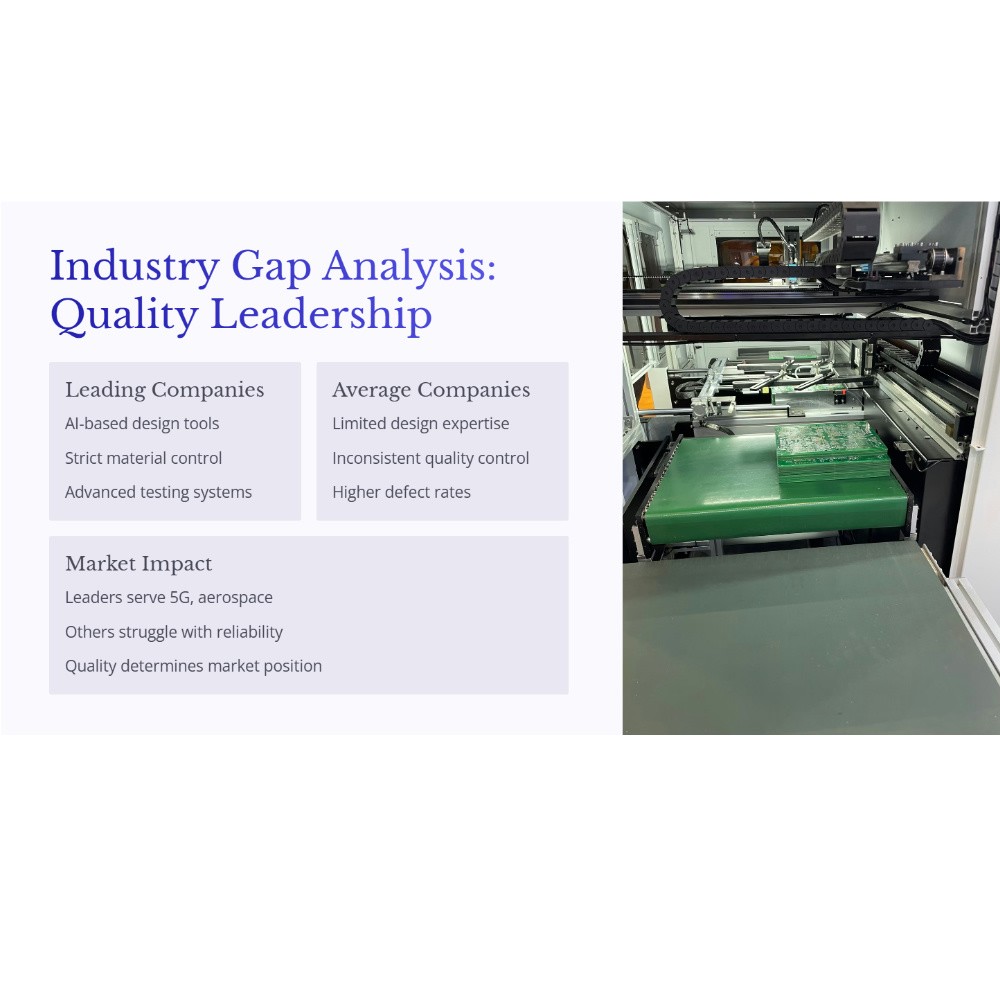

Industry Benchmarking: Quality as a Differentiator
Top-tier manufacturers leverage:
● AI-based PCB design tools
● Advanced process automation
● Comprehensive inspection systems
Their products meet rigorous standards for 5G, aerospace, and satellite communication, boasting high yield rates and unmatched reliability. In contrast, less mature producers often lack advanced design, materials control, and inspection capability, leading to higher defect rates and limited competitiveness.
Why Rich Full Joy?
Rich Full Joy has built a solid reputation in the RF PCB and high-frequency circuit board industry with:
● Deep domain knowledge of signal integrity
● Mastery of quality control at every stage
● Full support from design to finished product
● Proven success in aerospace, telecom, radar, and satellite systems
We welcome collaboration with quality experts and engineers seeking excellence in RF PCB manufacturing. Follow us for more insights as we continue to drive innovation in the high-frequency PCB field.
