1. Introduction
In modern electronic manufacturing, component placement is a core stage of the Smt (Surface Mount Technology) process, directly influencing the reliability and performance of PCBA (Printed Circuit Board Assembly). As electronic devices become more compact and densely integrated, the challenges in placement increase significantly — from handling ultra-miniature 01005 components (0.4×0.2mm) to meeting the reliability requirements of complex packages like BGA and QFN (IPC-7351B, 2014).
2. Core Technical Elements of Mounting Processes

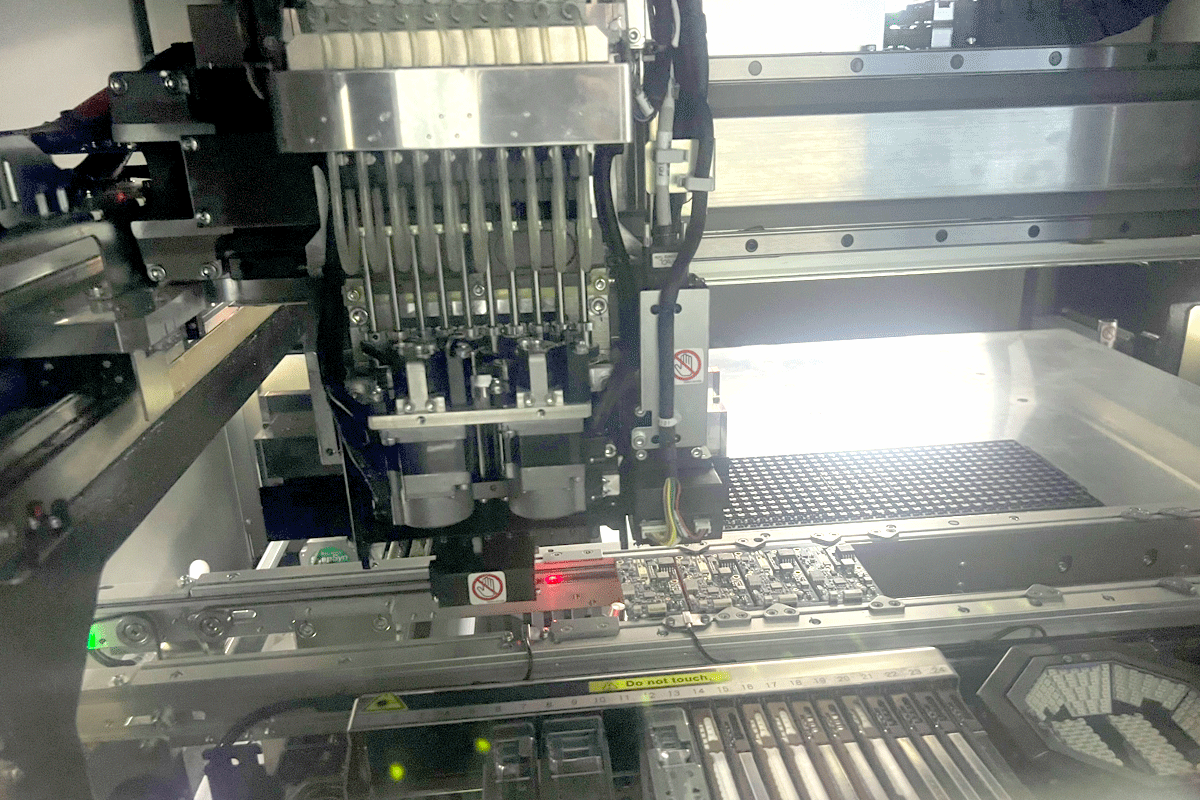

2.1 High-Precision Pickup and Placement
- ·Precision Pickup: Utilizes high-rigidity robotic arms and adaptive vacuum nozzles to control pickup force and avoid component damage (Juki, 2023).
- ·Intelligent Visual Alignment: Employs high-resolution optical systems (e.g., Fuji NXT’s 3D vision) to dynamically align components with ±15μm accuracy (Fuji, 2021).
- ·Dynamic Mounting Compensation:Adjusts Z-axis pressure based on PCB warpage detection to ensure proper solder paste contact (Panasonic NPM Series Technical Manual).
2.2 Process Optimization and Data Management
- ·Mounting Program Optimization: Uses intelligent panel optimization algorithms to shorten head travel paths and increase placement efficiency (Yamaha YSM20R Whitepaper).
- ·Component Database: Integrates IPC-7351 standard parameters for precise strategies in handling 0201, BGA, and other packages (SMTnet, 2020).
- ·MES System Integration: Ensures BOM validation and automatic error prevention for material mismatches or reverse mounting.
3. Key Equipment and Process Control
3.1 Nozzle and Feeder Management
- ·Nozzle Condition Monitoring: Real-time vacuum sensing (threshold ≥ -80kPa) triggers automatic cleaning or replacement on fault detection (Juki, 2023).
- ·Feeder Error Prevention: RFID/QR code tracking ensures traceability and lifecycle management to avoid tape jams and empty feeding (NEPCON Asia, 2023).
3.2 Feeder Reliability
- ·Preventive Maintenance: Feed gear calibration every 2 million cycles reduces mechanical deviation.
- ·Anomaly Warning: Vibration sensors detect irregular motion in advance, enabling proactive shutdown and maintenance.
4. Customer Value and Industry Applications
- ·Automotive Electronics: Meets ISO 26262 functional safety standards for ECU modules with long-life reliability.
- ·Medical Devices: Complies with IEC 60601 standards, minimizing failure risks due to misplacement.
- ·Communication Equipment: Supports ≤0.3mm pitch mounting for 5G mmWave modules and high-speed communication boards.
5. Performance Comparison of Mainstream Equipment
| Equipment Model | Placement Accuracy (μm) | Speed (CPH) | Minimum Component |
|---|---|---|---|
| Yamaha YSM20R | ±25 | 96,000 | 01005 |
| JUKI RS-1R | ±30 | 85,000 | 0201 |
| Panasonic NPM-W2 | ±20 | 108,000 | 01005 |
(Source: NEPCON Asia 2023 Test Report)
6. Summary: Keys to High-Reliability Mounting
- ·Precision Equipment: Multi-axis compensation and micron-level accuracy.
- ·Smart Control Systems: Full lifecycle nozzle/feeder management.
- ·Standardized Data: Integration of IPC component library + MES traceability.
By executing systematic control across the full process, manufacturers can achieve a first-pass yield of ≥99.95% — a benchmark in the electronics industry — delivering customers consistent quality and efficient manufacturing performance.
References
- 1.IPC-7351B, Generic Requirements for Surface Mount Design, 2014.
- 2.Fuji Machine, NXT III Technical Manual, 2021.
- 3.Juki, Advanced Placement Technology Report, 2023.
- 4.NEPCON Asia, SMT Equipment Benchmark, 2023.
- 4.SMTnet, Process Quality Analysis, 2020.
