How Phased Array Antenna PCBs Empower Next-Generation Air Defense Systems
As fifth-generation stealth fighters and hypersonic missiles emerge as critical threats, traditional mechanically scanned radars struggle to adapt to rapidly evolving battlefield scenarios. Phased array radar, with its inertia-free beam steering and multi-target tracking capabilities, has become the backbone of next-generation air defense systems. At the core of this technological breakthrough lies the phased array antenna PCB — the unsung hero behind advanced radar systems.

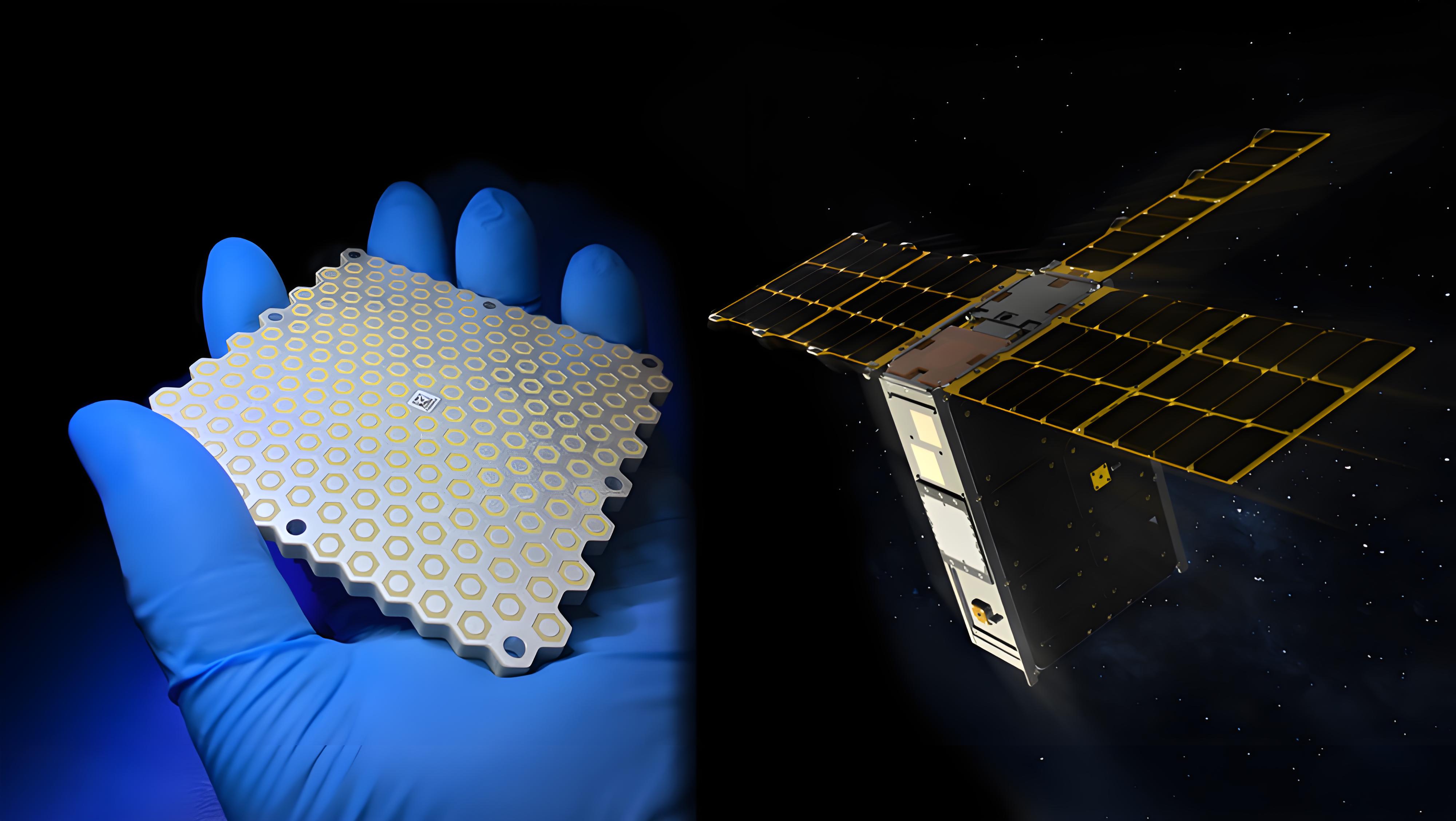

1. What Is a Phased Array Antenna PCB?
A phased array antenna PCB is a high-frequency circuit board designed to control active beam steering in radar systems. Without the need for mechanical rotation, it enables rapid scanning and simultaneous tracking of multiple targets, making it a vital component in phased array radar technology.
2. Three Core Enabling Advantages of Phased Array Antenna PCBs
High-Frequency and Wideband Performance:
Crucial for countering stealth threats, these PCBs utilize advanced materials such as Rogers or Taconic high-frequency laminates, supporting Ka/Ku bands and even millimeter-wave frequencies capable of penetrating stealth coatings.
Signal Integrity:
Precise impedance control and low-loss transmission line design ensure stable high-speed signal propagation within complex antenna arrays.
High-Density Interconnect (HDI):
Miniaturization and enhanced functionality are achieved through microvias and stacking technology, integrating thousands of transmit/receive (T/R) modules within limited space. This enables antenna element spacing as tight as ≤0.5λ, significantly improving beam steering accuracy. Embedded components like capacitors and resistors within PCB layers reduce signal path length, minimizing latency and noise.
Reliability in Extreme Environments:
Thermal management solutions, including metal-core substrates (e.g., aluminum-based PCBs) and thermally conductive vias, ensure stable operation of GaN power amplifiers at temperatures up to 150°C. Vibration resistance and corrosion protection, certified to IPC-6012 Class 3 standards, allow operation under harsh conditions such as extreme temperatures, salt spray, and mechanical shock.
3. How Phased Array Antenna PCBs Empower Next-Generation Air Defense Systems
- Rapid Multi-Target Tracking: Electronic beam control allows radar to simultaneously track multiple threats within milliseconds.
- High-Resolution Detection: Advanced RF PCB materials minimize signal loss, enhancing imaging clarity and target discrimination.
- Modular Architecture: Each antenna element is controlled by independent PCB modules, supporting system redundancy and facilitating rapid frontline maintenance.
- Robust Electronic Warfare Resilience: Flexible frequency management and precise trace routing enhance survivability against jamming and electronic attacks.

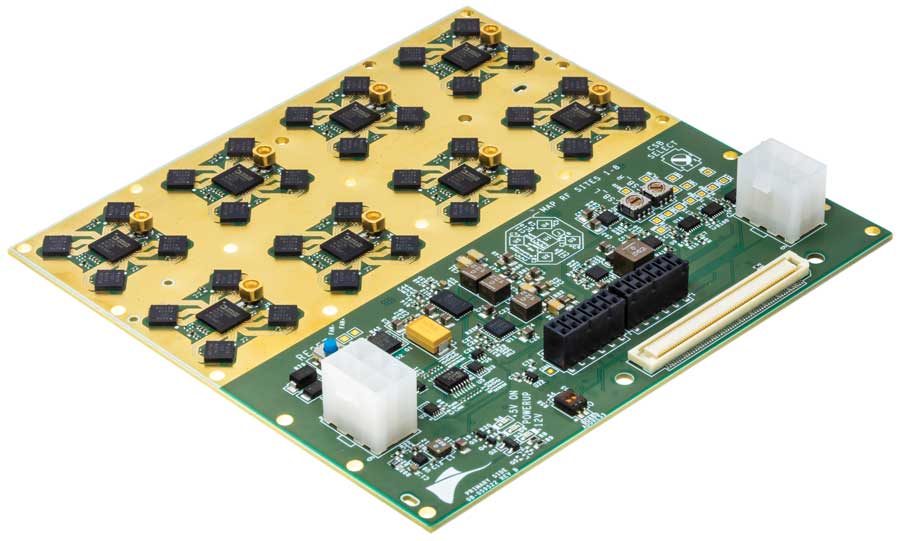

4. Technical Requirements for Phased Array PCBs
- Operating Frequency Range: 5 GHz – 40 GHz
- Materials: Rogers, Taconic, I-Tera, and other high-frequency laminates
- Impedance Control Tolerance: ±5%
- Layer Count: Support for multi-layer PCBs with 20+ layers
- Thermal Management: Embedded copper blocks, metal backplanes, and other heat dissipation techniques
- Surface Finishes: ENIG (Electroless Nickel Immersion Gold), ENEPIG (Electroless Nickel Electroless Palladium Immersion Gold), hard gold plating

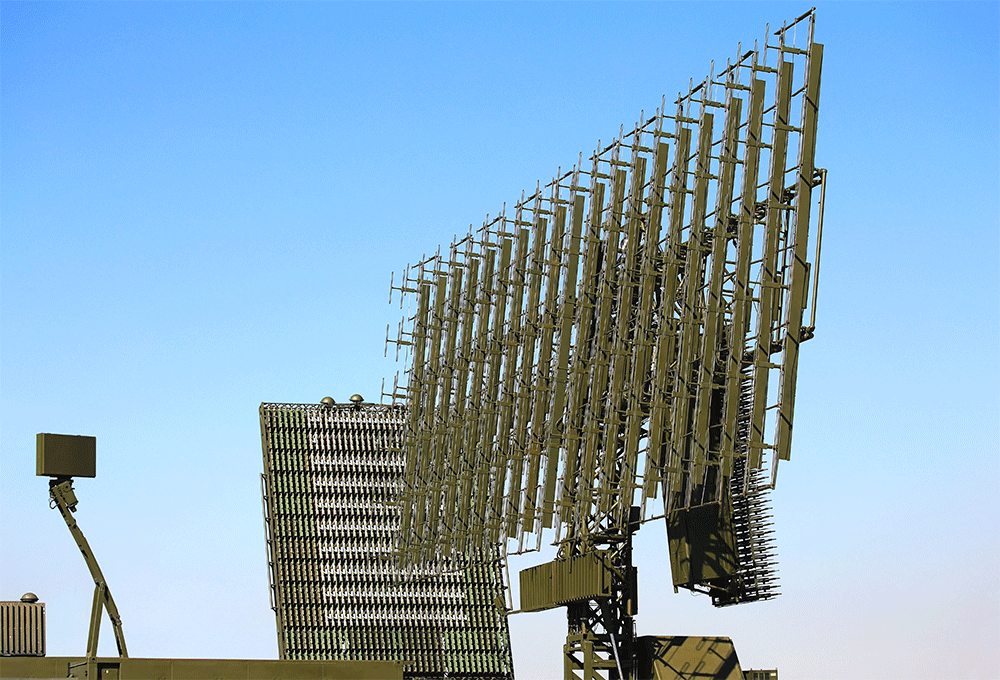

5. How Phased Array PCBs Are Redefining the Air Defense Landscape
- US Patriot-3 Upgrade: Incorporation of multilayer hybrid dielectric PCBs increased target tracking speed by 40% while reducing false alarms by 30%.
- Russian S-500 Air Defense System: Utilizes GaN T/R modules with advanced heat dissipation PCBs to achieve ultra-long-range detection up to 600 km, capable of intercepting Mach 20 targets.
6. Four Key Criteria for Selecting a PCB Manufacturing Partner
- Military Certifications and Compliance: MIL-PRF-31032, ITAR (US), GOST-R (Russia), and other certifications ensure global delivery capabilities.
- End-to-End Services: From electromagnetic simulation (e.g., HFSS) to rapid prototyping (48-hour turnaround) and rigorous batch consistency controls.
- Extensive Material Portfolio: Covering PTFE, ceramic-filled laminates, flexible-rigid combinations to meet diverse design needs.
- Confidentiality and Supply Chain Security: Compliance with NIST 800-171, supporting localized production and resilient supply chains amid geopolitical sanctions.
7. Future Trends: Smart Skins and Multifunctional Integration
Phased array PCBs are evolving from standalone modules to “smart skins” — antenna arrays embedded directly onto aircraft or ship surfaces. Coupled with AI-driven beamforming algorithms, these systems offer 360° seamless surveillance coverage. This evolution demands ultra-thin flexible PCB designs and multi-physics optimization, laying the groundwork for 6G communications and directed-energy weapons.
8. Gaining the Technological Edge Starts with PCB Excellence
In air defense, a 1-nanosecond delay difference can determine intercept success or failure. As a seasoned provider of military-grade PCBs with over 20 years’ experience, we offer:
- Free design reviews to optimize phased array architectures and manufacturability
- Radiation-hardened PCB solutions for high-energy electromagnetic battlefield environments
- 72-hour emergency response to guarantee zero-delay delivery of critical projects
