Deconstructing 7 Core Technologies in Aviation-Grade Power Systems
Power system reliability is mission-critical for commercial drones. Recent studies (DroneAnalyst, 2025) reveal that 74% of flight failures originate from BMS flaws. This whitepaper-level analysis examines how custom PCB design revolutionizes drone power architecture through:
5 Pillars of Aviation BMS Engineering
-
Precision Coulomb Counting
- ±1% SoC accuracy with Kalman filtering
-
Active Cell Balancing
- 92% efficiency bidirectional DC/DC topology

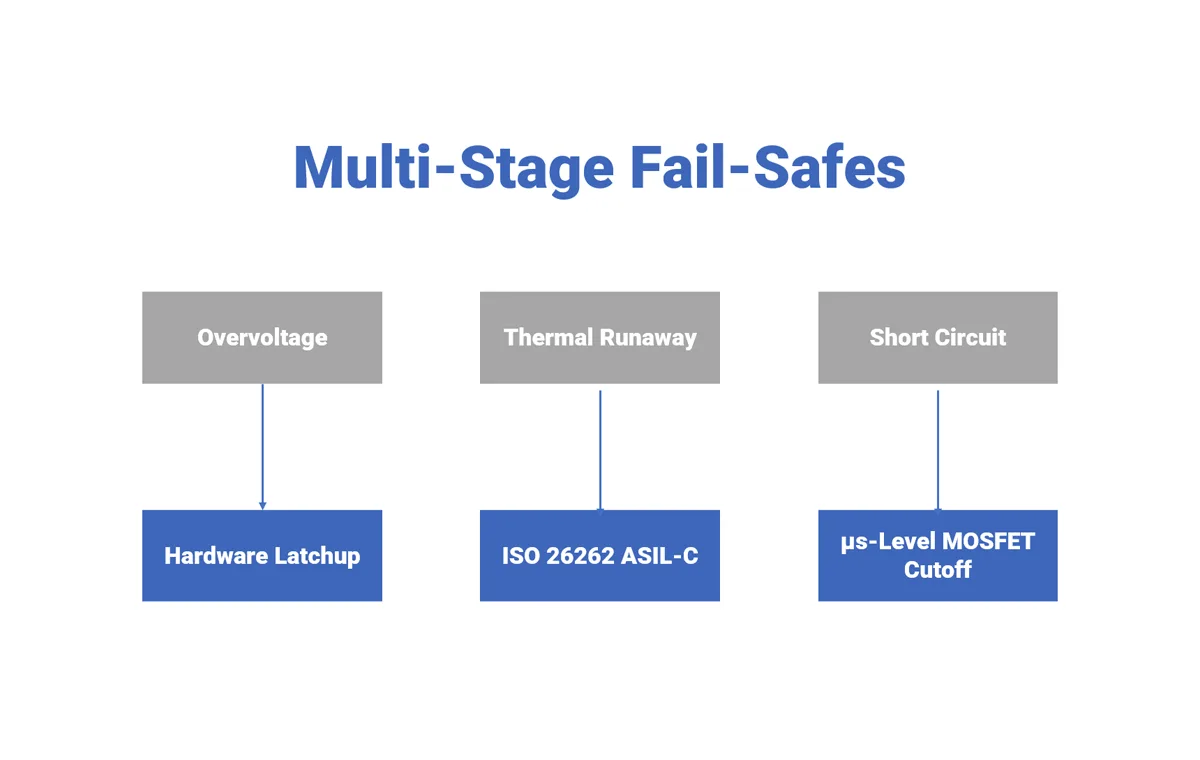

- Multi-Stage Fail-Safes
Performance Benchmarking
| Metric | Off-the-Shelf | Custom PCB | Delta |
|---|---|---|---|
| Flight Time | 45min | 58min | ↑28.9% |
| Cycle Life | 200 | 350 | ↑75% |
| Cold Operation | -10°C | -40°C | 4X Range |
DO-160G Compliant Design Principles
- EMI Mitigation: 30dB noise reduction via 6-layer stackup
- Weight Optimization: 3.2oz copper for 98g/100cm² density
- FTA Analysis: PFH＜1E-9 per IEC 61508
