Key Advantages
- Military-Grade Materials: All models feature 3K T300 carbon fiber frames, offering a superior strength-to-weight ratio compared to aviation-grade aluminum.
- Extreme Performance: Capable of flying at altitudes of up to 5000 meters, with a transmission range of 20 km, and top speeds reaching 160 km/h (for the 7-inch model).
- Smart Flight Controller: Equipped with the F405/F722 flight controller, supporting DSHOT600 high-speed digital protocols and response times under 5ms.
- Modular Design: Customizable transmission, camera, and flight controller options to meet specific industry requirements.
- Heavy Payload Capacity: Payloads ranging from 1.5kg to 8kg, perfect for applications in agriculture, logistics, surveying, and more.

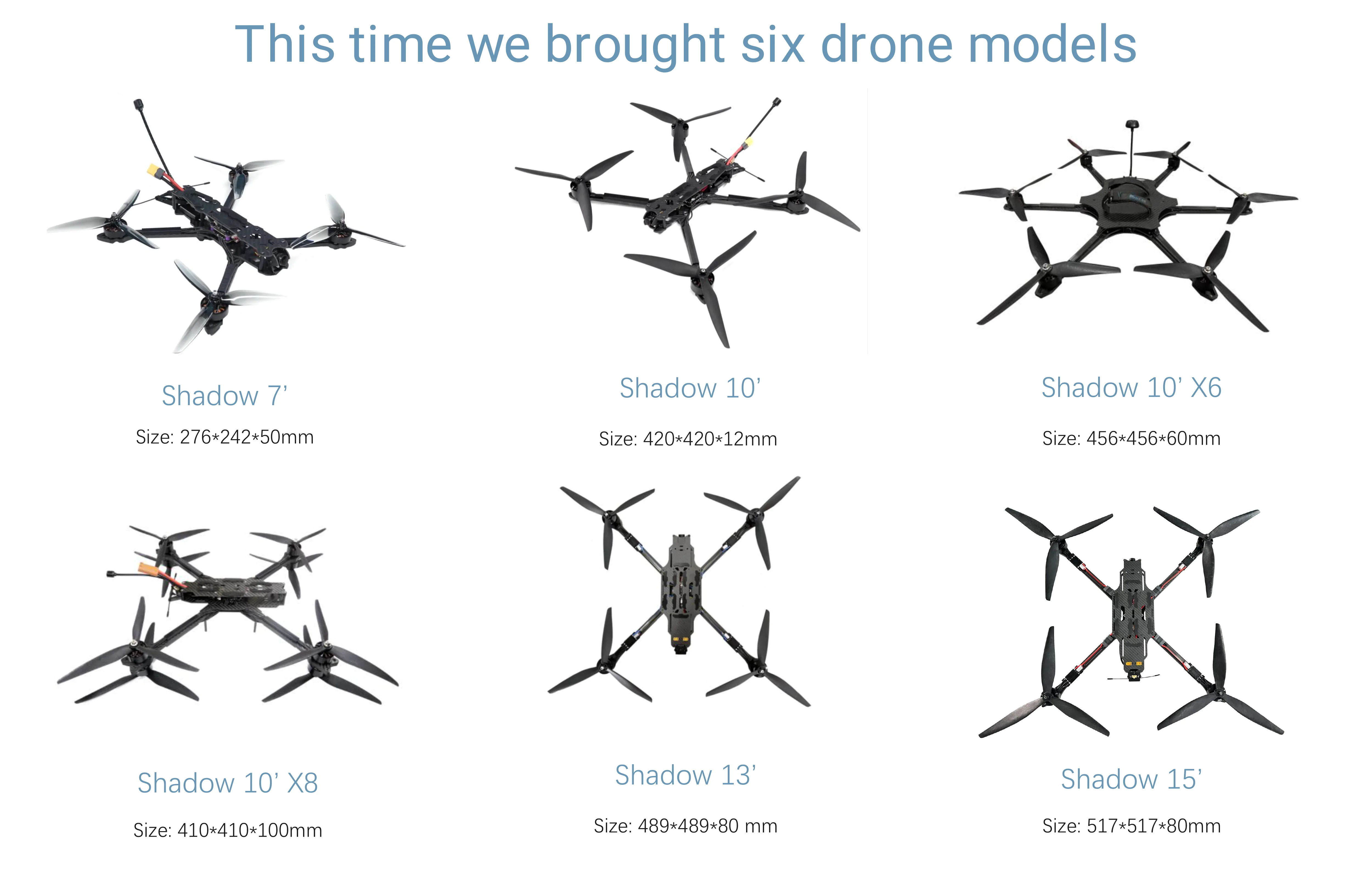

Product Series Overview

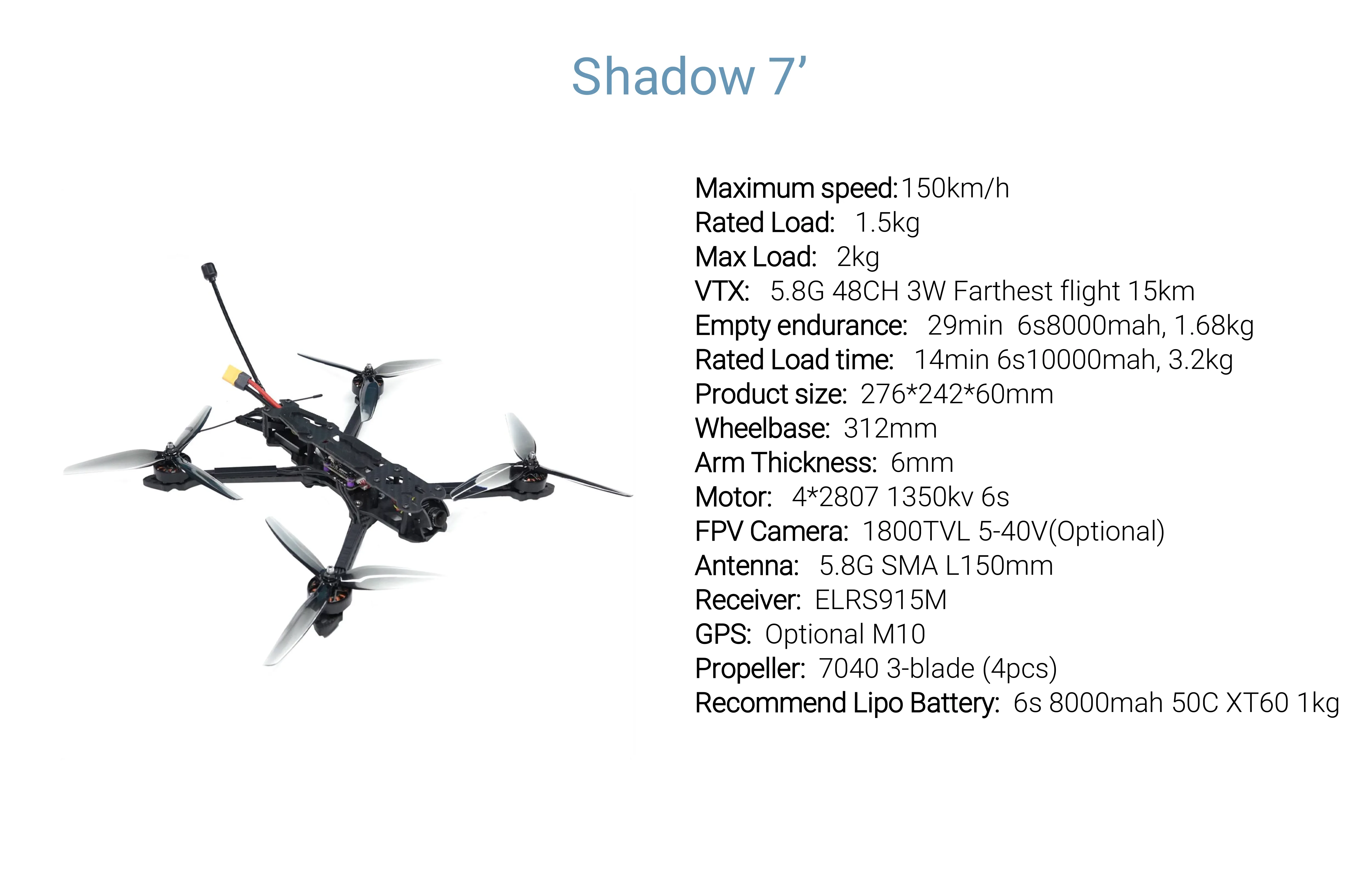

1. 7-inch Racing & Reconnaissance Series
- Positioning: Lightweight and high-speed FPV, ideal for racing and short-range inspection tasks.
- Bareweight: 540g (one of the lightest 7-inch drones in the industry)
- Power: 2807 1350KV motors + 60A ESC, providing 1239W per motor
- Endurance: 29 minutes of flight time (6S 8000mAh)
- Payload: Rated 1.5kg, max 2.3kg (suitable for small cameras)
- Features: Top speed of 160km/h, 312mm compact wheelbase for easy navigation through complex environments
- Best For: Quick deployments, short-range inspections, and high-speed racing.

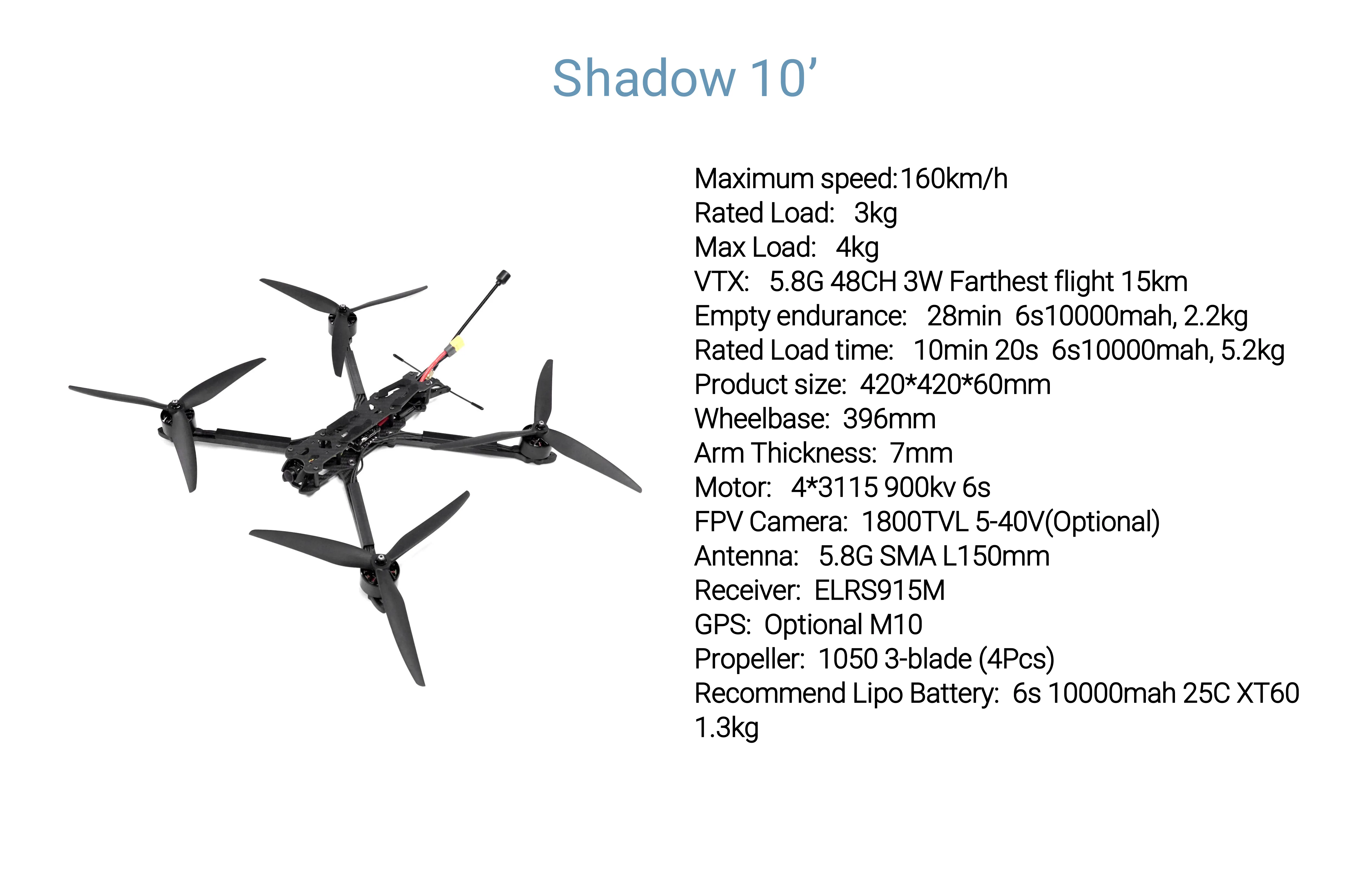

2. 10-inch Multi-Tasking Series
- Positioning: Mid-range operations, ideal for agricultural spraying and security inspections.
- Bareweight: 793g
- Power: 3115 900KV motors, 1585W per motor
- Endurance: 28 minutes of flight time (6S 10000mAh), 10 minutes with a 5.5kg load
- Payload: Rated 3kg, max 4kg (compatible with multi-spectral sensors)
- Features: 396mm wheelbase for better wind resistance, supports Smart Audio transmission for power adjustments
- Best For: Agricultural applications, security patrols, and delivery services.

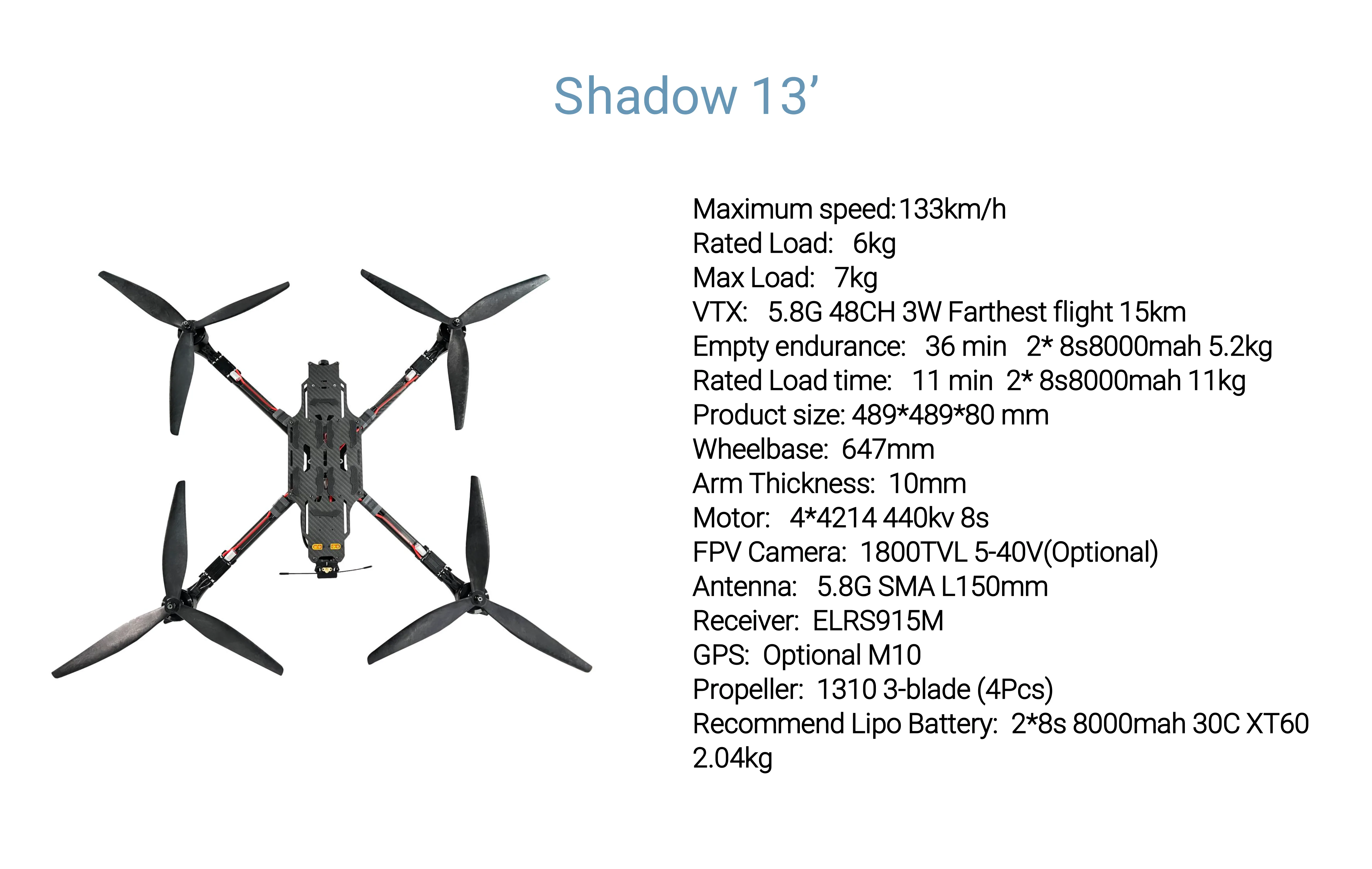

3. 13-inch Heavy-Lift Flagship Series
- Positioning: Heavy payloads and long flight times, perfect for logistics and surveying.
- Bareweight: 1925g
- Power: 4214 440KV motors + 80A AM32 ESC, supports 8S high voltage
- Endurance: 36 minutes of flight time (8S 16000mAh), 11 minutes with an 11kg payload
- Payload: Rated 6kg, max 7kg (can carry industrial equipment)
- Features: 593mm wheelbase and 10mm thick arms, designed for high-altitude stability
- Best For: Heavy-duty logistics, surveying, and industrial equipment transportation.

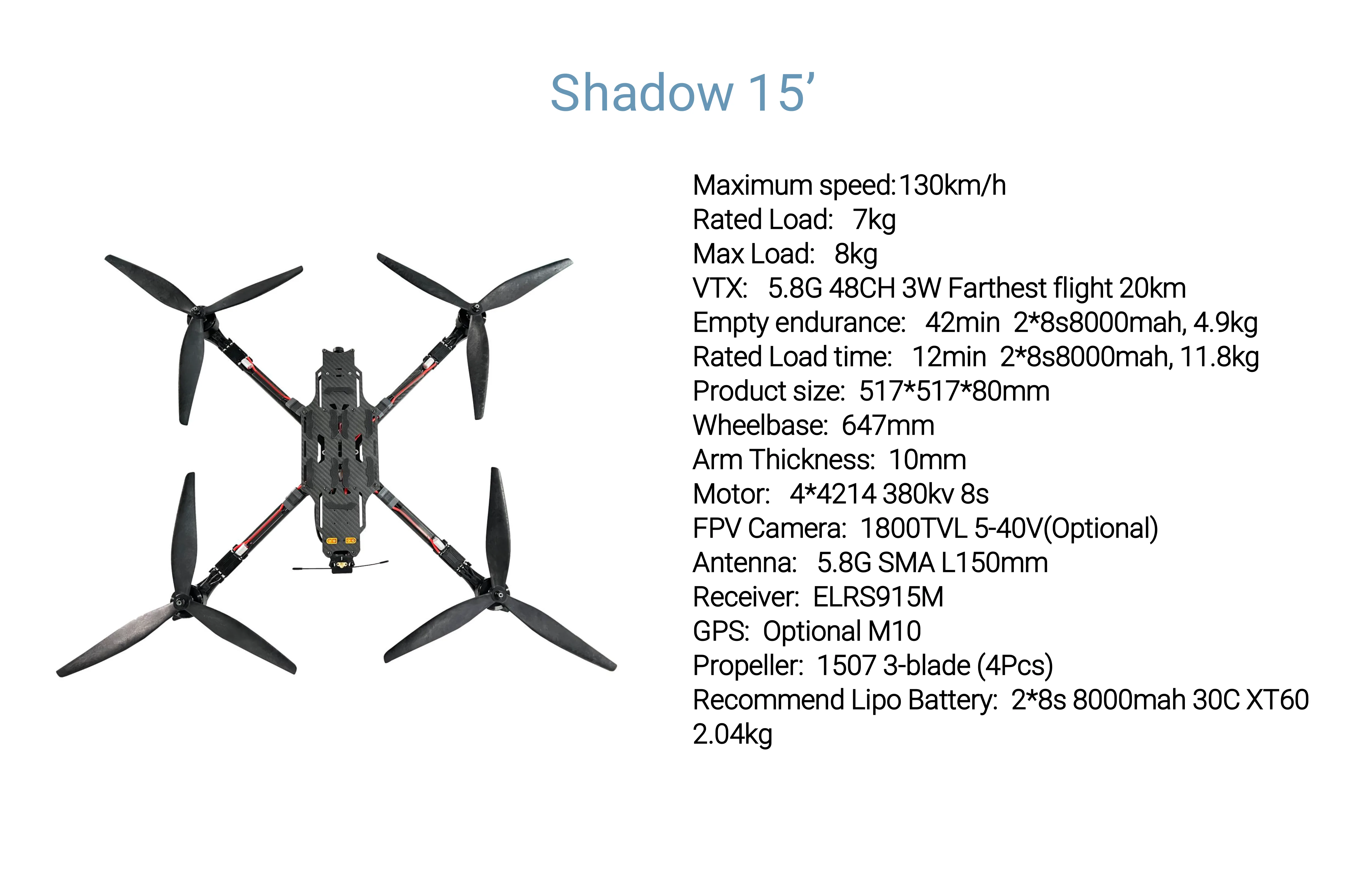

4. 15-inch Ultra Long-Endurance Series
- Positioning: Extended flight time for wide-area surveying and powerline inspections.
- Bareweight: 2080g
- Power: 4214 380KV motors, optimized for energy efficiency
- Endurance: 42 minutes of flight time (8S 16000mAh)
- Payload: Rated 7kg, max 8kg
- Features: 647mm super-long wheelbase, capable of withstanding winds up to 8th level, compatible with high-efficiency 1507 props
- Best For: Large-scale surveying, powerline inspections, and wide-area agricultural tasks.

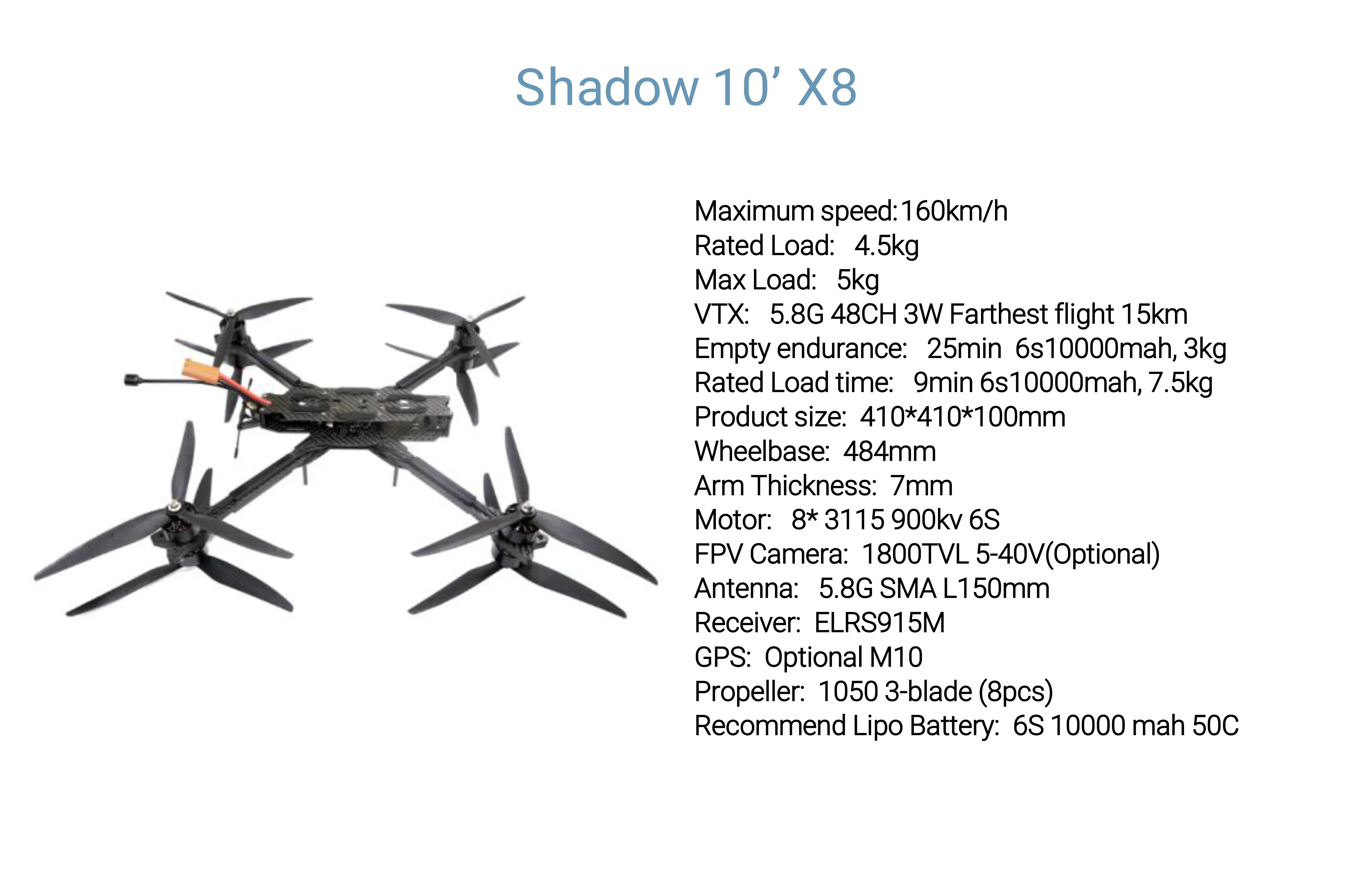

5. 10-inch X8 Dual-Motor Series
- Positioning: Redundant safety design, ideal for emergency cargo transport.
- Bareweight: 1580g
- Power: 8 motors (3115 900KV x8), ensuring continued flight even after a single motor failure
- Payload: Rated 4.5kg, max 5kg
- Features: 479mm wheelbase, 10mm one-piece arms, 40% increased torsional strength for enhanced durability
- Best For: Emergency logistics, rescue missions, and high-urgency transport tasks.
Unified Component Advantages
| Component | Highlight Features |
|---|---|
| Transmission | 5.8G 3W transmission power, adjustable 5-step (25-3000mW) for long-range and stable transmission |
| Camera | 1800TVL ultra-wide dynamic range, 0.0001Lux low-light night vision |
| Receiver | ELRS915M protocol, communication range over 15km in interference-prone environments |
| ESC | Supports 3-8S voltage, peak current 85A (10s) for reliable power delivery |
Drone Selection Guide
- Racing/Chasing: 7-inch (Top speed 160km/h, lightweight and efficient)
- Agriculture/Inspection: 10-inch (Payload 4kg, 10-minute operation)
- Cargo Transport: 10-inch X8 (Dual-motor redundancy for safety)
- Surveying/Logistics: 13-inch/15-inch (Payloads 7-8kg, 35+ minute endurance)
Why Choose Us?
As a professional PCB and PCBA service provider, we not only offer high-quality electronic components for drones but also provide full drone assembly services. We leverage our expertise in PCB manufacturing and assembly to ensure every drone is built with the highest standards of performance, reliability, and efficiency. Our comprehensive services include design consultation, component sourcing, assembly, and testing, making us your one-stop shop for complete drone solutions.
