Cutting-Edge Plating Process for High-Performance PCBs

2025-06-19

In the realm of high-end electronics manufacturing, every PCB carries the reputation and future of the customer's product. We understand that a commitment to excellence cannot be fulfilled by mere claims of process experience. True assurance stems from uncompromising investment in core equipment. Our choice of the industry-leading gantry-type fully automatic plating line is not solely for efficiency gains, but to solidify the abstract concept of "reliability" into every precise step of production, imprinting each PCB we deliver with stability and trust.

I. Platform Stability: Gantry-Type Plating Line – Stability Reigns Supreme

The success of traditional plating processes heavily depends on environmental stability and operational consistency. Our gantry-type plating line fundamentally addresses this challenge.

Key Advantages:

  • High-load capacity & stable structure ensure process consistency even in high-volume production.
  • Full-process automation eliminates human variability.
  • Intelligent robotic control guarantees identical loading, immersion, and current application for every PCB.

This system elevates traditional processes with "automation" and "intelligence", offering an unparalleled manufacturing platform for your products.

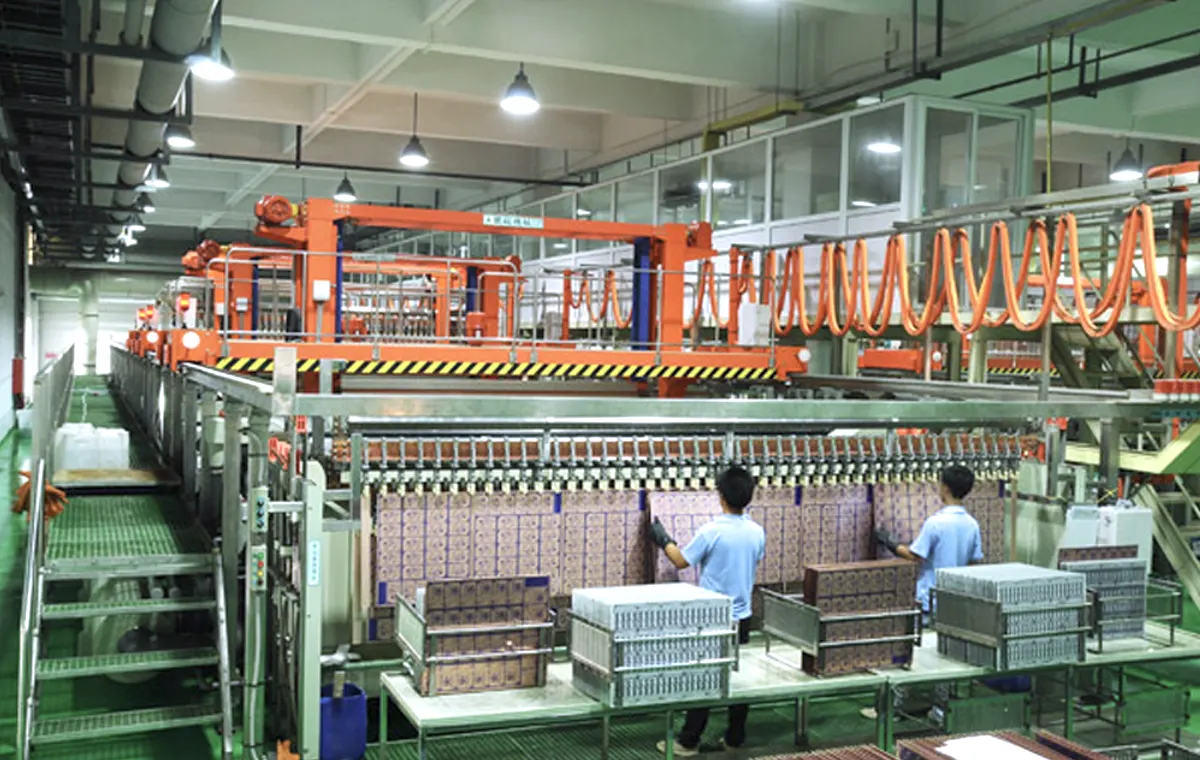

Gantry-type automatic PCB plating line system

II. Precision Control: Pulse Plating & Closed-Loop Control – "Embroidery Work" in the Micro-World

Pulse Plating Technology:

  • High-frequency pulse currents (up to 1000Hz) enable deep micro-via penetration.
  • Significantly improves copper distribution uniformity, eliminating "dog-boning".

Closed-Loop Intelligent Control:

  • Real-time current regulationvia Hall effect Sensors.
  • Automatic dosing system for stable chemical bath composition.
  • Temperature control at 25°C ensures optimal plating conditions.

The entire plating process resides within the "golden window" – a level of control no manual process can match.

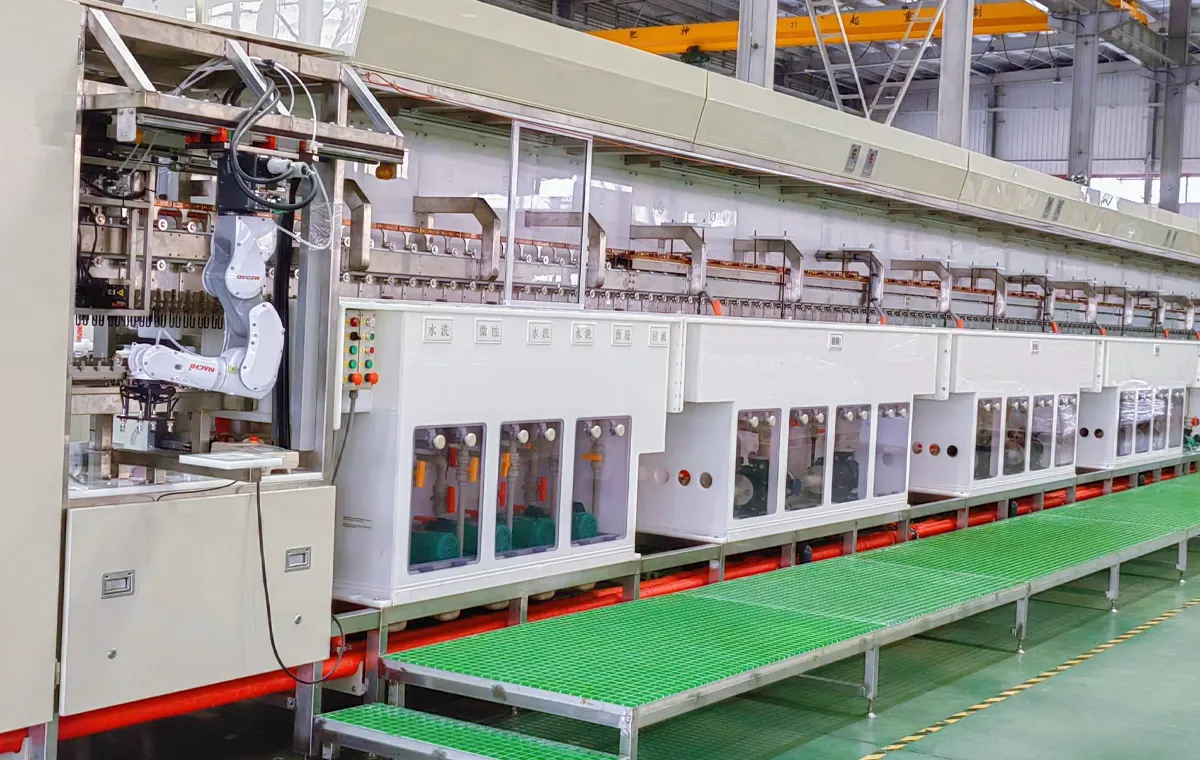

Gantry-type automatic PCB plating line system

III. Superior Results: Multi-dimensional Synergistic Technology – Conquering Industry Challenges for Perfect Hole Copper

Core Enhancements:

  • Optimized anode system: Uniform electric field targeting vias.
  • Rocking motion plating: Continuous solution renewal and ion exchange.

These combined measures ensure TP ≥ 80% per IPC-6012 Class 3, with no voids, nodules, or hidden defects.

Important Note: Gantry-type plating line is an equipment platform, while pulse plating is a technical method. They are complementary technologies, not substitutes.

IV. Comparison Tables: Breaking Down the Advantages

1. Equipment Platform Comparison: Gantry Plating Line vs. Traditional Manual Line

One: Comparison of Equipment Platforms: Gantry Plating Line vs. Traditional Ring/Manual Line
Feature Comparison Gantry Plating Line Traditional Ring / Manual Line
Core Advantage High-precision automation. Controlled by computer programs that precisely manage robotic arm movement, positioning, lifting, and timing, eliminating human error. Relies on manual operation or simple mechanical timers, leading to poor consistency and high dependency on operator experience and condition.
Impact on Product

1. Extremely High Batch-to-Batch Consistency: Every batch and every board undergoes identical plating times and chemical exposure, ensuring highly uniform product performance.

2. High and Stable Yield Rate: The automated process prevents basic errors like missed steps or incorrect timing, resulting in reliable and consistent product quality.
3. Ideal for Complex Processes: Capable of executing complex, multi-step process flows through programming, guaranteeing perfect execution every time.

1. Significant Batch-to-Batch Variation: Performance can vary between different batches, and even between boards within the same batch, due to human factors.

2. Unstable Quality: Yield rates fluctuate, and unexpected quality issues can arise, making reliability difficult to guarantee.

3. Difficult to Execute Complex Processes: The more complex the process, the higher the probability of errors.

Best Suited For

1.All products with high requirements for quality and consistency. Especially:

2.High-Volume Orders: Such as server motherboards, automotive electronics, and consumer electronics, where thousands of units must have identical performance.

3.High-Reliability Products: Such as medical, telecommunications, and industrial control equipment, where failures due to manufacturing inconsistencies are unacceptable.

1.Small-Batch Prototyping: Lower initial investment and flexible setup.

2.Low-End Products: With simple processes and non-critical quality requirements.

2. Plating Method Comparison: Pulse Plating vs. DC Plating

Two: Comparison of Plating Technologies: Pulse Plating vs. Traditional Direct Current (DC) Plating
Feature Comparison Pulse Plating Traditional DC Plating
Core Advantage Utilizes intermittent or reverse currents to "push" copper ions deep into micro-vias, forming a finer and tougher crystal structure in the plated layer. Poor via penetration, coarse grain plating
Impact on Product

1. Perfect Deep-Hole Filling: Achieves uniform copper thickness even in high aspect ratio (depth-to-diameter) vias. This results in a high Throwing Power (TP) value, eliminating "dog-bone" defects and ensuring signal integrity.

2. Superior Physical Properties: The fine-grained crystal structure of the plated layer provides better ductility and tensile strength, making it less prone to cracking under thermal stress (from soldering or high-temperature operation) and thus more durable.

3. Better Surface Quality: The plated layer is smoother and brighter, free from defects like nodules or burning.

Cracks, voids, uneven copper, low reliability
Best Suited For

1.All products with extreme requirements for performance and reliability. Especially:

2. High-Density Interconnect (HDI) Boards: Containing numerous micro-vias, blind vias, and buried vias that require pulse plating to ensure conductivity.

3.High-Frequency & High-Speed Boards: Where uniform copper plating is critical for signal transmission quality.

4.Thick Copper & Power Boards: Requiring a uniform, thick plated layer to handle high currents.

5. Aerospace & Military Products: Where reliability requirements are at their peak.

1.Single/Double-Sided Boards: With large via diameters and low aspect ratios. <br>

2. Low-Speed Digital/Analog Circuits: Where signal integrity requirements are not stringent.

Conclusion: Synergistic Strength, Extraordinary Achievement

By combining advanced pulse plating technology with our gantry-type plating platform, we provide dual-layer assurance:

  • Macro Level: Gantry Line ensures "every board is equally good"
  • Micro Level: Pulse Plating ensures "every via is perfectly plated"

This powerful synergy enables Rich Full Joy to deliver high-end PCBs that meet the highest standards in performance, quality, and reliability — your product's success starts with our process.
