Flex PCB Materials Selection Guide: Engineer-Approved Tactics to Cut Costs & Boost Reliability

To ensure your flexible Pcb Design is optimized from the beginning,RICH FULL JOYpresents this professional-grade Flex PCB materials selection guide. As the foundation of electrical interconNect solutions, choosing the right flex PCB core materials is essential to ensure performance, reliability, and cost-efficiency across various industries.

Part 1: Choosing FCCL Materials: Thermal Stability vs Cost Analysis (Taiflex/DuPont/Rogers)

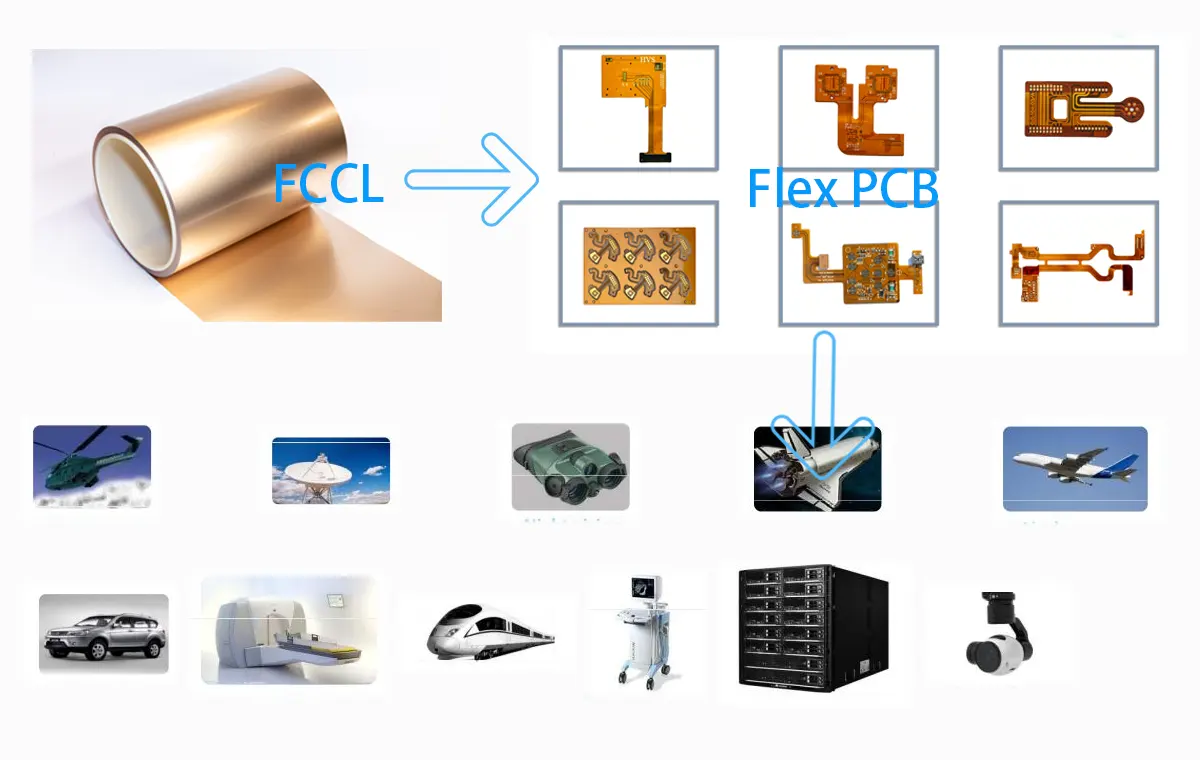

The FCCL (Flexible Copper-Clad Laminate) is the essential structural base of any Flex PCB. It directly determines the thermal stability, dielectric properties, and mechanical durability of the circuit.

Choose based on your product’s environment, performance requirements, and target market:

1. General-Purpose (Balanced Performance & Cost)

• ·Best for: Consumer electronics with standard operating conditions.
• ·Features: Excellent balance between cost and functionality.
• ·Applications: Smartphones, tablets, wearable devices, laptops.
• ·Top Brands:
  • ·🇹🇼 Taiflex – Global FCCL market leader.
  • ·🇨🇳 Shengyi Technology – Full-line solutions in rigid-flex integration.

2. High-Performance (Maximum Reliability)

• ·Best for: Environments with heat, chemicals, or vibration.
• ·Features: Superior dimensional stability, heat resistance, and chemical durability.
• ·Applications: Automotive engine compartments, industrial sensors, medical devices, aerospace.
• ·Top Brands:
  • ·🇺🇸 DuPont – Pyralux® series is the global standard.
  • ·🇹🇼 Taimide – Known for PI films with high reliability.

3. High-Frequency & High-Speed (Low-Loss)

• ·Best for: High-speed signal transmission and RF integrity.
• ·Features: Ultra-low dielectric constant (Dk) and dissipation factor (Df).
• ·Applications: 5G modules, data centers, satellite comms, RF systems.
• ·Top Brands:
  • 🇺🇸 Rogers – R/flex® series is trusted for signal-critical designs.
  • 🇯🇵 Panasonic – Felios® series supports 5G and high-speed interconnects.

Part 2: Copper Foil – The Electrical Conductor

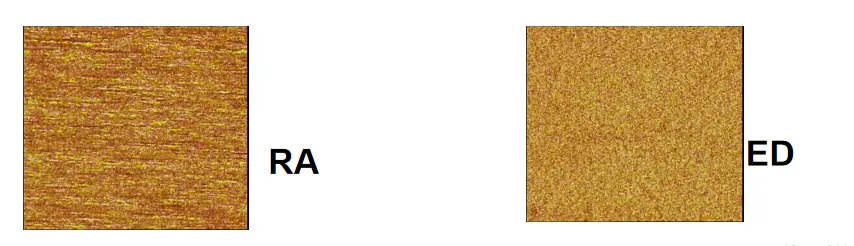

1. Rolled-Annealed (RA) Copper – For Dynamic Flexing

• ·Key Benefits: Superior flex endurance (100,000+ cycles).
• ·Ideal for: Foldable displays, robotic joints, smart wearables, flexible hinges.
• ·Top Brands:
  • ·🇯🇵 Mitsui Kinzoku
  • ·🇯🇵 Fukuda Metal Foil

2. Electro-Deposited (ED) Copper – For Static Applications

• ·Key Benefits: Excellent for cost-effective designs with limited flexing.
• ·Ideal for: Static bend & fix scenarios like display modules, connector routing.
• ·Top Brands:
  • ·🇹🇼 Chang Chun
  • ·🇨🇳 Kingboard

Part 3: Additional Functional Layers (Optional Enhancements)

EMI Shielding Film

• ·Purpose: Suppresses electromagnetic interference to ensure signal clarity.
• ·Recommended For: 5G modules, RF circuits, antenna lines.
• ·Trusted Brands: 🇯🇵 TATSUTA, 🇨🇳 Fangbang

Stiffener Layers

• ·Purpose: Reinforces critical zones, especially connector areas.
• ·Common Materials: FR-4 (rigid), PI Sheet (flexible), stainless steel.
• ·Function: Enhances solderability and mechanical durability.

Adhesive & Mounting Tapes

• Purpose: Helps fix, assemble, and reinforce flex circuits during product integration.
• Top Suppliers: 🇺🇸 3M, 🇯🇵 Nitto Denko, 🇩🇪 Tesa

Quick-Reference Selection Matrix

RICH FULL JOY’s Commitment to Your Flex PCB Success

Theoretical knowledge is just the start. What truly matters is how these materials perform in real-world applications.

At RICH FULL JOY, we’ve helped hundreds of clients—from automotive Tier 1s to wearable tech pioneers—make the right flex PCB material choices that optimize reliability, reduce cost, and improve product performance.

• ·Selecting optimal FCCL and copper foil combinations
• ·Avoiding material mismatches that cause reliability issues
• ·Shortening time-to-market with proven material stacks

Let us help you build a flexible PCB that’s engineered for success.
