Why Your Flex PCB Quote Is Too High – And How to Fix It
Wondering how much a Flex Pcb costs? The answer depends on several critical factors, including material type, layer count, design complexity, and production volume. This guide will break down each cost element and help you get a more accurate quotation while optimizing your overall budget.
1. What Determines the Cost of a Flex PCB?
1.1 Number of Layers
The more layers your flex PCB has, the more complex the manufacturing process becomes. A single-layer Fpc is far less expensive than a 6-layer or 12-layer board due to additional lamination and alignment steps.
1.2 Substrate Material
Polyimide is the most widely used material for flexible circuits, but different grades and thicknesses (e.g., adhesive-based vs. adhesive-less, RA vs. ED copper) can significantly impact cost. High-performance materials like LCP (Liquid Crystal Polymer) are more expensive.
1.3 Circuit Complexity
Trace width/spacing, impedance control, microvias, and the need for shielding or stiffeners all increase production complexity and thus cost.

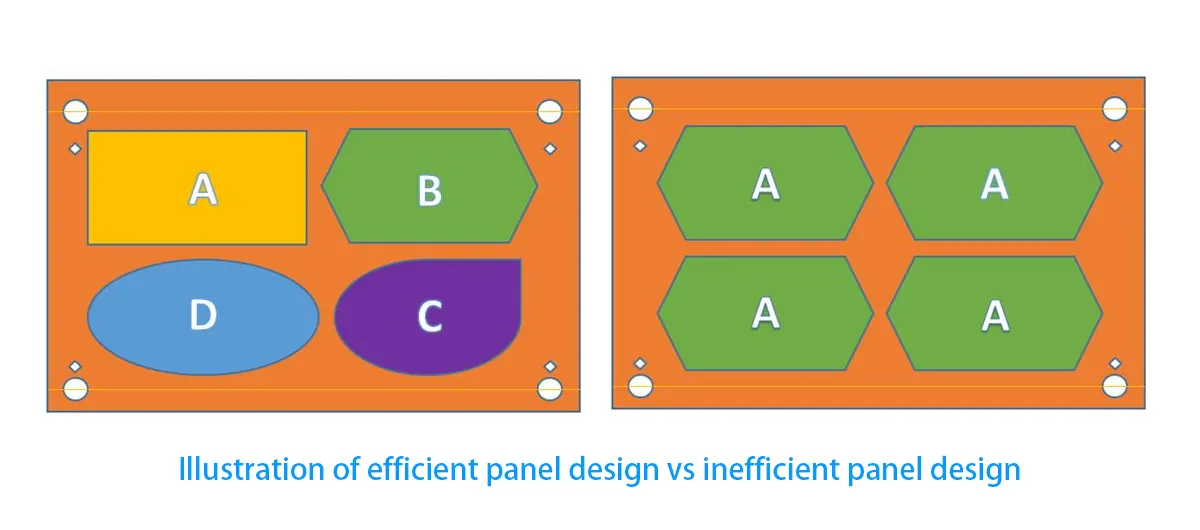

1.4 Board Size & Panel Utilization
Larger boards or awkward shapes that reduce panel efficiency will increase the cost per unit. Design optimization can often save up to 15–20% of material cost.
1.5 Surface Finish
Common finishes include ENIG, OSP, Immersion Silver, and Hard Gold. Each has a different price point and application suitability.
1.6 Quantity & Production Run Type
Prototype orders (1–5 pcs) have a higher per-unit cost than mass production (1,000+ pcs) due to setup charges and engineering time. Quick-turns also add a rush fee.
2. Flex PCB Price Breakdown (Example Chart)
Here’s a sample breakdown of how Flex PCB pricing is composed:
| Cost Element | Typical Share |
|---|---|
| Material (PI, Copper Foil, Coverlay) | 40–50% |
| Manufacturing Process (Etching, Drilling, Lamination) | 25–30% |
| Surface Finish & Testing | 10–15% |
| Engineering Setup / NRE | 5–10% |
| Logistics & Packaging | 3–5% |
Note: These numbers vary depending on your design and production volume. Contact us to receive a customized cost analysis.
3. How to Reduce Flex PCB Costs Without Sacrificing Quality
- ✅ Choose standard material thickness and copper weight
- ✅ Avoid unnecessary stiffeners or plated slots
- ✅ Increase panel efficiency through better array design
- ✅ Use surface finishes aligned with your product lifecycle
- ✅ Consolidate small orders to reduce NRE charges
Our engineering team offers free DFM (Design for Manufacturability) review to help reduce unnecessary cost before production begins.
4. How to Get an Accurate Quote
For a fast and precise quotation, please provide the following files:
- ✔ Gerber file (RS-274X or ODB++)
- ✔ Bill of Materials (for assembly quotes)
- ✔ Layer stack-up & impedance requirements
- ✔ Expected quantity and turnaround time
You can contact our sales team for technical guidance.
5. Why Choose RICH FULL JOY?
- Over 20 years of experience in Flex & Rigid-Flex PCB manufacturing
- Rapid prototyping – 12-layer FPC in 5–7 working days
- ISO 13485, UL, RoHS, REACH certified
- Flexible MOQ & competitive pricing for small and large batches
- End-to-end support – from design to assembly
📩 Ready to Get a Quote?
Our engineers are ready to provide a detailed quotation based on your project requirements. Click below to get started:
contact our sales engineers for a quick consultation.
