Flex PCB Design Guidelines (2025): Expert Guide to Bendability, Stack-Up & Materials
2025-07-03
Engineered for Reliability in Dynamic Applications
Key Insight:78% of Flex Pcb failures stem from bend radius violations (IPC reliability data). This guide provides engineering-grade solutions for mission-critical applications.
1. Mastering Flex PCB Bendability: Static vs Dynamic Design Rules
Critical Distinction
- Static (Bend-to-Install): <100 bends lifetime (e.g., medical implants)
- Dynamic (Continuous Flex): >100,000 cycles (e.g., robotics joints)

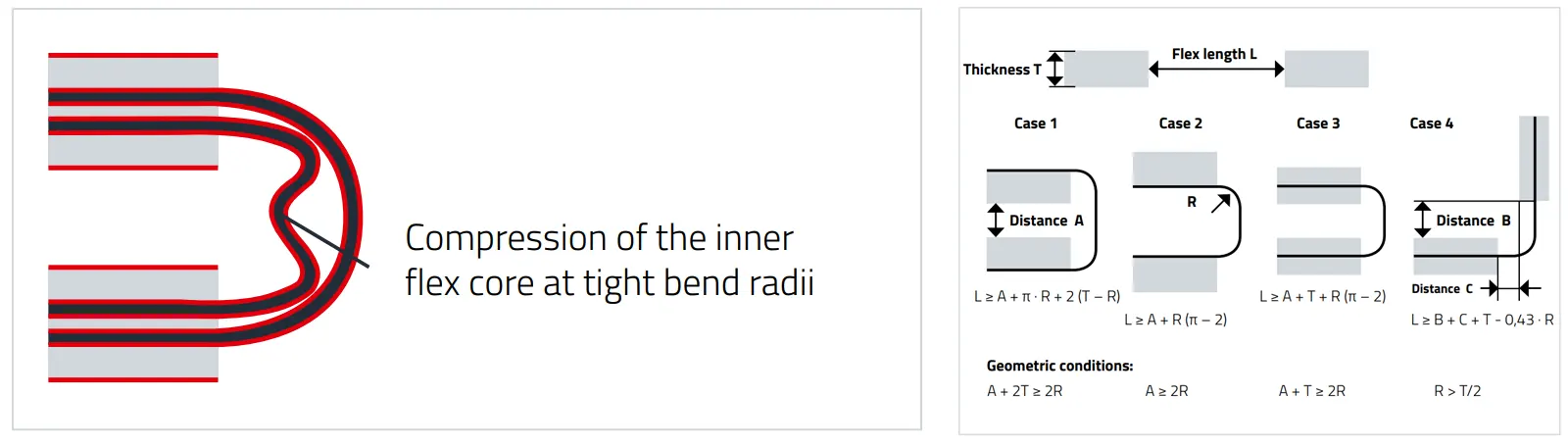

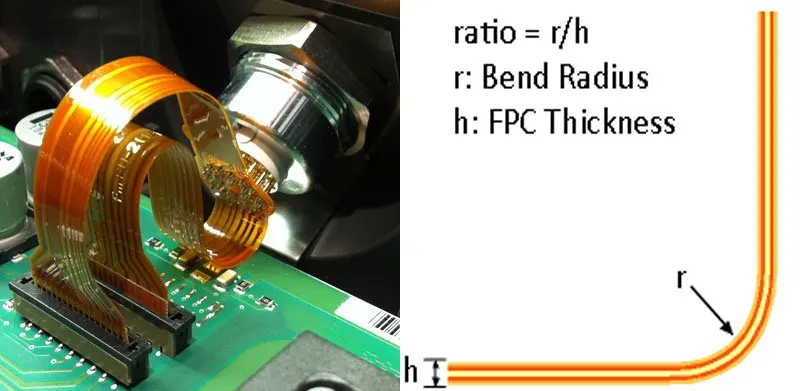

Bend Radius Calculations (Per IPC-2223)
| Layers | Total Thickness (mm) | Static Min Radius | Dynamic Min Radius |
|---|---|---|---|
| 1 | 0.15 | 1.5mm (10:1 ratio) | 15mm (100:1 ratio) |
| 2 | 0.25 | 2.5mm | 37.5mm |
| 4+ | 0.50 | 10mm (20:1 ratio) | Not Recommended |
Design Imperatives
- Trace Routing: Always perpendicular to bend axis (90°=failure risk↑ 300%)
- Neutral Axis Optimization: Place <10mil traces at mechanical neutral plane
- Copper Treatment: Use rolled annealed copper (ductility > electrodeposited)
- Avoid in Bend Zones: PTH vias, components, 90° angles
⚠️ Critical: Bend radius violations account for 78% of field failures. Always include 20% safety margin beyond IPC minimums.
2. Material Science: polyimide vs FR4 Performance Matrix
Dielectric Properties Comparison
| Property | FR4 (Rigid) | Polyimide (Flex) | Impact on Design |
|---|---|---|---|
| Dk @ 1GHz | 4.5 | 3.2 | Lower signal loss |
| Tg (°C) | 130-180 | >250 | Higher thermal stability |
| CTE (ppm/°C) | 14-18 | 12-15 | Reduced warping |
| Moisture Absorption | 0.8% | 2.8% | Requires pre-bake |
Copper Selection Guide
- Dynamic Flex: Rolled annealed Cu (elongation >15%)
- High-Frequency: Low-profile reverse-treated foil
- High-Current: 2oz+ copper with polyimide reinforcement

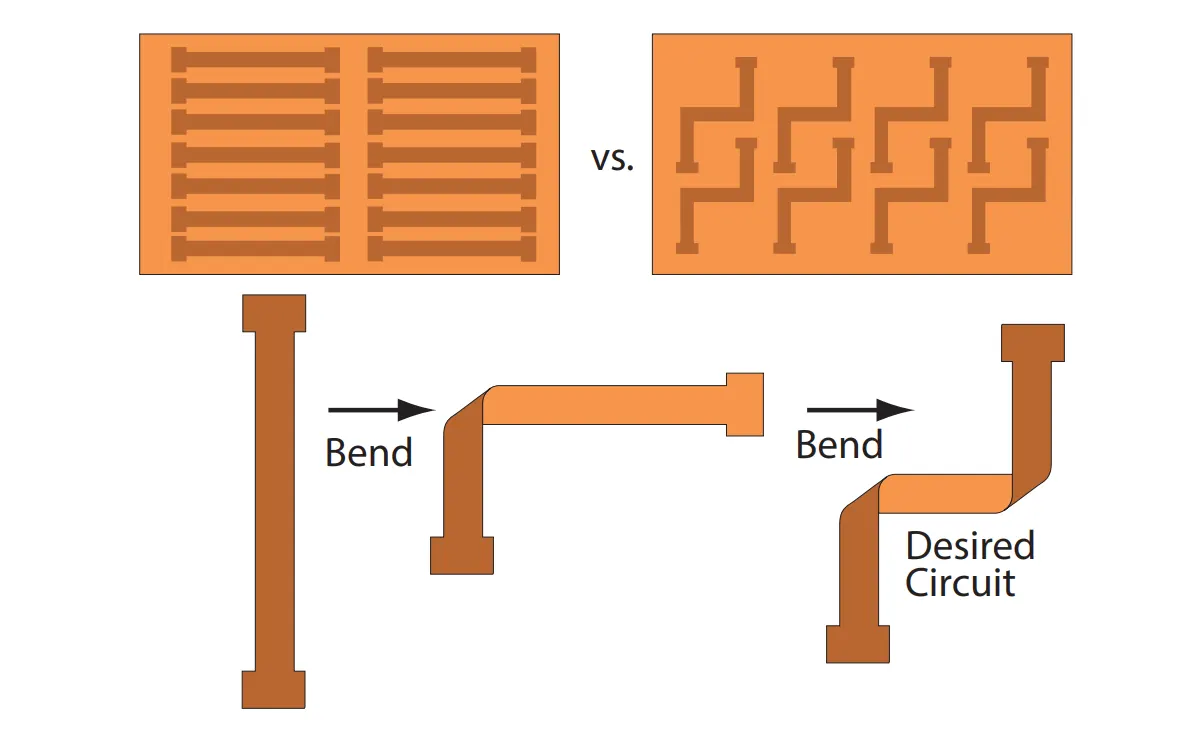

3. Layout & Routing: Advanced Techniques
Via Design Protocol
- Bend Zones: No vias within 3x board thickness of bend line
- Staggered Microvias: Use 0.1mm laser vias in high-density areas

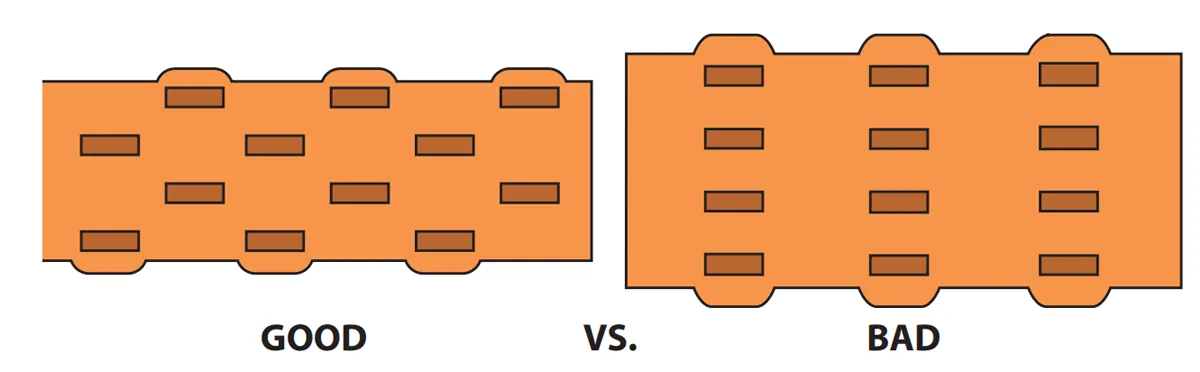

- Anchoring Spurs: Add teardrops at trace-pad junctions (stress↓ 40%)
Impedance Control Methodology
# Stripline Impedance Formula (IPC-2141A) Z₀ = (87/√(εᵣ+1.41)) * ln(5.98H/(0.8W+T)) # Where: # H = dielectric thickness # W = trace width # T = trace thickness # εᵣ = dielectric constantEMI Shielding Options
| Type | Effectiveness | Flexibility | Cost |
|---|---|---|---|
| Solid Copper | ★★★★☆ | ★☆☆☆☆ | High |
| Cross-Hatch (60%) | ★★★☆☆ | ★★★★☆ | Medium |
| Silver Epoxy | ★★☆☆☆ | ★★★★★ | Low |
4. Stackup Architecture: 4 Critical Configurations
High-Reliability Rigid-Flex Stackup
Top Rigid (FR4): Components ↓ Prepreg Flex Core (25μm PI + 18μm Cu) ↑ Prepreg Bottom Rigid (FR4): Connectors Balanced construction prevents curl (CTE mismatch <3ppm)
Bookbinder Technique
- Enables 180° bends in multilayer flex
- Layer separation: 0.1mm air gaps
- Cost premium: 35-40%
Impedance-Controlled Case Study
- Problem: 100Ω differential pair in 4-layer flex
- Solution:
- Signal layers: 0.1mm traces
- Dielectric: 50μm polyimide (εᵣ=3.2)
- Ground plane separation: 0.2mm
- Result: ±7% tolerance achieved
5. IPC Compliance Framework
Standards Hierarchy
graph TD A[IPC-2221] --> B[Generic Design] A --> C[IPC-2223] --> D[Flex/Rigid-Flex] D --> E[Materials] D --> F[Conductor Spacing] D --> G[Bend Ratios] H[IPC-6013] --> I[Qualification Tests] I --> J[Thermal Cycling] I --> K[Bend Endurance] Critical Testing Protocols
- Dynamic Flex: 10,000 cycles @ 20mm radius (IPC-TM-650 2.4.3)
- Thermal Shock: -55°C ↔ 125°C, 100 cycles (JESD22-A104)
- Ionic Contamination: <1.56μg/cm² NaCl equivalent
6. Cost & Timeline Drivers
Manufacturing Complexity Matrix
| Factor | Cost Impact | Lead Time Impact |
|---|---|---|
| Layer Count >6 | +40-60% | +5 days |
| Tighter than 4/4mil | +25% | +3 days |
| Controlled Impedance | +15-20% | +2 days |
| Military Certification | +100% | +14 days |
Lead Time Reduction Strategy
- Use standard polyimide thickness (25μm/50μm)
- Avoid custom coverlay openings
- Provide impedance models upfront
7. Manufacturer Selection Checklist
20-Point Vendor Evaluation
- IPC-6013 Class 3 certification
- Rolled annealed copper inventory
- Laser drilling capability (<75μm)
- Impedance testing with TDR
- Dynamic flex testing rigs
- Cleanroom assembly (Class 8)
- CTE-matched stiffener options
- On-site failure analysis lab
✦ Industry Benchmark: Top manufacturers achieve <0.5% defect rate on 6+ layer rigid-flex
Interactive Design Tools
Bend Radius Calculator
Rmin = K × (Layer Count)1.5 × Total Thickness
Where K=12 (static) or 120 (dynamic)
Conductor Width Nomograph
